High-quality snap fastener with handle function, made of ABS, surface: white, PKL-07SW and PKLSW. Particularly lightweight snap fastener for caravans, yachts, private aircraft, caravans, boats, and much more, from Sugatsune / LAMP® (Japan).

Exclusive snap fastener PKL-07SW and PKLSW, made of robust ABS (plastic), surface: white

Application:

Particularly light push button for caravans, yachts, private planes, caravans, boats and much more.

The high-quality push-button closure PKL-07SW and PKLSW is a furniture handle with a locking function and, when recessed, ensures that furniture or cabinet doors do not open accidentally while driving or flying.

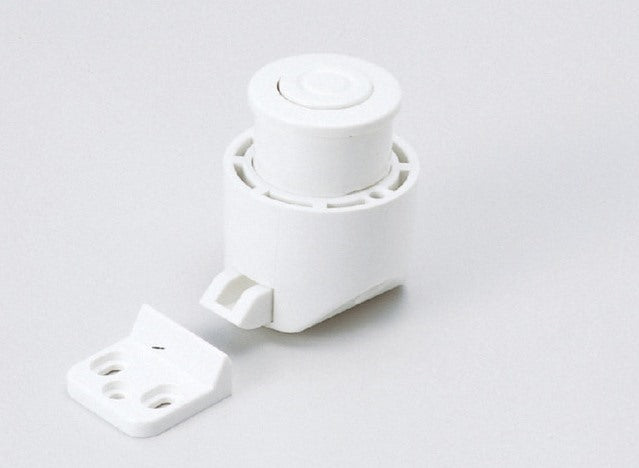

When closed, the push button is recessed and thus protects against collisions.

The push button PKL-07SW and PKLSW is for door thickness between 15 mm (19/32″) and 30 mm (1-3/16″).

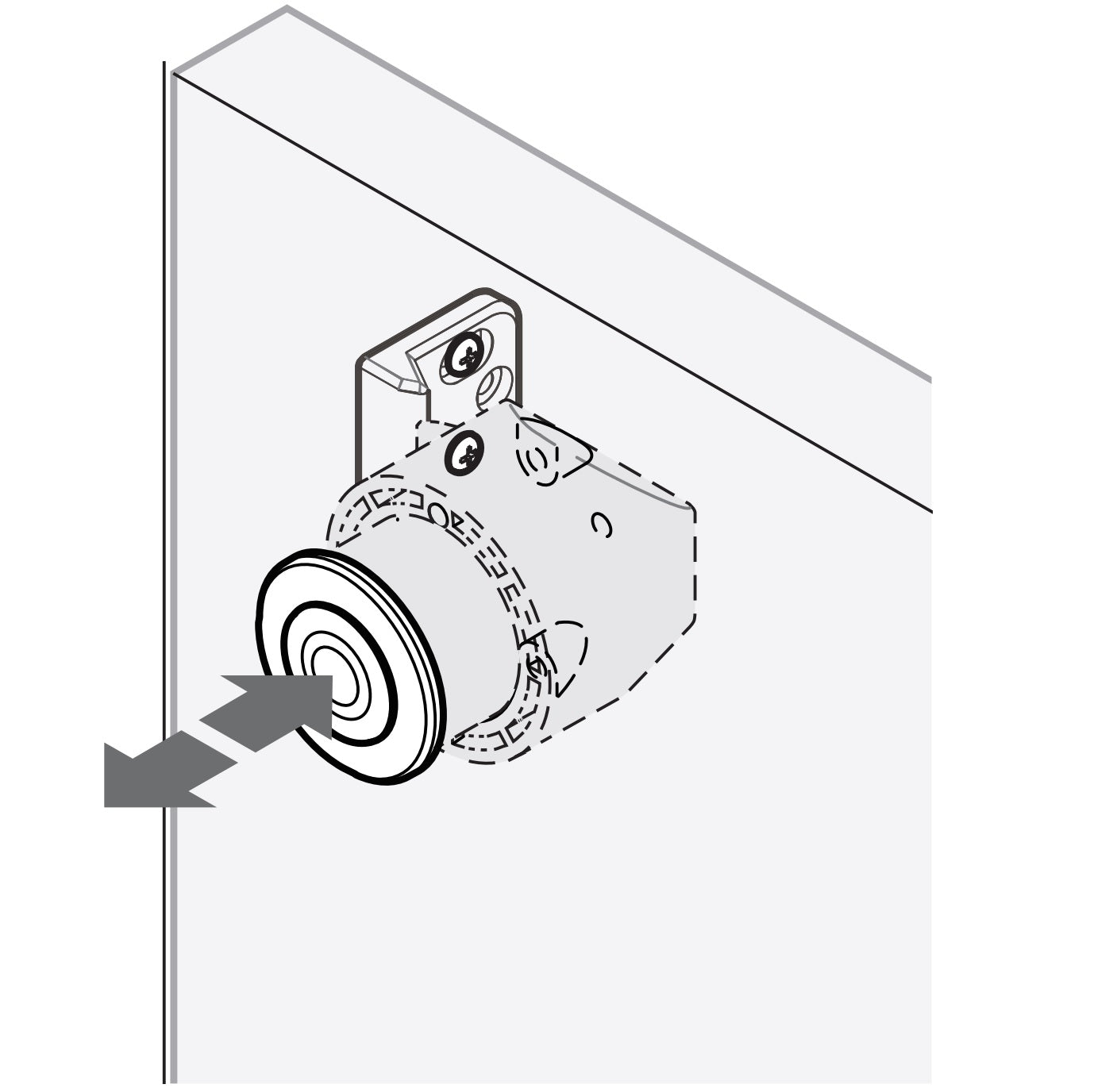

To open the furniture door, the handle of the push-button lock PKL-07SW and PKLSW must be pressed and thus released.

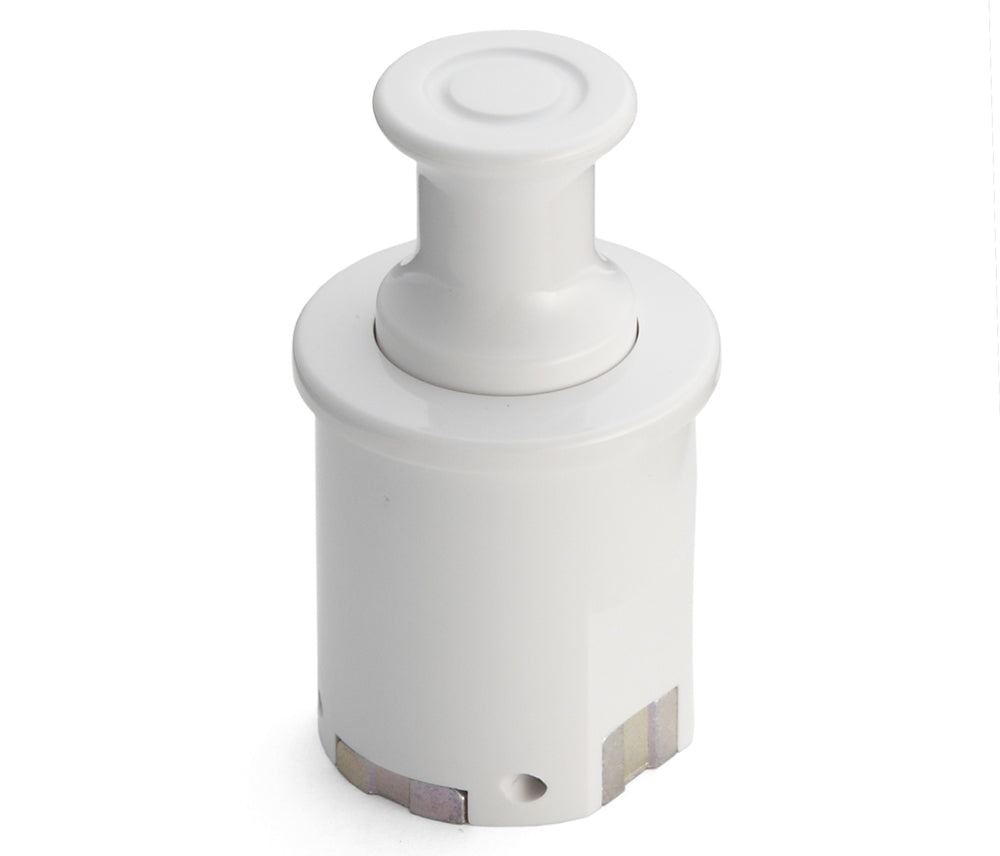

The push button PKL-07SW and PKLSW serves as a practical handle when opened.

These features make the PKL-07SW and PKLSW snap fasteners ideal for private aircraft, motorhomes and caravans.

The high-quality snap fasteners PKL-07SW and PKLSW are ideal for, among others:

• Motorhome
• Superyacht
• Camper Van
• Caravan
• yacht
• private plane
• Caravan
• Boat

Material:

• The snap fasteners PKL-07SW and PKLSW are made of robust ABS (plastic)
• ABS (acrylonitrile butadiene styrene) is a robust, durable material that provides industrial fittings and furniture fittings with high stability and impact resistance
• It is lightweight, corrosion-resistant and ideal for use in humid environments such as kitchens or bathrooms
• In addition, ABS allows for versatile design through simple color and surface adaptation, making it ideal for modern appliances, machines and furniture

Surface:

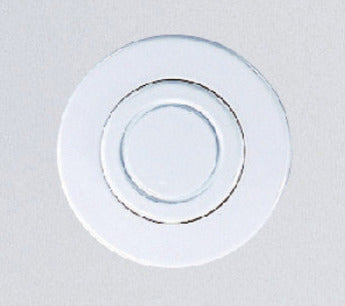

• White
• White surfaces convey a clean and modern aesthetic
• The color white reflects light effectively, making rooms appear brighter and visually larger
• In addition, white objects are inconspicuous and easy to clean, which makes them particularly practical for everyday use
• The snap fasteners PKL-07SW and PKLSW appear solid and extremely high quality

Assembly:

• The mounting is carried out using the six screws included in the delivery (screws: three round-head wood screws 3.1 x 10 mm, two round-head wood screws 3.1 x 28 mm and one truss-head screw M3 x 25 mm).

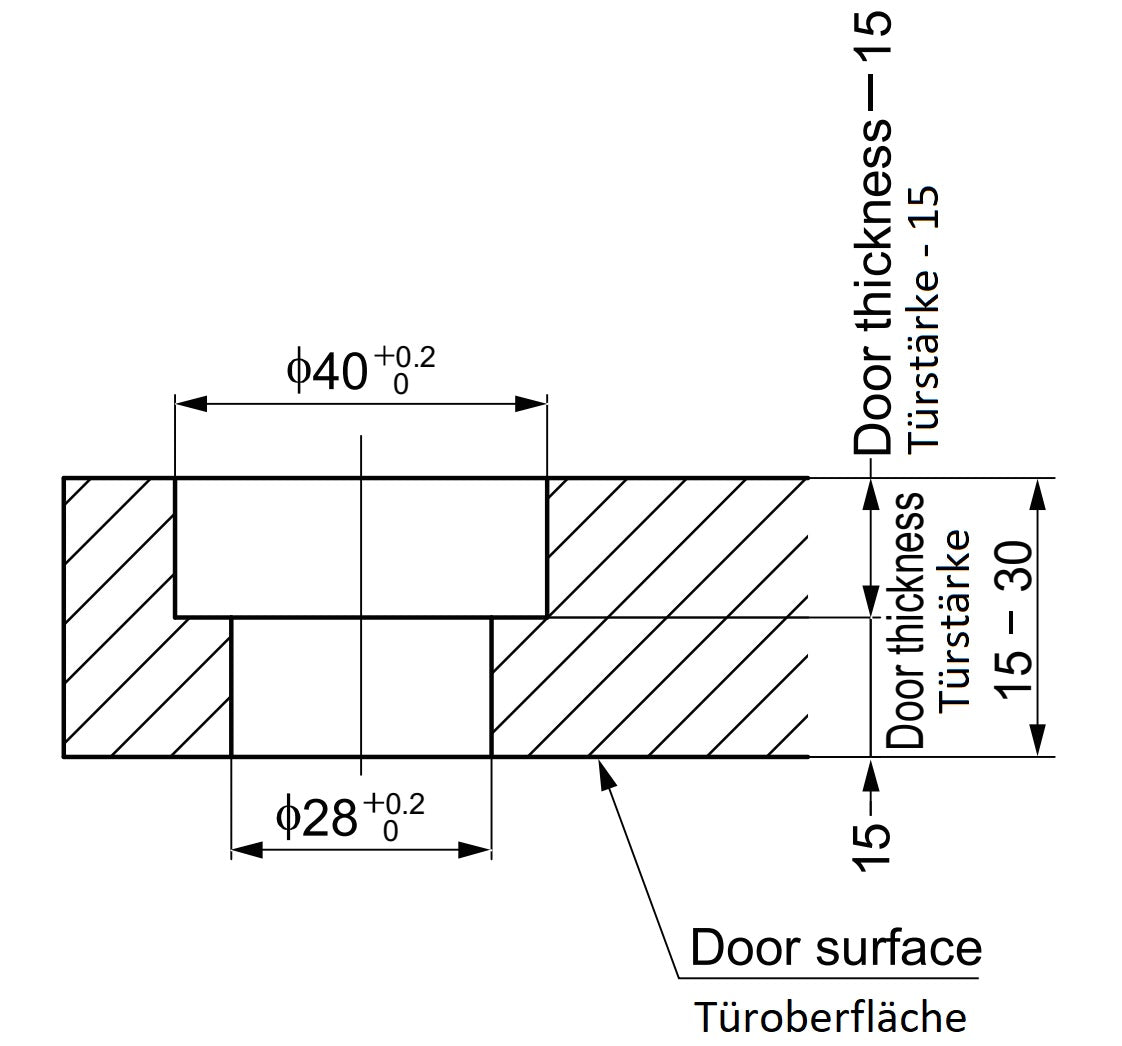

• For mounting, a hole with a diameter of ⌀28 mm (1-7/64″) must be drilled in the front
• The distance between the door edge and the hole is 34 mm (1-11/32″)
• The push button PKL-07SW and PKLSW is inserted into the front and the housing is screwed on from the back using the supplied screw

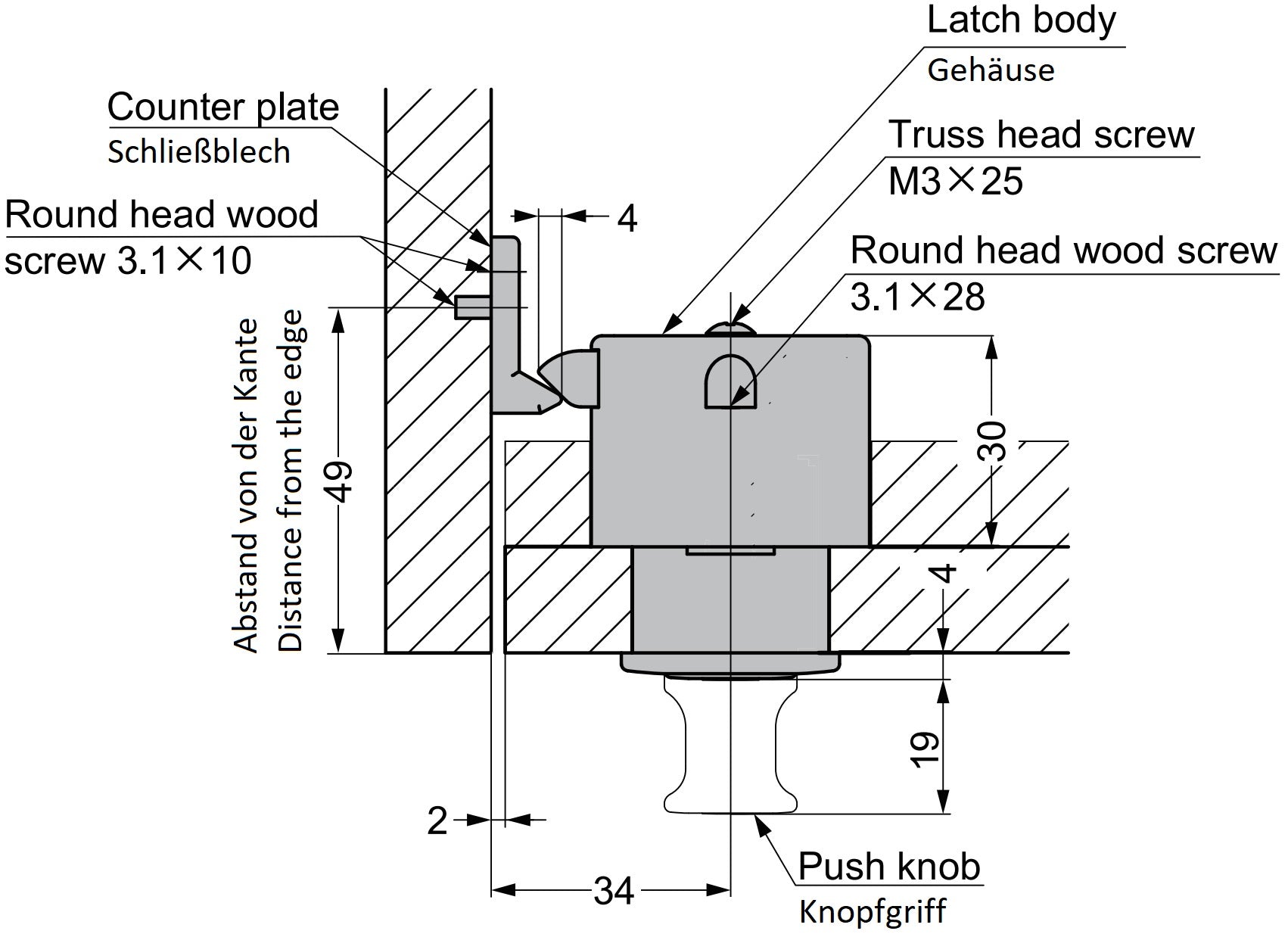

• The strike plate is then attached to the cabinet side using the supplied screws. The vertical distance between the door edge and the strike plate is 49 mm (1-59/64") (see assembly drawing for further details).

Characteristics:

• Weight: 62 g
• Load capacity: 10 kg (23 lbs)
• Size: 31 mm (1-7/32″)
• easy to assemble
• practical
• stable
• Particularly lightweight version made of ABS, especially for motorhomes and private aircraft
• Elaborately finished surface
• Exclusive, high-quality look
• Suitable for inset and overlay furniture doors
• white
• ABS
• plastic
• high brand quality from Sugatsune / LAMP®

The dimensions:

• Diameter of the snap fastener: ⌀31 mm (1-7/32″)
• Diameter of the push button: ⌀18.8 mm
• Length of the knob handle: 19 mm (3/4″)

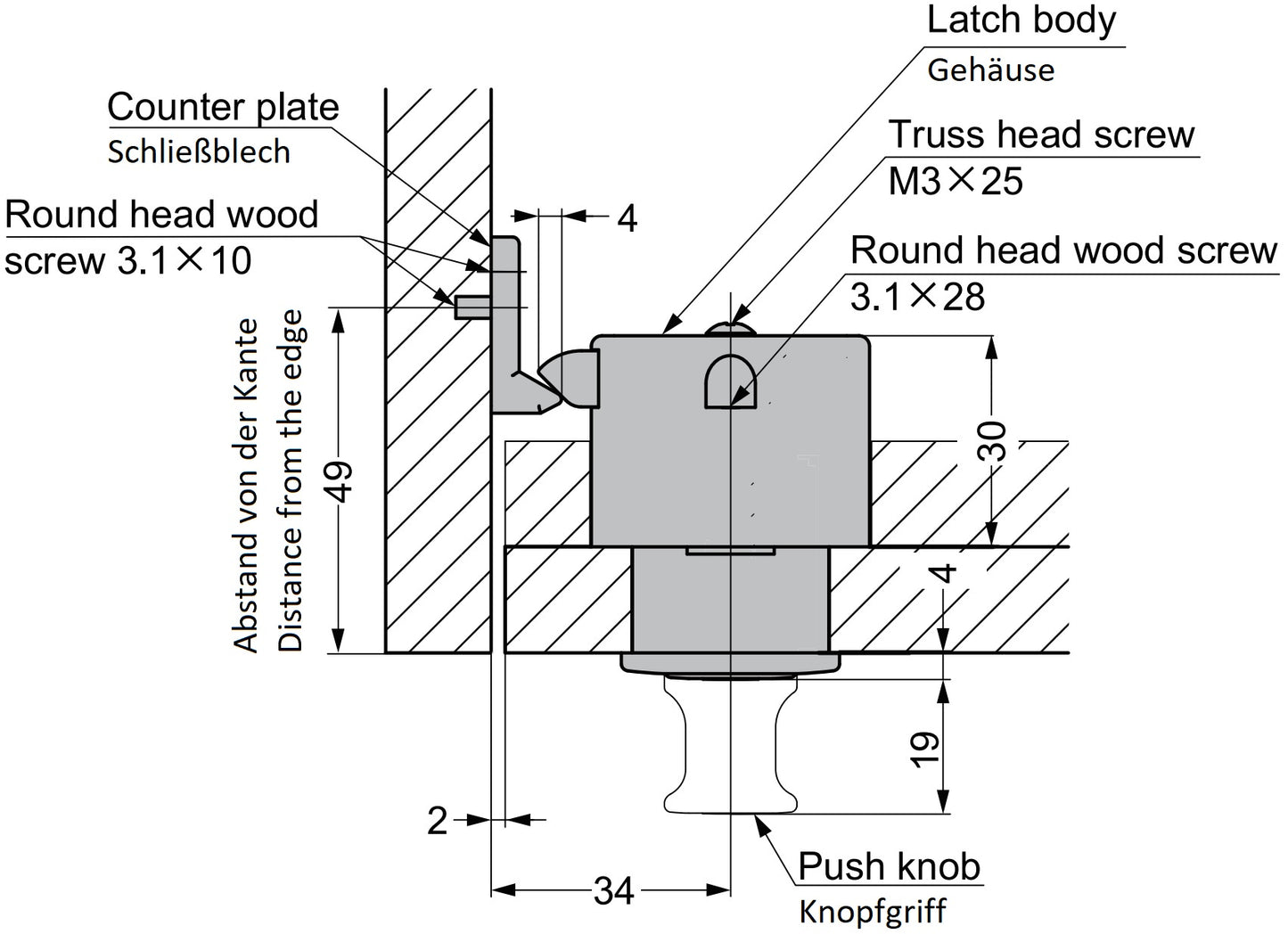

For further dimensions and details see technical drawing .

Included in delivery:

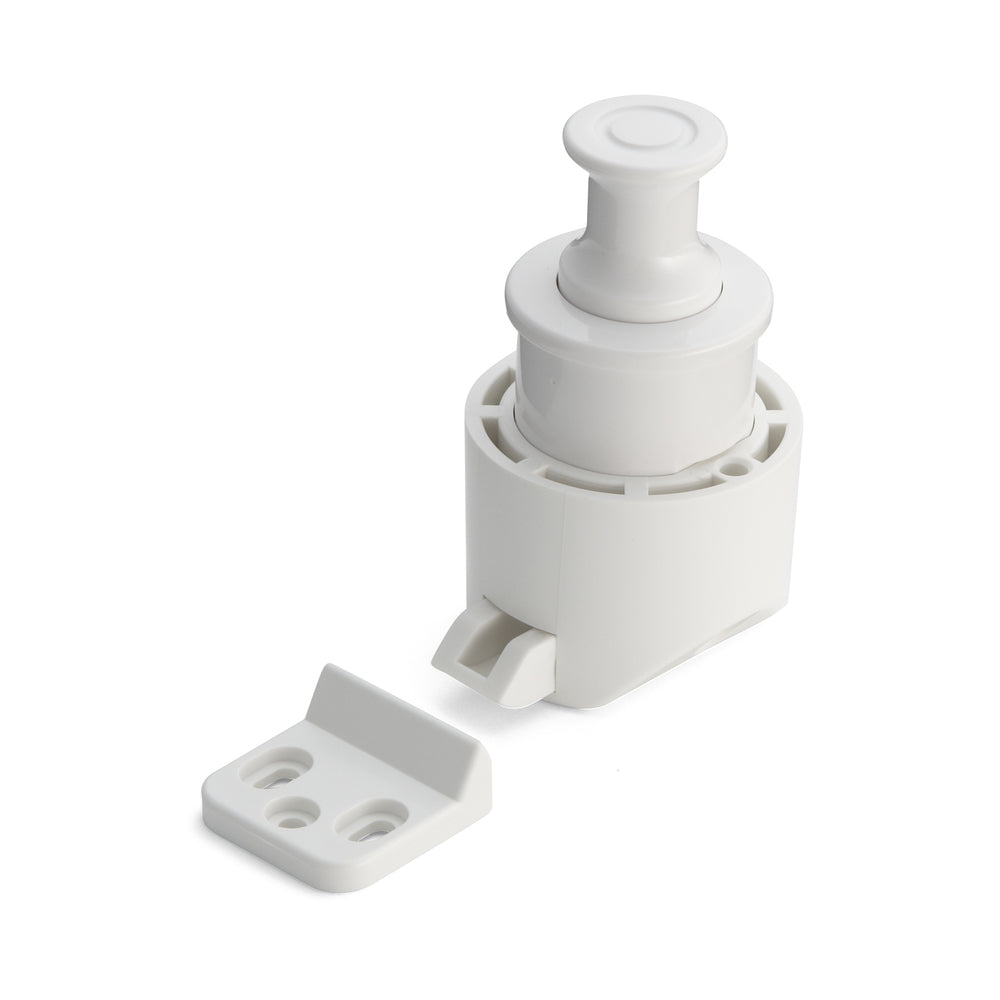

• 1 piece snap fastener PKL-07SW and PKLSW made of robust ABS, white
• Six screws: three round-head wood screws 3.1 x 10 mm, two round-head wood screws 3.1 x 28 mm and one truss-head screw M3 x 25 mm made of stainless steel

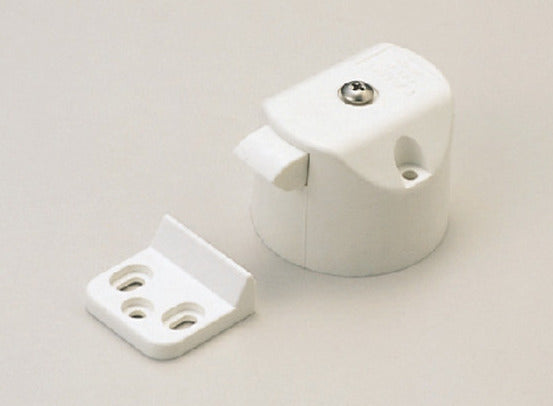

• 1 piece housing
• 1 piece counterpart

Additional Information:

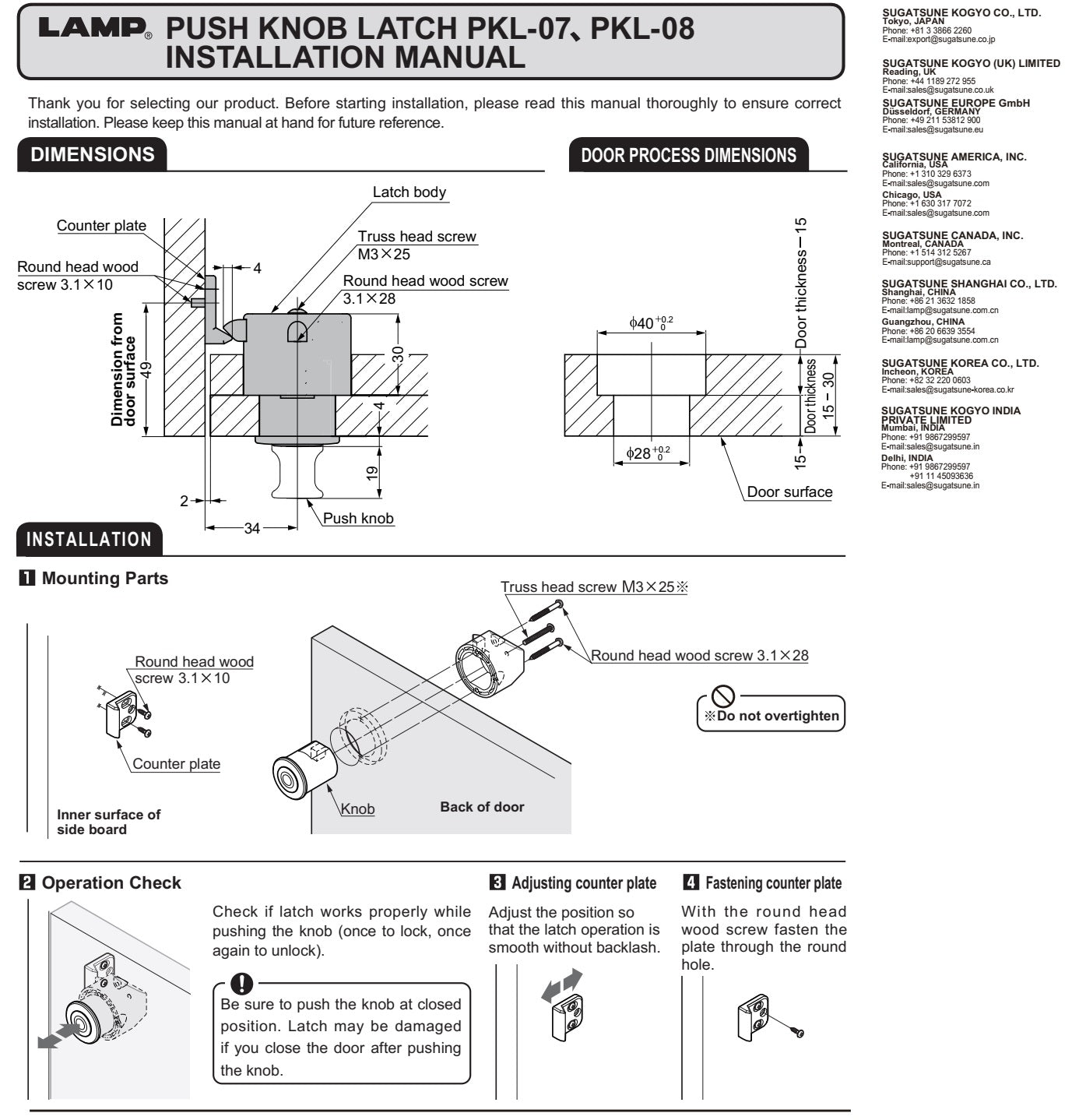

• Download assembly instructions

Manufacturer reference number:

• Article number: 140-012-819 and 140-012-820
• Item number: PKL-07SW and PKLSW
• EAN number: 4510932000147 and 4510932000154

Manufacturer: Sugatsune / LAMP® (Japan)
