High-quality snap fastener with handle function, made of zinc alloy (ZDC), surface: gold-colored, glossy polished, version: right, PKL05RGA and PKLW. Solid snap fastener for yachts and much more, from Sugatsune / LAMP® (Japan)

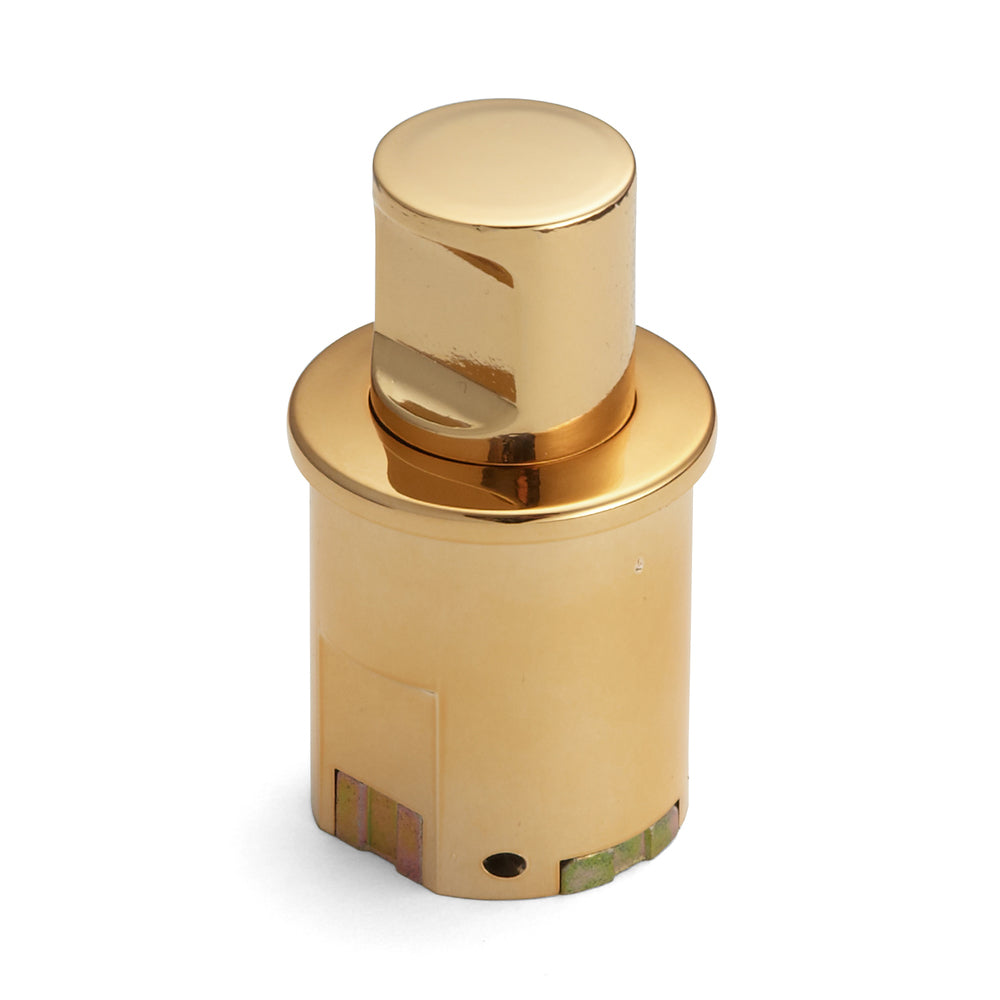

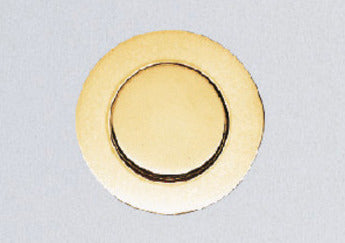

Exclusive snap fastener PKL05RGA and PKLW, made of solid zinc alloy (ZDC), surface: gold-colored, shiny polished, version: right

Application:

Solid snap fastener for yacht and much more.

The high-quality push-button closure PKL05RGA and PKLW is a furniture handle with a locking function and, when recessed, ensures that furniture or cabinet doors do not open accidentally while driving or flying.

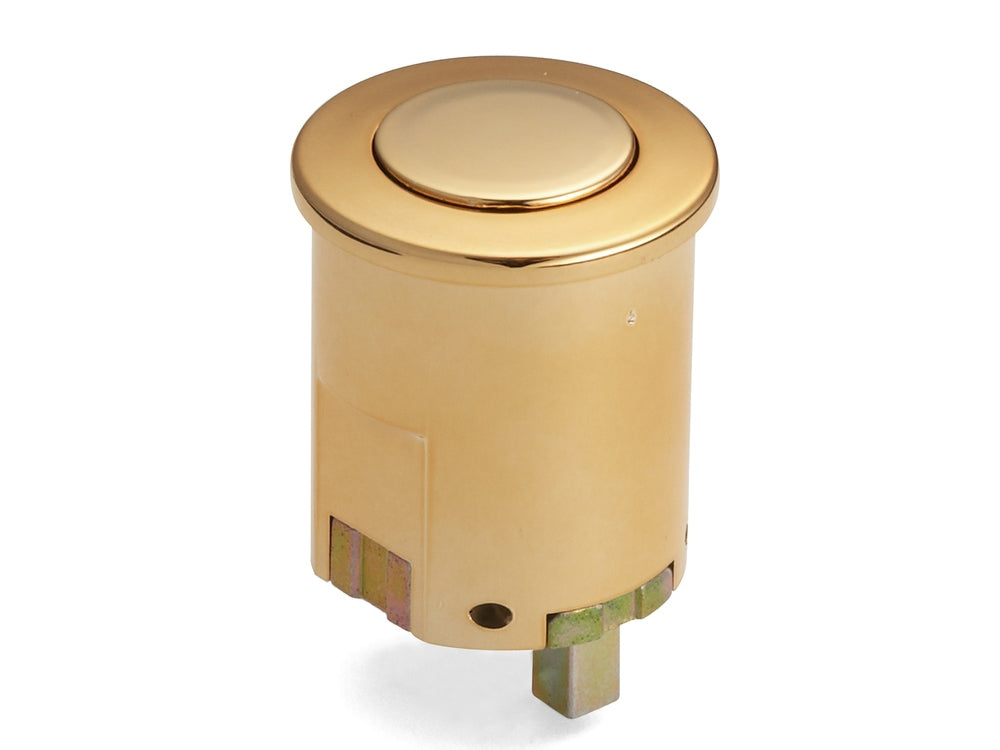

When closed, the push button is recessed and thus protects against collisions.

For door thicknesses between 15 mm (19/32") and 25 mm (63/64"). Also possible for door thicknesses of 13 mm (33/64") and above using the optional PKL-Spacer/WHT spacer (the PKL-Spacer/WHT spacer is not included; please order separately).

To open the furniture door, the handle of the push-button lock PKL05RGA and PKLW must be pressed and thus released.

The push button PKL05RGA and PKLW serves as a practical handle when opened.

These features make the PKL05RGA and PKLW snap fasteners ideal for private aircraft, motorhomes and caravans.

The PKL05RGA and PKLW push button is suitable for doors with a thickness of 15 mm (19/32″) to 25 mm (63/64″).

The high-quality snap fasteners PKL05RGA and PKLW are ideal for, among others:

• Motorhome
• Boat
• Caravan
• private plane
• Superyacht
• Caravan
• Camper Van
• yacht

Material:

• The snap fasteners PKL05RGA and PKLW are made of solid zinc alloy (ZDC)

Surface:

• Gold-colored, shiny polished
• Gold-colored surfaces give rooms a luxurious and elegant character that radiates warmth and exclusivity
• They reflect light in a subtle way, creating a welcoming atmosphere.
• They can also be combined in a variety of ways with different colors and materials to emphasize modern or classic designs.
• The snap fasteners PKL05RGA and PKLW appear solid and extremely high-quality

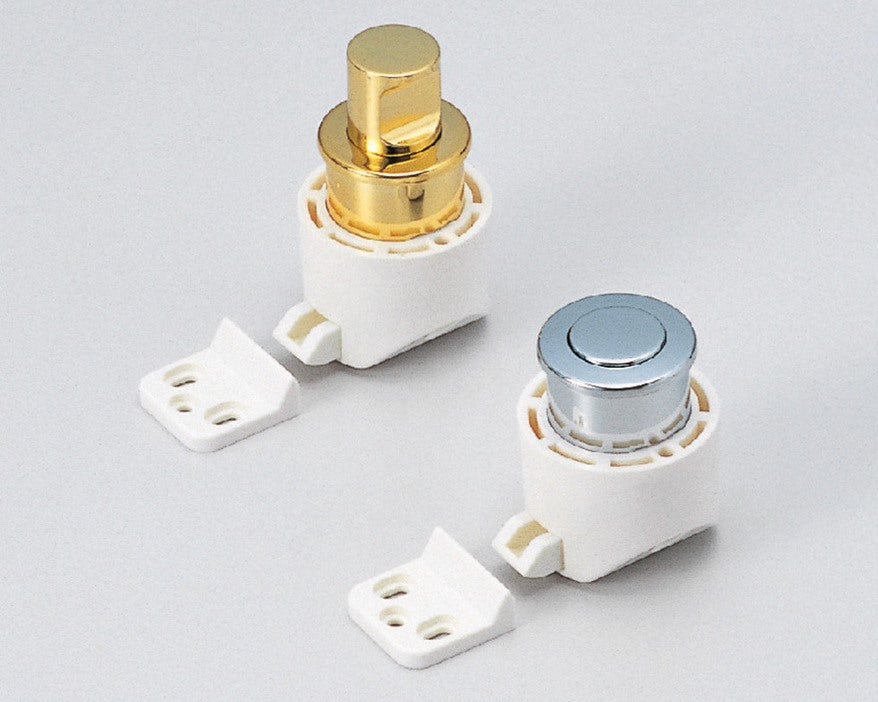

• Available in two surface colors: gold and chrome

Assembly:

• The mounting is carried out using the five screws included in the delivery (screws: two round-head wood screws 3.1 x 10 mm, two round-head wood screws 3.1 x 28 mm and one truss-head screw M3 x 25 mm).

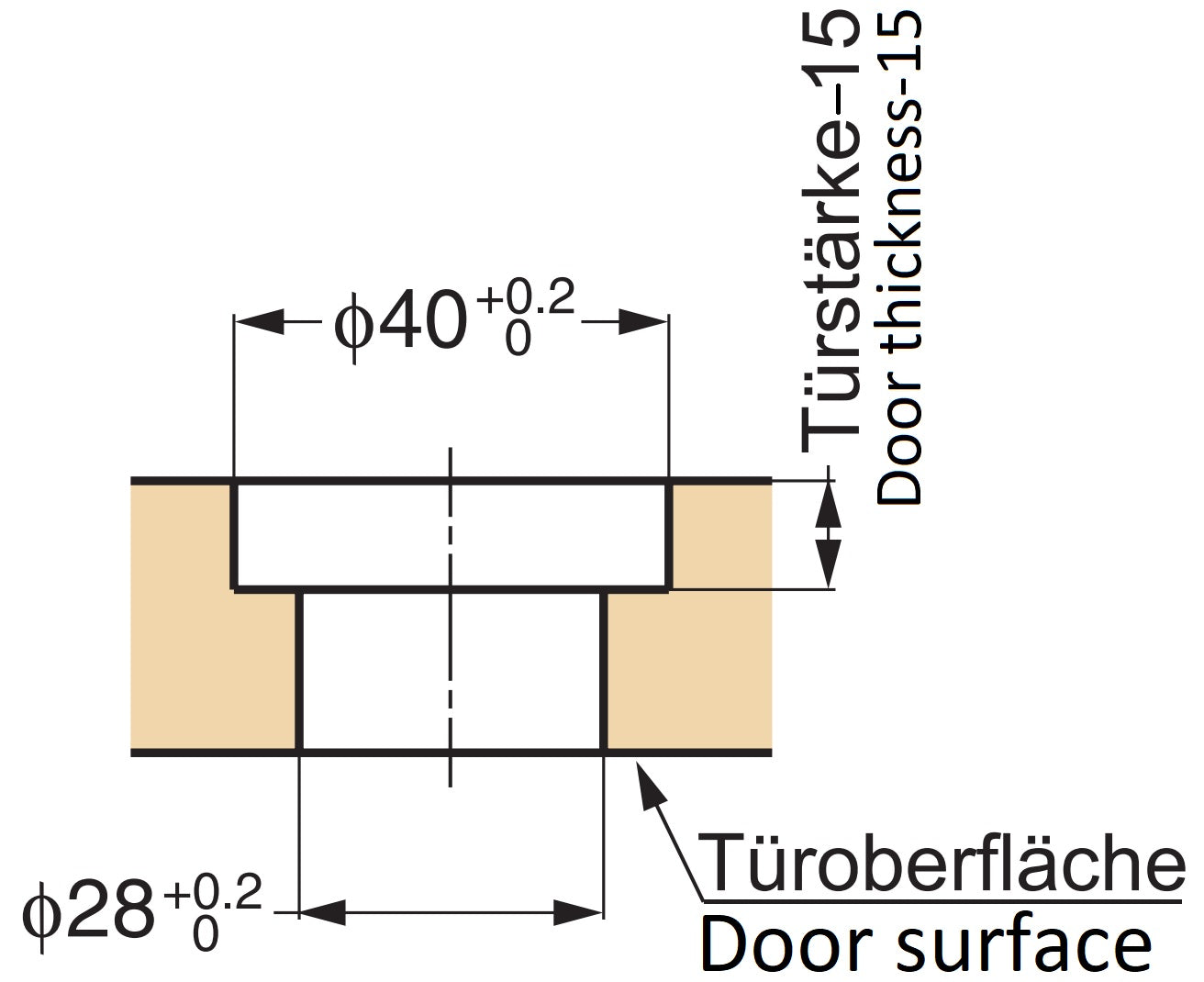

• For mounting, a hole with a diameter of ⌀28 mm (1-7/64″) must be drilled in the front
• The distance between the door edge and the hole is 34 mm (1-11/32″)
• The push button PKL05RGA and PKLW is inserted into the front and the housing is screwed on from the back using the supplied screw
• The strike plate is then attached to the cabinet side using the supplied screws. The vertical distance between the door edge and the strike plate is 49 mm (1-59/64") (see assembly drawing for further details).

Characteristics:

• Version: right
• Weight: 97 g
• Load capacity: 10 kg (23 lbs)
• Size: 31 mm (1-7/32″)
• Available in two surface colors: gold and chrome
• easy to assemble
• practical
• stable
• Elaborately finished surface
• Exclusive, high-quality look
• gold-colored, shiny polished
• zinc alloy
• ZDC
• high brand quality from Sugatsune / LAMP®

The dimensions:

• Diameter of the snap fastener: ⌀31 mm (1-7/32″)

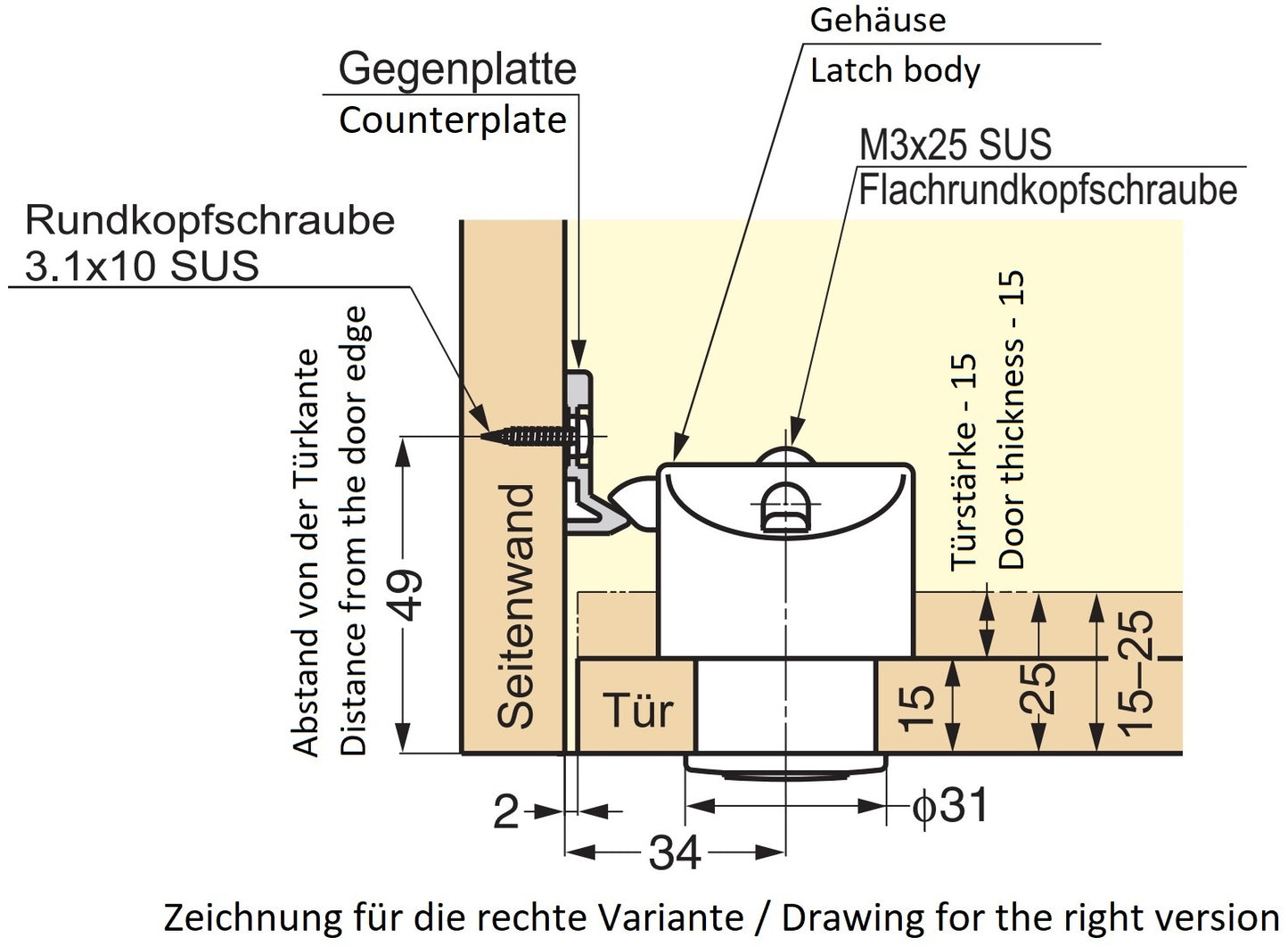

For further dimensions and details see technical drawing .

Included in delivery:

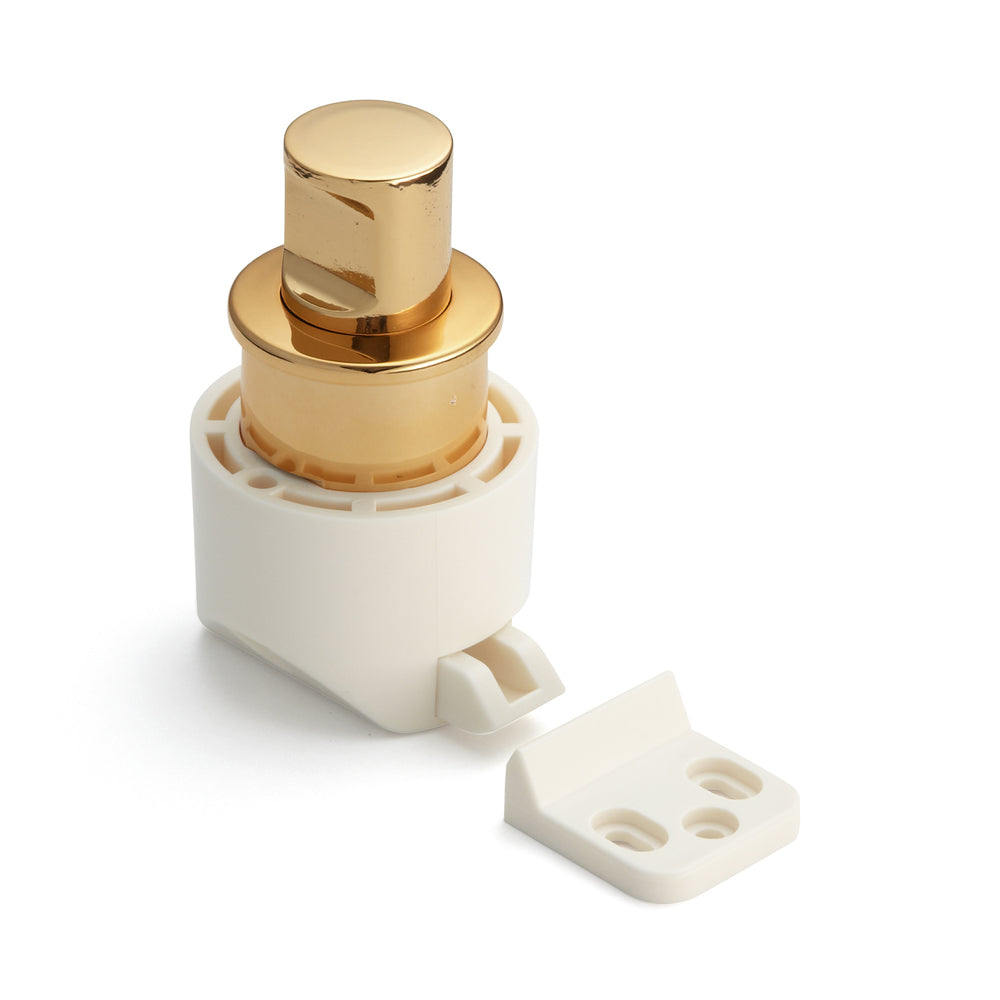

• 1 piece snap fastener PKL05RGA and PKLW made of solid zinc alloy, gold-colored, shiny polished, version: right
• Five screws: two round-head wood screws 3.1 x 10 mm, two round-head wood screws 3.1 x 28 mm and one truss-head screw M3 x 25 mm made of stainless steel

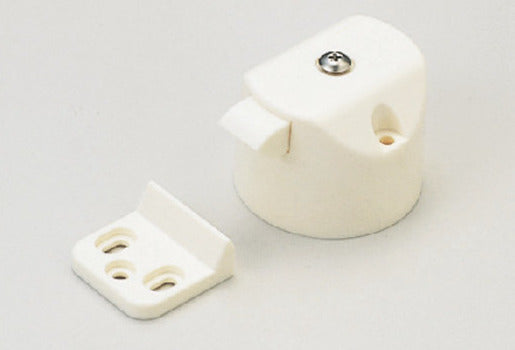

• 1 piece housing
• 1 piece counterpart

Watch product video:

Additional Information:

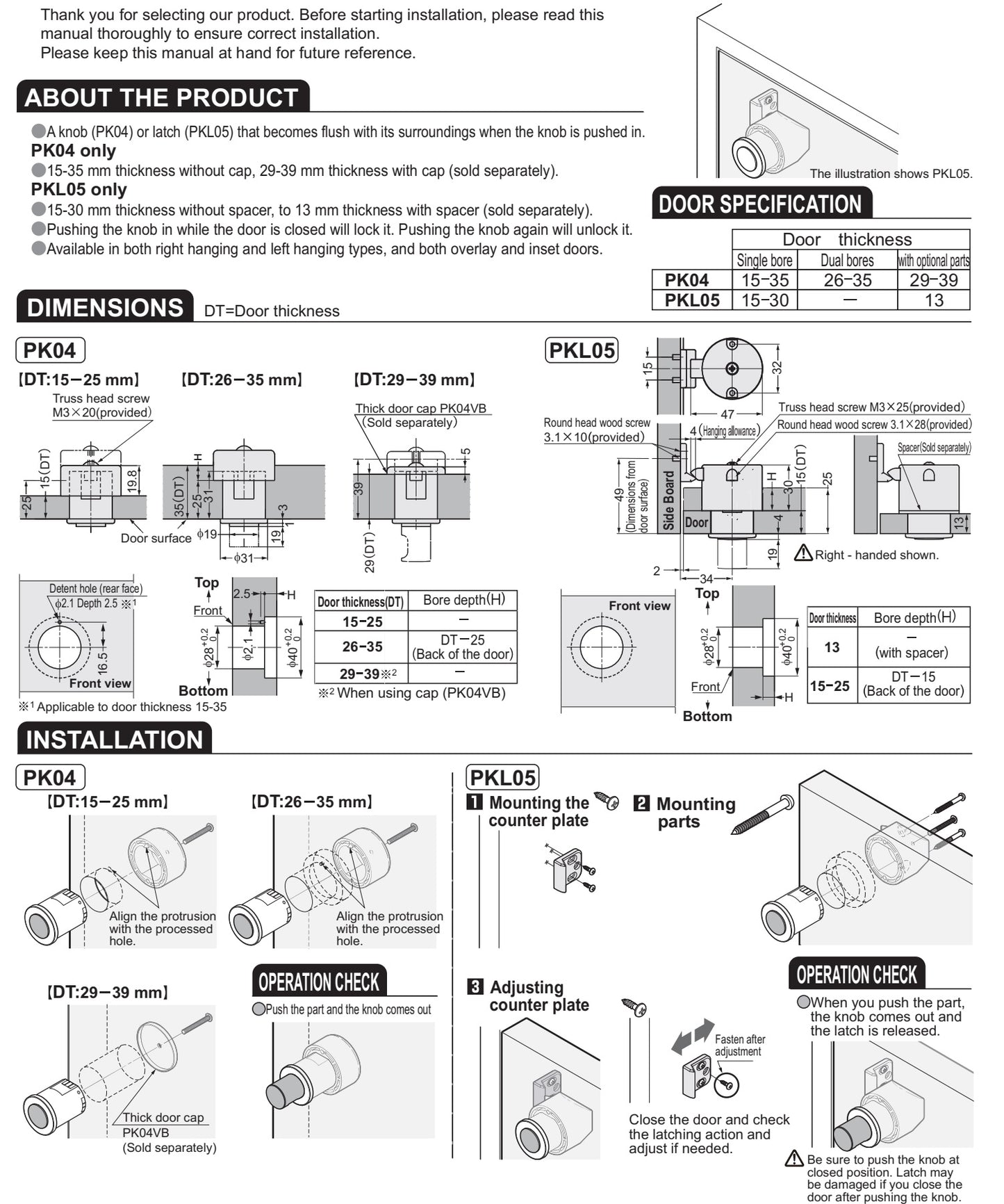

• Download assembly instructions

Manufacturer reference number:

• Article number: 140-015-031 and 140-012-822
• Item number: PKL05RGA and PKLW
• EAN number: 4510932000222 and 4510932000185

Manufacturer: Sugatsune / LAMP® (Japan)
