High-quality snap fastener with handle function, made of zinc alloy (ZDC), chrome-plated finish, oval design, DPL-OV-CR. Solid snap fastener for RVs, boats, and much more, from Sugatsune / LAMP® (Japan).

Exclusive push-button closure DPL-OV-CR, made of solid zinc alloy (ZDC), surface: chrome-plated, design: oval

Application:

Solid push button for motorhomes, boats and much more.

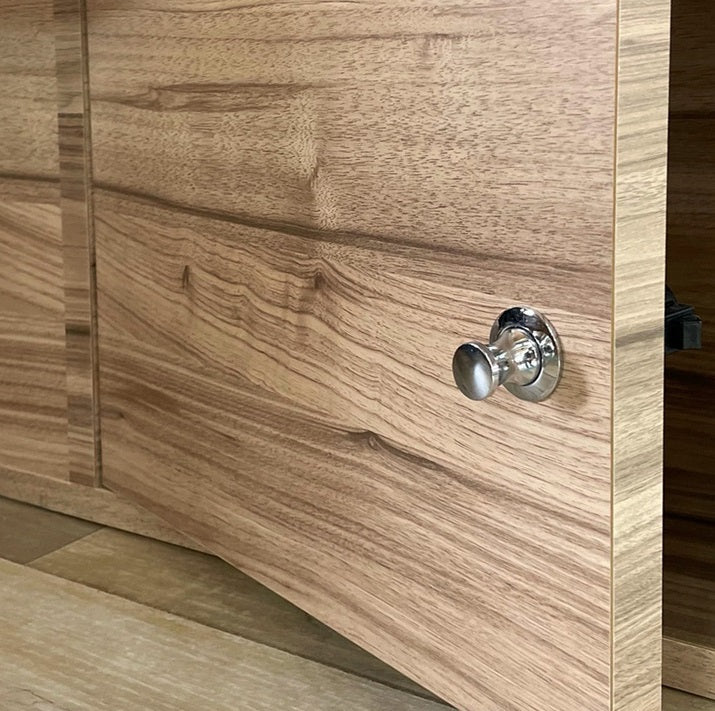

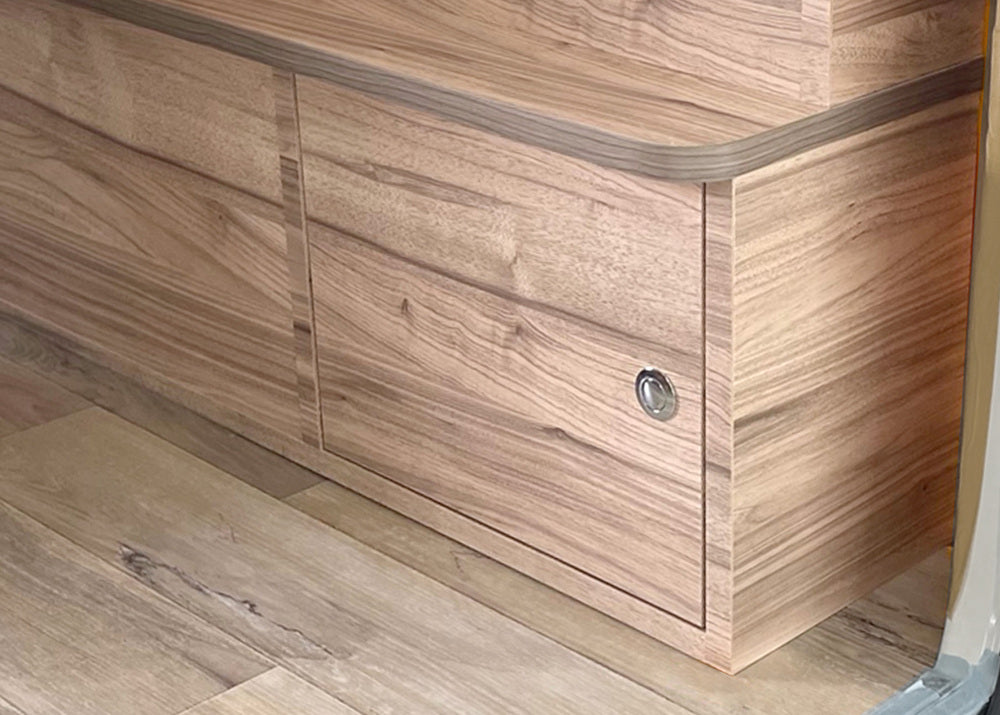

The high-quality push-button closure DPL-OV-CR is a furniture handle with a locking function and, when recessed, ensures that furniture or cabinet doors do not open accidentally while driving or flying.

When closed, the push button is recessed and thus protects against collisions.

To open the furniture door, the handle of the push-button lock DPL-OV-CR must be pressed and thus released.

The push button DPL-OV-CR serves as a practical handle when opened.

These features make the DPL-OV-CR snap fastener ideal for private aircraft, motorhomes and caravans.

The DPL-OV-CR push button is suitable for doors with a thickness of 15 mm (19/32″) to 25 mm (63/64″).

The high-quality snap fasteners DPL-OV-CR are ideal for, among others:

• Caravan
• private plane
• yacht
• Caravan
• Motorhome
• boat

Material:

• The DPL-OV-CR snap fasteners are made of solid zinc alloy (ZDC)

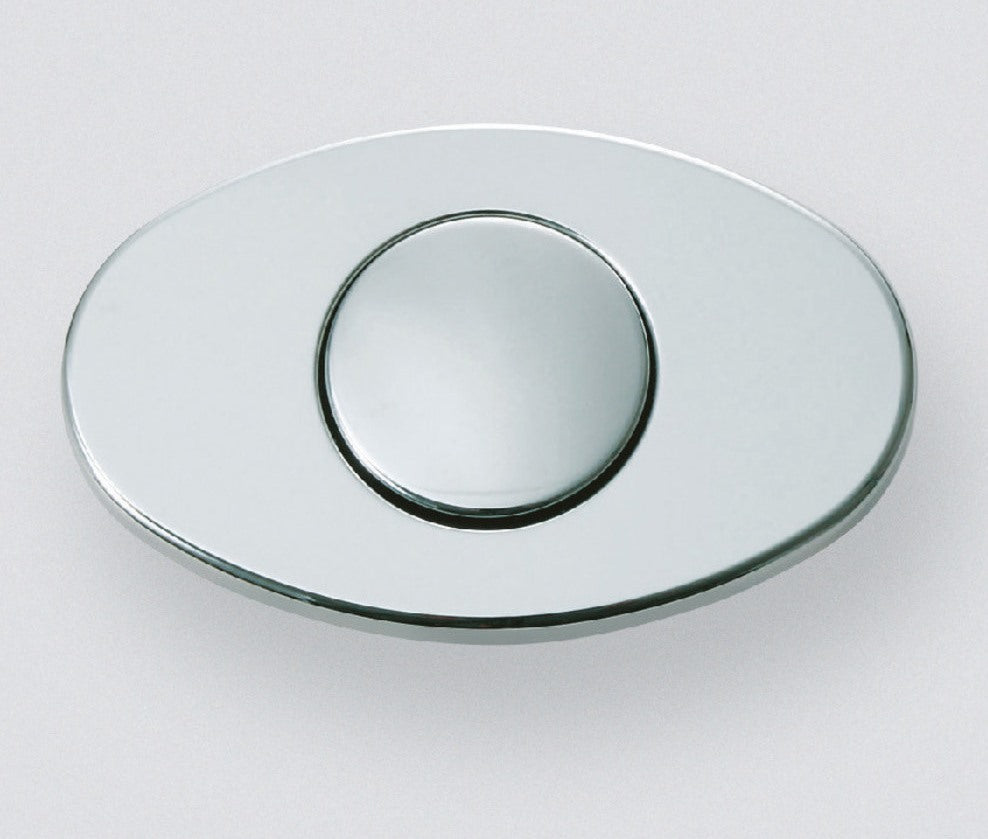

Surface:

• Chrome-plated
• Chrome-plated surfaces give rooms an elegant and modern look that appears timeless
• They are extremely easy to maintain, as chrome is resistant to corrosion and scratches and therefore remains durable
• In addition, chrome-plated surfaces reflect light, making rooms appear brighter and larger
• The snap fasteners DPL-OV-CR appear solid and extremely high quality

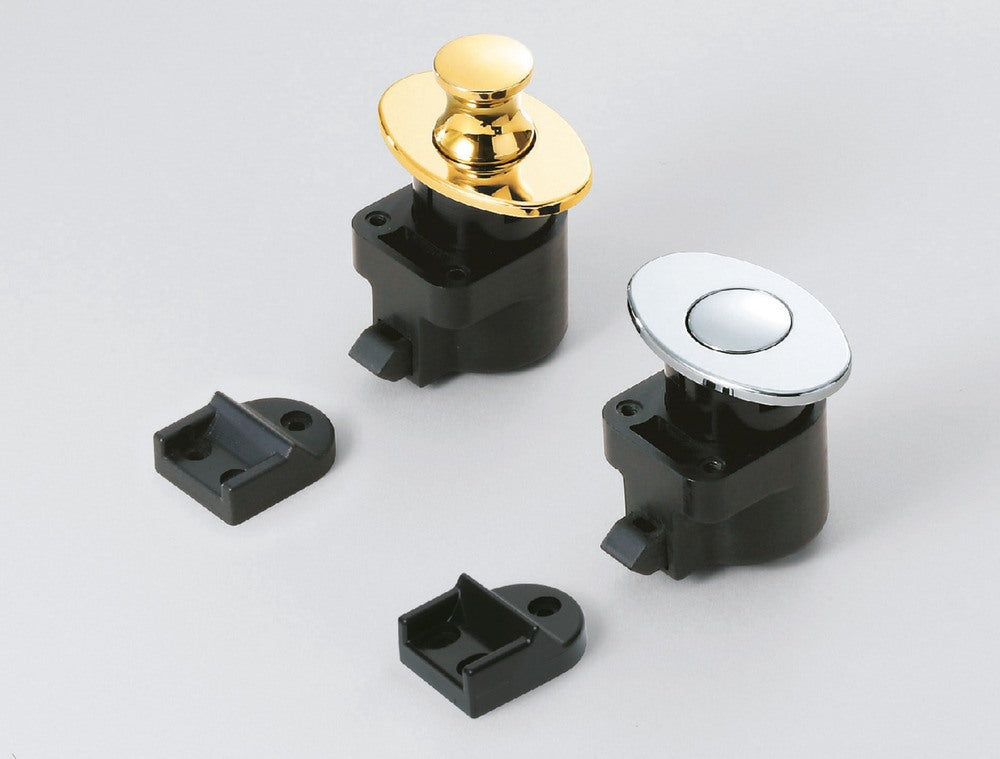

• Available in two surface colors: gold and chrome

Assembly:

• The mounting is carried out using the seven screws included in the delivery (screws: two 4 x 20 mm self-tapping lens head screws and five 3 x 14 mm flat head sheet screws).

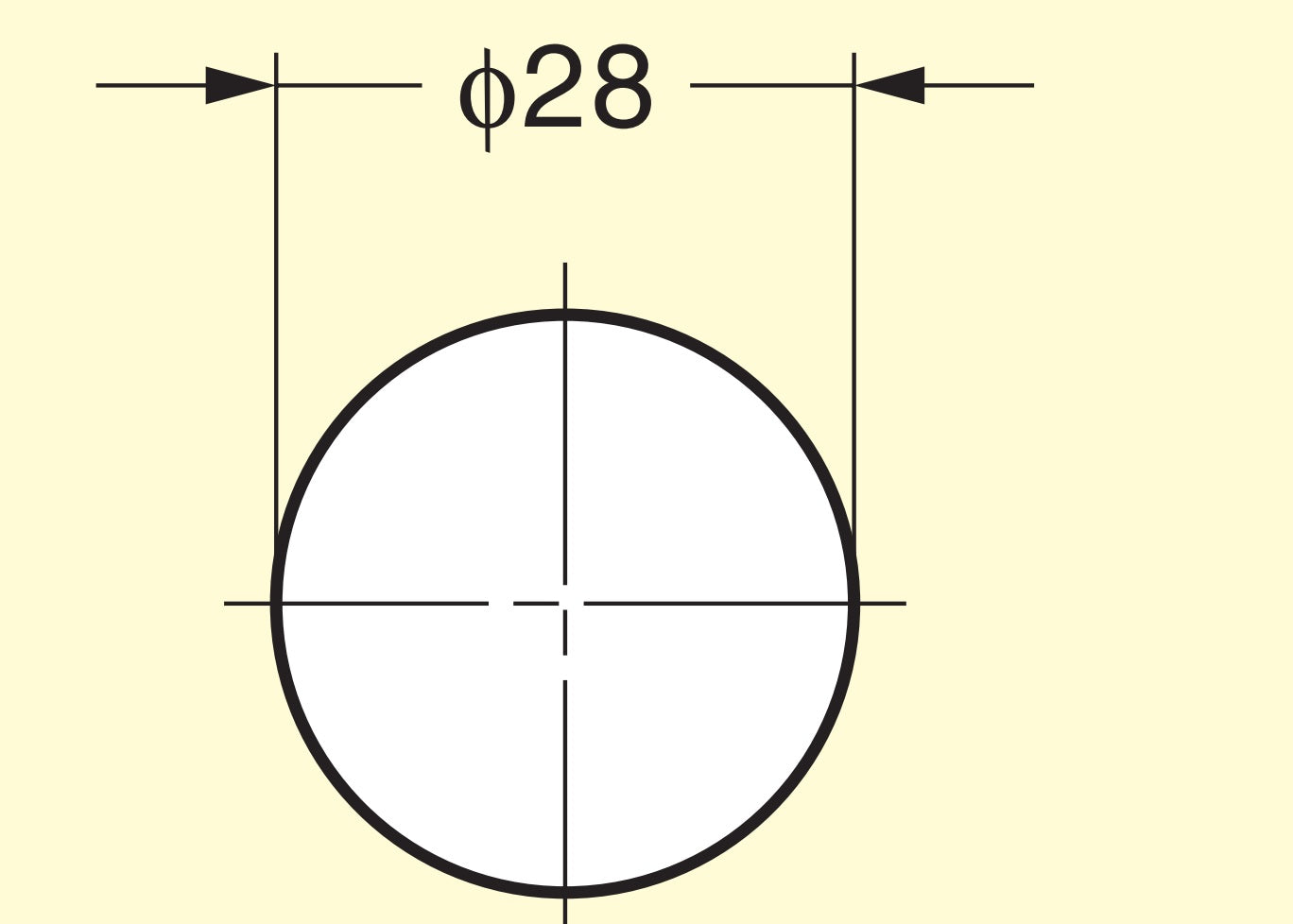

• For mounting, a hole with a diameter of ⌀28 mm (1-7/64″) must be drilled in the front
• The distance between the door edge and the hole is 38 mm (1-1/2″)

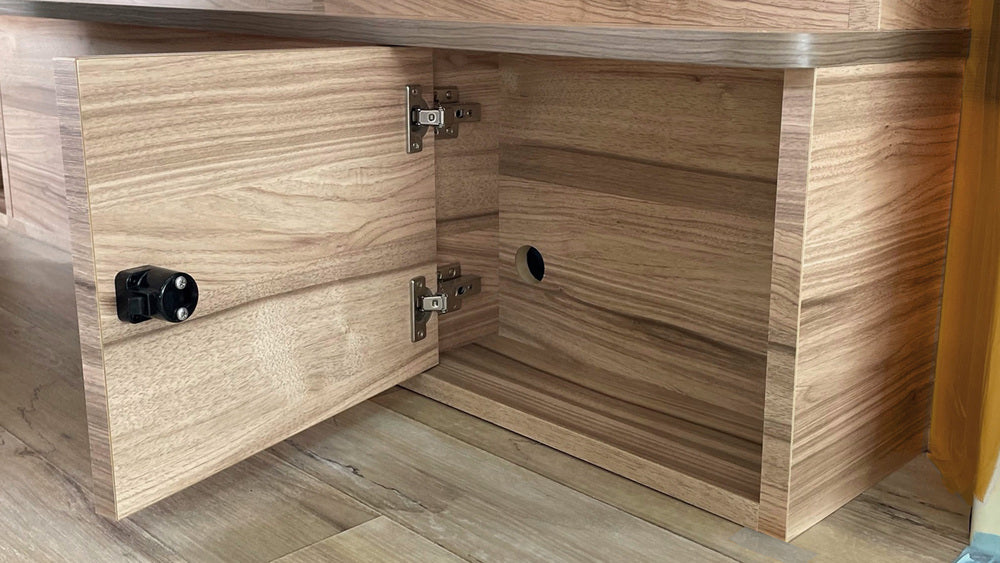

• The push button DPL-OV-CR is inserted into the front and the housing is screwed on from the back using the supplied screw
• The strike plate is then attached to the body side using the screws provided (for further details see assembly drawing ).

Characteristics:

• Design: oval
• Weight: 83 g
• Load capacity: 10 kg (23 lbs)
• Size: 32 mm (1-17/64″)
• Available in two surface colors: gold and chrome
• easy to assemble
• practical
• stable
• Elaborately finished surface
• Exclusive, high-quality look
• chrome-plated
• zinc alloy
• ZDC
• high brand quality from Sugatsune / LAMP®

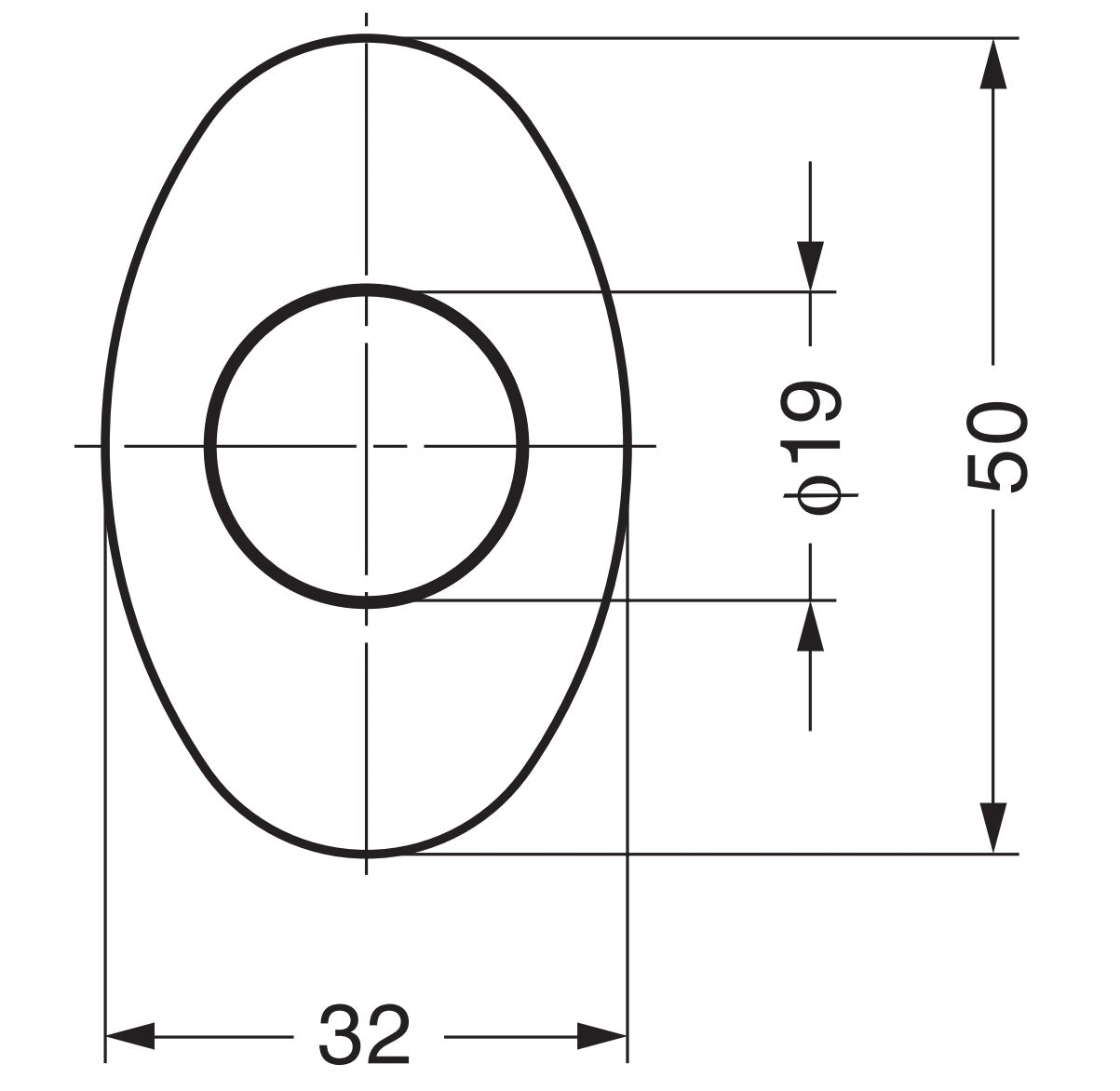

The dimensions:

• Diameter of the snap fastener: ⌀32 mm (1-17/64″)
• Diameter of the push button: ⌀19 mm (3/4″)
• Lock housing length: 30 mm (1-3/16″)

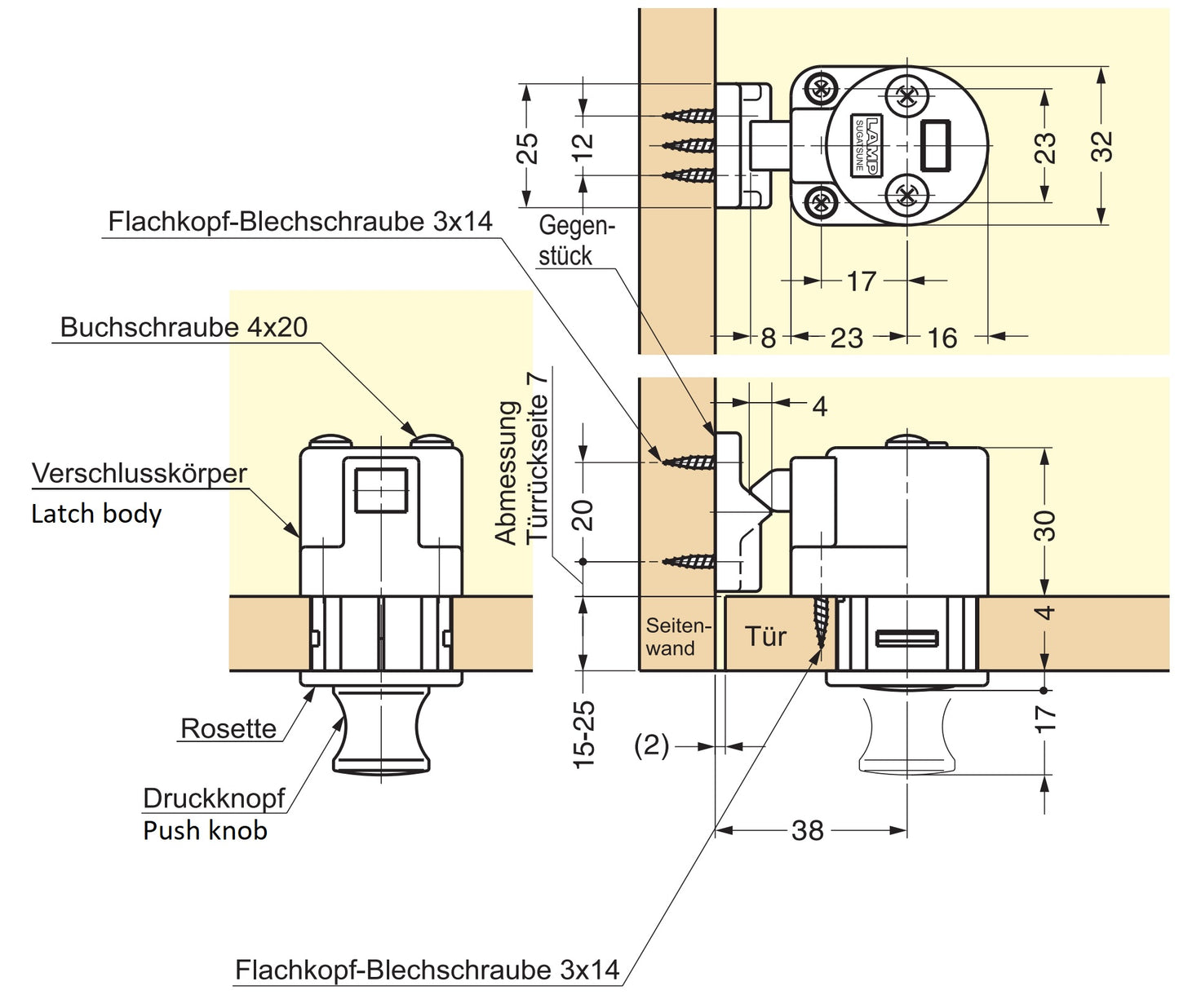

• For further dimensions and details see technical drawing .

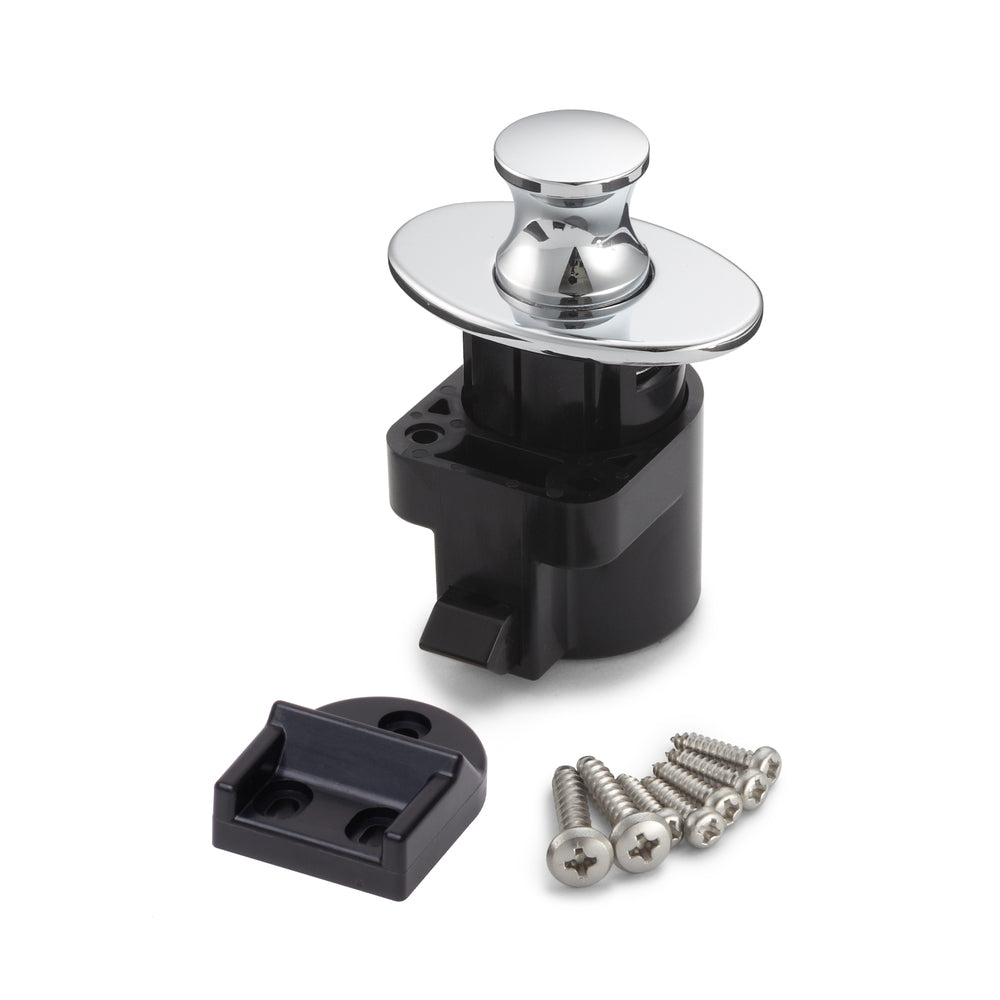

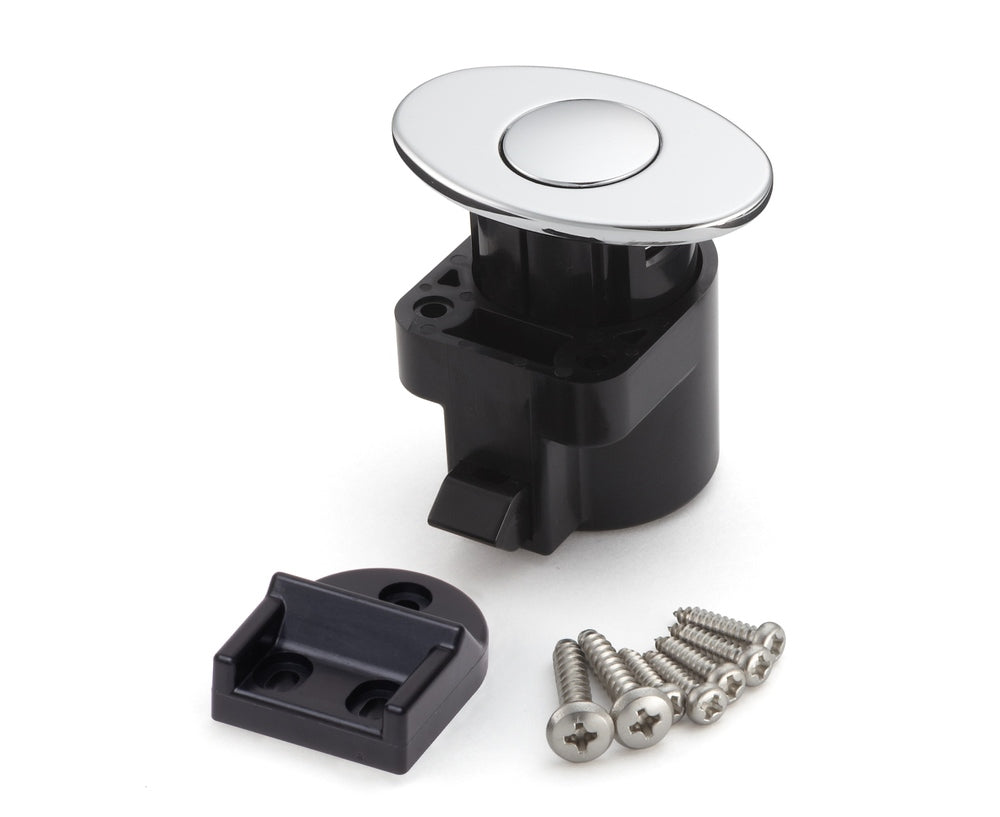

Included in delivery:

• 1 piece snap fastener DPL-OV-CR made of solid zinc alloy, chrome-plated, design: oval
• Seven screws: two 4 x 20 mm self-tapping lens head screws and five 3 x 14 mm stainless steel flat head sheet screws

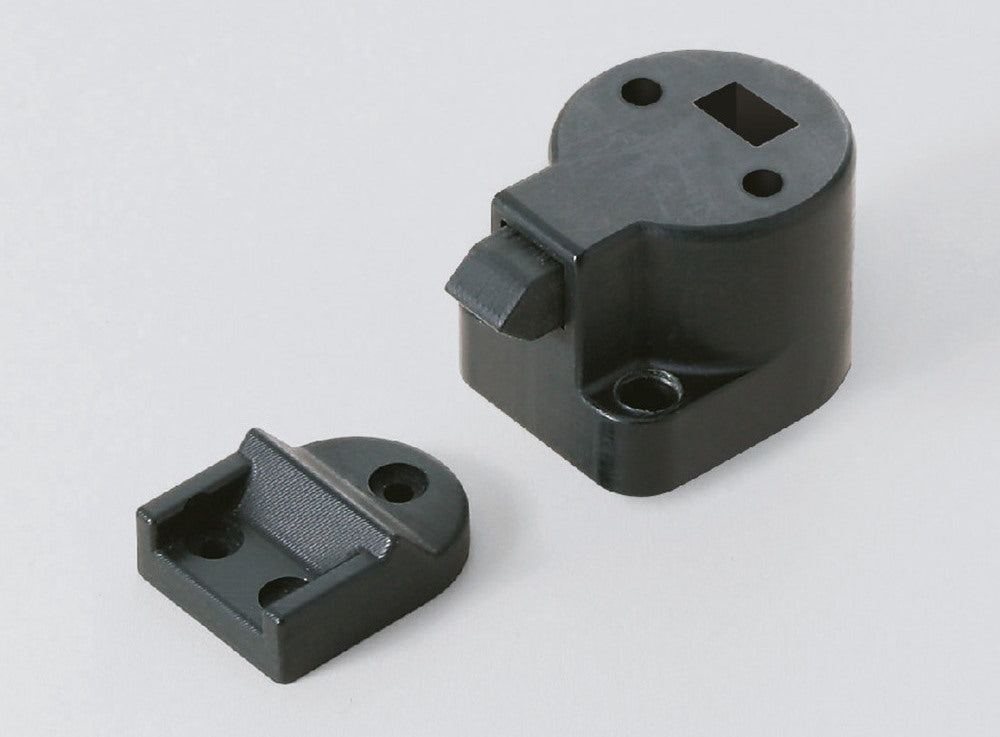

• 1 piece housing
• 1 piece counterpart

Watch product video:

Additional Information:

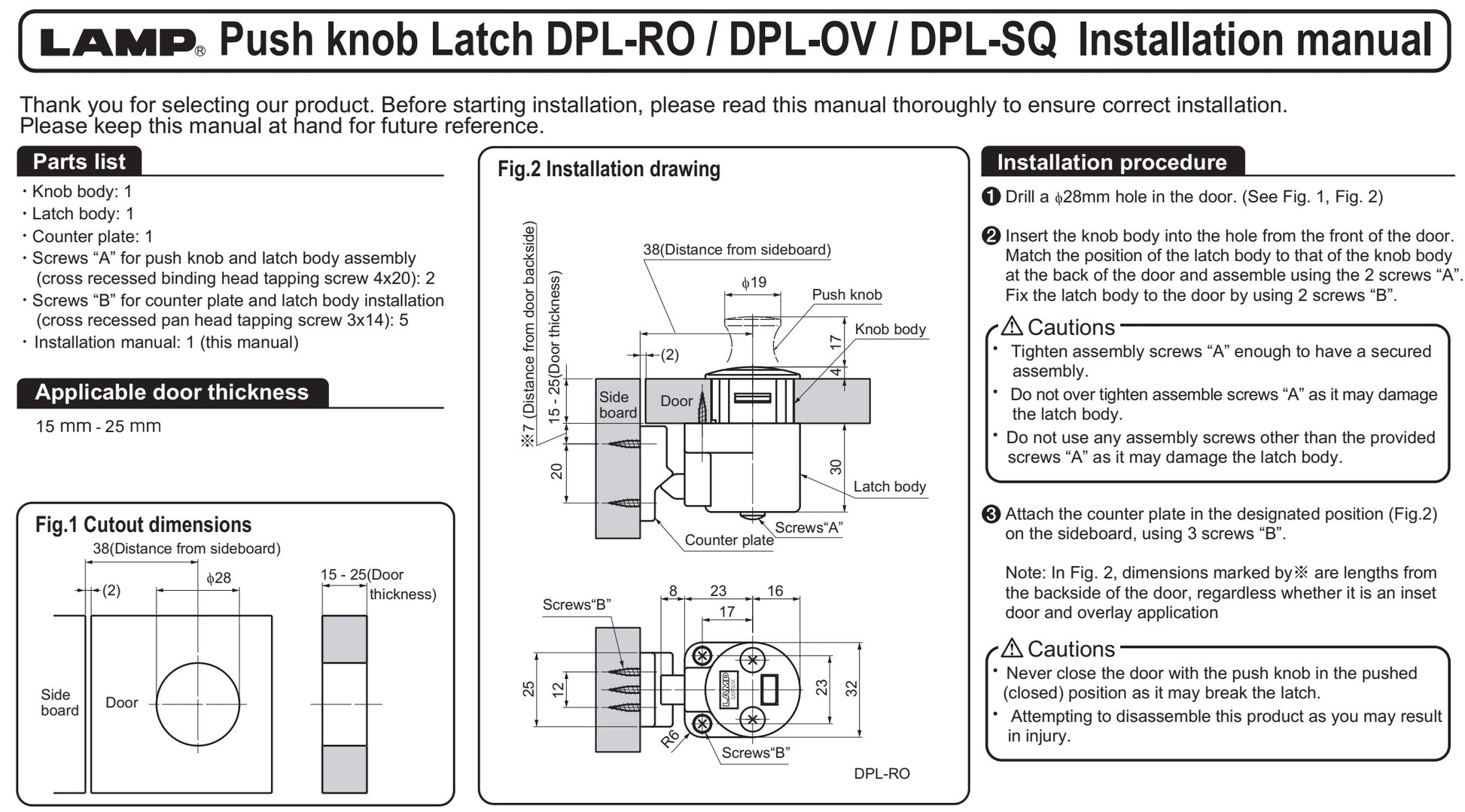

• Download assembly instructions

Manufacturer reference number:

• Article number: 140-014-735
• Item number: DPL-OV-CR
• EAN number: 4510932016773

Manufacturer: Sugatsune / LAMP® (Japan)
