Roller drawer runners, partial extension, white lacquered, RAL 9001, 550 mm (21.7"). Steel guide rails with partial extension, for wooden drawers, pull-out shelves, wooden drawers, kitchen furniture, office furniture, and home furniture, by EMUCA

Roller slide guides made of steel E.T30C.55.WH

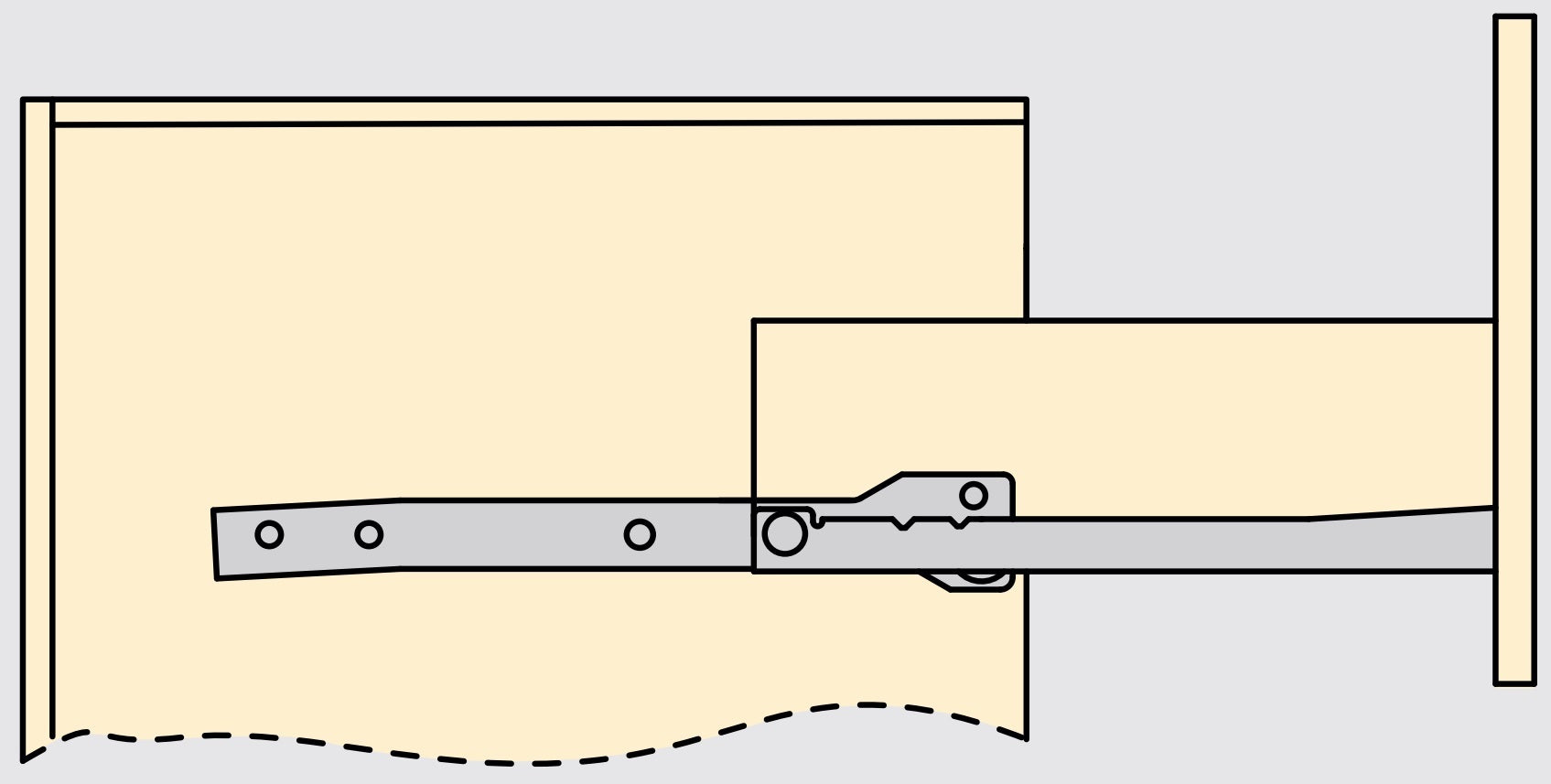

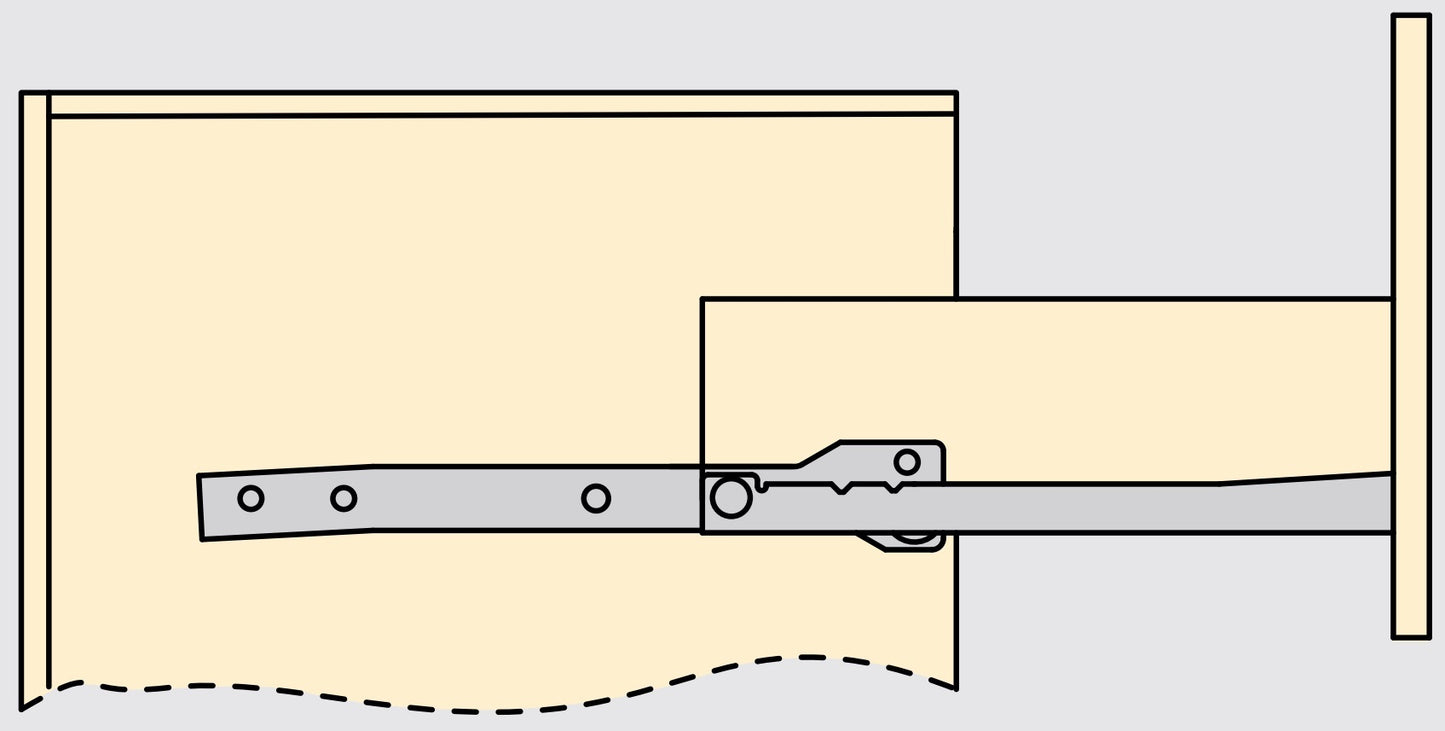

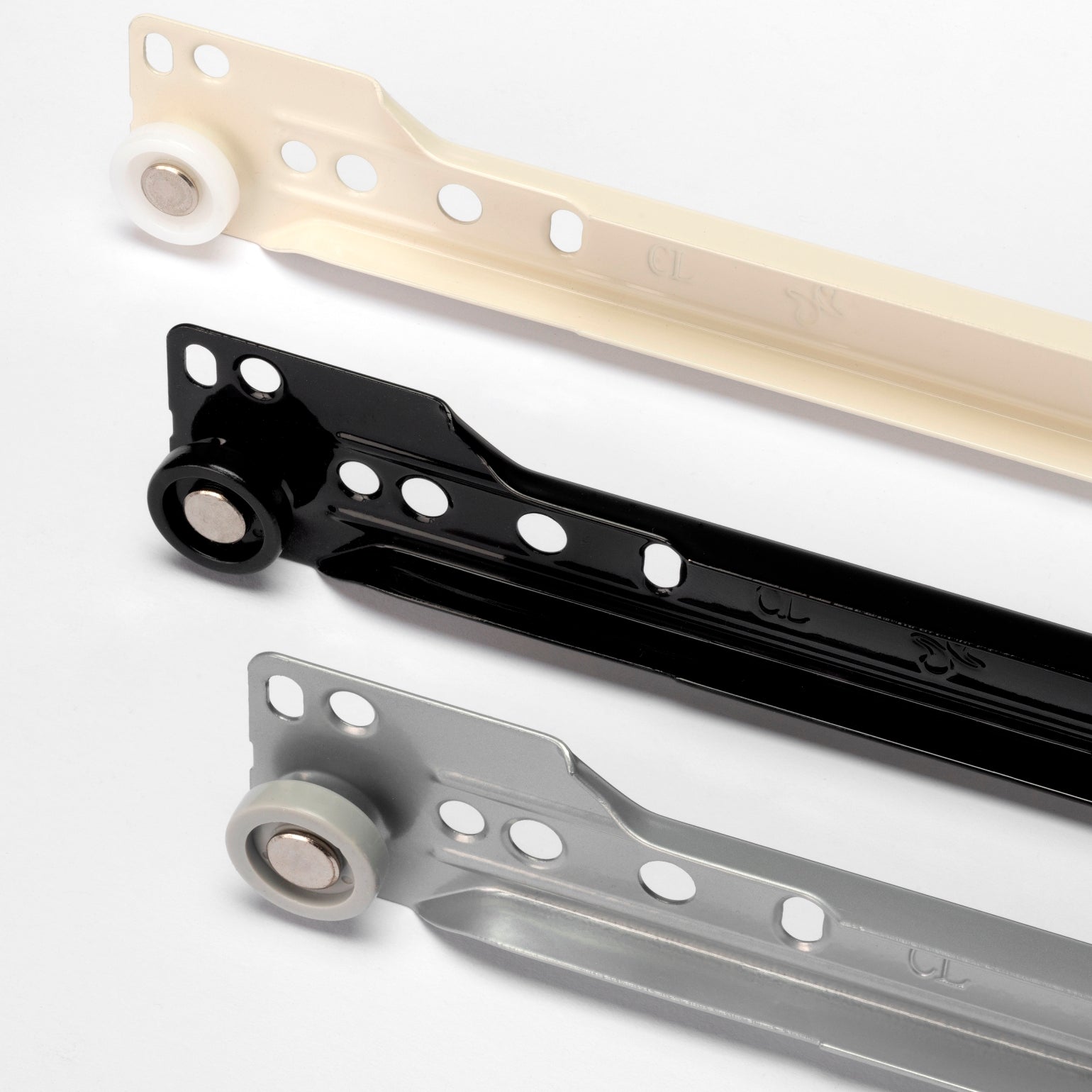

Application: [caption id="attachment_50923" align="alignnone" width="420"] Roller drawer runners, partial extension, white lacquered, RAL 9001, 550 mm, from EMUCA. Application[/caption] Guide rails made of steel with partial extension, for wooden drawers, pull-out shelves, wooden drawers, kitchen furniture, office furniture, living room furniture. The E.T30C.55.WH drawer guides made of robust steel, nominal length 550 mm (21-21/32″) with integrated self-closing mechanism allow the drawers to roll. These drawer slides have a roll-out protection, the drawer can be fixed in the open position. The drawer can be easily removed. The E.T30C.55.WH guide rails are simple, easy to manufacture, flexible in terms of tolerance, safe and durable. The partial extension drawer rails are available in three surface colors: white, black and metallic gray. The high-quality roller guides E.T30C.55.WH are ideal for:

• wooden drawer
• pull-out shelf
• wooden drawer
• kitchen furniture
• Office furniture
• Home furniture

Material: The E.T30C.55.WH roller guides are made of robust steel. Surface:

• Painted white, RAL 9001

Assembly:

• The roller guides are attached to the drawer bottom
• The cabinet rail is attached to the cabinet with a distance of 2 mm to the edge
• The drawer slides are mounted using Φ5 mm flat-head Euro screws or with flat-head screws, diameter Φ3.5 mm
• For mounting with Euro screws, Φ5 mm holes must be pre-drilled in the body at a height of 18.25 mm (23/32″) from the floor
• Optionally, a soft-close damper can be used (not included), see below (for further details see assembly drawing )

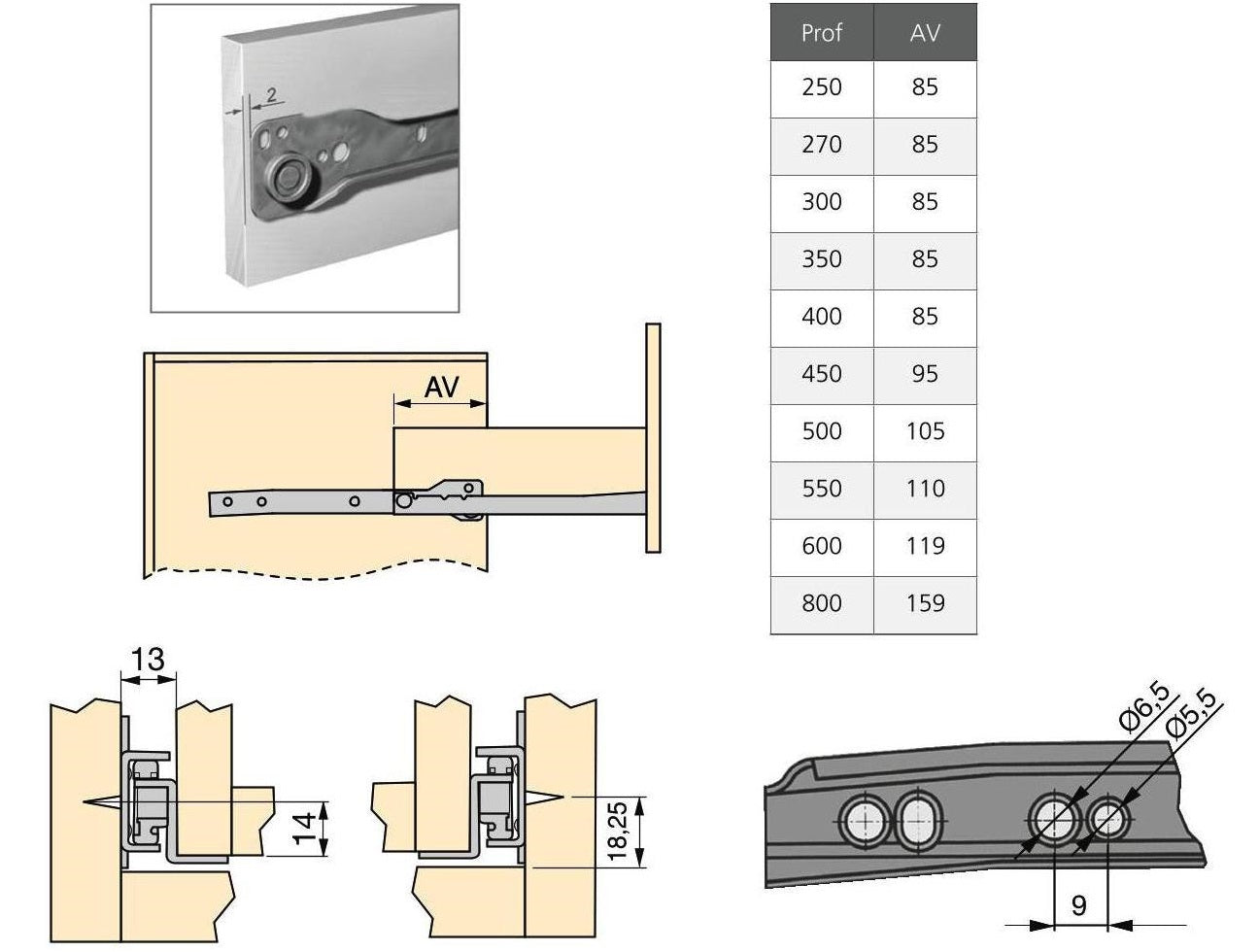

[caption id="attachment_50936" align="alignnone" width="420"] Roller drawer runners, partial extension, white lacquered, RAL 9001, 550 mm, from EMUCA. Assembly drawing[/caption] Characteristics:

• Load capacity: 200 N (20.5 kp)
• Size: 550 mm (21.7″)
• Maximum load capacity: 20 kg
• With self-retraction on the last 6 cm
• With roll-out protection
• Easy removal of the drawer
• Visible leadership
• Robust
• Made of steel
• Painted white, RAL 9001
• High brand quality from UMAXO®

Dimensions: For further dimensions and details see technical drawing .

• Nominal length of guide rails: 550 mm (21-21/32″)
• Extension length: 465 mm (18-10/32″)
• Distance between the body and the drawer: 13 mm (16/32″)

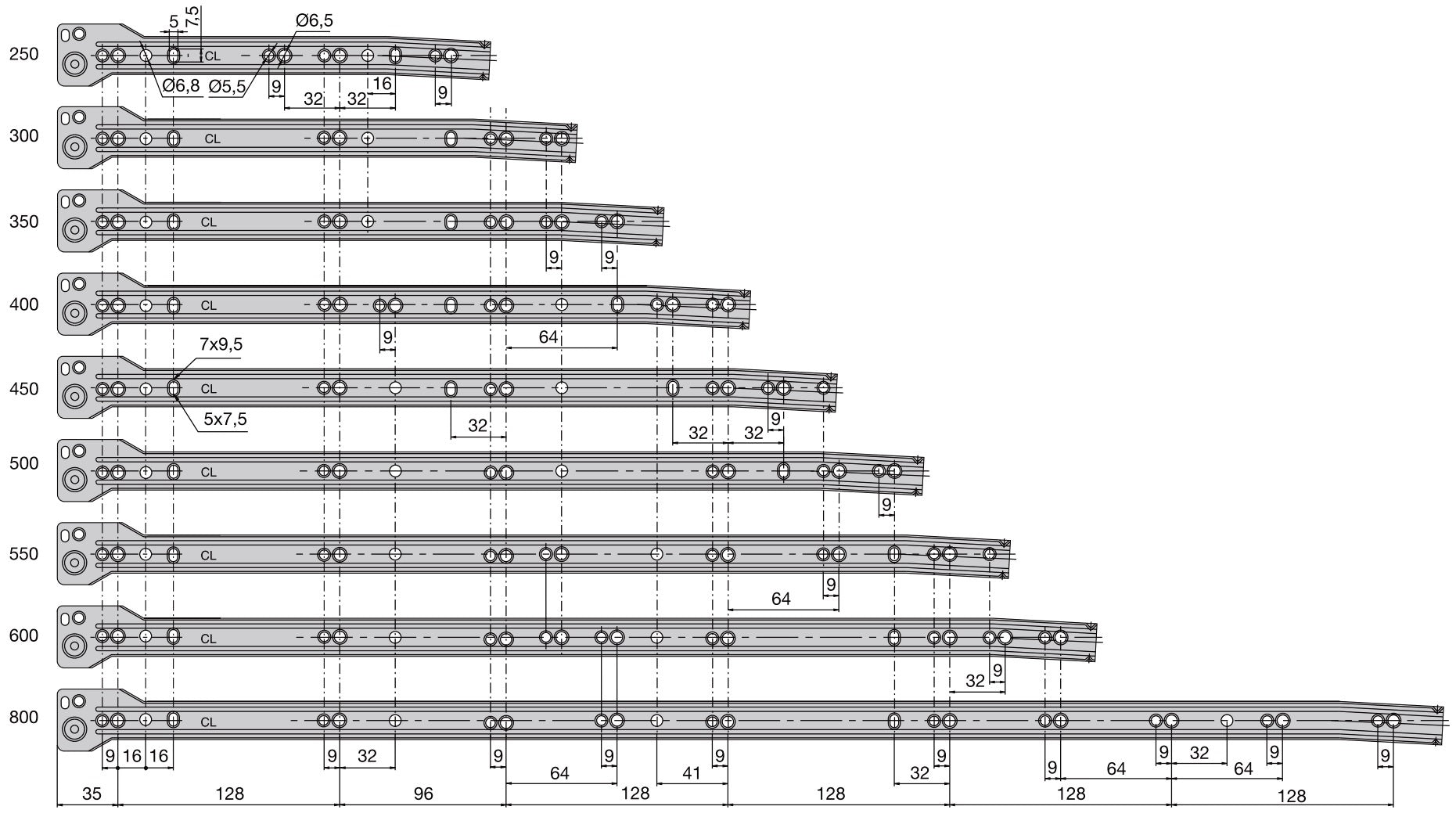

[caption id="attachment_50949" align="alignnone" width="420"] Roller drawer runners, partial extension, white lacquered, RAL 9001, 550 mm, from EMUCA. Technical drawing[/caption] Included in delivery:

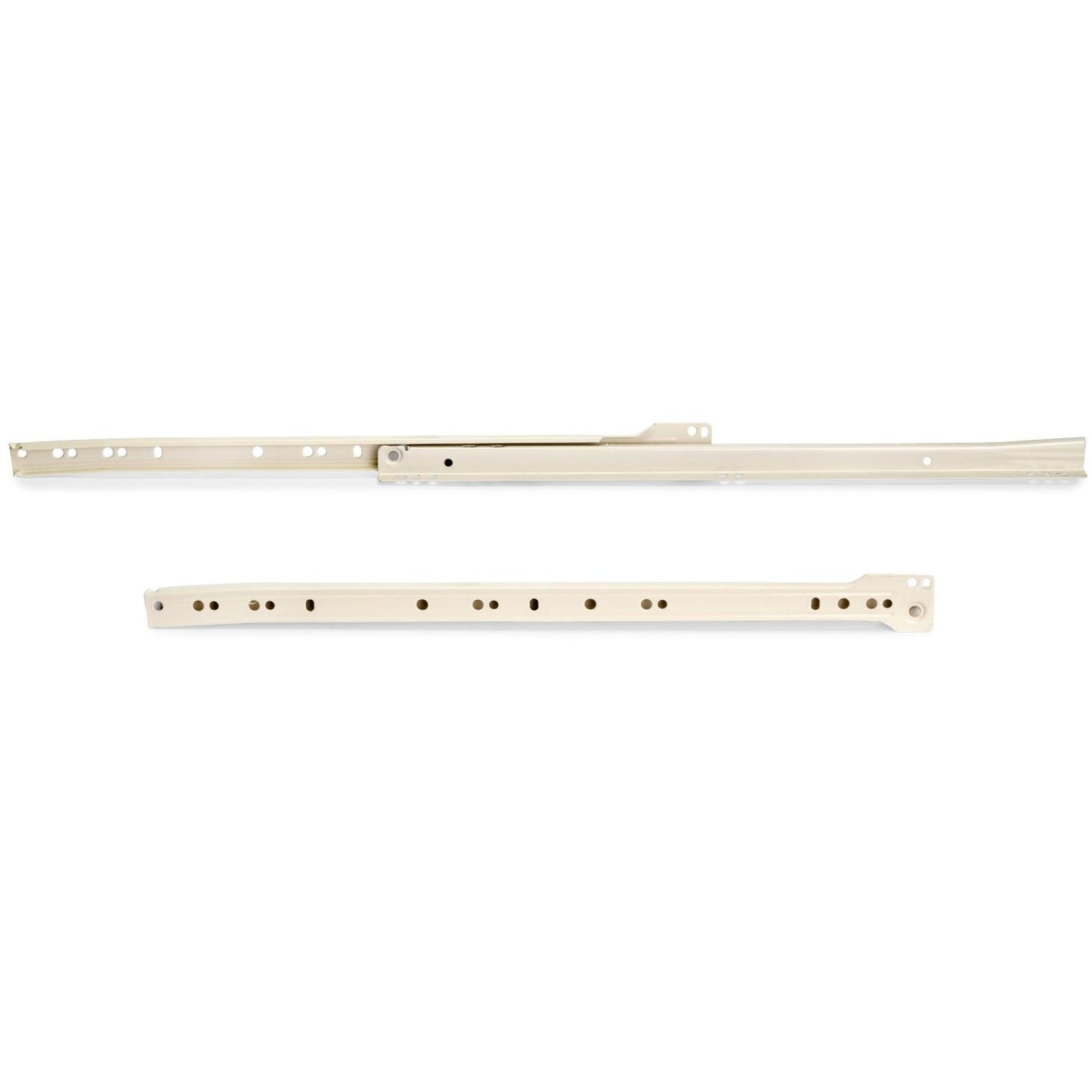

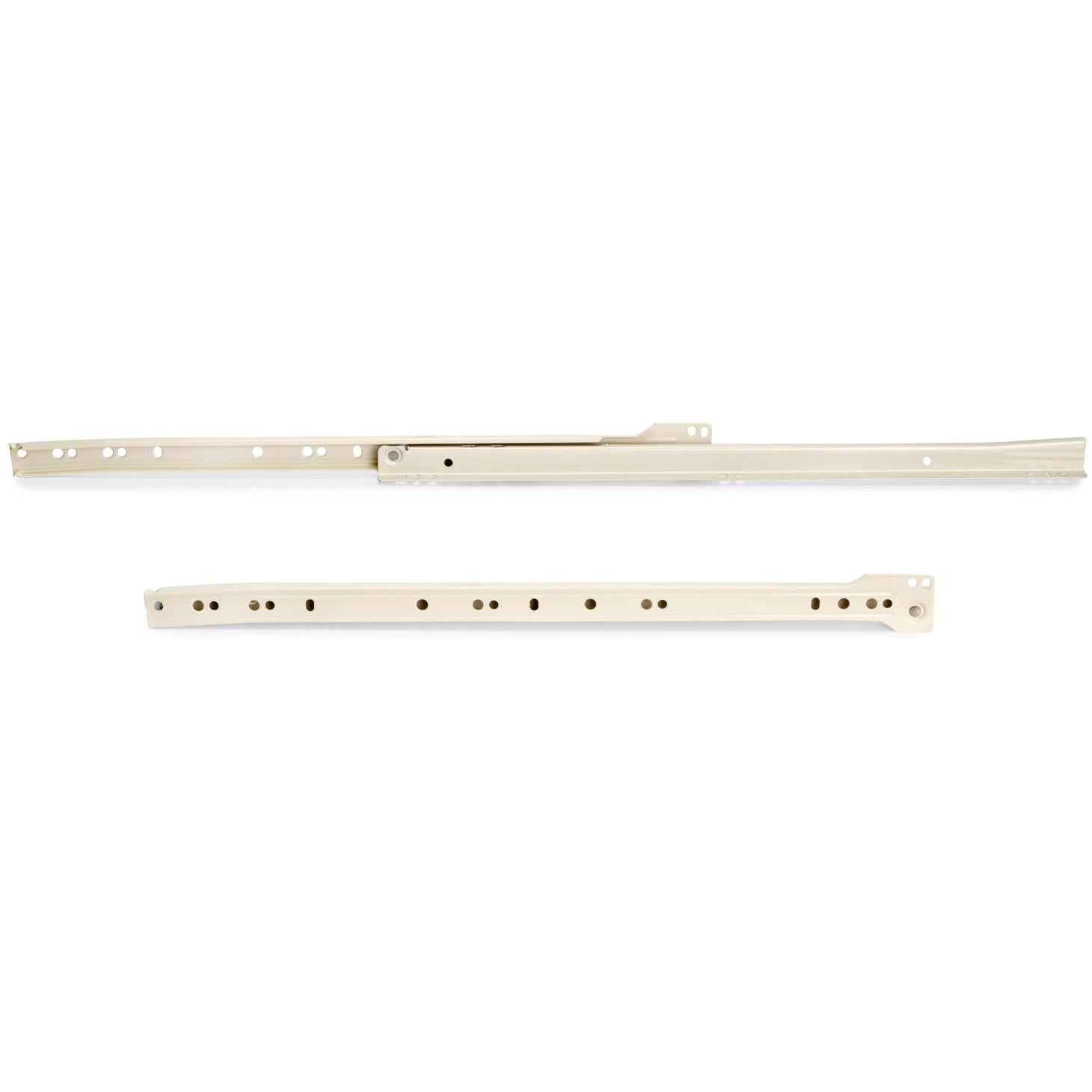

• 2 roller slide guides E.T30C.55.WH made of steel (right and left)

Watch product video: Manufacturer reference number:

• Article number: 4389112

Manufacturer: EMUCA
