10 pieces square counter plate with off-center hole, surface: nickel-plated, 20 mm (25/32″), 1050007 for magnetic catch, push-to-open

10 pieces of high-quality square counterplate with non-centric bore, made of robust steel, surface: nickel-plated, 1050007, size: 20 mm (25/32″)

Application:

Counterpart with offset holes for magnetic catches, push-to-open and much more.

The counter plate 1050007 made of nickel-plated steel serves as a counterpart to push-to-open magnetic closures.

The stop plate 1050007 is suitable for all push-magnet closures.

Thanks to its compact format of only 20 mm (25/32″) x 20 mm (25/32″), it can be discreetly mounted on wooden or metal doors.

The 1 mm thin design of the stop plate 1050007 prevents gaps and makes it easier to adjust the front.

Thanks to the nickel-plated surface, the counter plate 1050007 is corrosion-resistant.

This ensures safe closing and opening without handles.

The high-quality counter plates 1050007 are ideal for, among others:

• Cabinet doors
• Furniture doors
• Push-to-open magnetic closures
• Magnetic catch
• Push-to-open

Material:

• The counter plates 1050007 are made of robust steel
• Steel is ideal for furniture fittings as it is both robust and durable, ensuring high load-bearing capacity and a long service life of the fittings

Surface:

• Nickel-plated
• Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
• They offer an elegant, shiny look that is modern yet timeless
• They are also easy to maintain, as they make dirt and fingerprints less visible and are easy to clean

Assembly:

• Fastening is done with 4 x 16 mm countersunk chipboard screws, self-tapping (not included)

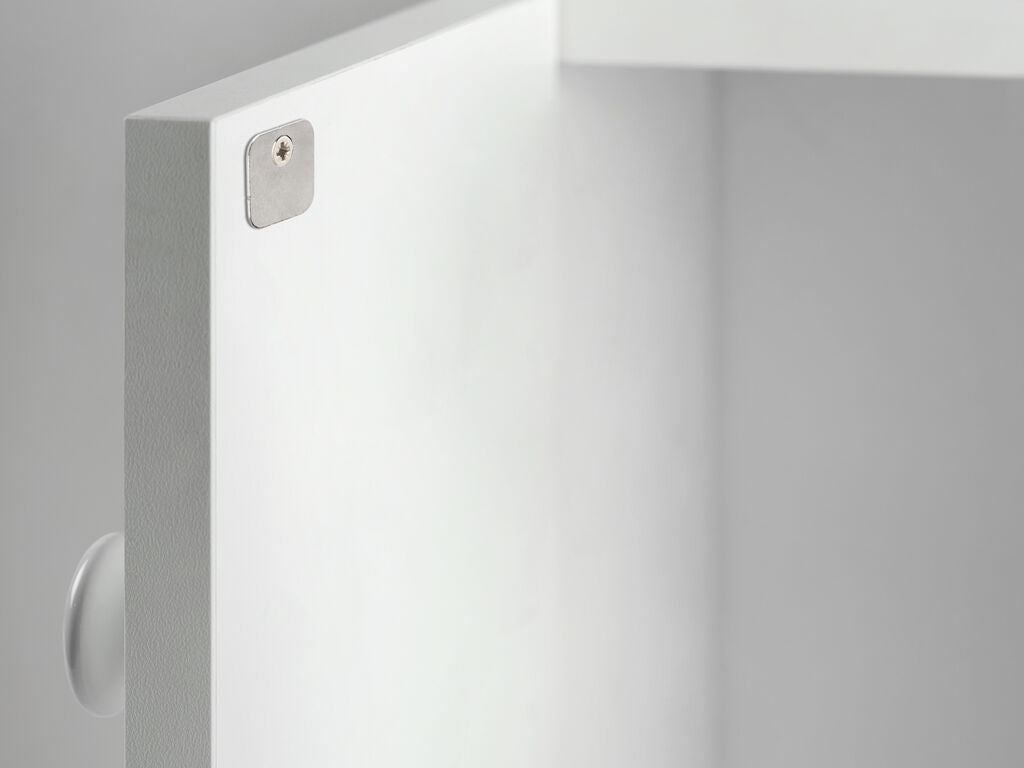

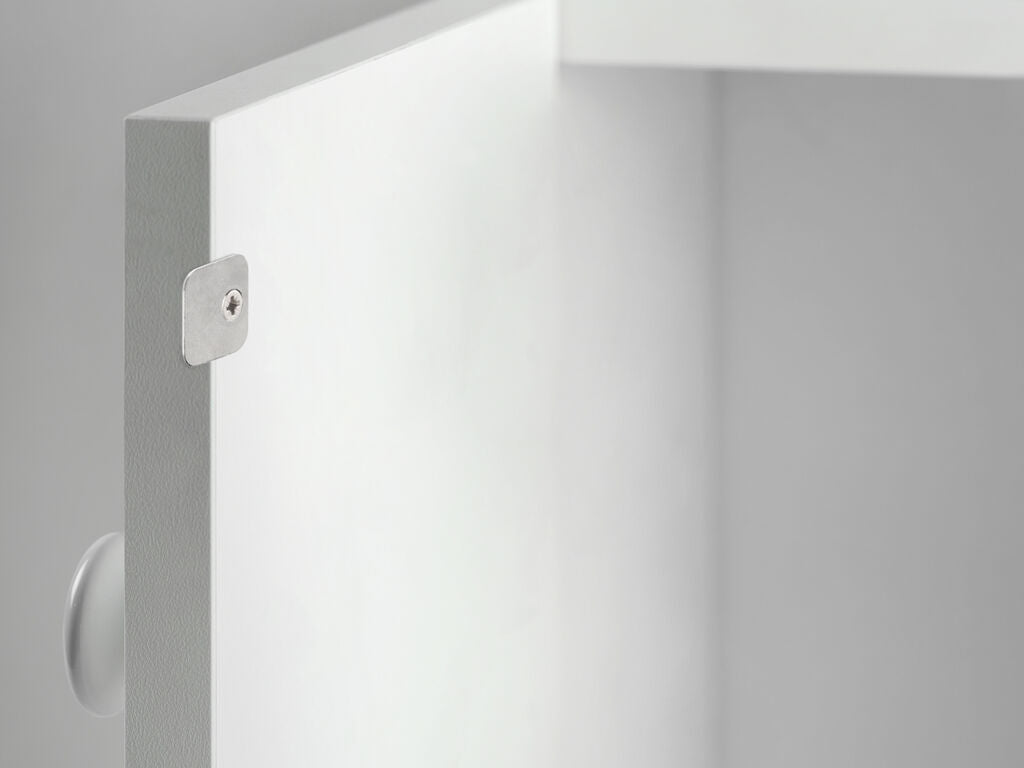

• The counter plate 1050007 is aligned on the inside of the door so that it sits exactly opposite the magnetic lock
• The counter plate has a mounting hole with a diameter of ⌀5 mm (13/64″)
• A 2 mm centering hole is drilled and the counterpart 1050007 is then screwed tight with a chipboard screw, with the screw head flush in the countersink
• The function should then be tested by closing the door and operating the push-to-open mechanism
• If necessary, the screw is slightly loosened and the counter plate 1050007 is moved slightly

Characteristics:

• Weight: 3 g
• Size: 20 mm (25/32″)
• easy to assemble
• practical
• stable
• Material thickness: 1 mm (3/64″)
• Square
• Corner radius: R5 (rounded corners)
• High corrosion resistance
• Suitable for wood, MDF and metal
• Recommended screw head diameter: maximum 5 mm (13/64″)
• nickel-plated
• Steel
• robust
• high brand quality from UMAXO®

The dimensions:

• Outside dimensions of the stop plate (square): 20 mm (25/32″) x 20 mm (25/32″)
• Mounting hole diameter ⌀5 mm (13/64″)
• Stop plate thickness: 1 mm (3/64″)

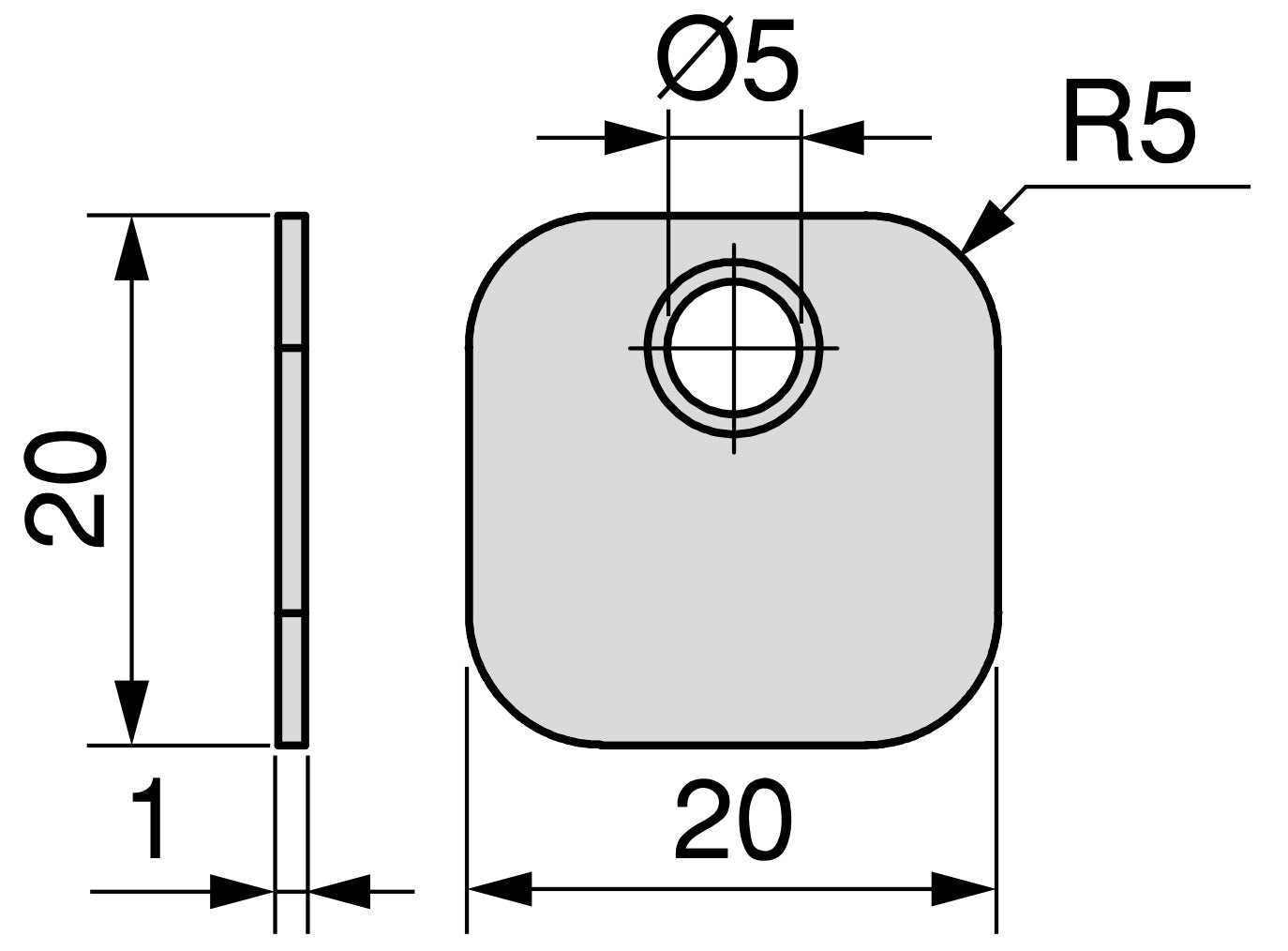

For further dimensions and details see technical drawing .

Included in delivery:

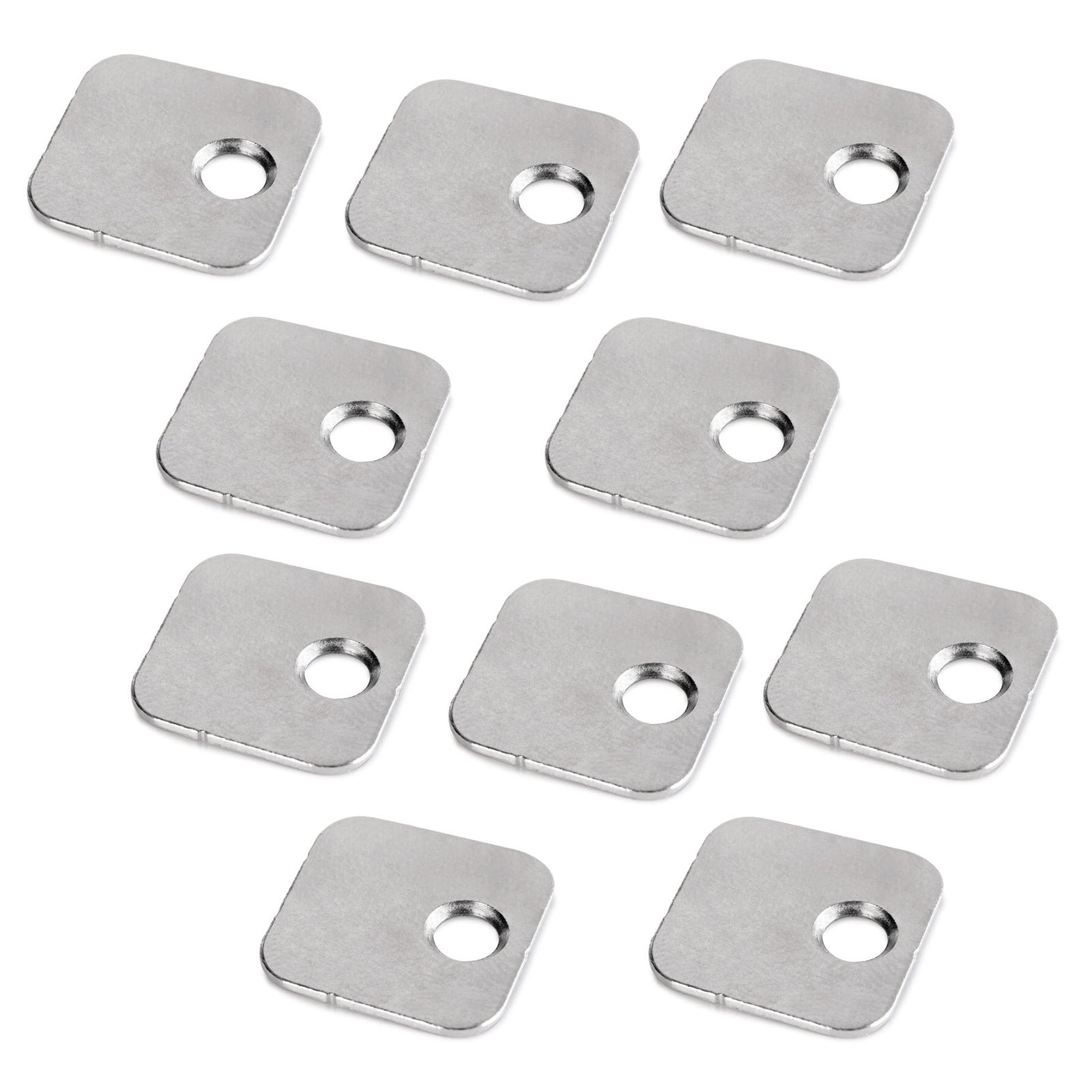

• 10 pieces counter plate 1050007 made of robust steel, nickel-plated

Manufacturer reference number:

• Article number: 1050007
• EAN number: 8432393289472

Manufacturer: EMUCA
