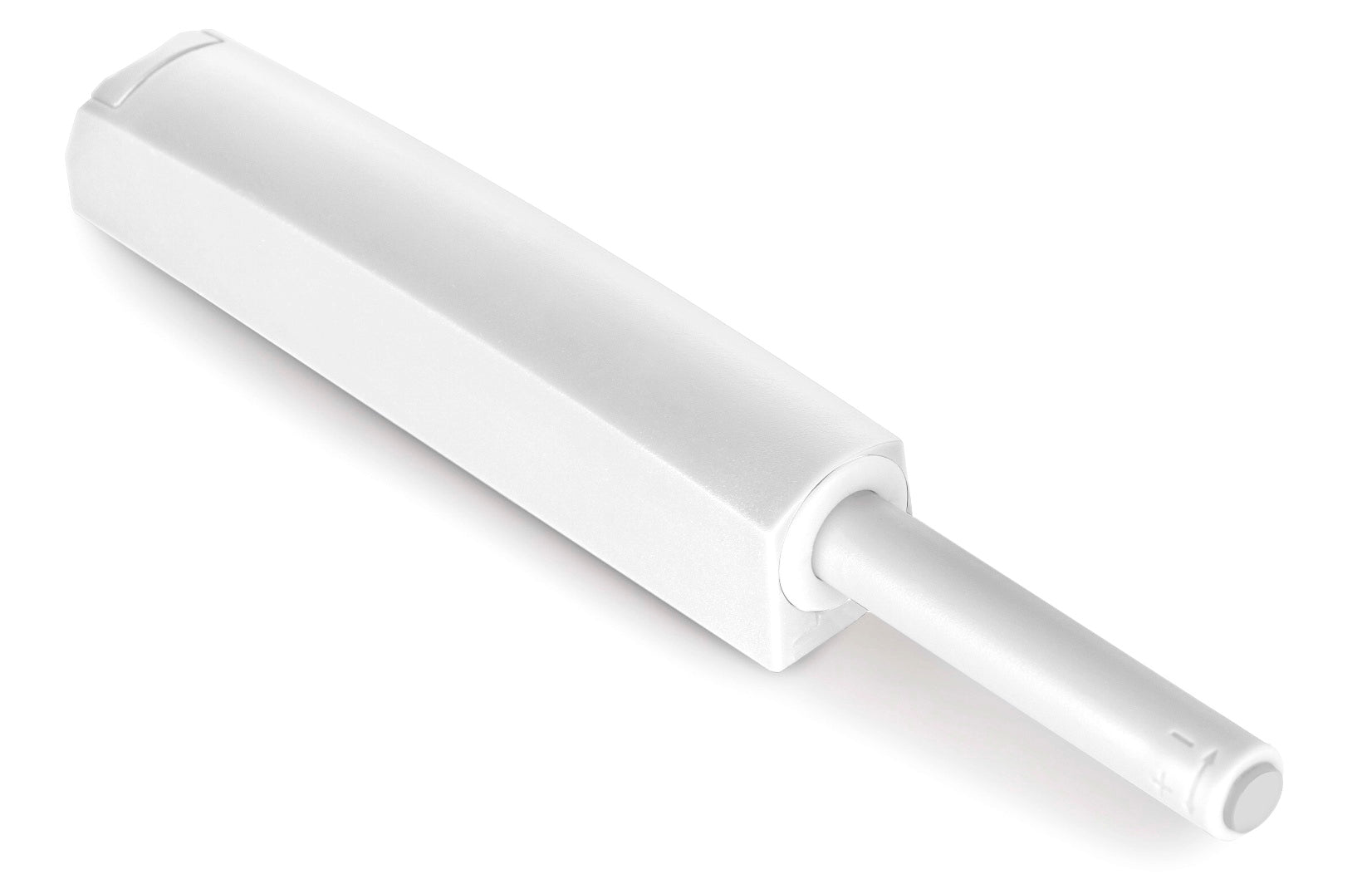

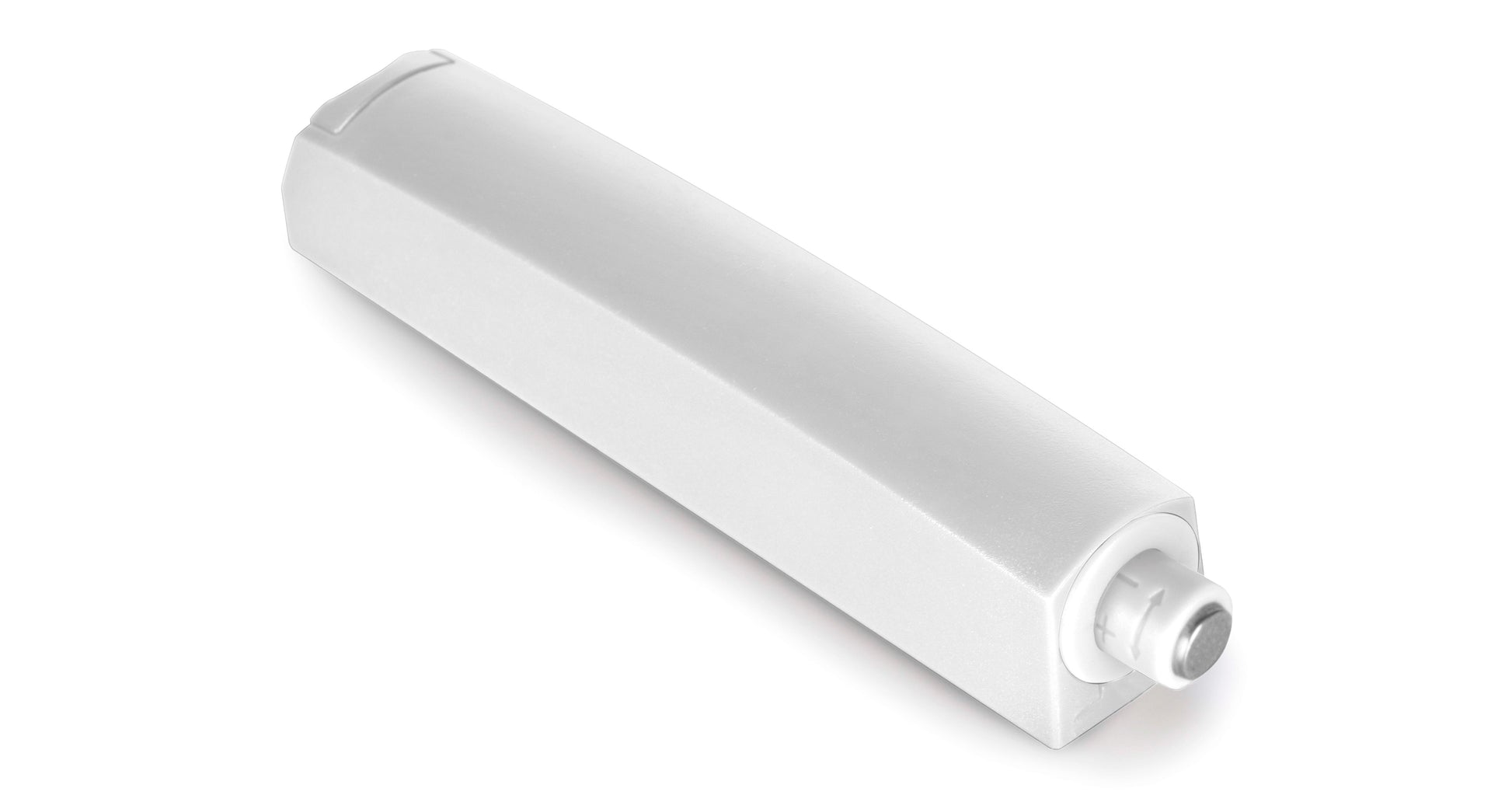

2 elegant push-button catches with mounting housing, surface: white, design: non-magnetic, 1900215 for furniture doors, cupboard doors, flaps

Two practical push-to-open snap fasteners, made of robust plastic, surface: white, 1900215, design: non-magnetic

Application:

Sturdy push-to-open door opener for furniture doors, cabinet doors, flaps and much more.

For use with hinges with a closing spring.

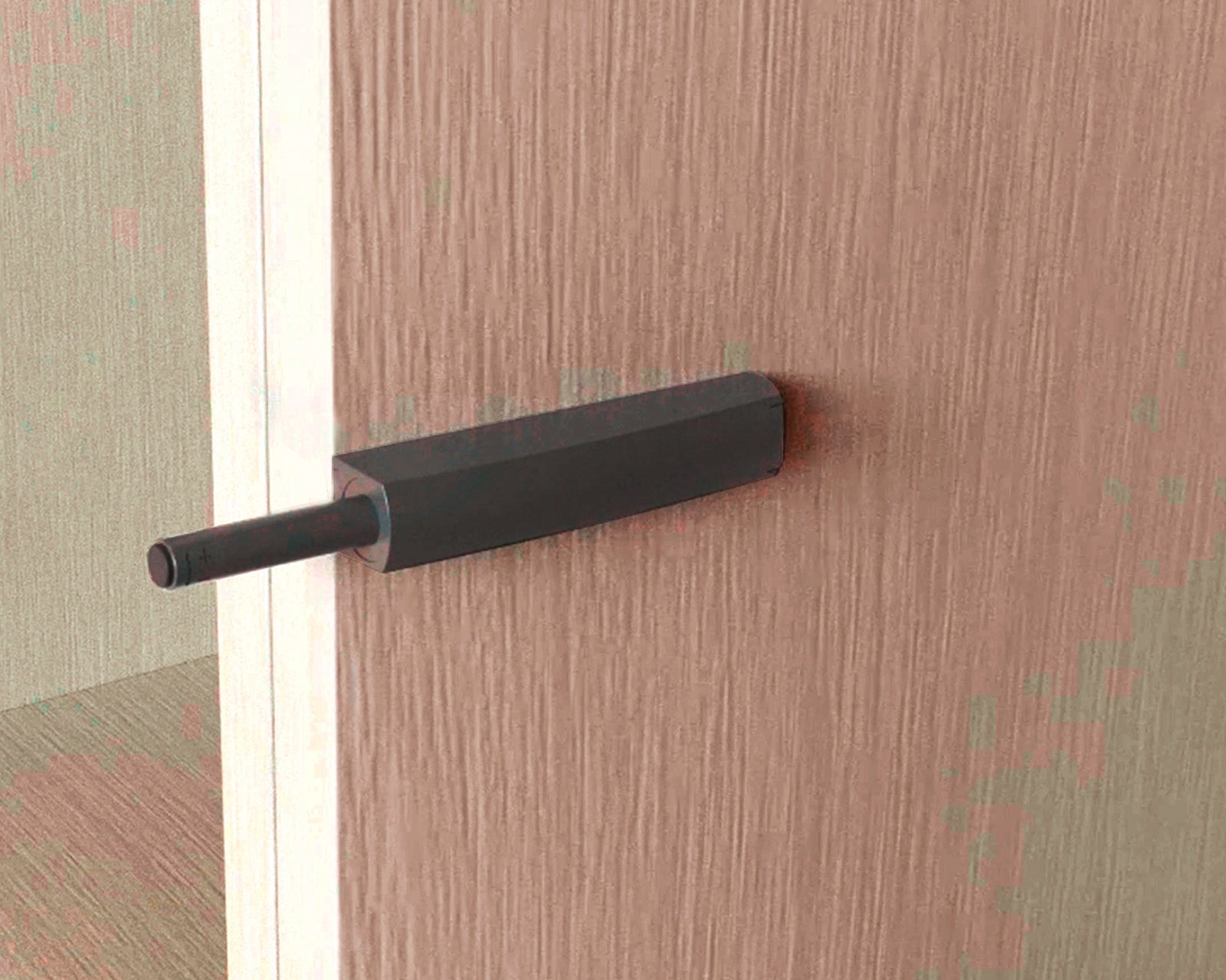

The Push-To-Open door opener 1900215 enables the convenient opening and closing of handleless furniture doors by pressing.

The push-button latch 1900215 has a wide plunger extension of 37 mm (1-29/64″).

Thanks to its compact plastic housing, the push-button latch 1900215 can be discreetly screwed onto the side of the body.

The system operates with minimal wear and tear and is particularly suitable for kitchens and bathrooms, where frequent use is common.

The practical mounting housing of the pressure lock 1900215 allows for relaxed installation.

It is still possible to drill the door opener 1900215 directly into the side of the cabinet without having to use the mounting housing.

The high-quality snap fasteners 1900215 are ideally suited for, among other things:

• Kitchen fronts
• Bathroom furniture
• Furniture doors
• Cabinet doors
• Succeed

Material:

• The snap fasteners 1900215 are made of robust plastic.
• Plastic is lightweight and allows for easy assembly of components and furniture fittings without compromising stability.
• It is corrosion-resistant and therefore particularly suitable for damp environments such as swimming pools, bathrooms or kitchens.
• Furthermore, the flexible formability of plastic allows for a wide variety of designs and unobtrusive integration into various furniture styles or devices and machines.

Surface:

• White
• White surfaces convey a clean and modern aesthetic.
• The color white reflects light effectively, making rooms appear brighter and larger.
• Furthermore, white objects are inconspicuous and easy to clean, making them particularly practical for everyday use.

Assembly:

• Fastening is done with Pozidriv countersunk chipboard screws 3 x 16 mm, self-tapping (not included in the scope of delivery)
• The push-button latch 1900215 has four mounting holes.
• The distance between the first and last mounting hole is 52 mm (2-3/64″)
• The catch is screwed onto the side of the body.

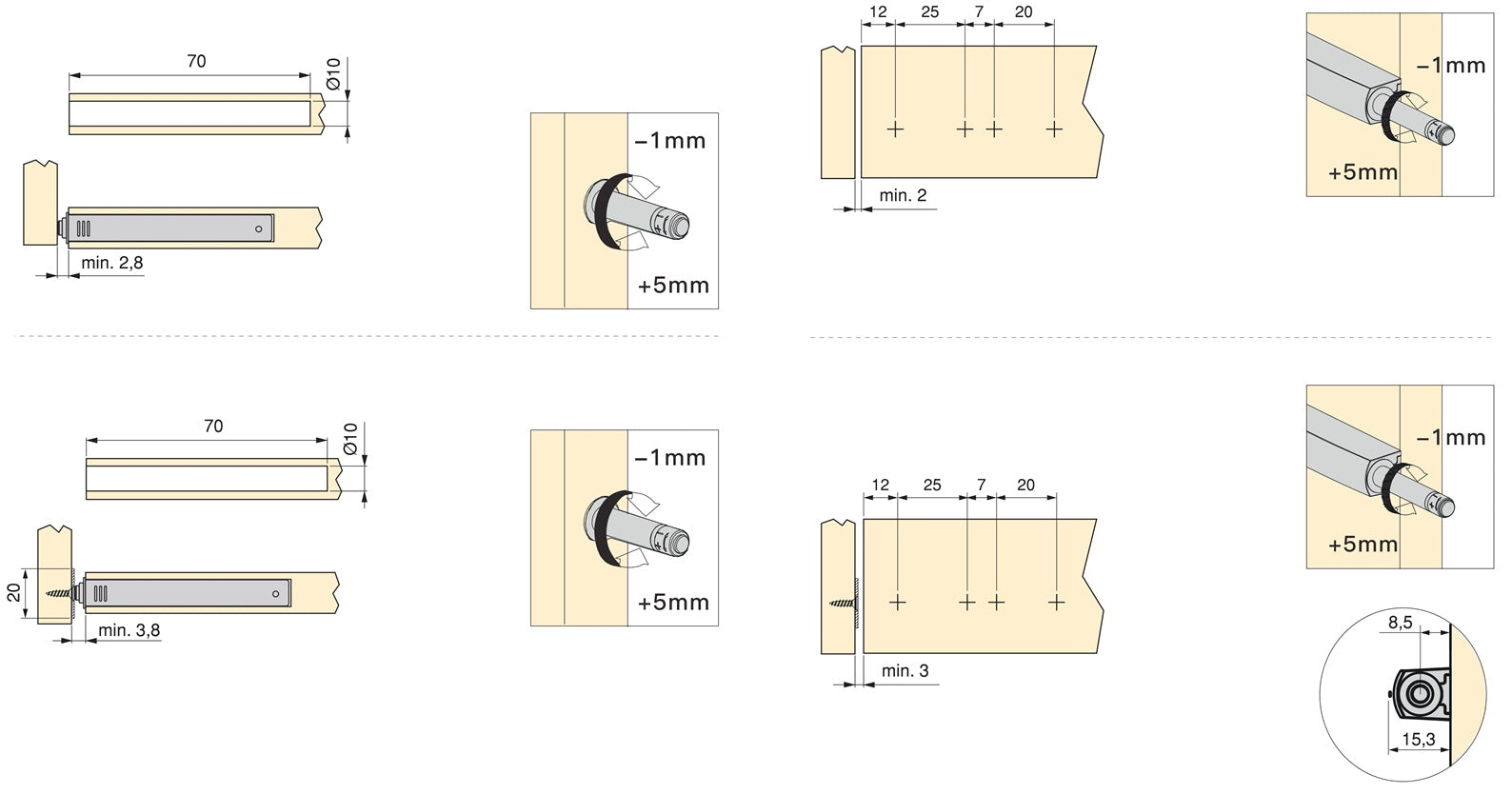

• The distance between the push-to-open door opener 1900215 and the door edge is 12 mm (15/32″) (for further details see assembly drawing )

Characteristics:

• Version: non-magnetic
• Weight: 26 g
• Load capacity (carrying capacity): 2.5 kg (6 lbs)
• Size: 70 mm (2-3/4″)
• easy to assemble
• practical
• stable
• Tappet extension: 37 mm (1-29/64″)
• Minimum door gap: 2.8 mm (7/64″)
• white
• robust
• High brand quality from UMAXO®

The dimensions:

• Total length of the snap closure: 70 mm (2-3/4″)
• Mounting plate width: 15 mm (19/32″)
• Case height: 15.3 mm (39/64″)

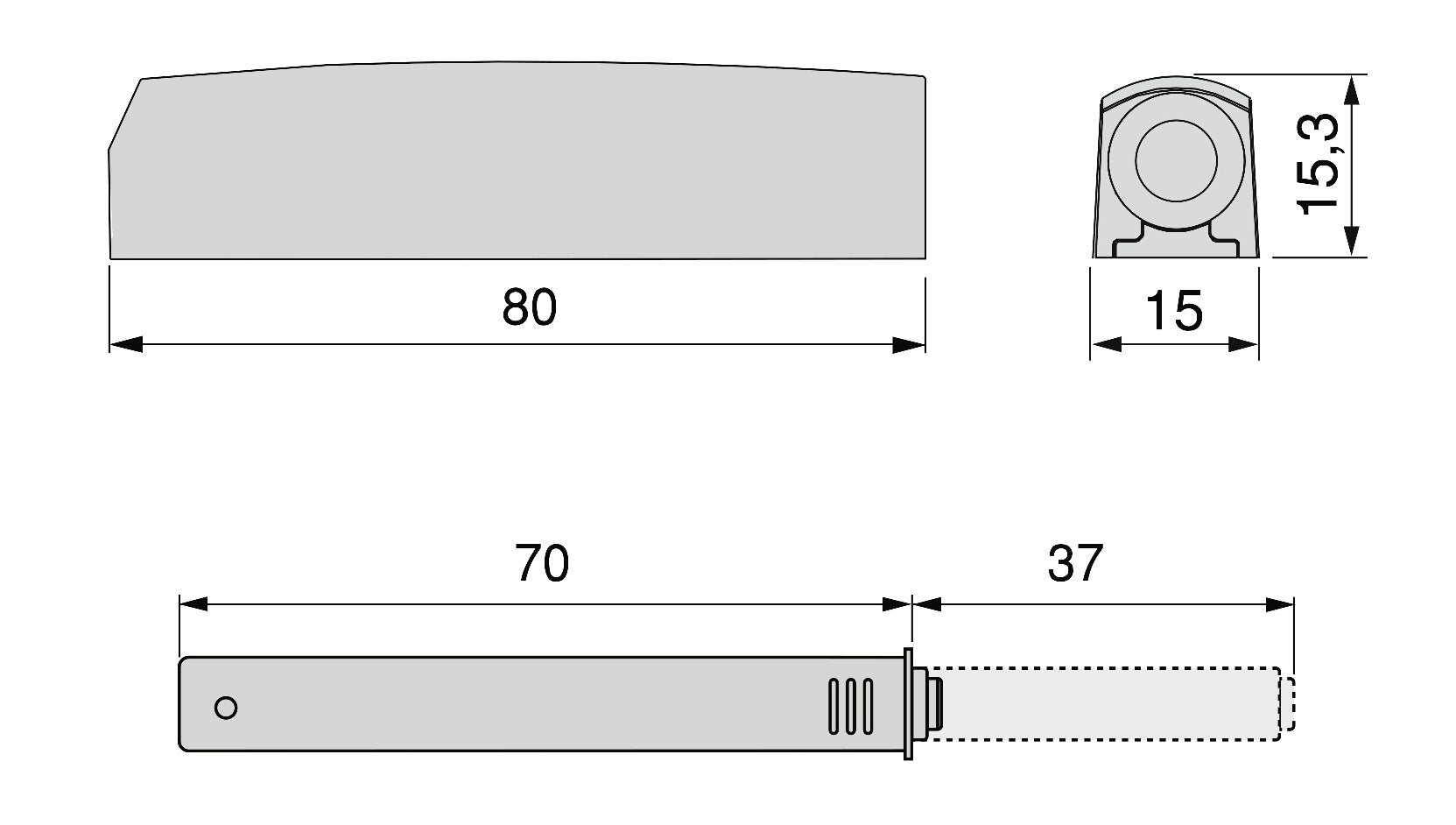

For further dimensions and details , see technical drawing .

Included in the delivery:

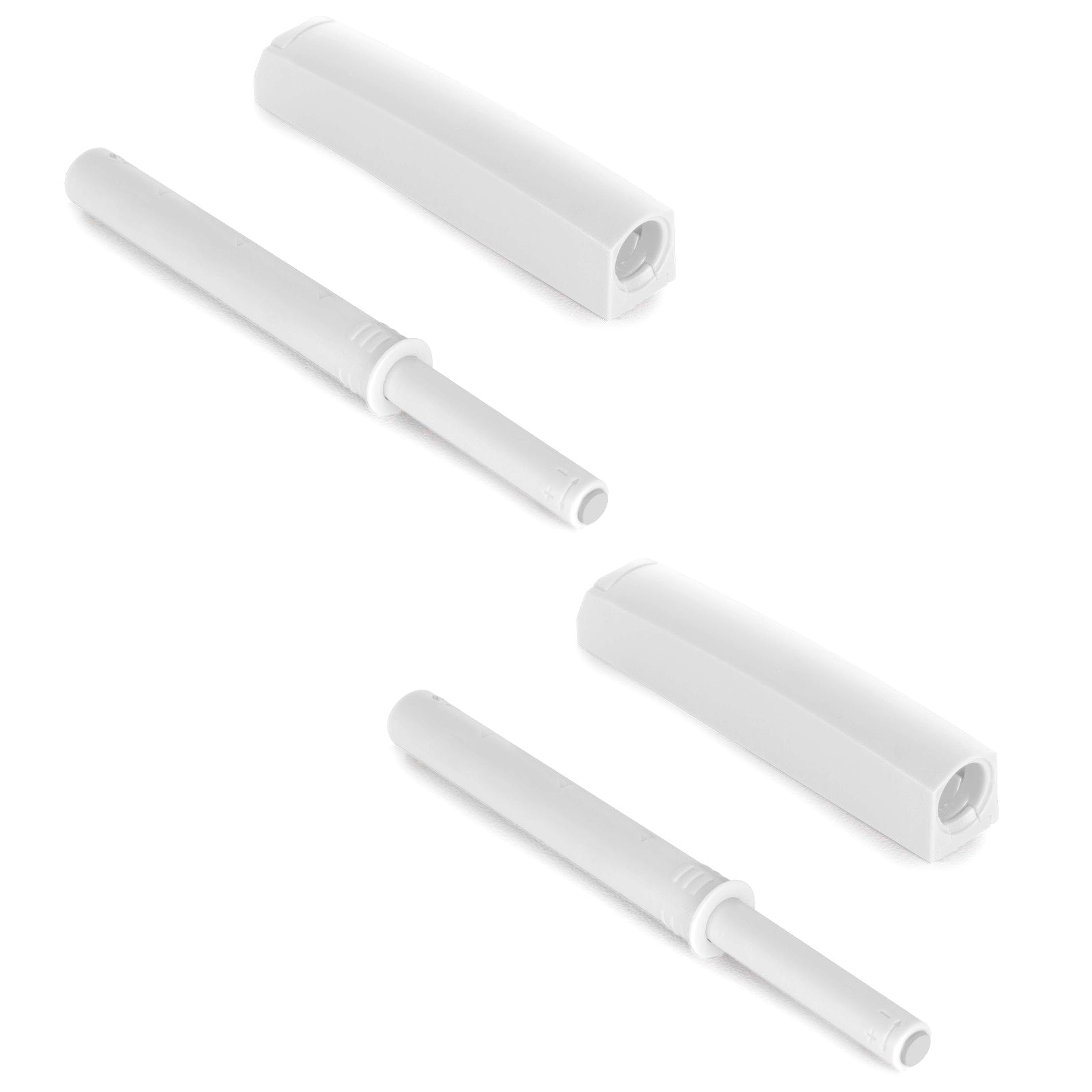

• Two push-button catches 1900215 made of robust plastic, white, version: non-magnetic
• Two housings

Watch the product video:

Additional Information:

• Download assembly instructions .

Manufacturer's reference number:

• Article number: 1900215
• EAN number: 8432393298818

Manufacturer: EMUCA
