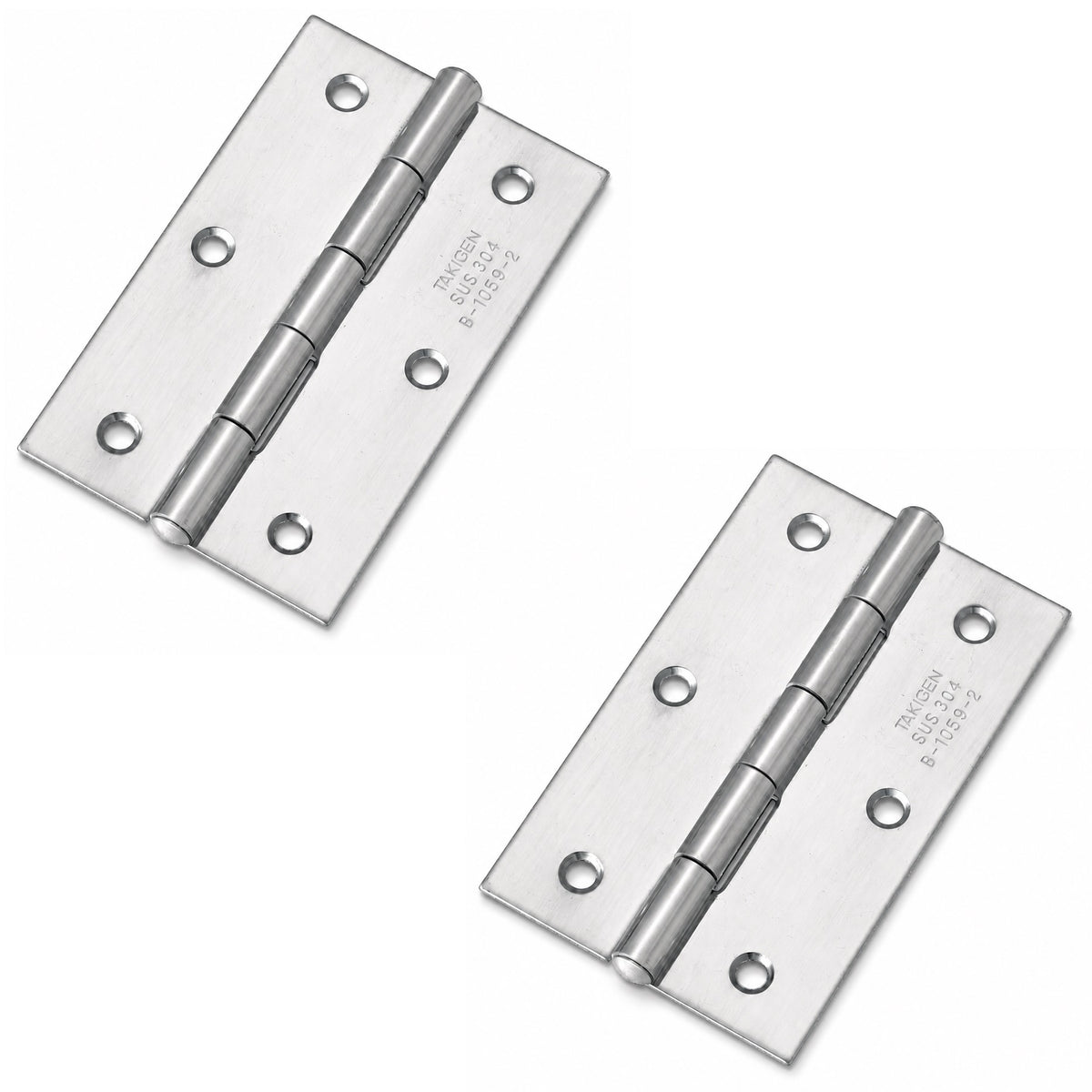

2 pieces of high-quality surface-mounted hinge, made of solid stainless steel SUS304 (V2A or 1.4301), surface: polished glossy, B-1059-2 (10658), size: 76 mm (2-63/64″), load capacity: 10 kg (22 lbs)

Application:

Robust flat hinge for machine doors, cabinet doors, maintenance flaps and much more.

The surface-mounted hinge B-1059-2 (10658) connects doors or flaps to a body or frame and enables easy, durable rotational movement.

The flat design is particularly suitable for surface-mounted applications on housings, machine covers and cabinets.

SUS304 stainless steel offers good corrosion resistance, making the hinge suitable for humid or more demanding environments.

The polished surface ensures a clean, high-quality appearance and facilitates cleaning.

6 countersunk holes allow for stable fastening, with the screw heads largely flush with the hinge leaves.

When two hinges are used vertically, the reference door weight for a door size of 800 mm (31-1/2″) x 400 mm (15-3/4″) is up to 10 kg (22 lbs).

The high-quality flat hinges B-1059-2 (10658) are ideal for, among other things:

• Machine covers
• Stainless steel housings
• Control cabinets
• Equipment flaps
• Cabinet doors
• Machine doors
• Housing doors
• Maintenance flaps

Material:

• The flat hinges 10658 are made of solid stainless steel SUS304 (V2A or 1.4301)
• SUS304 stainless steel is characterized by its high corrosion resistance and durability, making it ideal for use in demanding environments
• In addition, it offers an attractive surface that is both modern and easy to clean

Surface:

• Glossy polished
• Glossy polished surfaces on furniture fittings and components improve aesthetics and give them a high-quality, noble appearance
• In addition, the smooth surface facilitates cleaning and ensures less adhesion of dirt and impurities

Assembly:

• Fastening is done with 6 x countersunk stainless steel V2A screws, approx. ⌀3.5 mm (not included)
• The flat hinge has 6 mounting holes with countersink
• The flat hinge is first aligned in the desired position on the door or flap and frame
• The 6 fastening points are marked according to the hole pattern and pre-drilled or threaded depending on the material used
• Then the hinge is fastened with suitable countersunk screws
• For a visually clean assembly, the screw heads should be as flush as possible in the countersinks
• Before final tightening, it must be checked whether the door or flap can be moved freely and without tension

Features:

• Weight: 40 g (for 2 pieces: 80 g)
• Load capacity: 10 kg (22 lbs) - for 2 pieces
• Size: 76 mm (2-63/64″)

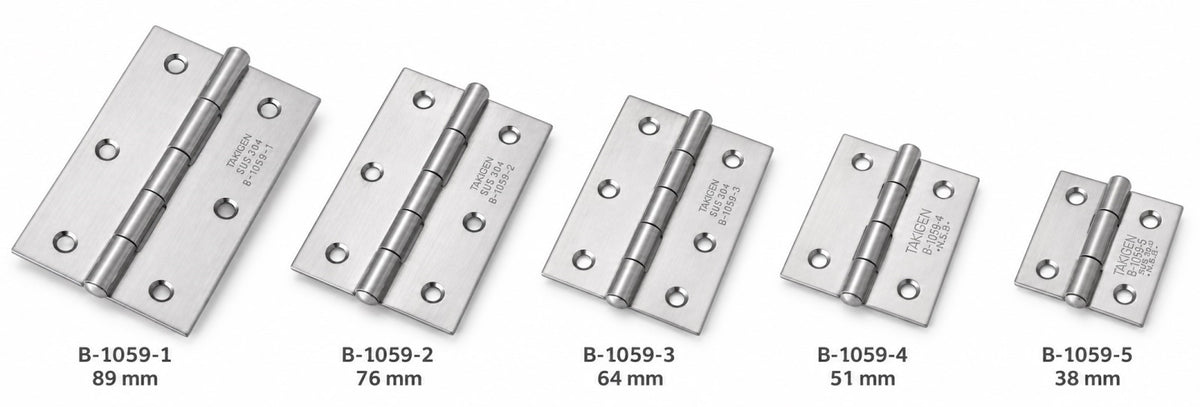

• Available in 5 sizes: 38 mm, 51 mm, 64 mm, 76 mm and 89 mm
• easy to assemble
• practical
• stable
• Material thickness 1 mm (3/64″)
• 6 countersunk mounting holes
• Mounting holes with ⌀4.5 mm
• Countersink with ⌀6 mm
• Hinge pin with ⌀4.5 mm
• Hinge barrel with ⌀6 mm outer diameter
• Five knuckle segments
• Reference door for weight specification: 800 mm (31-1/2″) x 400 mm (15-3/4″)
• Suitable for various door and flap applications
• glossy polished
• weather resistant
• rustproof (corrosion resistant)
• high brand quality from TAKIGEN®

The dimensions:

• Length: 76 mm (2-63/64″)
• Width: 45.5 mm (1-51/64″)
• Material thickness: 1 mm (3/64″)
• Hole pattern dimension: 56 mm (2-13/64″)
• Number of knuckle segments: 5

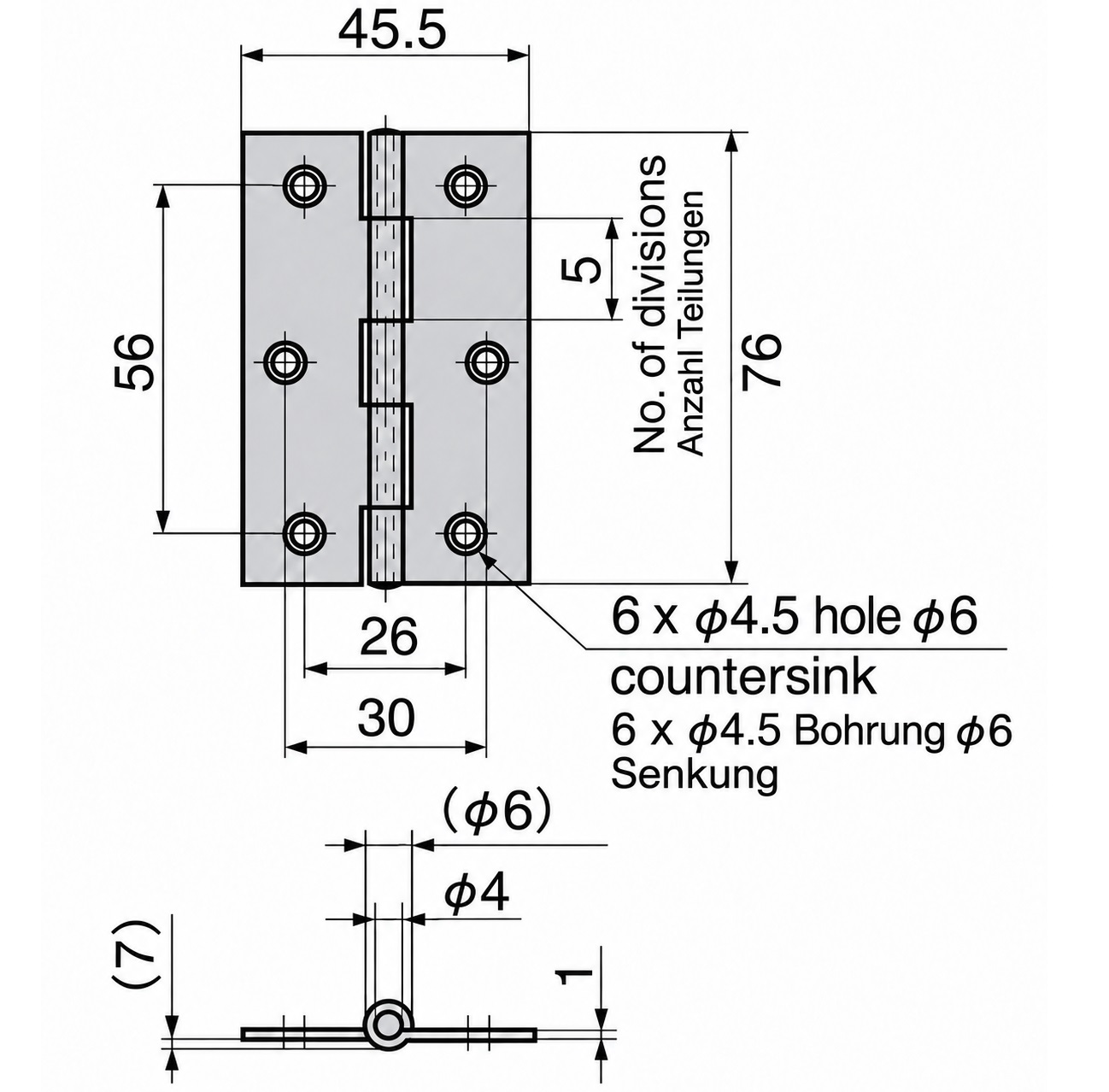

For further dimensions and details see technical drawing.

Included in delivery:

• 2 pieces of flat hinge B-1059-2 (10658) made of solid stainless steel SUS304, glossy polished
• Please note that no mounting screws are included in the scope of delivery

Manufacturer's reference numbers:

• Item identifier: 10658
• Item number: B-1059-2

Manufacturer: TAKIGEN (Japan)
