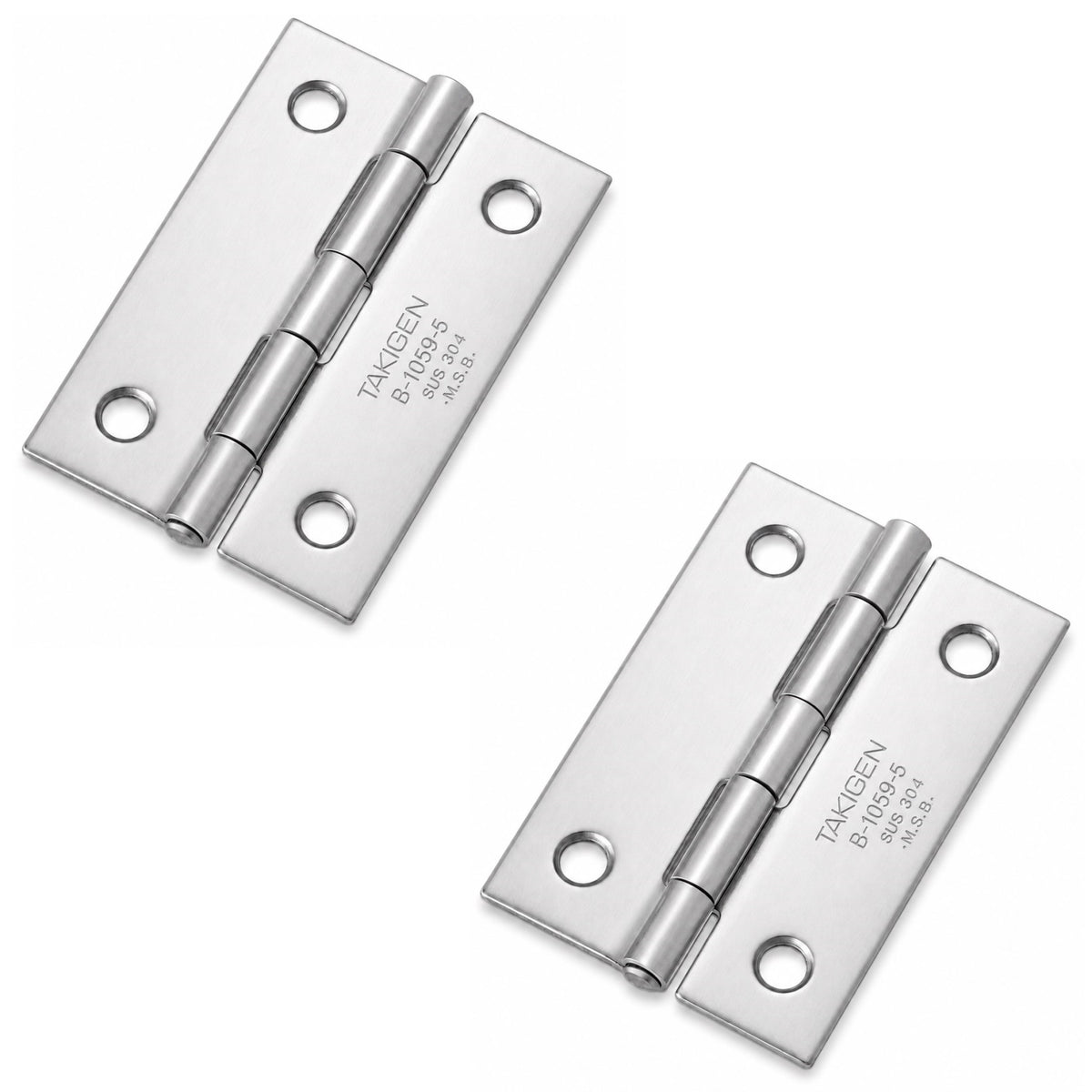

2 pieces of high-quality screw-on hinge, made of solid stainless steel SUS304 (V2A or 1.4301), surface: bright polished, B-1059-5 (10661), size: 38 mm (1-1/2″), load capacity: 4.5 kg (10 lbs)

Application:

Robust flat hinge for machine doors, maintenance flaps, and much more.

The screw-on hinge B-1059-5 (10661) connects doors or flaps to a body or frame and enables simple, permanent rotation.

The flat design is particularly suitable for screw-on applications on housings, machine covers, and cabinets.

SUS304 stainless steel offers good corrosion resistance and makes the hinge suitable for humid or more demanding environments as well.

The polished surface ensures a clean, high-quality look and makes cleaning easier.

4 countersunk holes allow for stable mounting, with the screw heads being able to sit largely flush with the hinge leaves.

When using two hinges vertically, the reference door weight for a door size of 500 mm (19-11/16″) x 250 mm (9-27/32″) is up to 4.5 kg (10 lbs).

The high-quality flat hinges B-1059-5 (10661) are ideal for, among other things:

• Housing doors
• Machine covers
• Stainless steel housings
• Control cabinets
• Equipment flaps
• Cabinet doors
• Machine doors
• Maintenance flaps

Material:

• The flat hinges 10661 are manufactured from solid stainless steel SUS304 (V2A or 1.4301)
• Stainless steel SUS304 is characterized by its high corrosion resistance and durability, making it ideal for use in demanding environments
• In addition, it offers an attractive surface that is both modern and easy to maintain

Surface:

• Bright polished
• Bright polished surfaces on furniture fittings and components improve aesthetics and give them a high-quality, elegant appearance
• Furthermore, the smooth surface facilitates cleaning and ensures less adhesion of dirt and impurities

Assembly:

• Attachment is carried out with 4 x V2A stainless steel countersunk screws, approx. ⌀3.5 mm (not included in delivery)
• The flat hinge has 4 countersunk mounting holes
• The flat hinge is first aligned in the desired position on the door or flap and the frame
• The 4 mounting points are marked according to the hole pattern and pre-drilled or threaded depending on the material used
• The hinge is then fastened with suitable countersunk screws
• For a visually clean installation, the screw heads should be as flush as possible in the countersinks
• Before final tightening, check whether the door or flap can be moved freely and without tension

Properties:

• Weight: 8 g (for 2 pieces: 16 g)
• Load capacity: 4.5 kg (10 lbs) - for 2 pieces
• Size: 38 mm (1-1/2″)
• Available in 5 sizes: 38 mm, 51 mm, 64 mm, 76 mm and 89 mm
• Easy to install
• Practical
• Stable
• Material thickness 0.8 mm (1/32″)
• 4 countersunk mounting holes
• Mounting holes with ⌀4.5 mm
• Countersink with ⌀5.5 mm
• Hinge pin with ⌀3 mm
• Hinge barrel with ⌀4.8 mm outer diameter
• Five knuckle segments
• Reference door for the weight specification: 500 mm (19-11/16″) x 250 mm (9-27/32″)
• Suitable for various door and flap applications
• Bright polished
• Weatherproof
• Rust-proof (corrosion-resistant)
• High brand quality from TAKIGEN®

The dimensions:

• Length: 38 mm (1-1/2″)
• Width: 26.5 mm (1-3/64″)
• Material thickness: 0.8 mm (1/32″)
• Hole pattern dimension: 27 mm (1-1/16″)
• Number of knuckle segments: 3

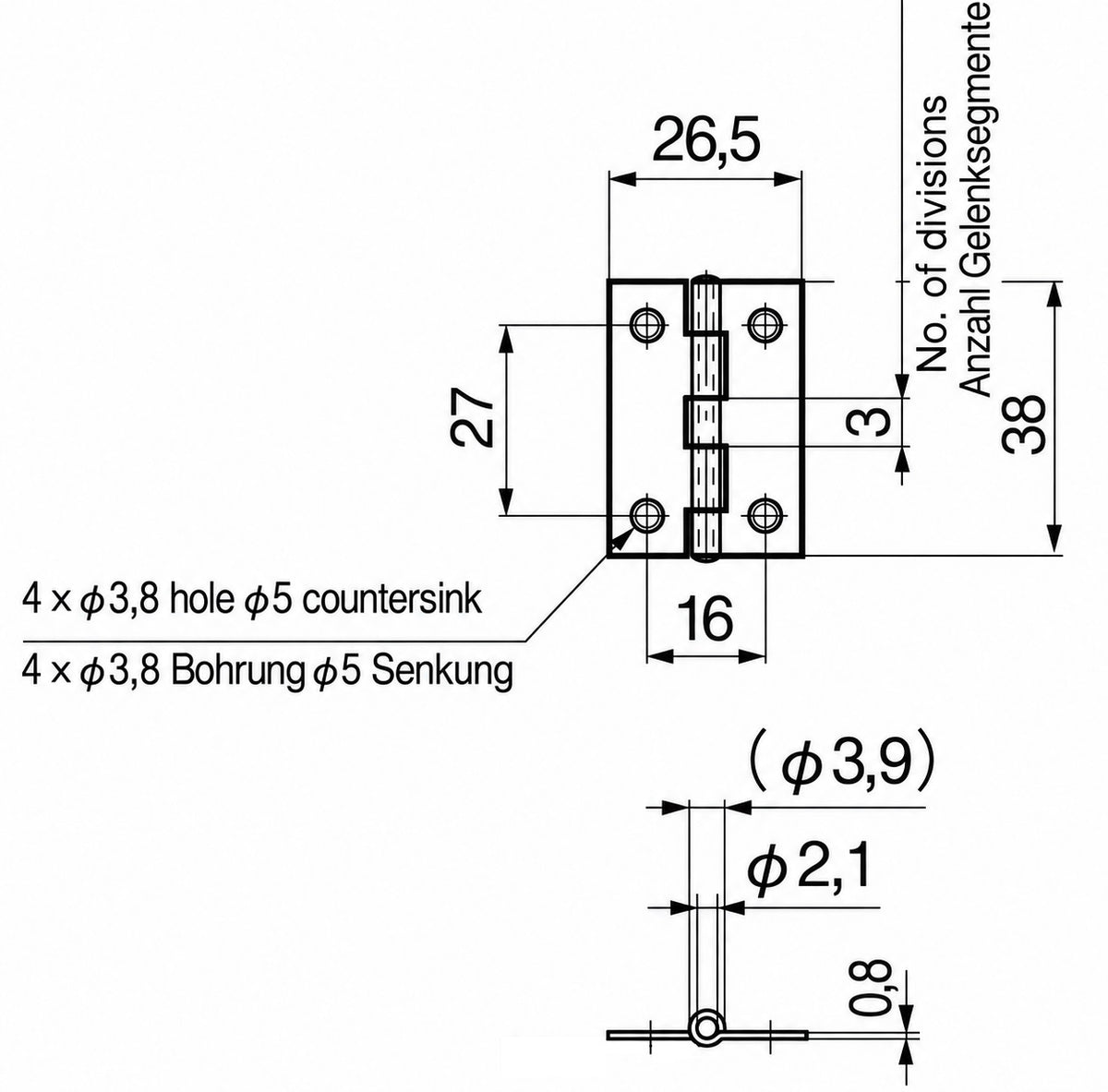

For further dimensions and details see technical drawing.

Included in delivery:

• 2 pieces of flat hinge B-1059-5 (10661) made of solid stainless steel SUS304, bright polished
• Please note that no mounting screws are included in the delivery

Manufacturer reference numbers:

• Item identification number: 10661
• Item number: B-1059-5

Manufacturer: TAKIGEN (Japan)
