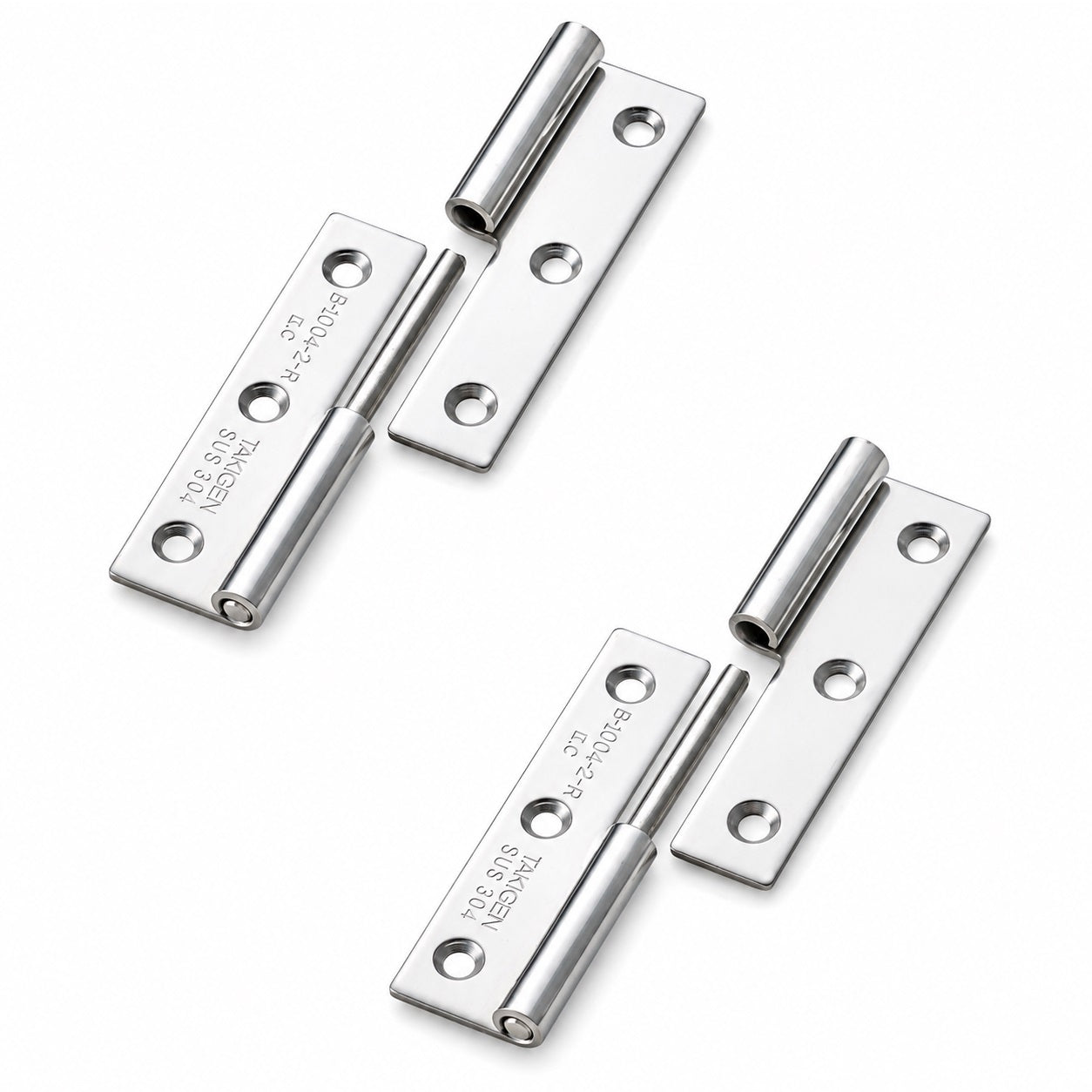

2 high-quality robust lift-off hinges, made of solid stainless steel SUS304 (V2A or 1.4301), surface: glossy polished, B-1004-2-R (10566), height: 64 mm (2-33/64″), design: right, load capacity: 10 kg (23 lbs)

Application:

Robust lift-off hinge for doors, maintenance flaps and much more.

Design: right. For right-hand hinged doors and flaps.

The lift-off hinge B-1004-2-R (10566) connects doors or flaps releasably to a housing.

By lifting, the movable component can be separated from the fixed hinge part without loosening the mounting screws.

The SUS304 material and the mirror-polished surface offer high corrosion resistance for kitchen, marine and outdoor applications.

Six countersunk holes allow for flush and low-interference mounting with M3 countersunk screws.

When two hinges are used vertically, TAKIGEN states a door weight of 10 kg (23 lbs) as a reference value.

The high-quality lift-off hinges B-1004-2-R (10566) are ideally suited for, among other things:

• Outdoor enclosures
• Machine doors
• Device doors
• Machine covers
• Kitchen appliance doors
• Doors
• Maintenance flaps

Material:

• The lift-off hinges 10566 are made of solid stainless steel SUS304 (V2A or 1.4301)
• Stainless steel SUS304 is characterized by its high corrosion resistance and durability, which makes it ideal for use in demanding environments
• In addition, it offers an attractive, polished or satin finish that is both modern and easy to maintain

Surface:

• Glossy polished
• Glossy polished surfaces on furniture fittings and components improve aesthetics and give them a high-quality, noble appearance
• In addition, the smooth surface facilitates cleaning and ensures less adhesion of dirt and impurities

Mounting:

• Mounting is done with 6 M3 countersunk screws (not included in delivery)
• Lift-off hinge B-1004-2-R (10566) has 6 mounting holes
• The distance between the mounting holes is 24 mm (15/16″) horizontally and 24 mm (15/16″) vertically
• First, the positions of the two hinge halves must be marked according to the right-hand hinge direction and the six mounting points prepared
• The housing-side hinge half is fastened with three M3 countersunk screws
• The door-side hinge half is also mounted with three M3 countersunk screws
• Both hinge halves must be aligned so that the hinge pin can be inserted without tension
• Then the door or flap is placed on the hinge pin from above
• Finally, smooth running, full engagement of the pin and tight fit of all screws must be checked

Features:

• Design: right
• Weight: 40 g (for 2 pieces: 80 g)
• Load capacity: 10 kg (23 lbs) - for 2 pieces
• Height: 64 mm (2-33/64″)
• Available in 2 designs: left and right, in 2 materials: stainless steel SUS304 and steel, and in 3 lengths: 50 mm, 64 mm and 75 mm
• easy to install
• practical
• stable
• Lift-off two-piece construction
• Material thickness: 1.5 mm (1/16″)
• Six countersunk holes for M3 screws
• Hinge pin with ⌀4 mm (5/32″)
• Door removable without loosening screws
• Suitable for indoor and outdoor applications
• RoHS10 compliant
• glossy polished
• weather resistant
• rustproof (corrosion resistant)
• high brand quality from TAKIGEN®

Dimensions:

• Total height of the lift-off hinge: 64 mm (2-33/64″)
• Width: 36 mm (1-27/64″)
• Diameter of the hinge pin: ⌀4 mm (5/32″)

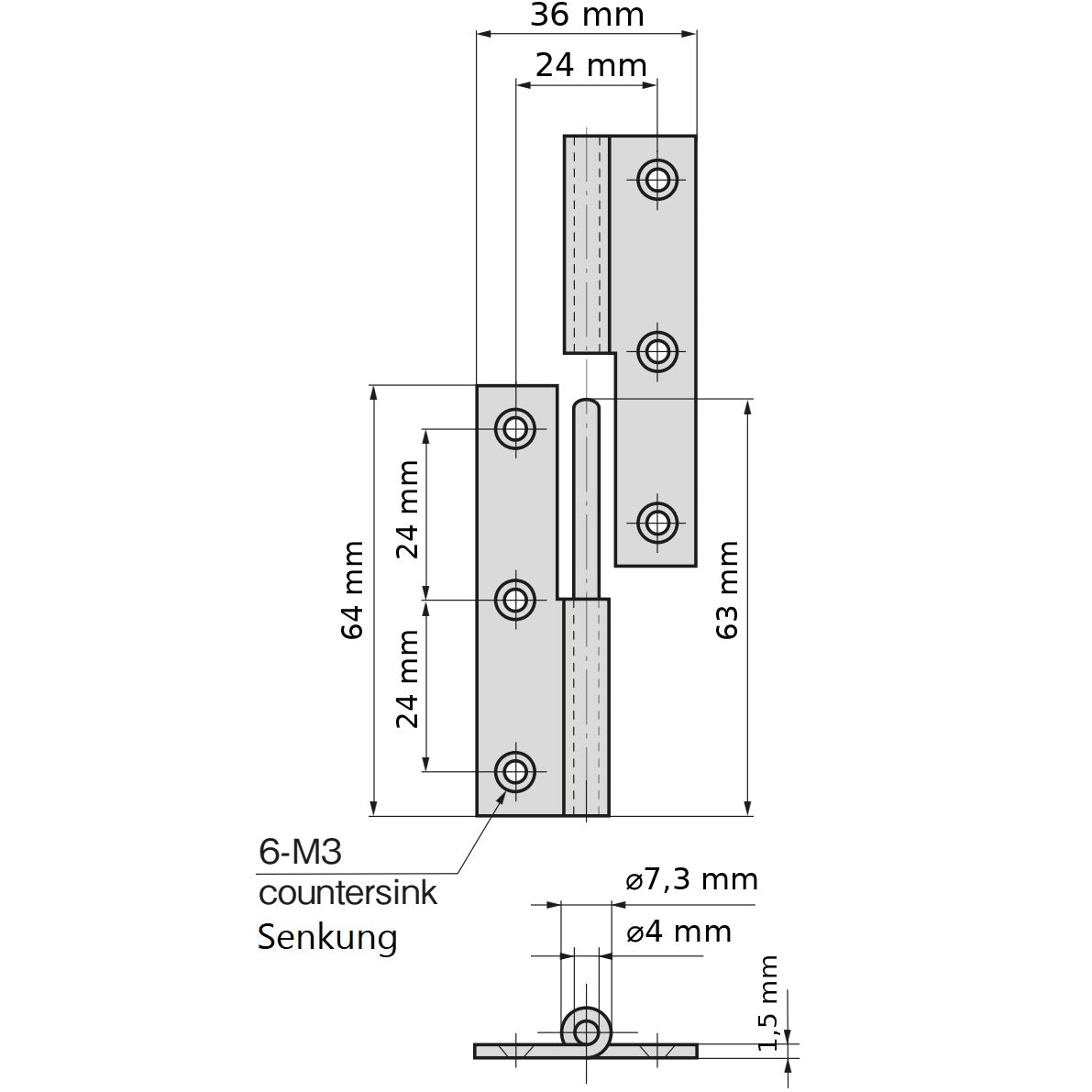

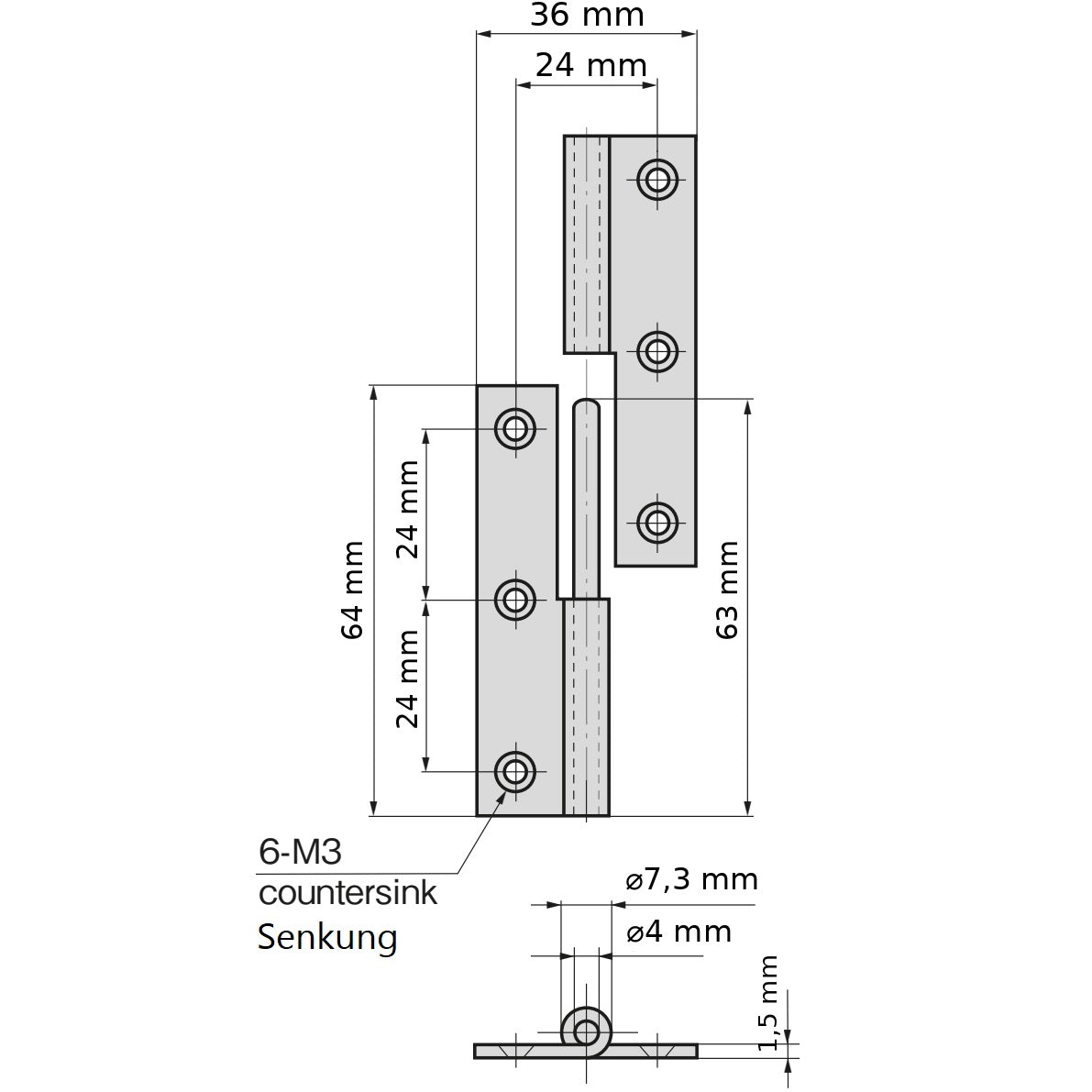

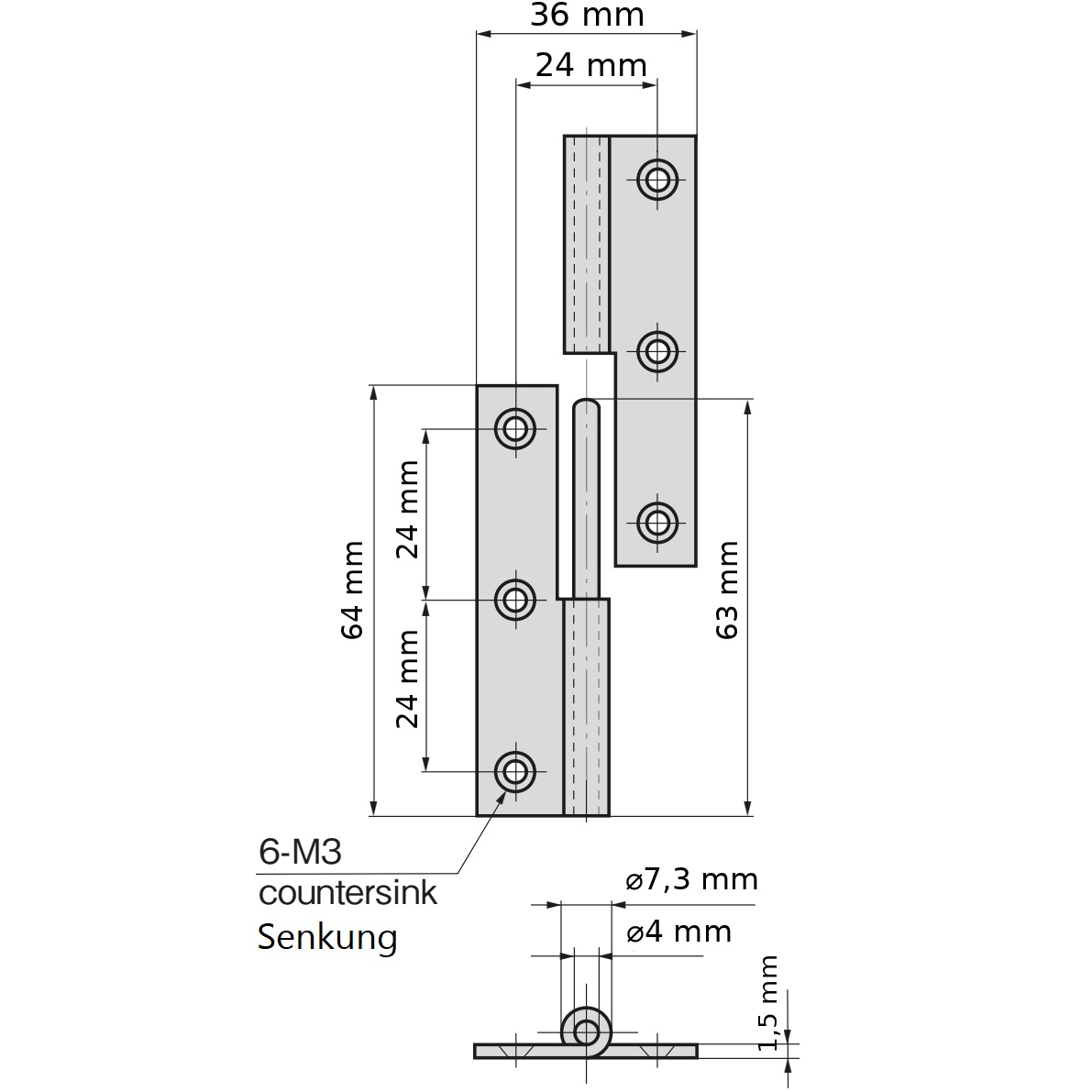

For further dimensions and details see technical drawing.

Included in delivery:

• 2 pieces of lift-off hinge B-1004-2-R (10566) made of solid stainless steel SUS304, glossy polished
• Please note that mounting screws are not included in the scope of delivery

Manufacturer's reference numbers:

• Article identification number: 10566
• Article number: B-1004-2-R

Manufacturer: TAKIGEN (Japan)
