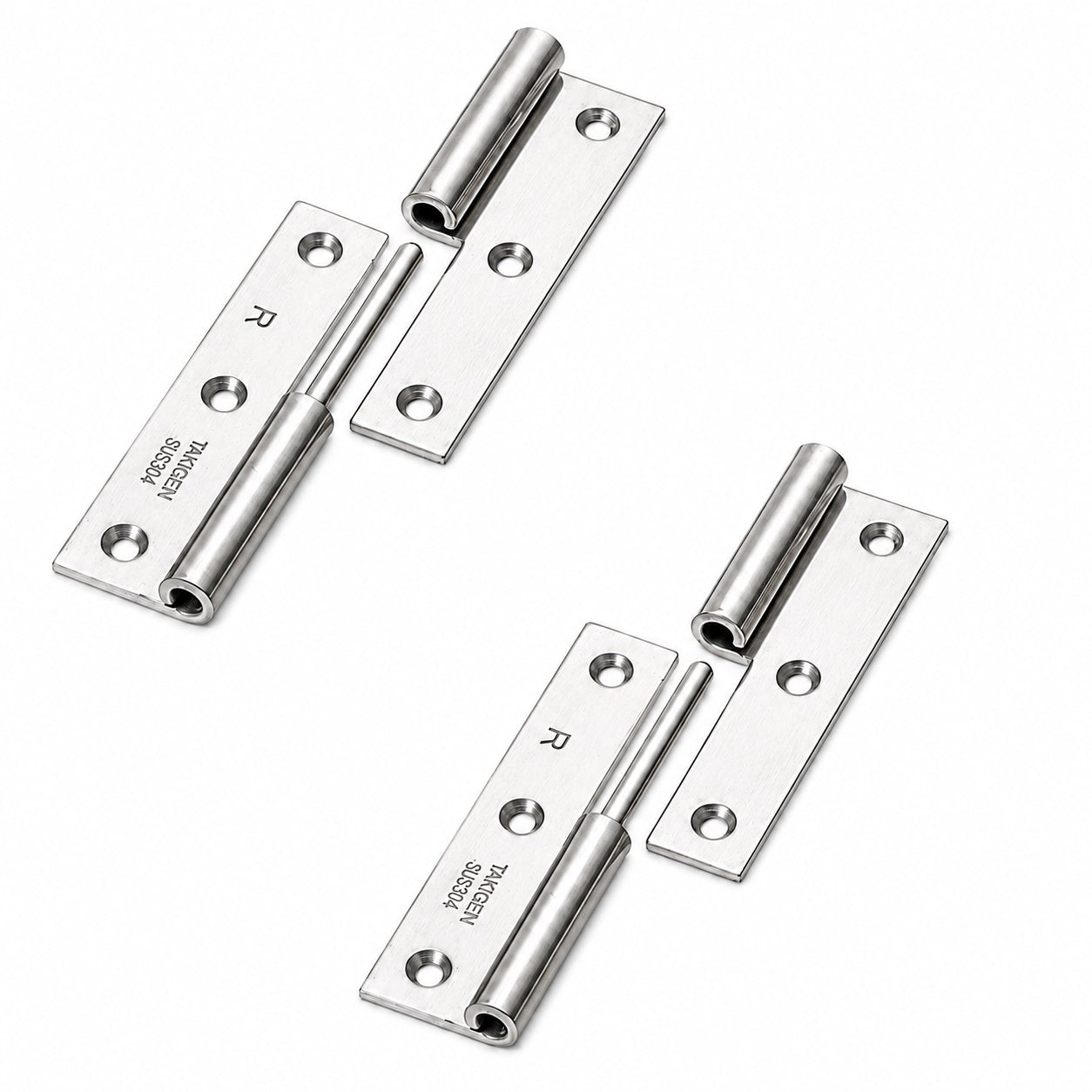

2 pieces of high-quality robust lift-off hinges, made of solid stainless steel SUS304 (V2A or 1.4301), surface: brightly polished, B-1004-1-R (10564), height: 75 mm (2-61/64″), design: right, load capacity: 15 kg (34 lbs)

Application:

Robust lift-off hinge for doors, maintenance flaps and much more.

Version: right. For right-hand hung doors and flaps.

The lift-off hinge B-1004-1-R (10564) connects doors or flaps detachably to a housing.

By lifting, the movable component can be separated from the fixed hinge part without loosening the fastening screws.

The left and right versions are designed for correspondingly hinged constructions.

The material SUS304 and the mirror-polished surface offer high corrosion resistance for kitchen, marine and outdoor applications.

Six countersunk holes allow for flush and low-interference mounting with M3 countersunk screws.

When two hinges are used vertically, TAKIGEN states a door weight of 15 kg as a reference value.

The high-quality lift-off hinges B-1004-1-R (10564) are ideally suited for, among other things:

• Outdoor enclosures
• Appliance doors
• Machine covers
• Kitchen appliance doors
• Doors
• Maintenance flaps

Material:

• The lift-off hinges 10564 are made of solid stainless steel SUS304 (V2A or 1.4301)
• Stainless steel SUS304 is characterized by its high corrosion resistance and durability, making it ideal for use in demanding environments
• In addition, it offers an attractive, polished or satin finish that is both modern and easy to maintain

Surface:

• Brightly polished
• Brightly polished surfaces on furniture fittings and components improve aesthetics and give them a high-quality, noble appearance
• In addition, the smooth surface facilitates cleaning and ensures less adhesion of dirt and contaminants

Assembly:

• Fastening is done with 6 M3 countersunk screws (not included)
• the B-1004-1-R (10564) has 6 mounting holes
• The distance between the mounting holes is horizontally 24 mm (15/16″) and vertically 30 mm (1-3/16″)
• First, the positions of the two hinge halves must be marked according to the right-hand stop direction and the six mounting points prepared
• The housing-side hinge half is fastened with three M3 countersunk screws
• The door-side hinge half is also mounted with three M3 countersunk screws
• Both hinge halves must be aligned so that the hinge pin can be inserted without tension
• Then the door or flap is placed on the hinge pin from above
• Finally, ease of movement, full engagement of the pin and tight fit of all screws must be checked

Features:

• Version: right
• Weight: 65 g (for 2 pieces: 130 g)
• Load capacity: 15 kg (34 lbs) - for 2 pieces
• Height: 75 mm (2-61/64″)
• Available in 2 designs: left and right, in 2 materials: stainless steel SUS304 and steel, and in 3 lengths: 50 mm, 64 mm and 75 mm
• easy to install
• practical
• stable
• Detachable two-piece construction
• High corrosion resistance
• Material thickness: 2 mm (5/64″)
• Six countersunk holes for M3 screws
• Hinge pin with ⌀4 mm (5/32″)
• Door removable without loosening screws
• Suitable for indoor and outdoor applications
• RoHS10 compliant
• brightly polished
• weather resistant
• rustproof (corrosion resistant)
• high brand quality from TAKIGEN®

The dimensions:

• Total height of the lift-off hinge: 75 mm (2-61/64″)
• Width: 38 mm (1-1/2″)
• Diameter of the hinge pin: ⌀4 mm (5/32″)

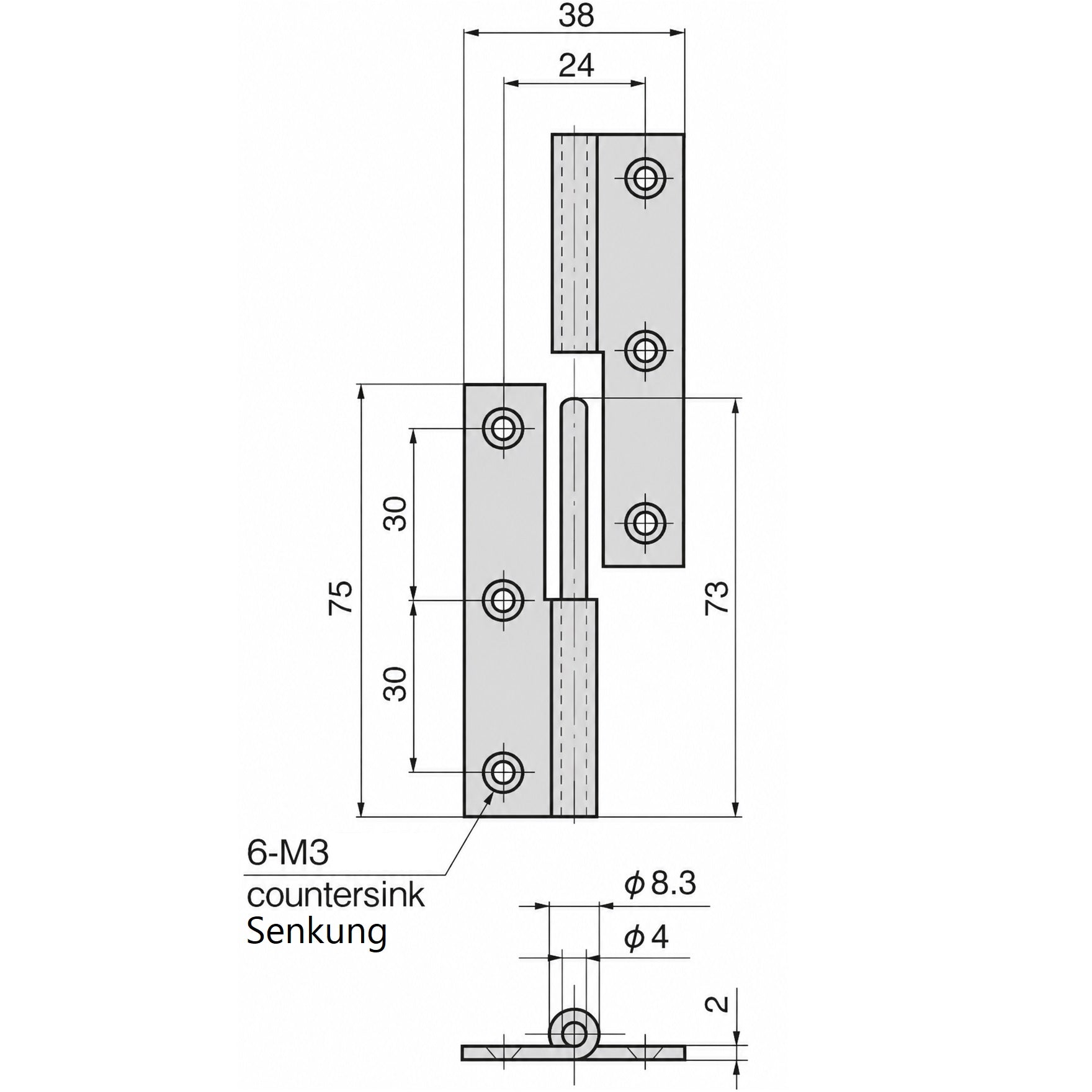

For further dimensions and details see technical drawing.

Included in delivery:

• 2 pieces of lift-off hinge B-1004-1-R (10564) made of solid stainless steel SUS304, brightly polished
• Please note that no fastening screws are included in the delivery

Manufacturer's reference numbers:

• Article identification number: 10564
• Article number: B-1004-1-R

Manufacturer: TAKIGEN (Japan)
