2 Pieces compact cranked hinge, made of solid stainless steel SUS304 (V2A or 1.4301), surface: polished, TH-25SUS (2233), height: 35 mm (1-3/8″), load capacity: 4.5 kg (10 lbs)

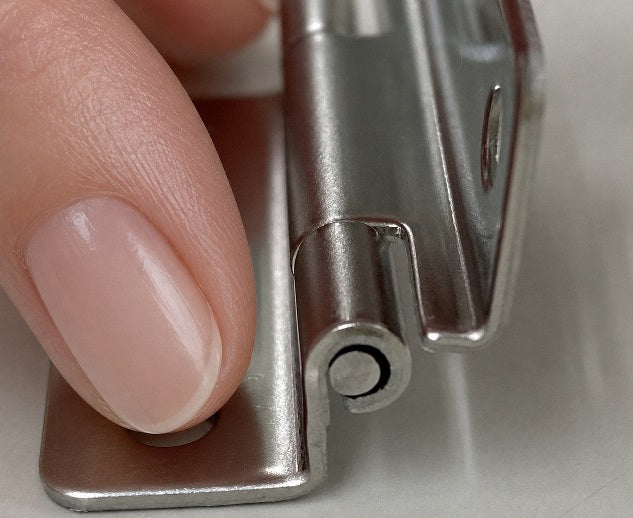

Application:

Robust cranked hinge for thick doors, cabinet doors, maintenance flaps and much more.

The cranked hinge TH-25SUS (2233) connects doors and flaps to housings where the mounting surfaces are not on the same level due to a step or greater material thickness.

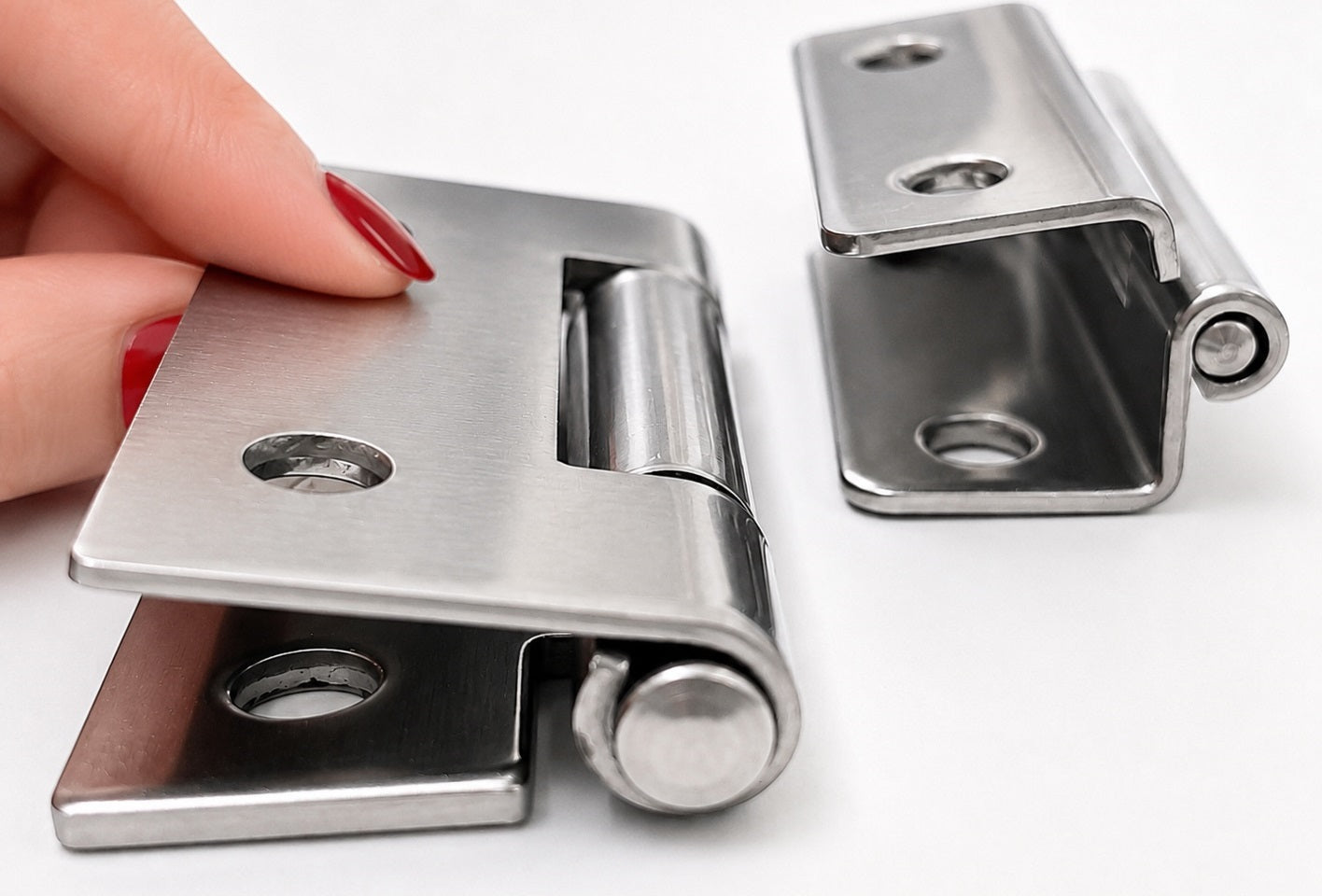

Thanks to its cranked design, it bridges the offset between door and frame and allows for a clean and space-saving hinge connection.

The compact design of 35 mm (1-3/8″) x 25 mm (63/64″) is particularly suitable for smaller appliance, cabinet and maintenance doors.

All essential components, including the hinge pin, are made of SUS304 stainless steel, offering high corrosion resistance.

The polished hinge leaves also provide a high-quality and easy-to-maintain surface.

When using two hinges, Tochigiya specifies a reference door mass of 4.5 kg, which makes the TH-25SUS (2233) cranked hinge particularly suitable for light doors and flaps.

The high-quality TH-25SUS (2233) cranked hinges are ideal for, among other things:

• Set-back doors
• Measuring devices
• Communication devices
• Machine housings
• Equipment housings
• Control cabinets
• Equipment doors
• Thick doors
• Cabinet doors
• Maintenance flaps

Material:

• The 2233 cranked hinges are made of solid SUS304 (V2A or 1.4301) stainless steel
• SUS304 stainless steel is characterized by its high corrosion resistance and durability, making it ideal for use in demanding environments
• It also offers an attractive surface that is both modern and easy to maintain

Surface:

• Polished
• Polished surfaces on furniture fittings and components enhance aesthetics and give them a high-quality, noble appearance
• In addition, the smooth surface facilitates cleaning and reduces the adhesion of dirt and impurities

Assembly:

• Fastening is done with M3 pan head screws made of A2 stainless steel or 3.0 x 12 mm or 3.0 x 16 mm pan head wood screws (not included)
• The TH-25SUS cranked hinge has 4 mounting holes
• First, the positions of the two hinge leaves on the door or flap and on the frame must be precisely determined and the four mounting points marked according to the hole spacing of 15 mm (19/32″) x 25 mm (63/64″)
• Then, the necessary drillings or threads are prepared
• The stepped hinge is fastened with two fastening screws per hinge leaf to the door and frame
• The cranked shape must be aligned so that the existing offset between the two mounting planes is compensated
• Before finally tightening the screws, the door and frame must be aligned with each other and the free rotation of the hinge checked
• For a door weight up to the manufacturer's specified reference value of 4.5 kg, two TH-25SUS cranked hinges are provided.

Features:

• Weight: 10 g (for 2 pieces: 20 g)
• Load capacity: 4.5 kg (10 lbs) - for 2 pieces
• Height: 35 mm (1-3/8″)
• Easy to install
• Practical
• Stable
• Cranked or stepped design
• Suitable for thick and set-back doors
• Hinge pin also made of SUS304
• Four mounting holes with ⌀3.5 mm (9/64″)
• Suitable for technical devices and housings
• RoHS2 compliant
• TSCA-PBT5 compliant
• Polished
• Weather resistant
• Rust-free (corrosion resistant)
• High brand quality from TOCHIGIYA®

The dimensions:

• Overall height: 35 mm (1-3/8″)
• Overall width: 25 mm (63/64″)
• Material thickness: 1 mm (3/64″)
• Horizontal hole spacing: 15 mm (19/32″)
• Vertical hole spacing: 25 mm (63/64″)
• Distance from hole center to outer edge: 5 mm
• Diameter of mounting holes: 4 x ⌀3.5 mm (9/64″)
• Corner radius: 4 x R2 mm
• Pin diameter: ⌀2 mm (5/64″)

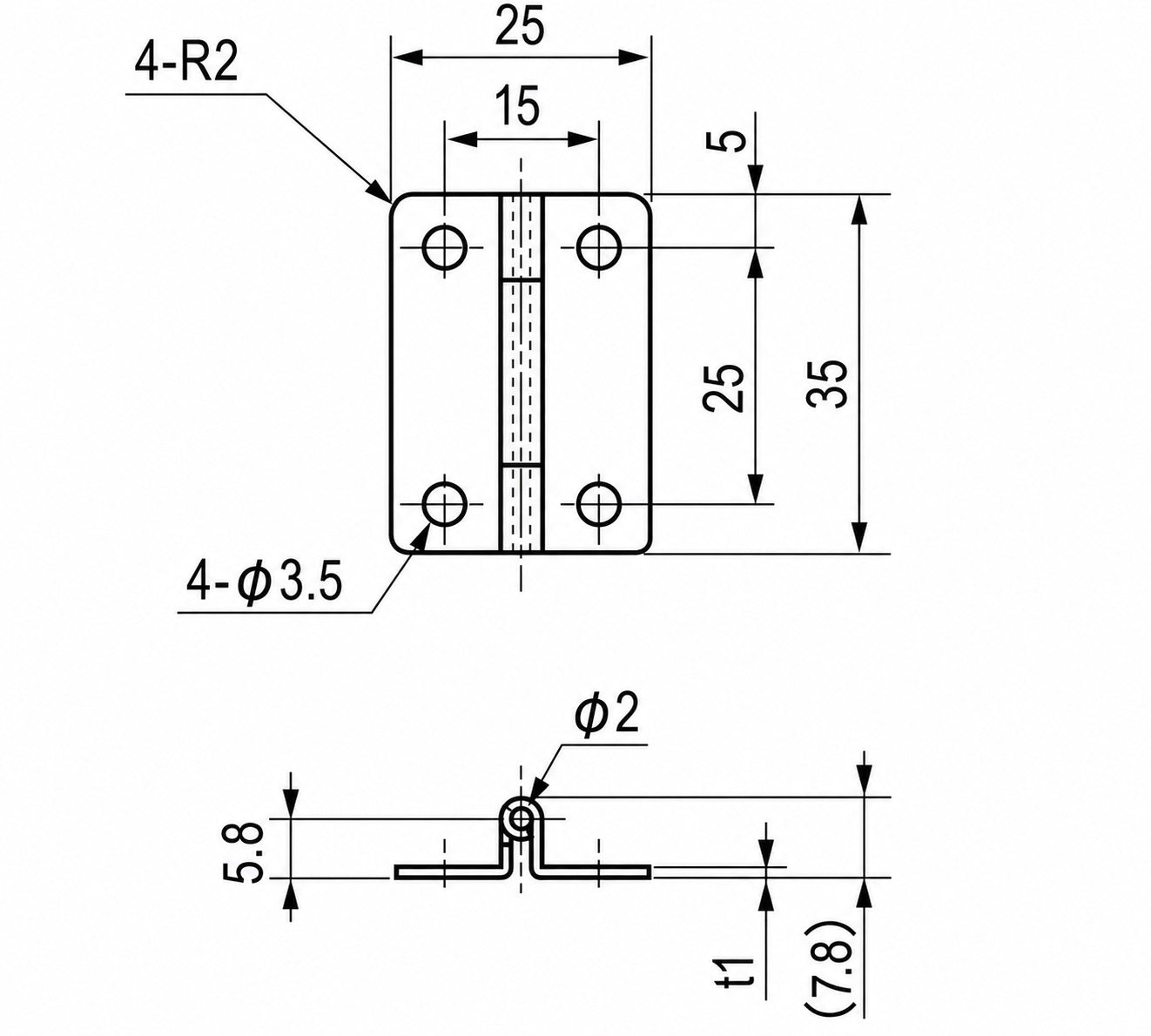

For further dimensions and details see technical drawing.

Included in delivery:

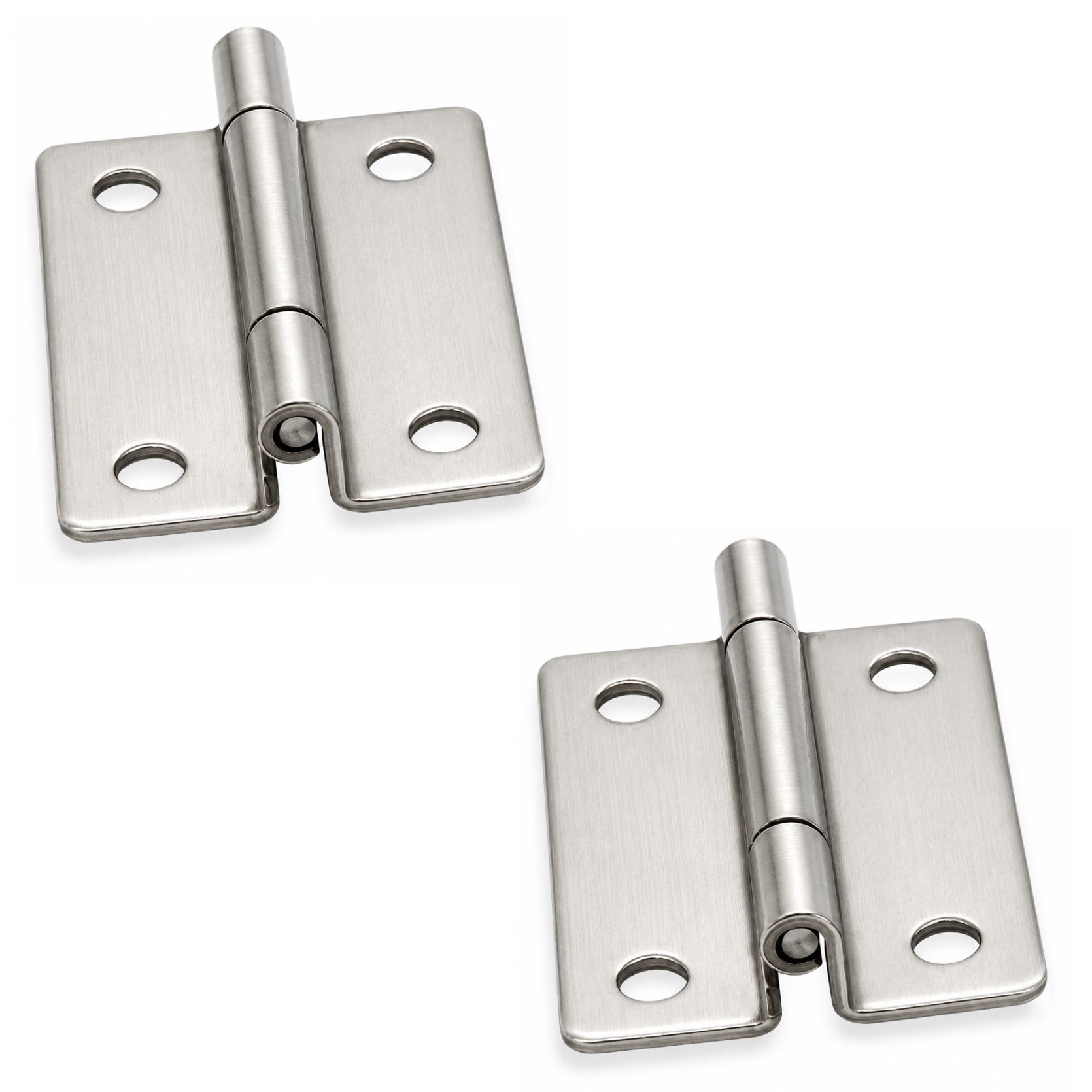

• 2 pieces cranked hinge TH-25SUS (2233) made of solid SUS304 stainless steel, polished
• Please note that no mounting screws are included in the delivery

Manufacturer's reference numbers:

• Item identifier: 2233
• Item number: TH-25SUS

Manufacturer: TOCHIGIYA (Japan)
