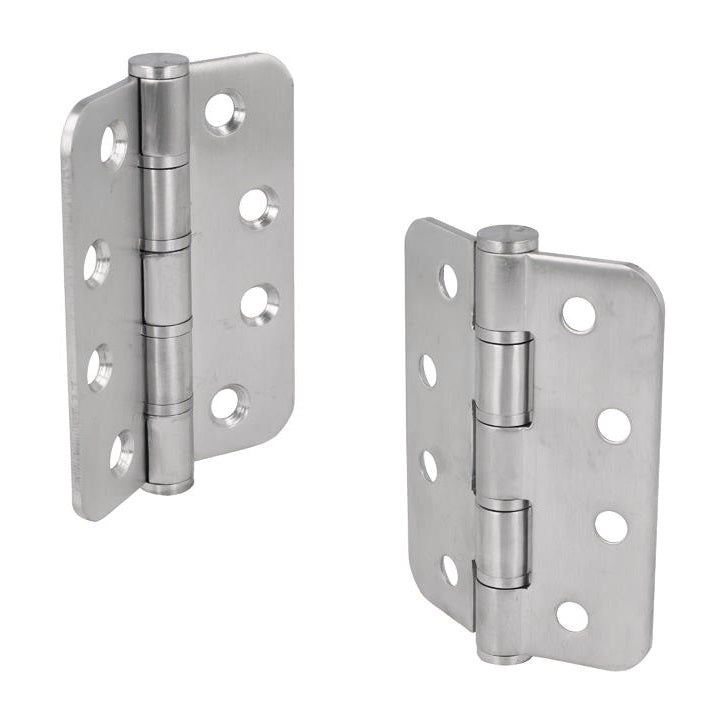

Two high-quality SISO / UMAXO® door hinges made of solid stainless steel, 102 mm, with rounded corners, including screws. Door hinges for heavy doors. Made of SUS304 (V2A) stainless steel, material thickness 3 mm.

Set consisting of two solid door hinges 102 mm, with rounded corners, made of stainless steel SUS304, including screws

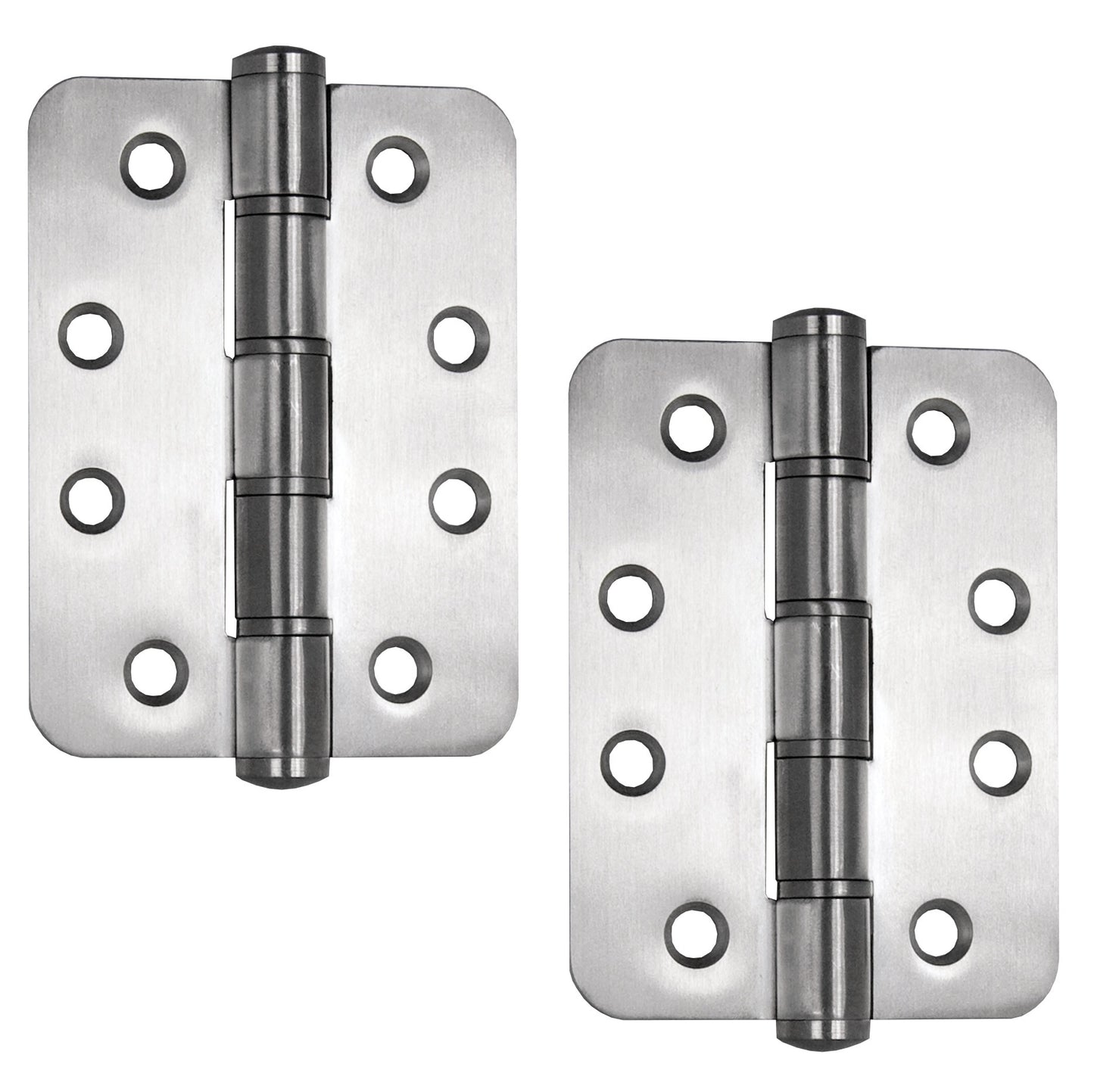

Application: These high-quality, corrosion-resistant furniture hinges made of V2A stainless steel can be used, for example, for room doors, wooden chest flaps, fire doors, furniture doors or doors of walk-in closets. [caption id="attachment_31103" align="alignnone" width="420"] 2 high-quality SISO / UMAXO® door hinges made of solid stainless steel 102 mm[/caption] Perfect for humid environments, can also be used on ships and boats. Also suitable for bathrooms, saunas, swimming pools, laboratories and medical areas. Thanks to their solid construction, the stainless steel hinges have a very long service life and keep the doors securely anchored for many years. Includes stainless steel screws for easy installation and long service life. Assembly: The door hinges offer easy installation with the included stainless steel screws. Characteristics:

• Opening angle: 270°
• Load capacity: 60 kg for two hinges
• Hinge weight: 261 g
• Durable and stable
• With stainless steel discs for more stability

Included in delivery:

• 2 stainless steel door hinges
• 2 x 8 screws

Material:

• Hinge: stainless steel SUS304 (V2A)
• Screws: stainless steel
• Discs: stainless steel

Surface:

• brushed stainless steel

Dimensions:

• Length: 101.6 mm
• Width: 76.2 mm
• Radius of rounded corners: 10 mm
• Material thickness: 3 mm
• Diameter of hinge joint: Ø8.1 mm
• Screw hole diameter: Ø7 mm

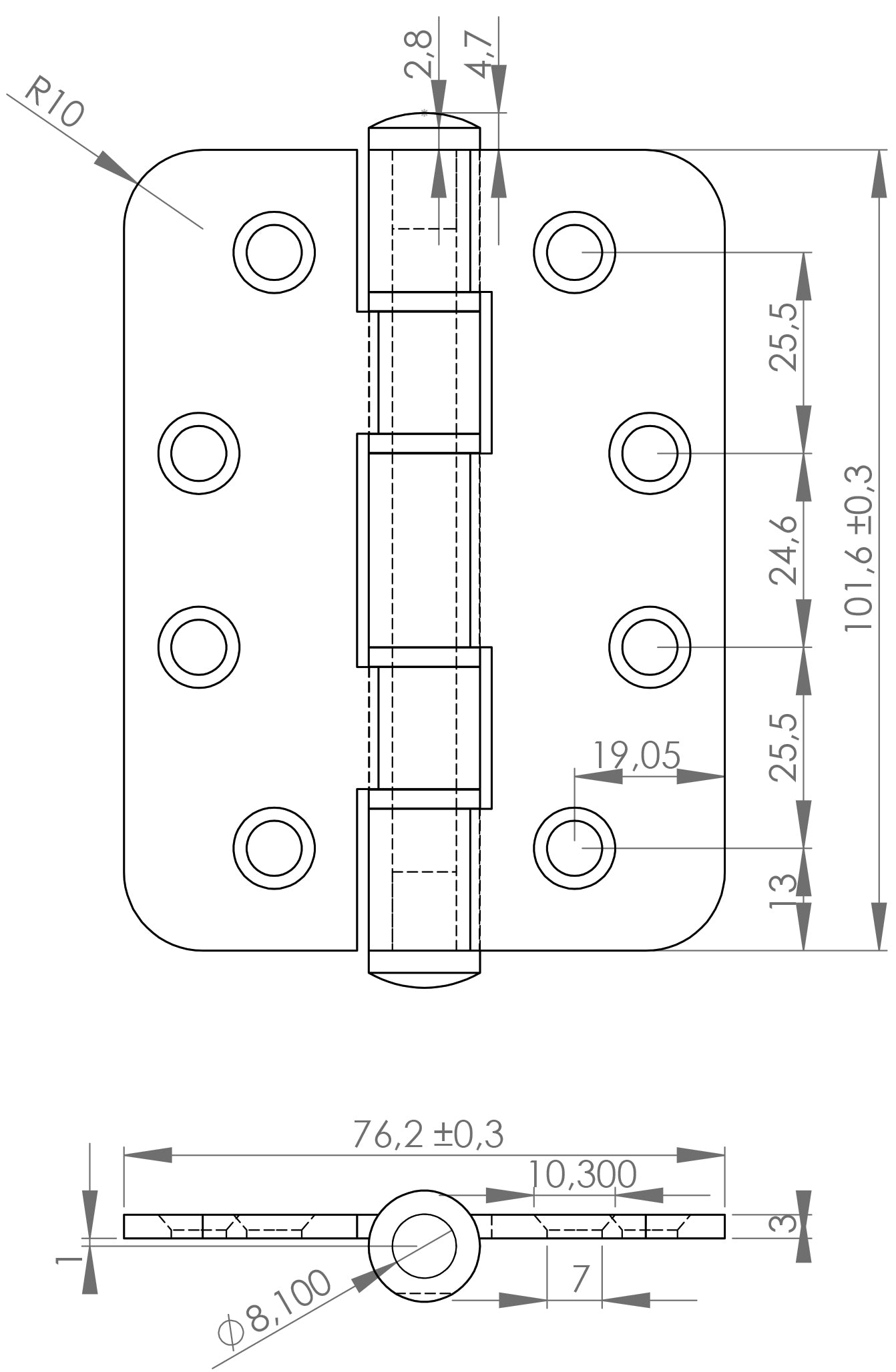

For dimensions see technical drawing (mm) : [caption id="attachment_31055" align="alignnone" width="420"] Technical drawing: Solid door hinges 102 mm, with rounded corners, made of stainless steel SUS304[/caption] Manufacturer reference number:

• 15.20.116
• 15.20.116-0

Manufacturer: SISO Denmark
