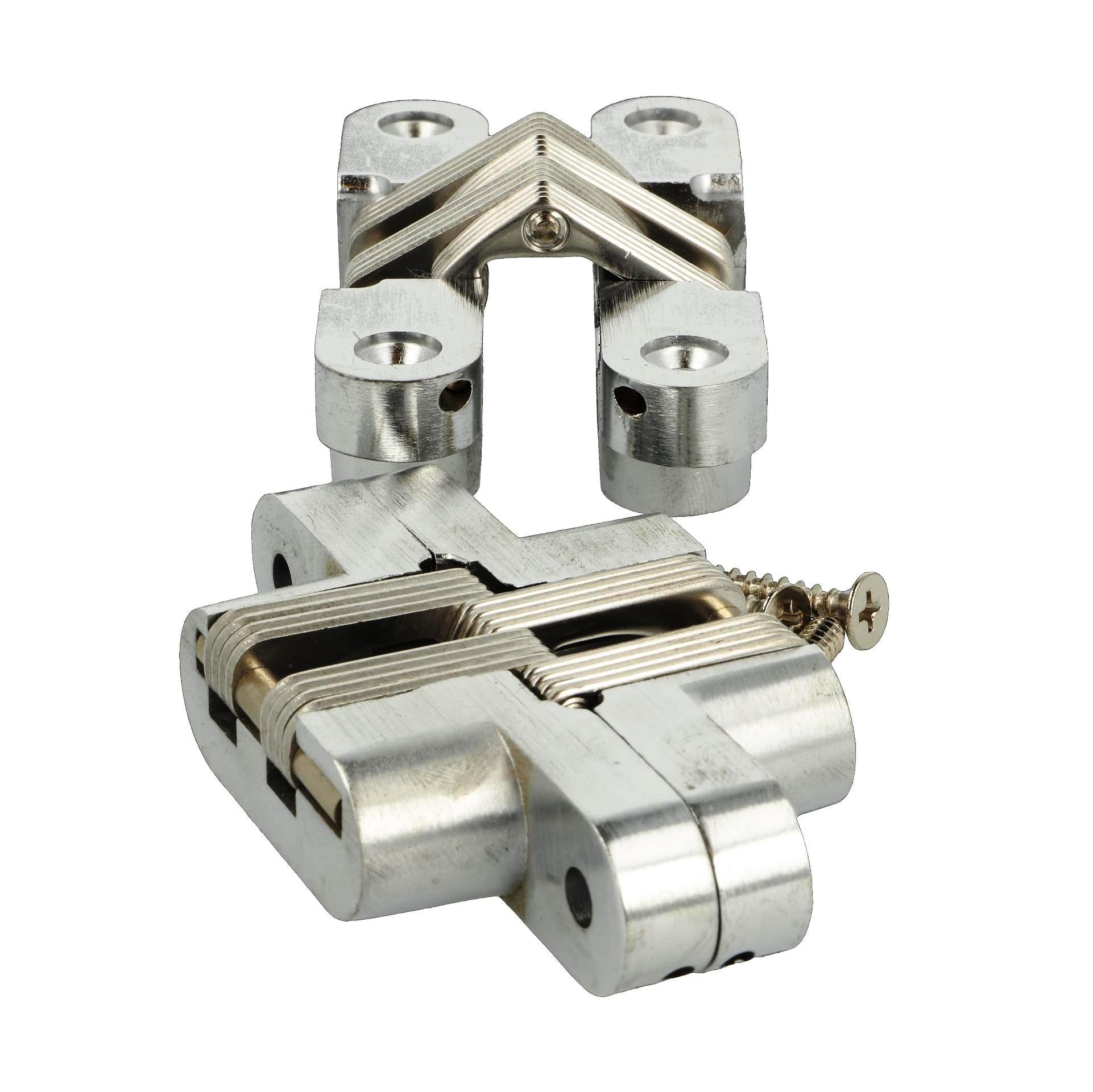

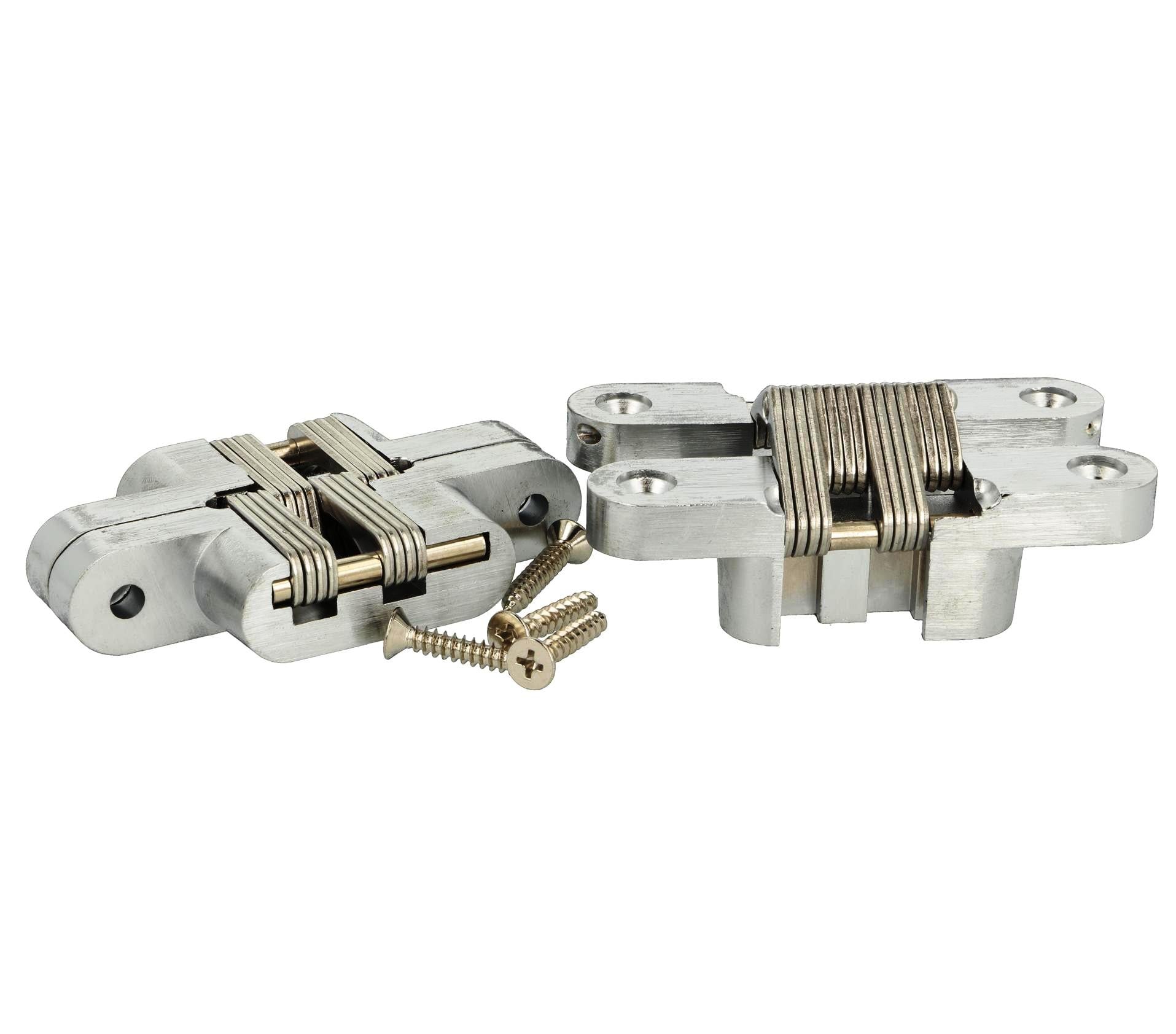

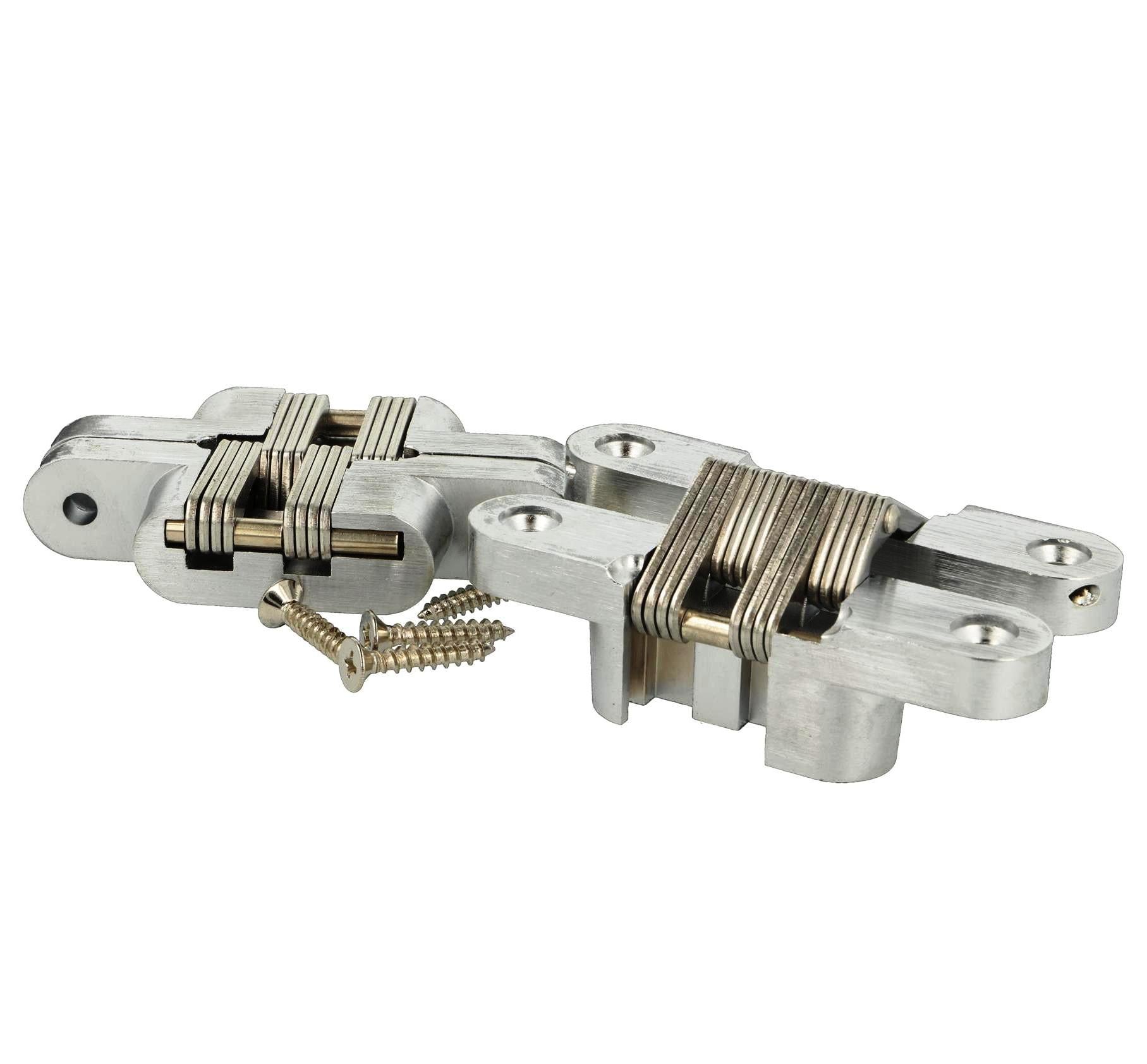

Two high-quality invisible cross hinges, 95 x 19 mm, made of Zamak, with a stainless steel look, including screws. Concealed furniture hinge from UMAXO®, folds 180°. Furniture hinge (vici hinge) for flush mounting.

Set consisting of 2 pieces of invisible furniture hinge 95 x 19 mm made of Zamak, Vici-Hinge, with stainless steel look surface

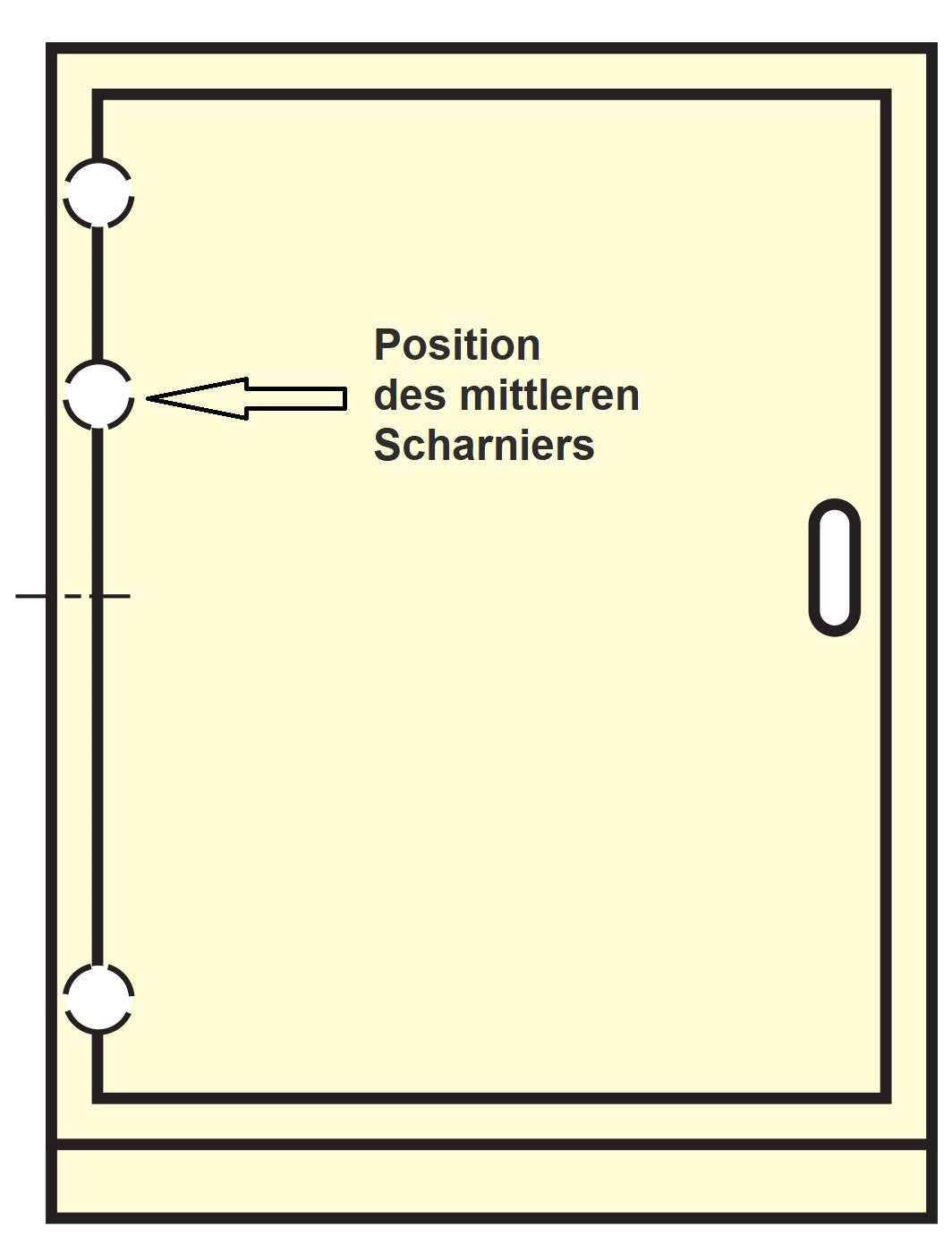

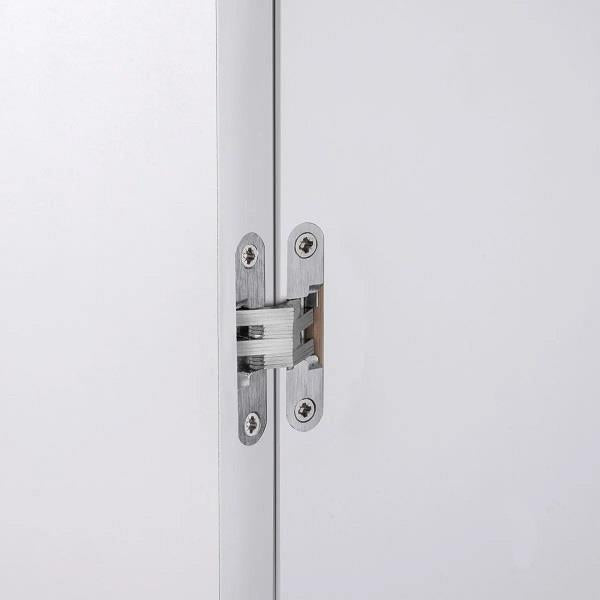

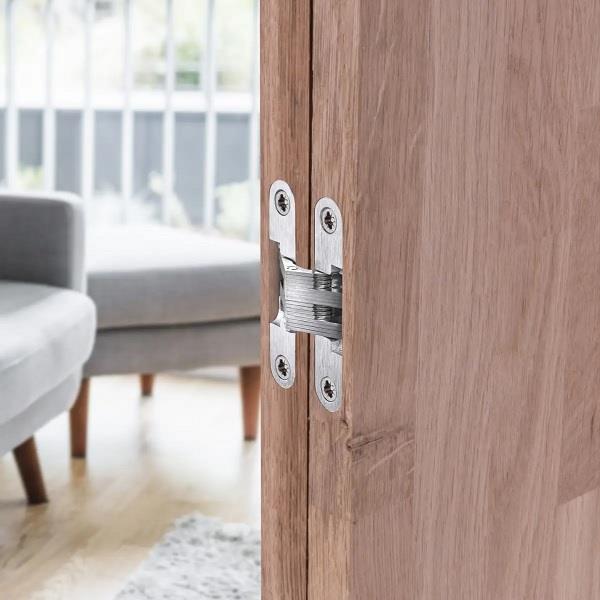

Application: The concealed furniture hinges can be folded 180° and can be used for cupboard doors, room doors, folding tables or furniture flaps, for example. Can be used for door thicknesses from 28 to 34 mm. [caption id="attachment_29347" align="alignnone" width="420"] Concealed furniture hinge from UMAXO®, 95 x 19 mm, made of Zamak, with a stainless steel finish. Application on a door.[/caption] Assembly: The furniture hinges offer easy installation for recessed installation. [caption id="attachment_29359" align="alignnone" width="424"] Concealed furniture hinge from UMAXO®, 95 x 19 mm, made of Zamak, with a stainless steel finish. An example of installation in a door[/caption] If there are three hinges and they are used vertically, the middle hinge should be positioned slightly higher ( see illustration ). When using three hinges horizontally, the middle hinge should be positioned as precisely as possible in the middle. Characteristics:

• Opening angle: 180°
• Door thickness: 28 - 34 mm
• Durable and stable

Included in delivery:

• 2 pieces of furniture hinges 95 x 19 mm (Vici-Hinge)
• 2 x 4 screws

Material:

• Hinge: Zamak
• Hinge joint: stainless steel

Surface:

• stainless steel look

Dimensions:

• Length: 95 mm
• Width: 19 mm
• Depth: 17 mm
• Screw diameter: 6 mm

For dimensions see technical drawing (mm) : [caption id="attachment_29371" align="alignnone" width="423"] Concealed furniture hinge from UMAXO®, 95 x 19 mm, made of Zamak, with a stainless steel finish. Technical drawing[/caption] Manufacturer reference number:

• 15.07.123
• 15.07.123-0

Download:

• Reach Declaration

Manufacturer: SISO (Denmark)
