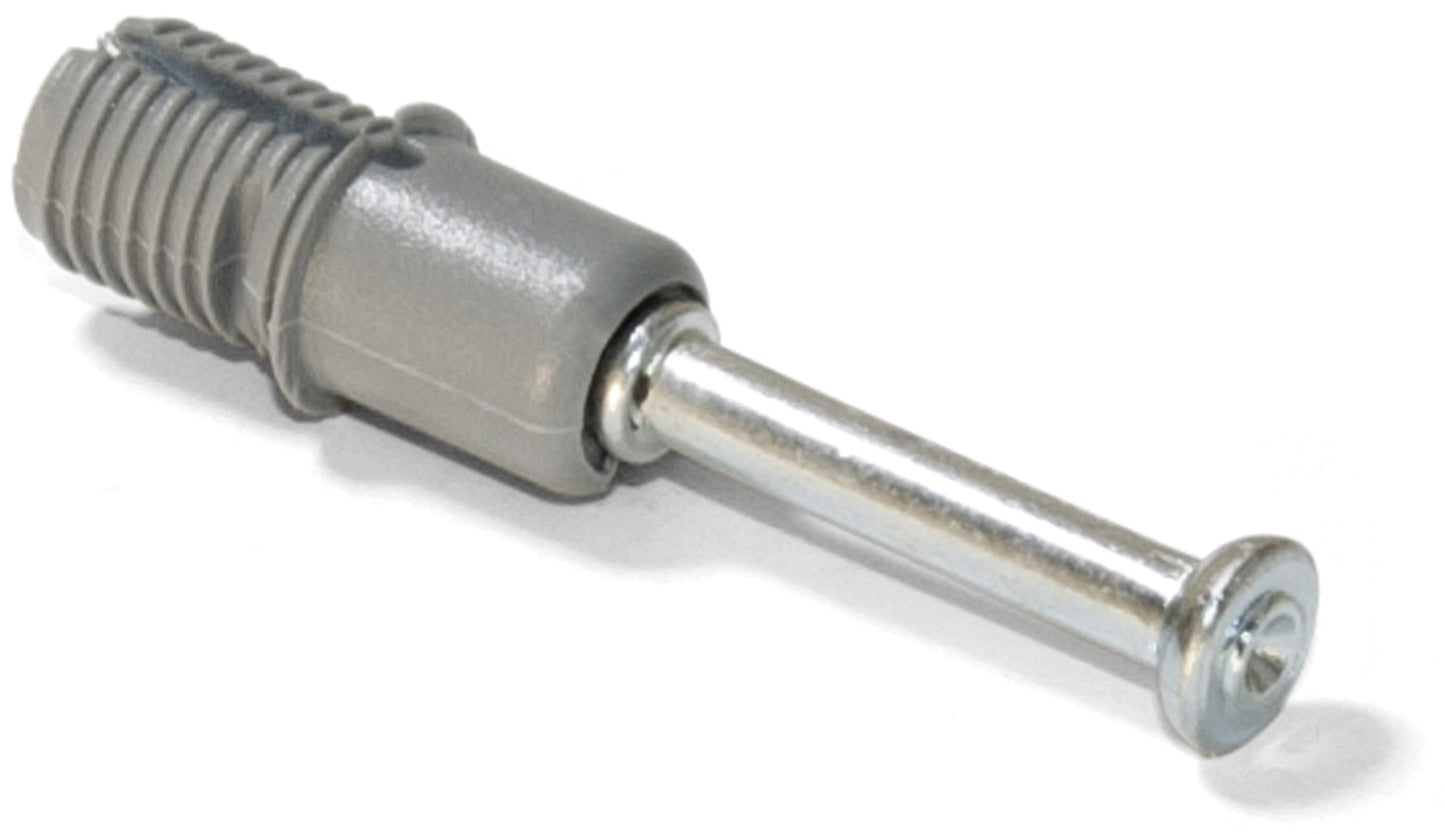

20 expansion bolts, made of steel and plastic, surface: galvanized, 21.6 mm (27/32″), 5912805 for eccentric connectors, shelves, cabinet parts

20 practical expansion bolts, made of steel and robust plastic (steel and plastic), surface: galvanized, 5912805, size: 21.6 mm (27/32″)

Application:

Expandable connecting dowel for eccentric connectors, shelves, cabinet parts and much more.

The expansion bolt 5912805 connects furniture panels in combination with ⌀15 mm (19/32″) eccentric connectors in a concealed and precise manner.

When the eccentric is tightened, the integrated plastic segment expands radially and locks the connecting dowel in the ⌀8 mm (5/16″) drill hole without any play.

Galvanized steel provides high tensile and extraction forces, while the plastic segment compensates for manufacturing tolerances and ensures lasting hold.

The detachable system 5912805 allows multiple assembly cycles without wear and is ideal for dismantable furniture.

Thanks to its low installation depth, the expansion bolt 5912805 can be used in 16 mm (5/8″) plates and saves material.

The high-quality eccentric bolts 5912805 are ideal for, among other things:

• Boltless shelves
• Living walls
• Body sides
• Chipboard
• MDF boards
• Solid wood panels
• Kitchen modules
• Furniture frames
• Eccentric connector
• Shelves
• Cabinet parts

Material:

• The eccentric bolts 5912805 are made of steel and robust plastic (steel and plastic)
• The combination of steel and plastic combines high strength with flexible adaptability – for resilient and versatile fittings.
• At the same time, this material combination ensures optimized functionality and an attractive design by combining stability with a wide range of design options.

Surface:

• Galvanized
• The galvanized surface protects against rust and corrosion

Assembly:

• First, an 8 mm (5/16″) hole with a depth of 11 mm (7/16″) must be drilled into the first furniture panel
• The expansion bolt 5912805 must be inserted into the borehole until its head is flush
• Then a 15 mm (19/32″) eccentric housing must be countersunk into the counter plate and aligned so that its slots point exactly to the screwed-in bolt
• Finally, the eccentric must be tightened by about half a turn; this causes the plastic segment of the connector pin 5912805 to expand radially and pulls both plates together permanently and without play (for further details see assembly drawing ).

Characteristics:

• Weight: 3.54 g
• Size: 21.6 mm (27/32″)
• easy to assemble
• practical
• stable
• High-strength steel core with zinc layer
• Expansion zone made of durable plastic
• Quick assembly without special tools
• Compatible with 15 mm (19/32″) eccentric housings
• Suitable for panel thicknesses from 16 mm (5/8″)
• Removable and adjustable
• Corrosion-protected for damp rooms
• Low installation depth saves material
• Quiet retraction
• galvanized
• robust
• high brand quality from UMAXO®

The dimensions:

• Length of connector pin 5912805: 21.6 mm (27/32″)
• Diameter: 8 mm (5/16″)
• Length of the retractable part: 10.5 mm (13/32″)

For further dimensions and details see technical drawing .

Included in delivery:

• 20 expansion bolts 5912805 made of steel and robust plastic, galvanized

Manufacturer reference number:

• Article number: 5912805
• EAN number: 8432393112909

Manufacturer: EMUCA
