20 high-quality expansion sleeves with internal thread M6, made of nylon (PA), 10 mm (25/64″), 9007920 for wooden parts, furniture connections, electronic housings

20 pieces of sturdy expansion sleeves with M6 internal thread, made of robust nylon (plastic), surface: semi-transparent (translucent), 9007920, size: 10 mm (25/64″)

Application:

Practical expansion thread insert for wooden parts, furniture connections, electronic housings and much more.

The compact expansion thread insert 9007920 made of robust nylon is specially designed for use in wood, MDF or plastic panels.

With an outer diameter of 10 mm (25/64″) and a length of 10 mm (25/64″), it offers a secure, detachable connection for furniture and lightweight construction applications.

Advantages:
- Fast and safe installation
- No damage to the workpiece due to external threads
- Ideal for removable furniture connections

Thanks to its electrically insulating properties, the 9007920 threaded insert is ideal for use in electronic housings where metal-free screw connections are required.

The vibration-damping effect of the nylon material protects sensitive components and enables secure, maintenance-friendly fastening.

The threaded inserts are also suitable for repairs or retrofitting existing furniture.

The high-quality thread inserts 9007920 are ideal for, among other things:

• Apertures
• Afford
• wooden structures
• wooden case
• DIY project
• wooden parts
• Furniture connections
• Electronics housing

Material:

• The thread inserts 9007920 are made of robust nylon (plastic)

Surface:

• Semi-transparent (translucent)
• The semi-transparent surface allows easy visual inspection of the screw-in depth and the exact position of the internal thread
• This makes assembly easier and potential alignment or over-tightening errors can be detected early on

Assembly:

• The expansion sleeve with internal thread M6 is for pressing into pre-drilled borehole
• For optimal hold, we recommend a drill diameter of ⌀10 mm (25/64″)

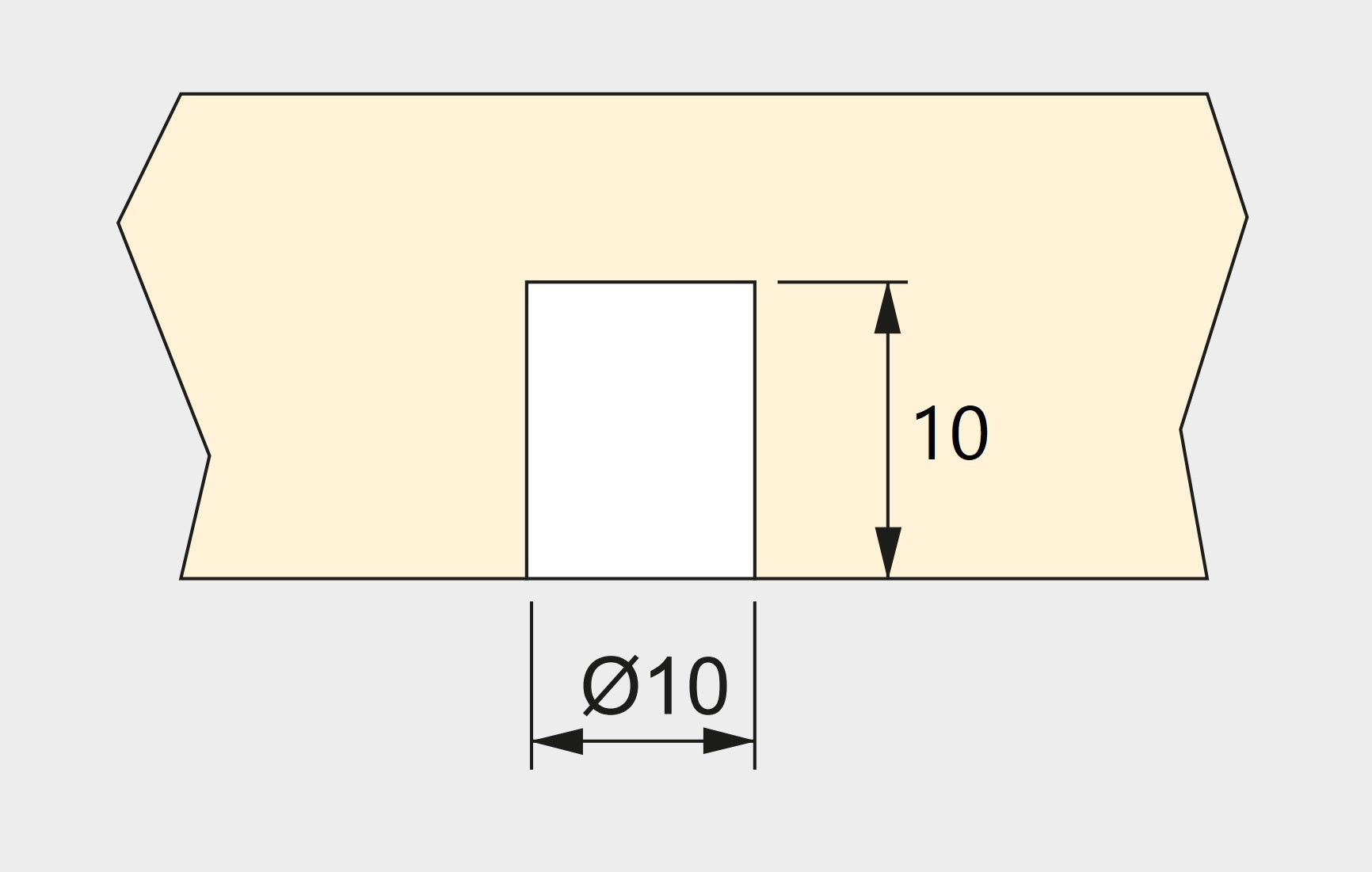

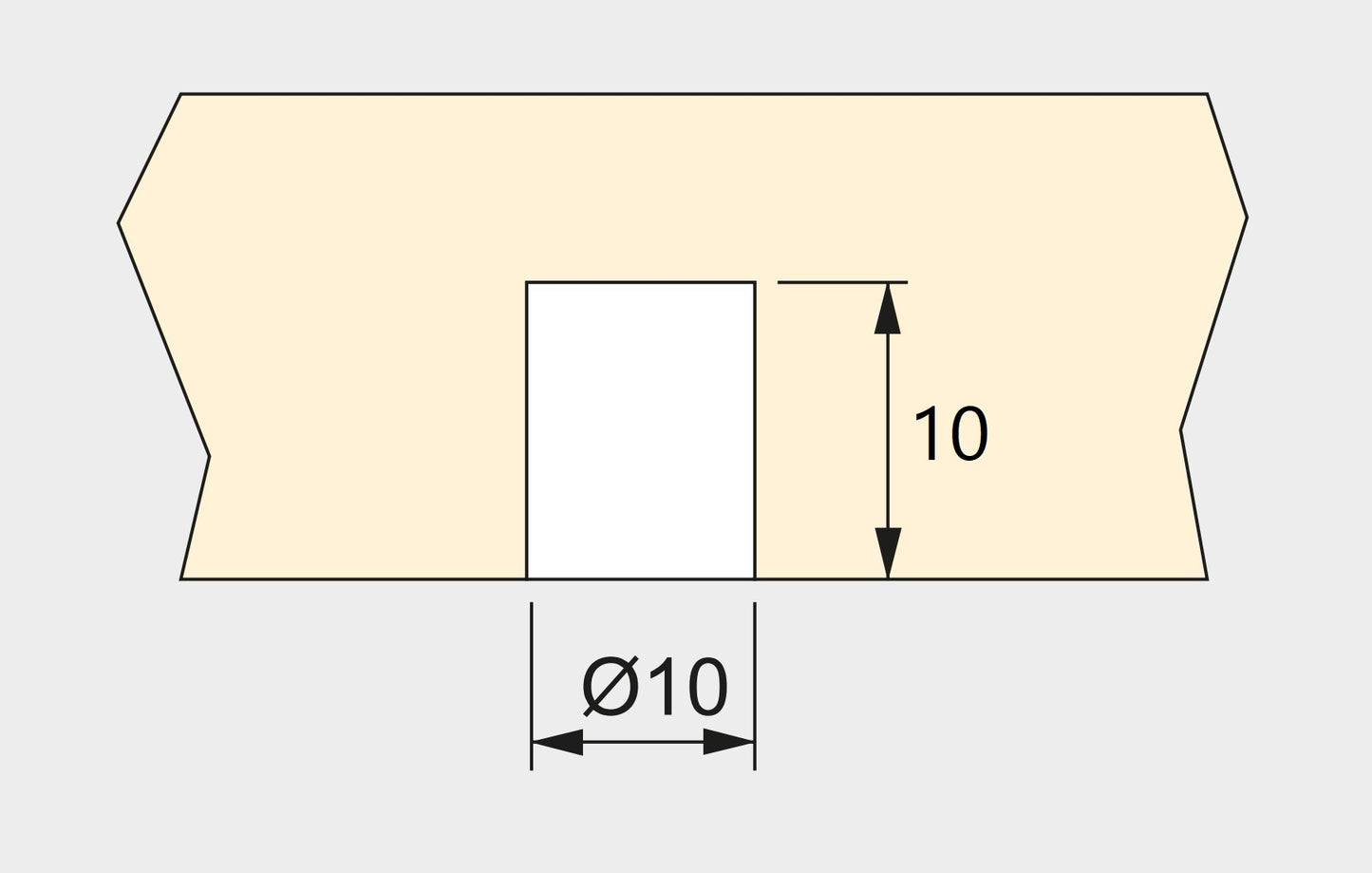

• The drilling depth should be 10 mm (25/64″) (for further details see assembly drawing )

Characteristics:

• Weight: 0.56 g
• Size: 10 mm (25/64″)
• easy to assemble
• practical
• stable
• Internal thread: M6
• Suitable for solid wood and wood-based materials
• Corrosion-free: ideal for humid or chemically contaminated environments
• Low weight: ideal for lightweight applications
• Vibration-damping: protects sensitive components
• Easy processing without special tools
• Ideal for furniture construction, wood joints and repairs
• semi-transparent (translucent)
• nylon
• plastic
• high brand quality from UMAXO®

The dimensions:

• Length of threaded insert: 10 mm (25/64″)
• Outer diameter: ⌀10 mm (25/64″)
• Internal thread: M6

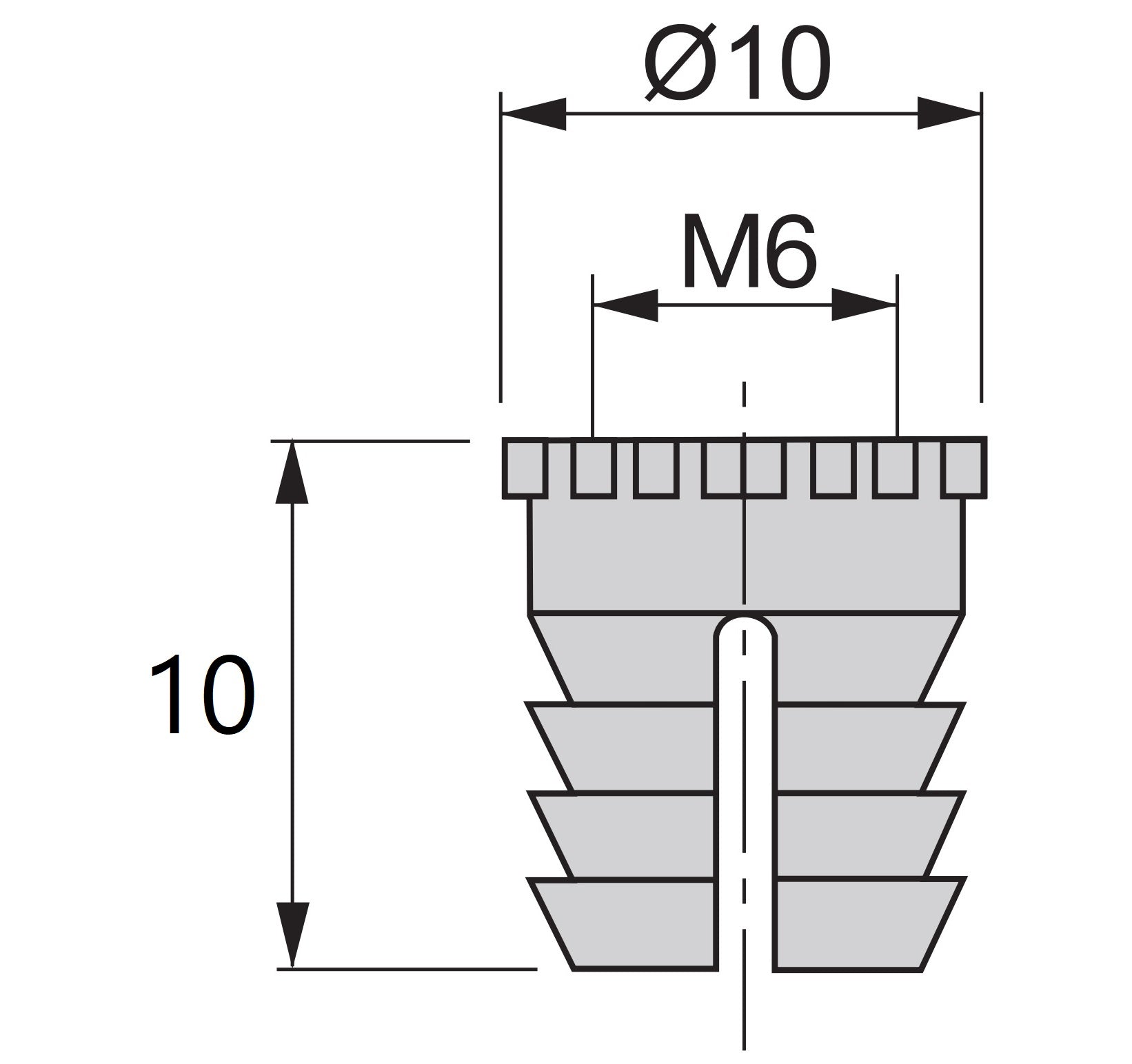

For further dimensions and details see technical drawing .

Included in delivery:

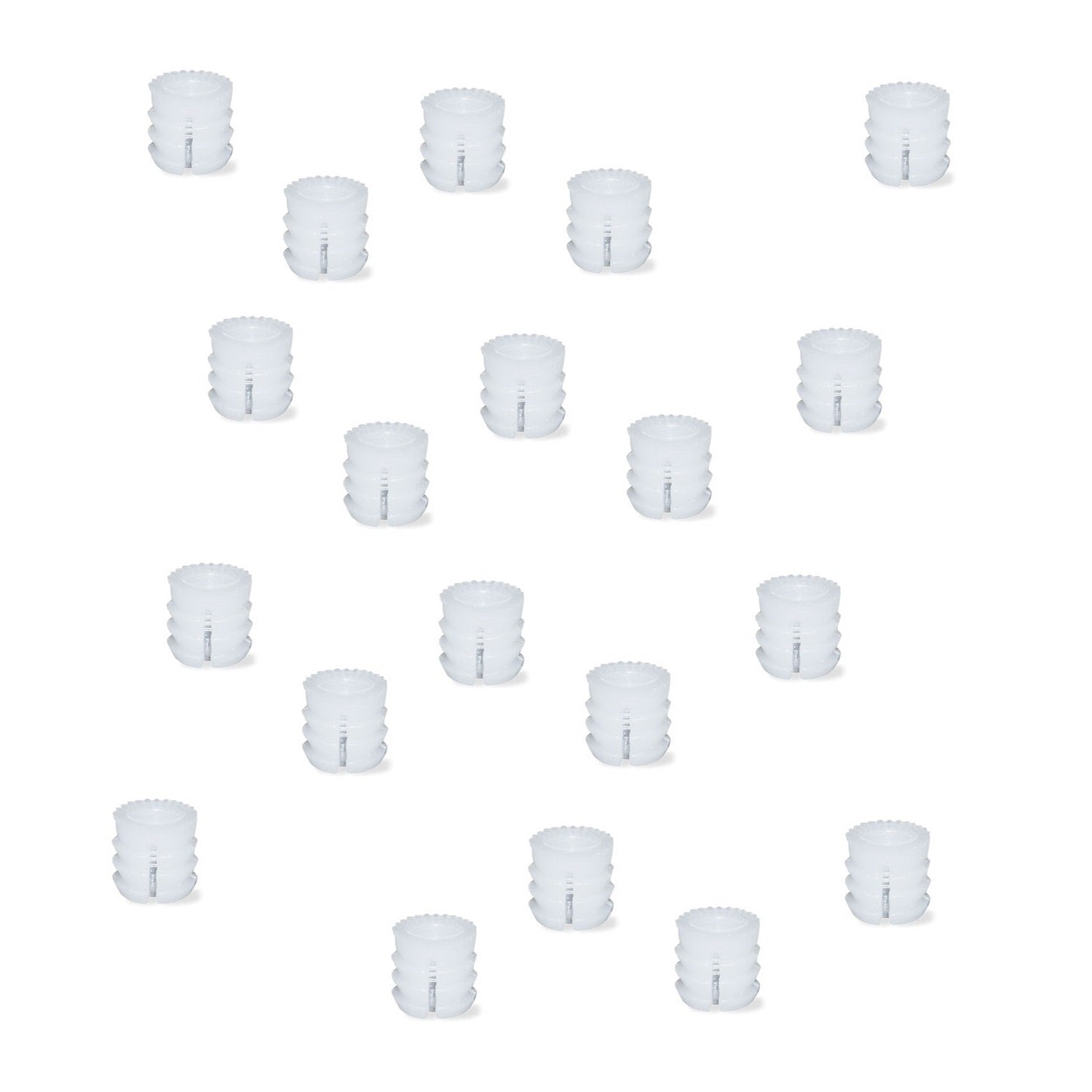

• 20 pieces expansion sleeve with internal thread M6 9007920 made of robust nylon, semi-transparent (translucent)

Manufacturer reference number:

• Article number: 9007920
• EAN number: 8432393123899

Manufacturer: EMUCA
