20 pieces high-quality expansion sleeve with internal thread M6 for wood, made of brass, 12 mm (15/32″), 8008202 for wooden parts, furniture connections

20 pieces of robust expansion sleeve with M6 internal thread, made of solid and robust brass, surface: brass, 8008202, size: 12 mm (15/32″)

Application:

Practical expansion thread insert for wooden parts, furniture connections and much more.

The compact expansion sleeve 8008202 made of high-quality brass was specially developed for stable screw connections in wood.

With an outer diameter of 9.2 mm (23/64″) and a length of 12 mm (15/32″), it is ideal for precise applications in furniture construction, interior design or model making.


When an M6 screw is screwed in, the sleeve expands in the prepared drill hole and anchors itself securely in the material.

The robust brass ensures high pull-out strength and durability – even with repeated use.

Advantages:
- Fast and safe installation
- No damage to the workpiece due to external threads
- Ideal for removable furniture connections

This expansion sleeve is the perfect choice for anyone who requires reliable, removable connections in wood.

The expansion sleeves are also suitable for repairs or retrofitting of existing furniture.

The high-quality expansion sleeves 8008202 are ideal for, among other things:

• Apertures
• Afford
• wooden structures
• wooden case
• DIY project with wooden boards
• DIY project
• wooden parts
• Furniture connections

Material:

• The expansion sleeves 8008202 are made of solid and robust brass
• Brass components, fasteners and furniture fittings are particularly durable and corrosion-resistant, making them ideal for long-term use
• They offer an elegant, timeless look that is equally appealing in classic and modern interior styles
• In addition, brass is ideal for hygienic applications due to its antibacterial properties

Surface:

• Brass
• The brass surface gives parts, components and furniture fittings a noble, timeless look that fits well with classic and modern designs
• It has a warm aura that enhances rooms and conveys a feeling of luxury
• In addition, the color nuance can be combined in many ways with other materials such as wood or glass

Assembly:

• The expansion sleeve with internal thread M6 is for pressing into the borehole
• The expansion sleeves are inserted into a pre-drilled hole, with self-anchoring by expansion when screwing in

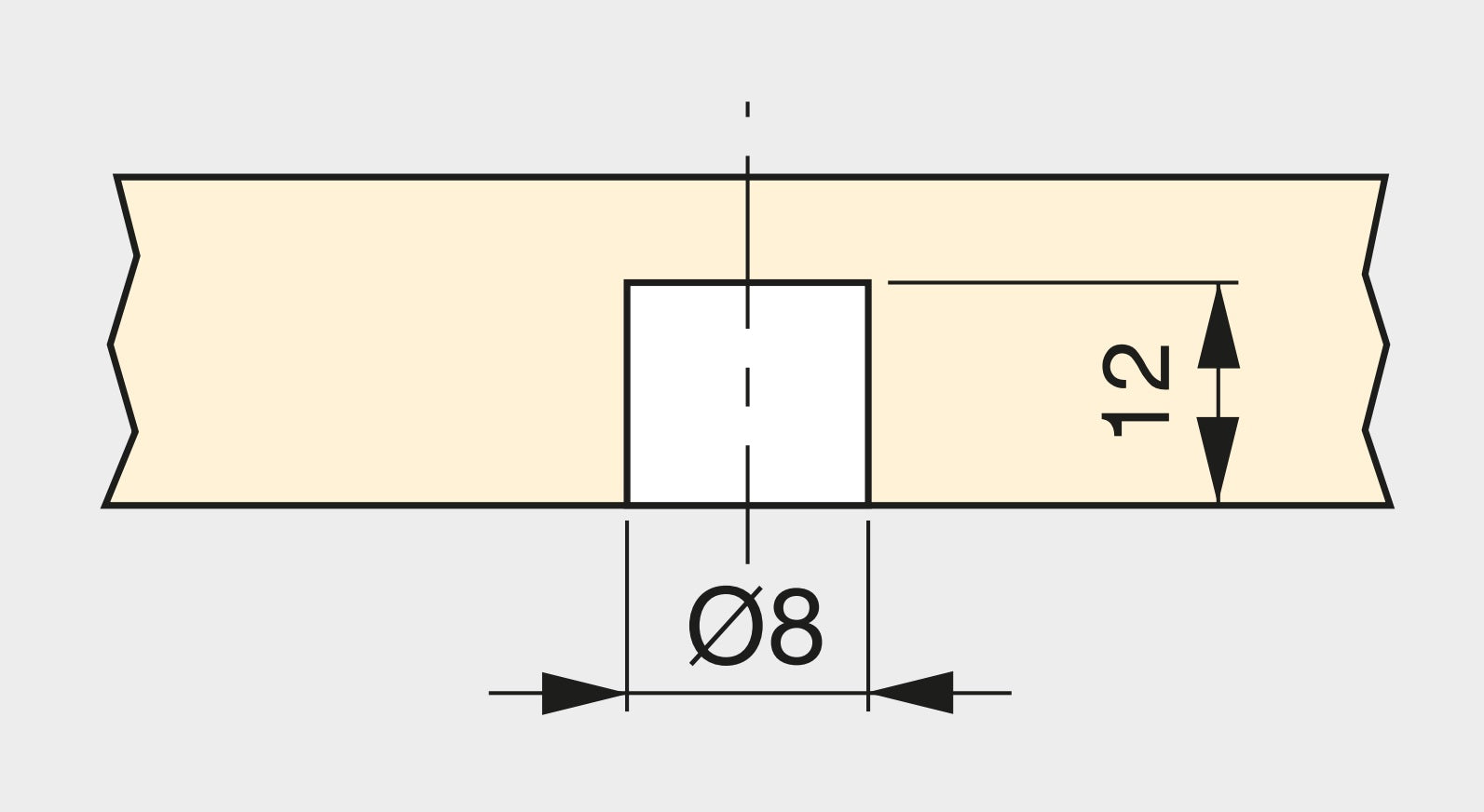

• For optimal hold, we recommend a drill diameter of 8.0 to 8.2 mm - depending on the type of wood
• The drilling depth should be 12 mm (15/32″) (for further details see assembly drawing )

Characteristics:

• Weight: 2.48 g
• Size: 12 mm (15/32″)
• easy to assemble
• practical
• stable
• Internal thread: M6
• The sleeve is available in three thread variants: M4 and M6
• Suitable for solid wood and wood-based materials
• No rotation thanks to the spreading mechanism
• Corrosion-resistant and durable
• Easy processing without special tools
• Ideal for furniture construction, wood joints and repairs
• Brass
• solid
• robust
• high brand quality from UMAXO®

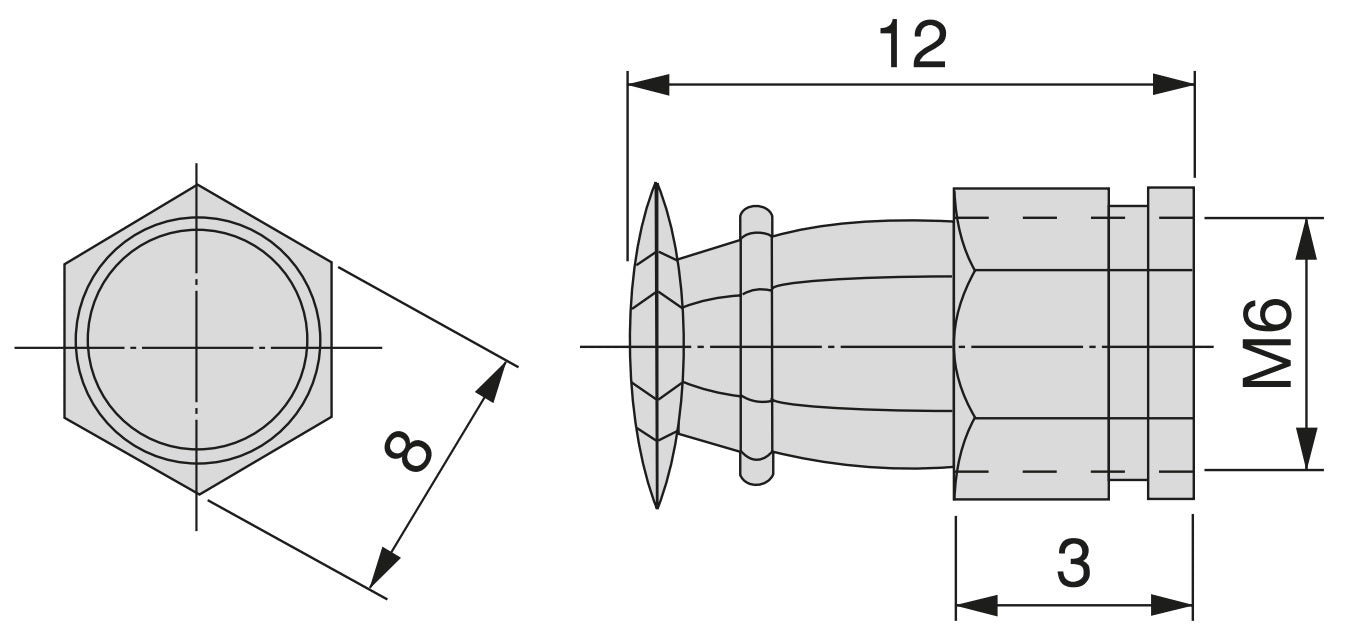

The dimensions:

• Length of expansion sleeve: 12 mm (15/32″)
• Outer diameter: ⌀9.2 mm (23/64″)
• Internal thread: M6

For further dimensions and details see technical drawing .

Included in delivery:

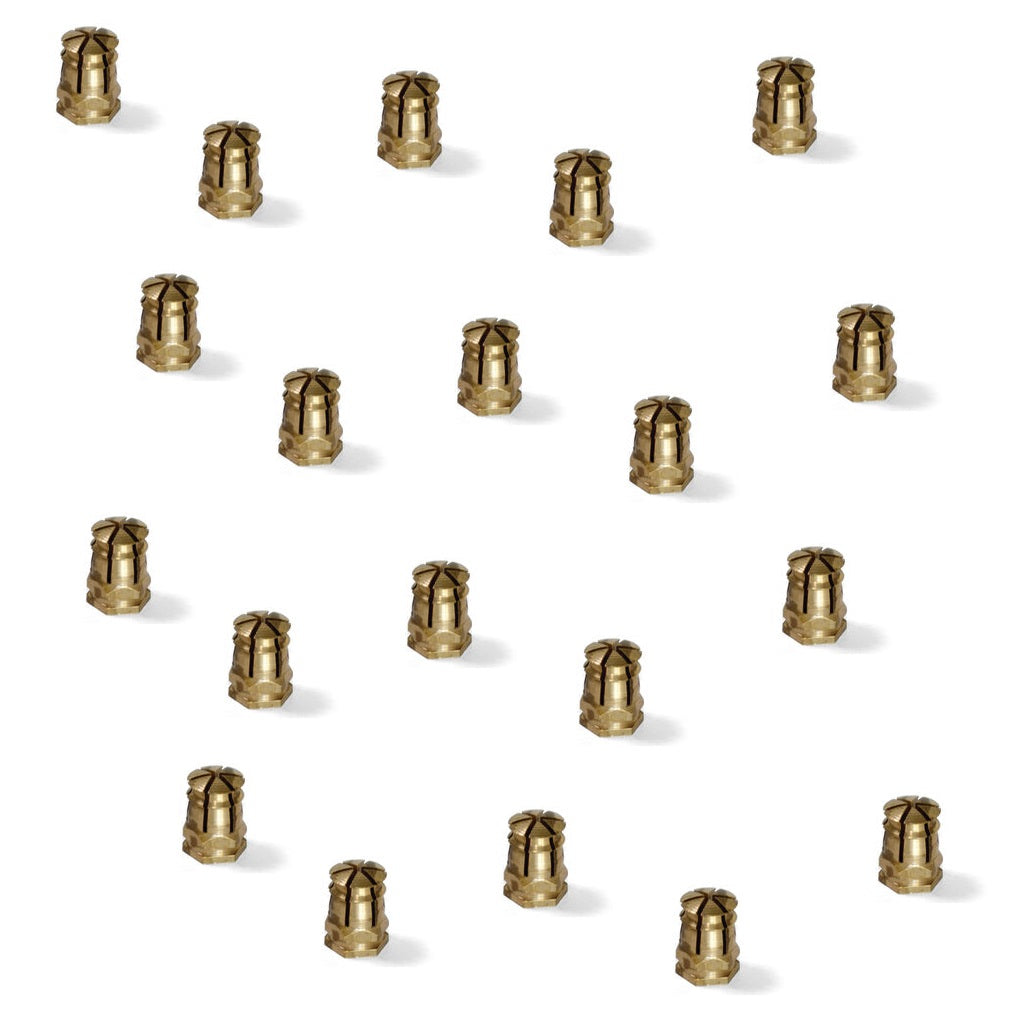

• 20 pieces expansion sleeve with internal thread M6 8008202 made of solid and robust brass, brass

Manufacturer reference number:

• Article number: 8008202
• EAN number: 8432393119274

Manufacturer: EMUCA
