20 pieces robust connecting bolts for bore ⌀6 mm, made of Zamak, 11 mm (7/16″), 8083901 for furniture connection

20 pieces of robust connecting bolts, made of solid die-cast zinc, surface: Zamak, 8083901, size: 11 mm (7/16″)

Application:

Stable eccentric pin for furniture connections and much more.

The practical eccentric pin 8083901 is a high-quality, robust connecting fitting for furniture construction and enables a nearly invisible yet highly stable attachment of shelves in carcass furniture.

It has a wood thread and is used for the firm and invisible connection of body parts and is particularly suitable for shelves, cabinets and modular furniture.

The connecting bolt 8083901 is inserted, for example, into the side wall of a piece of furniture and connected to an eccentric connection in the underside of a shelf.

Simply placing and tightening the screws creates a positive and force-locking connection that simultaneously secures the floor against lifting.

By turning the eccentric, the pin is tightened and the connection is stabilized.

Suitable for the eccentric connectors 8470907, 8070907, 5054716 and 8049216.

The eccentric bolts 8083901 are ideal for applications where a precise, resilient and at the same time removable connection is required.

Ideal for a wide range of furniture applications – enables quick and stable assembly and disassembly using common tools.

The high-quality connecting bolts 8083901 are ideal for, among others:

• Carcass furniture
• Shelves
• Interior design
• Shopfitting
• Trade fair construction
• Furniture connection

Material:

• The connecting bolts 8083901 are made of solid die-cast zinc
• Industrial and furniture fittings made of Zamak offer a high-quality look and feel that is durable and valuable
• Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use
• In addition, they are often cheaper than solid brass or stainless steel fittings without compromising on quality

Surface:

• Zamac
• A Zamak surface offers high corrosion resistance, so that furniture fittings remain functional over the long term, even in humid environments
• In addition, thanks to its strength and dimensional stability, Zamak enables reliable load-bearing capacity

Assembly:

• The connecting bolt is screwed 11 mm (7/16″) deep into the side or middle section
• The shelf is then placed on top so that the housing fits neatly over the screw head
• By tightening the clamping screw in the housing, the floor is tightened and at the same time secured against lifting (for further details see assembly drawing ).

Characteristics:

• Weight: 2.31 g
• Size: 11 mm (7/16″)
• easy to assemble
• practical
• stable
• For bore ⌀6
• Zamac
• Zamac
• zinc die-casting
• high brand quality from UMAXO®

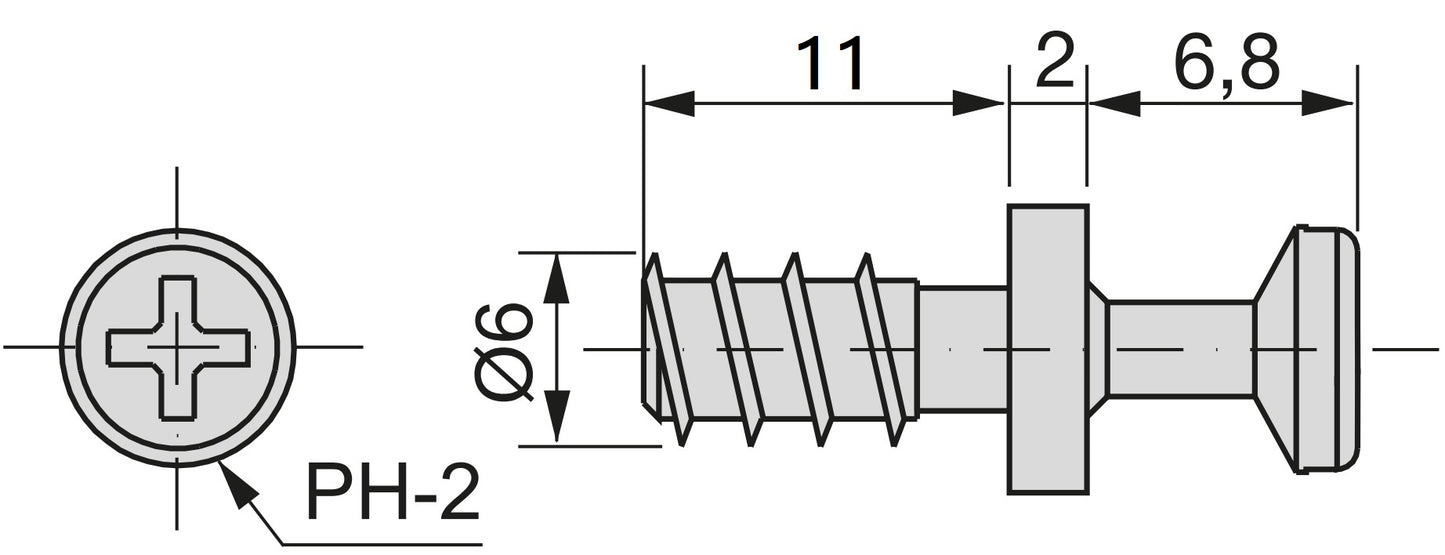

The dimensions:

• Outer diameter of the connecting bolt: ⌀6 mm (15/64″)
• Length of threaded part: 11 mm (7/16″)
• Flange thickness above the plate surface: 2 mm (5/64″)
• Outside length: 6.8 mm (17/64″)

For further dimensions and details see technical drawing .

Included in delivery:

• 20 pieces connecting bolts 8083901 made of solid zinc die-cast, Zamak
• The eccentric connectors 8470907, 8070907, 5054716, 8049216 are not included in the scope of delivery and must be ordered separately

Manufacturer reference number:

• Article number: 8083901
• EAN number: 8432393120966

Manufacturer: EMUCA
