20 pieces of sturdy eccentric connection ⌀20 mm with flange and claw outer casing for panel thickness 19 mm (3/4″), made of Zamak, 8070907 for furniture connection

20 pieces of sturdy eccentric connection with flange and claw outer casing for panel thickness 19 mm (3/4″), made of solid zinc die-cast, surface: nickel-plated, 8070907

Application:

Robust eccentric connector for furniture connections and much more.

The practical eccentric connector 8070907 is a high-quality, robust connecting fitting for furniture construction and enables a nearly invisible yet highly stable attachment of shelves in carcass furniture.

It is used for the firm and invisible connection of carcass parts and is particularly suitable for shelves, cabinets and modular furniture.

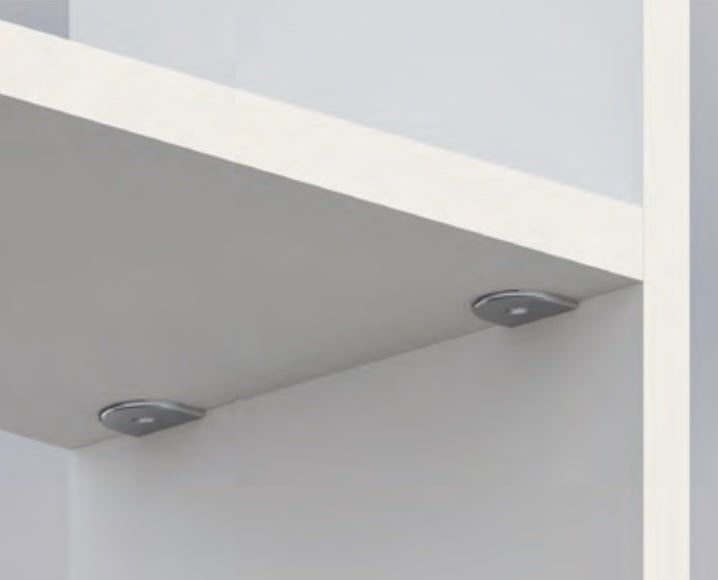

The visible edge cover allows for an elegant look with exposed connections, as shown in the application photo.

The eccentric connection 8070907 is inserted, for example, into the underside of a shelf and connected to an eccentric pin in the side wall.

Simply placing and tightening the screws creates a positive and force-locking connection that simultaneously secures the floor against lifting.

By turning the eccentric, the pin is tightened and the connection is stabilized.

Suitable for eccentric pins 8057205, 8905205, 8905305, 8084001 and 8083901.

Typical application: Insertion into shelves or partitions with ⌀20 mm (25/32″) hole, 14.5 mm (37/64″) deep, in combination with suitable eccentric pins.

Ideal for a wide range of furniture applications – enables quick and stable assembly and disassembly using common tools.

The high-quality eccentric connections 8070907 are ideal for, among other things:

• Carcass furniture
• Shelves
• Interior design
• Shopfitting
• Trade fair construction
• Furniture connection

Material:

• The eccentric connections 8070907 are made of solid die-cast zinc
• Industrial and furniture fittings made of Zamak offer a high-quality look and feel that is durable and valuable
• Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use
• In addition, they are often cheaper than solid brass or stainless steel fittings without compromising on quality

Surface:

• Nickel-plated
• Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
• They offer an elegant, shiny look that is modern yet timeless
• They are also easy to maintain, as they make dirt and fingerprints less visible and are easy to clean

Assembly:

• A 20 mm (25/32″) hole is drilled 14.5 mm (37/64″) deep in the shelf; the hole center is 9.5 mm (3/8″) from the front edge
• The special screw is screwed 0.374015748031496 deep into the side or middle part
• The shelf is then placed on top so that the housing fits neatly over the screw head

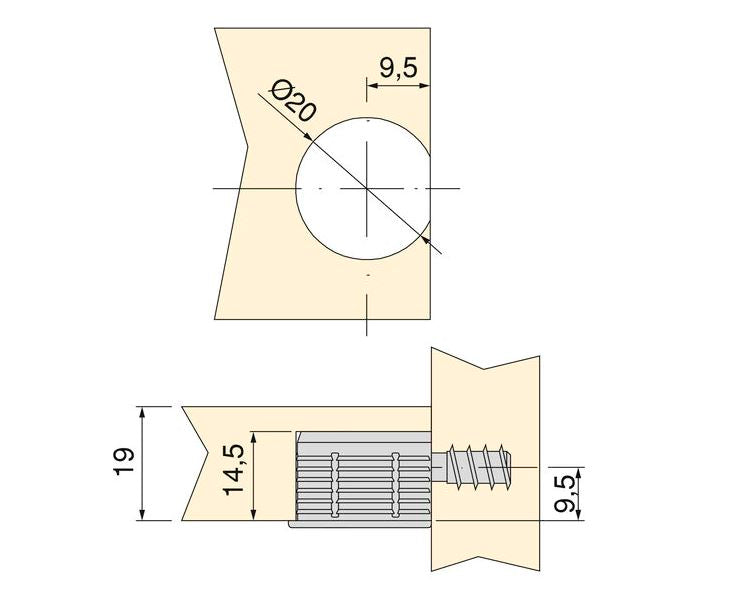

• By tightening the clamping screw in the housing, the floor is tightened and at the same time secured against lifting (for further details see assembly drawing ).

Characteristics:

• Weight: 11.4 g
• Size: 19 mm (3/4″)
• easy to assemble
• practical
• stable
• Specially designed for 19 mm (3/4″) plates
• Fast and secure installation thanks to claw anchoring
• Visually clean thanks to integrated flange
• Cup bore: ⌀20 mm (25/32″)
• Drilling depth: 14.5 mm (37/64″)
• Mounting distance from edge (hole center): 9.5 mm (3/8″)
• Fastening: With claw sheath – no glue or additional fixing necessary
• nickel-plated
• Zamac
• zinc die-casting
• high brand quality from UMAXO®

The dimensions:

• Outer diameter of the housing: ⌀20 mm (25/32″)
• Case width (bottom edge): 22 mm (55/64″) x 20 mm (25/32″)
• Flange thickness above the plate surface: 1 mm (3/64″)

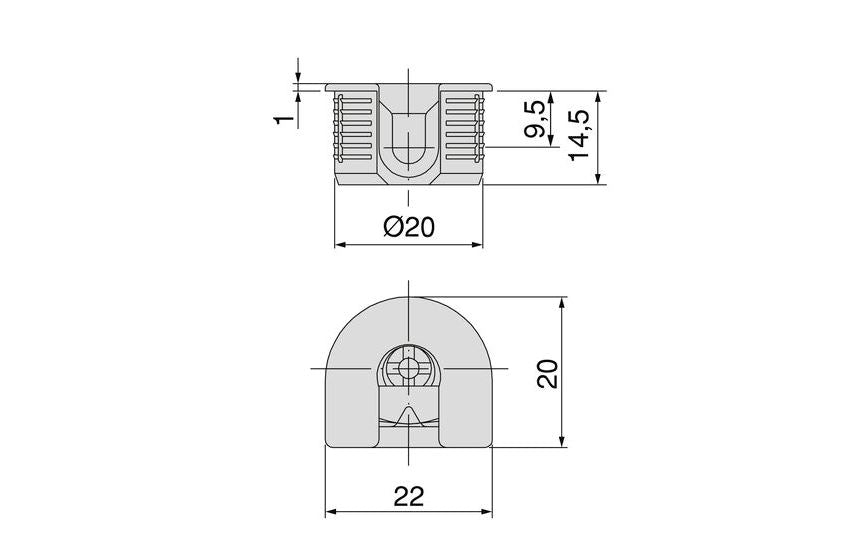

For further dimensions and details see technical drawing .

Included in delivery:

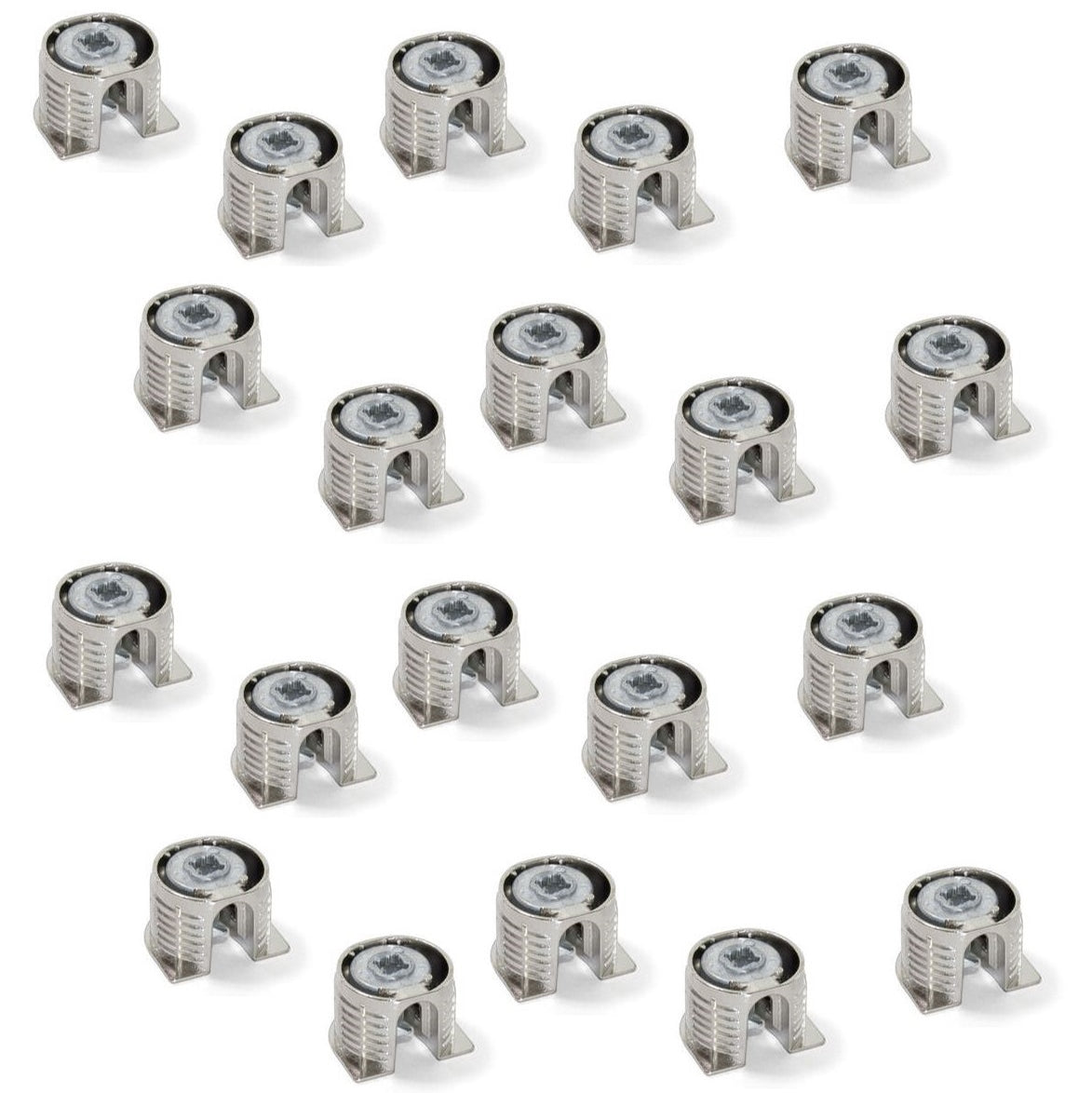

• 20 pieces eccentric connection 8070907 made of solid zinc die-cast, nickel-plated
• The eccentric pins 8057205, 8905205, 8905305, 8084001 or 8083901 are not included in the scope of delivery and must be ordered separately

Manufacturer reference number:

• Article number: 8070907
• EAN number: 8432393120836

Manufacturer: EMUCA
