20 pieces of sturdy cross dowels with M6 thread, made of steel, 14 mm (35/64″), 6170105 for furniture assembly, shelf construction, bed connection, cabinet construction

20 pieces of sturdy cross dowels with M6 thread, made of robust steel, surface: galvanized, 6170105, size: 14 mm (35/64″)

Application:

Practical cross-threaded nut for furniture assembly, shelf construction, bed connection, cabinet construction and much more.

The practical cross-threaded nut 6170105 is a cylindrical connecting element for creating stable cross connections in wood and furniture constructions.

It is made of steel, is cylindrical on the outside with a diameter of 10 mm and has a central internal thread M6.

The total length is 14 mm (35/64″), making it suitable for standard material thicknesses.

The cross dowel with M6 thread can be aligned using a screwdriver thanks to the slot incorporated on the side.

The cylinder nut 6170105 is inserted into a hole transverse to the screwing direction of the screw.

In combination with a threaded screw, it creates a highly resilient, demountable connection.

The cross-threaded nut 6170105 is particularly suitable for furniture construction, shelving systems and demountable constructions.

The surface is galvanized and therefore offers corrosion protection under normal use.

The cross dowel with M6 thread 6170105 is easy to install and ensures precise, removable connections.

It is compatible with common drilling dimensions and connection systems in furniture construction.

The high-quality cylinder nuts 6170105 are ideal for, among others:

• Timber frame connection
• Transport furniture
• Trade fair construction
• Housing assembly
• Shopfitting
• modular furniture connection
• Furniture assembly
• Shelving construction
• Bed connection
• Cabinet construction

Material:

• The cylinder nuts 6170105 are made of robust steel
• Steel is ideal for furniture fittings as it is both robust and durable, ensuring high load-bearing capacity and a long service life of the fittings

Surface:

• Galvanized
• The galvanized surface protects against rust and corrosion

Assembly:

• First, drill a longitudinal hole with a diameter of 6 mm (15/64″) for an M6 screw and a depth of 30–40 mm, depending on the screw length, into the first component (e.g. a side wall).
• A cross hole with a diameter of approximately 10.1 mm (25/64″) and a depth of 15–16 mm is drilled into the second component (e.g. a cross brace), centered on the material thickness
• Then insert the cross dowel Ø10 × 14 mm with M6 internal thread into the cross hole
• The cross dowel is aligned using a slotted screwdriver so that the internal thread is perpendicular to the screwing direction of the screw
• Now insert an M6 screw through the longitudinal hole of the first component and screw it into the cross dowel
• By tightening the screw, both components are connected firmly and flush with each other; the cross dowel 6170105 must be firmly seated and must not rotate.

Characteristics:

• Weight: 6.35 g
• Size: 14 mm (35/64″)
• with M6 thread
• easy to assemble
• practical
• stable
• steel case
• Cylindrical shape
• internal thread M6
• Slot for alignment with screwdriver
• High tensile and holding strength
• Removable and suitable for disassembly
• Compatible with standard drilling dimensions
• Suitable for wood, chipboard and MDF
• Easy installation without special tools
• galvanized
• Steel
• robust
• high brand quality from UMAXO®

The dimensions:

• Barrel nut length: 14 mm (35/64″)
• Outer diameter: ⌀10 mm (25/64″)

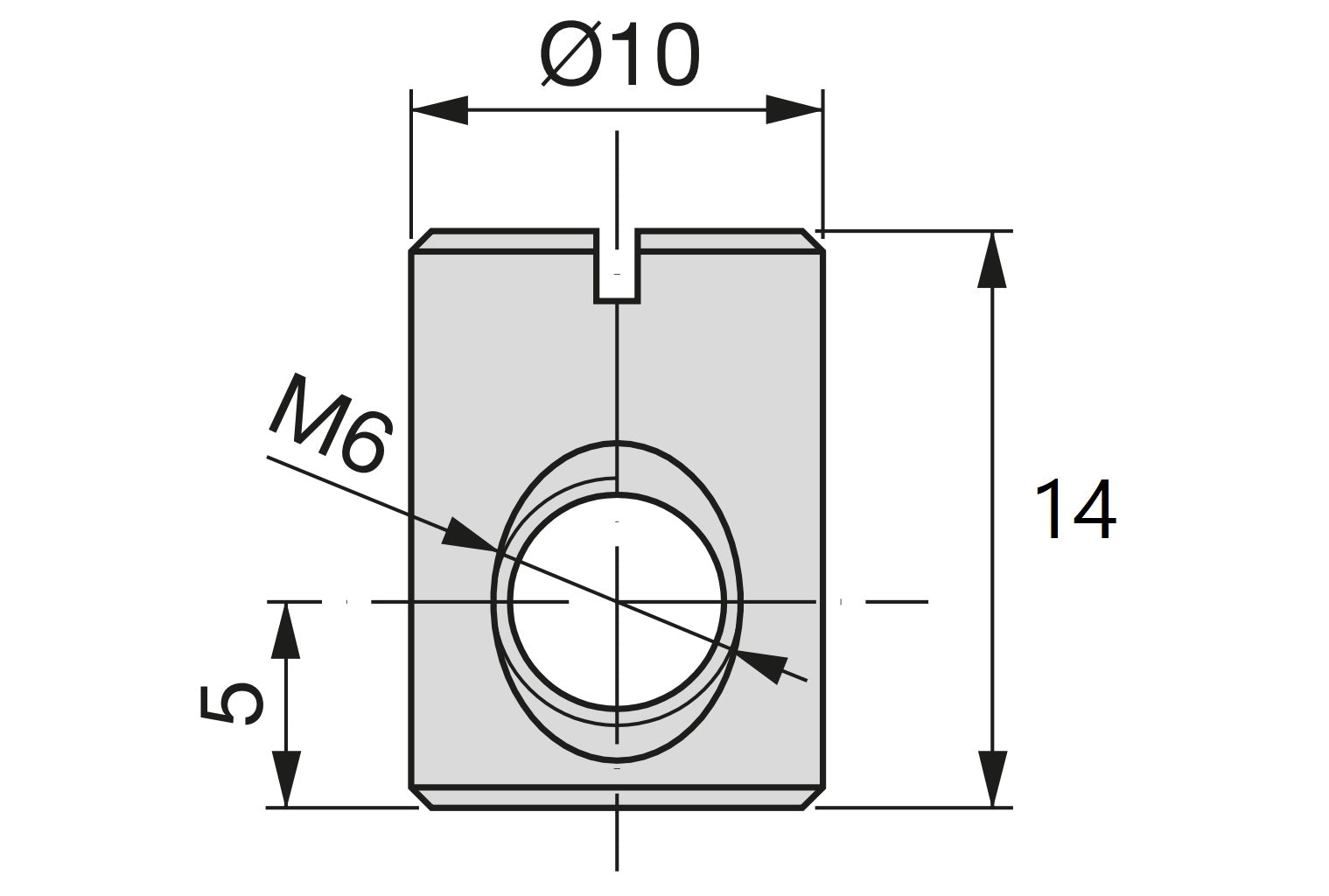

For further dimensions and details see technical drawing .

Included in delivery:

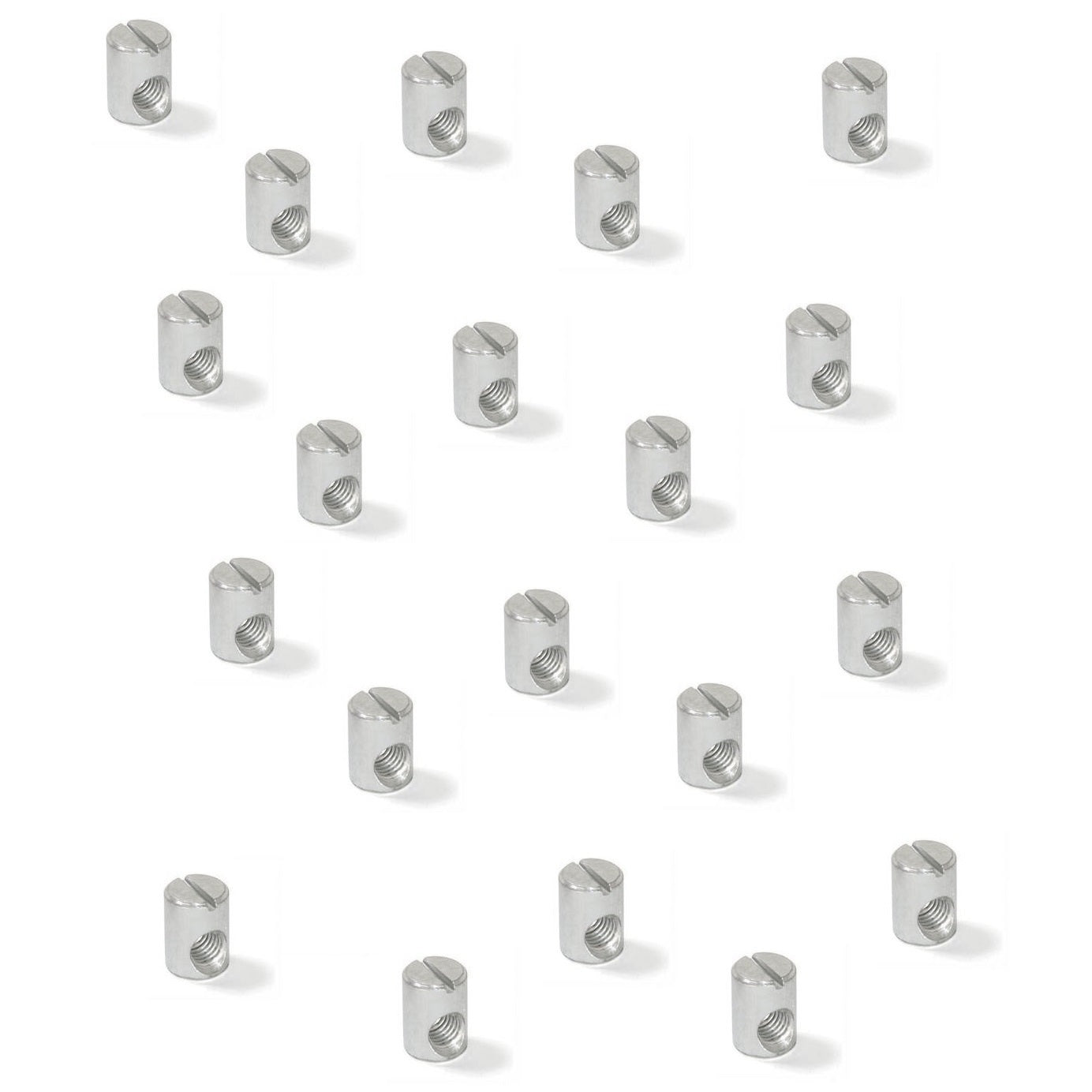

• 20 pieces cross dowels with M6 thread 6170105 made of robust steel, galvanized

Manufacturer reference number:

• Article number: 6170105
• EAN number: 8432393115108

Manufacturer: EMUCA
