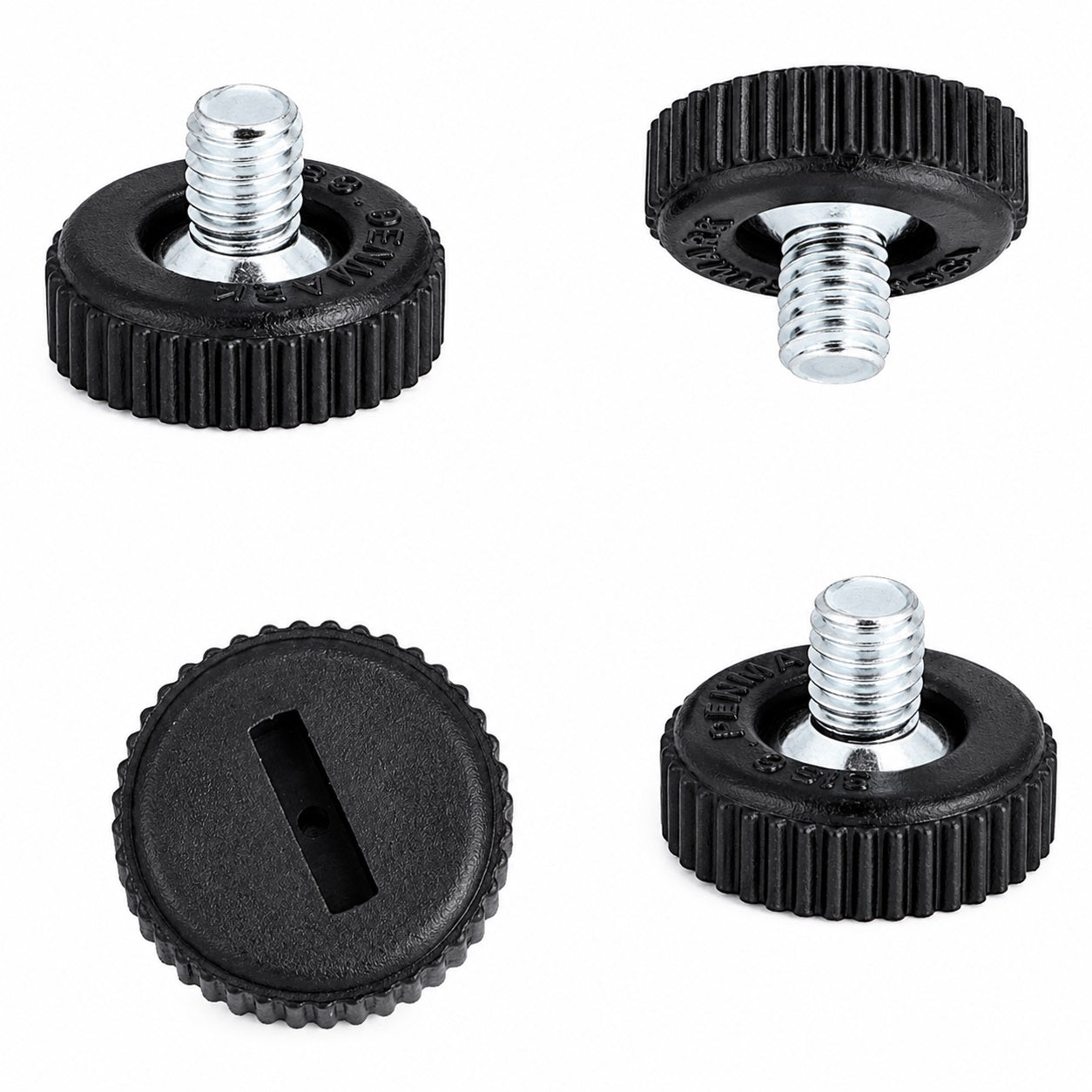

4 sturdy adjustable feet, made of metal and robust plastic (metal and plastic), finish: black, 10.17.047, height: 15 mm (19/32″)

Application:

Stable height adjuster for cabinets, machines and much more.

This leveler is the ideal solution for quickly and permanently aligning kitchen, bathroom or technical furniture with precision.

The height-adjustable foot 10.17.047 allows precise alignment of furniture, machines and equipment on uneven floors.

The height adjuster can be adjusted by approximately 8 mm (5/16″) without tools using the integrated M6 threaded pin and grooves on the edge of the base.

The round contact surface distributes the load evenly and protects the furniture base from direct contact with the floor.

Alternatively, the adjustable foot 10.17.047 can be adjusted with a slotted screwdriver.

The black plastic base with ⌀20 mm (25/32″) protects delicate floor coverings and ensures a non-slip grip.

Thanks to the galvanized surface, the height adjuster 10.17.047 is reliably protected against corrosion and is ideal for kitchen, bathroom and workshop furniture.

The high-quality adjustable feet 10.17.047 are ideal for:

• Kitchen furniture
• Appliances
• Shelves
• Chests of drawers
• Sideboards
• Tables
• Furniture carcasses
• Furniture legs
• Storage areas
• Uneven floors
• Bathroom vanity units
• Workbenches
• Office shelves
• Shop counters
• RV furniture
• Metal cabinets
• Cabinets
• Machines

Material:

• The adjustable feet 10.17.047 are made of metal and robust plastic (metal and plastic)
• Base made of black plastic (PA); the plastic pad protects delicate floor coverings and ensures a non-slip grip
• The combination of metal and plastic offers an optimal balance of strength and flexibility, making the fittings robust and adaptable at the same time
• In addition, this combination of materials allows for improved aesthetics and functionality, as it offers both stability and a variety of design options

Finish:

• Black
• Black surfaces exude timeless elegance and can help to make a room appear more luxurious and stylish
• While interior styles may change, black always remains a safe choice that can be easily adapted to new trends
• Black surfaces can be used in various rooms, whether in the kitchen, living room or office
• Thread: galvanized

Installation:

• First, a suitable M6 threaded insert must be prepared on the underside of the furniture piece.
• Depending on the construction, an M6 knock-in nut, M6 screw-in sleeve or another M6 threaded insert is used for this purpose.
• The adjustable foot is then screwed into the insert with the M6 threaded pin.
• The fine height adjustment is carried out without tools or using a slotted screwdriver in the slot in the base of the plinth.

Features:

• Weight: 5.33 g (for 4 pieces: 21.32 g)
• Height: 15 mm (19/32″)
• Easy to assemble
• Practical
• Stable
• Adjustable furniture leveling foot with M6 threaded pin
• Adjustment range approx. 8 mm (5/16″)
• Adjustment without tools or with a slotted screwdriver
• Base ⌀20 mm (25/32″) made of black plastic protects delicate floors
• Galvanized steel thread for high corrosion protection
• Black
• Robust
• High brand quality from UMAXO®

Dimensions:

• Height of the height adjuster: 15 mm (19/32″)
• Foot diameter: ⌀20 mm (25/32″)
• Height of the base: 7 mm (9/32″)

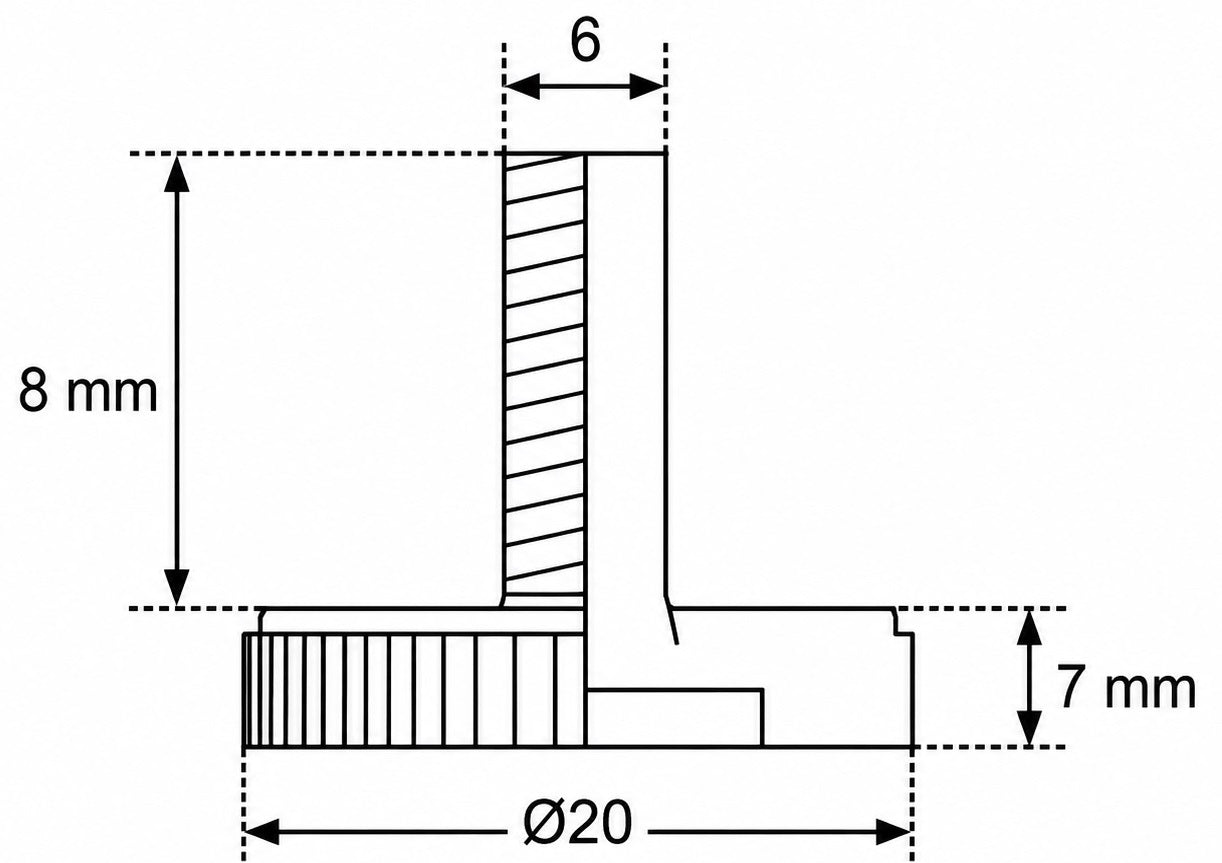

For further dimensions and details, please see technical drawing.

Included in delivery:

• 4 adjustable feet 10.17.047 made of metal and robust plastic, black
• Please note that no mounting screws are included

Additional information:

• Download Reach Declaration

Manufacturer's reference numbers:

• Item identification number: 10.17.047 (alternatively: 10.17.047-0)
• GTIN number (EAN, UPS): 5704866009232

Manufacturer: SISO Denmark
