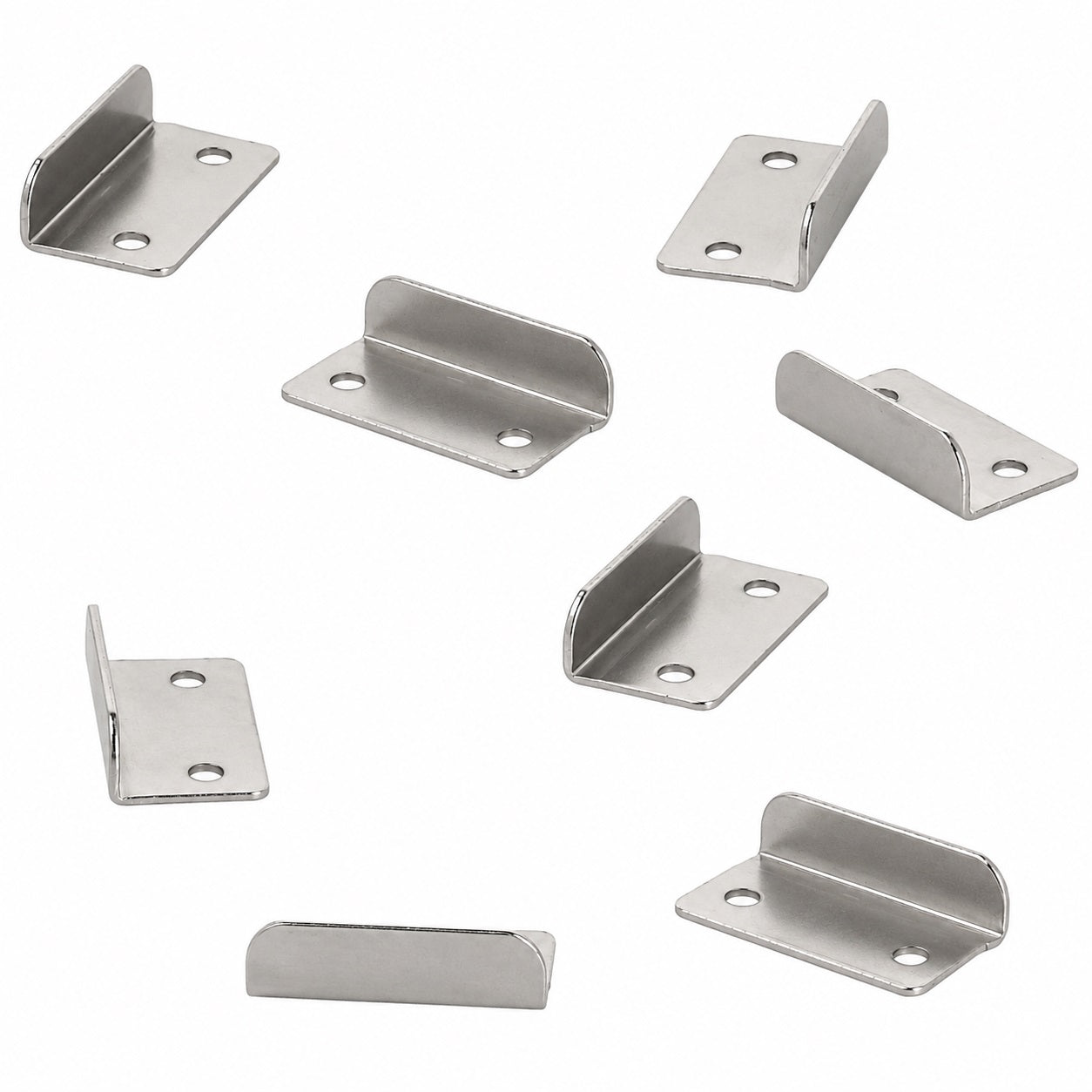

8 pieces of robust strike plate, made of robust steel, surface: nickel-plated, 14.01.064-1, size: 30 mm (1-3/16″)

Application:

Robust strike plate for furniture locks, cabinet locks, surface-mounted locks, cabinet doors and much more.

The strike plate 14.01.064-1 serves as a counterpart for furniture locks (e.g. the SISO Furniture Lock 850) and enables a clean locking of furniture parts.

Due to its L-shape, the strike plate 14.01.064-1 can be mounted on the carcass, door stop or drawer area.

The bolt of the furniture lock engages in the strike plate and keeps the door or drawer reliably closed.

The nickel-plated steel surface ensures an unobtrusive appearance and good protection in furniture construction.

The compact design is particularly suitable for cabinets, drawers, display cases and other wooden furniture with small furniture locks.

The strike plate 14.01.064-1 is a simple, stable and space-saving solution when a furniture closure needs to engage securely and precisely.

The high-quality strike plates 14.01.064-1 are ideally suited for, among other things:

• Drawer
• Furniture flap
• Wooden furniture
• Display cabinet
• Chest of drawers
• Office furniture
• Furniture lock
• Cabinet lock
• Surface-mounted lock
• Cabinet door

Material:

• The strike plates 14.01.064-1 are made of robust steel
• Steel is ideal for furniture fittings because it is both robust and durable, which ensures high load-bearing capacity and a long service life of the fittings

Surface:

• Nickel-plated
• Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
• They offer an elegant, shiny appearance that looks modern and timeless at the same time
• They are also easy to care for, as they make dirt and fingerprints less visible and are easy to clean

Assembly:

• Fastening is done with 3 x 12 mm countersunk head wood screws (not included)
• The strike plate is aligned at the appropriate counter position to the furniture bolt
• First, the position must be marked when the furniture part is closed
• Then, if necessary, the mounting holes are pre-drilled with approx. ⌀2 mm
• The strike plate is then fastened with two countersunk head wood screws or countersunk head chipboard screws
• Finally, it must be checked whether the bolt of the furniture lock engages cleanly in the strike plate and the furniture part remains reliably closed

Features:

• Weight: 5.6 g (for 8 pieces: 44.8 g)
• Size: 30 mm (1-3/16″)
• Easy to mount
• Practical
• Stable
• L-shaped strike plate for furniture locks
• Suitable for SISO Furniture Lock 850
• Compact design
• With two mounting holes
• Suitable for wood and furniture constructions
• Can be used for cabinet doors and drawers
• Simple screw mounting
• Discreet appearance inside the furniture
• Nickel-plated
• Steel
• Robust
• High brand quality from UMAXO®

The dimensions:

• Length of the strike plate: 30 mm (1-3/16″)
• Width: 16 mm (5/8″)
• Height (leg height): 9 mm (23/64″)
• Hole spacing: 21 mm (53/64″)
• Distance from hole center to bottom edge: 6 mm (15/64″)
• 2 mounting holes: ⌀3.5 mm (9/64″)
• Material thickness: 1 mm (3/64″)
• Radius at the small corners: R2
• Radius at the bent area: R5

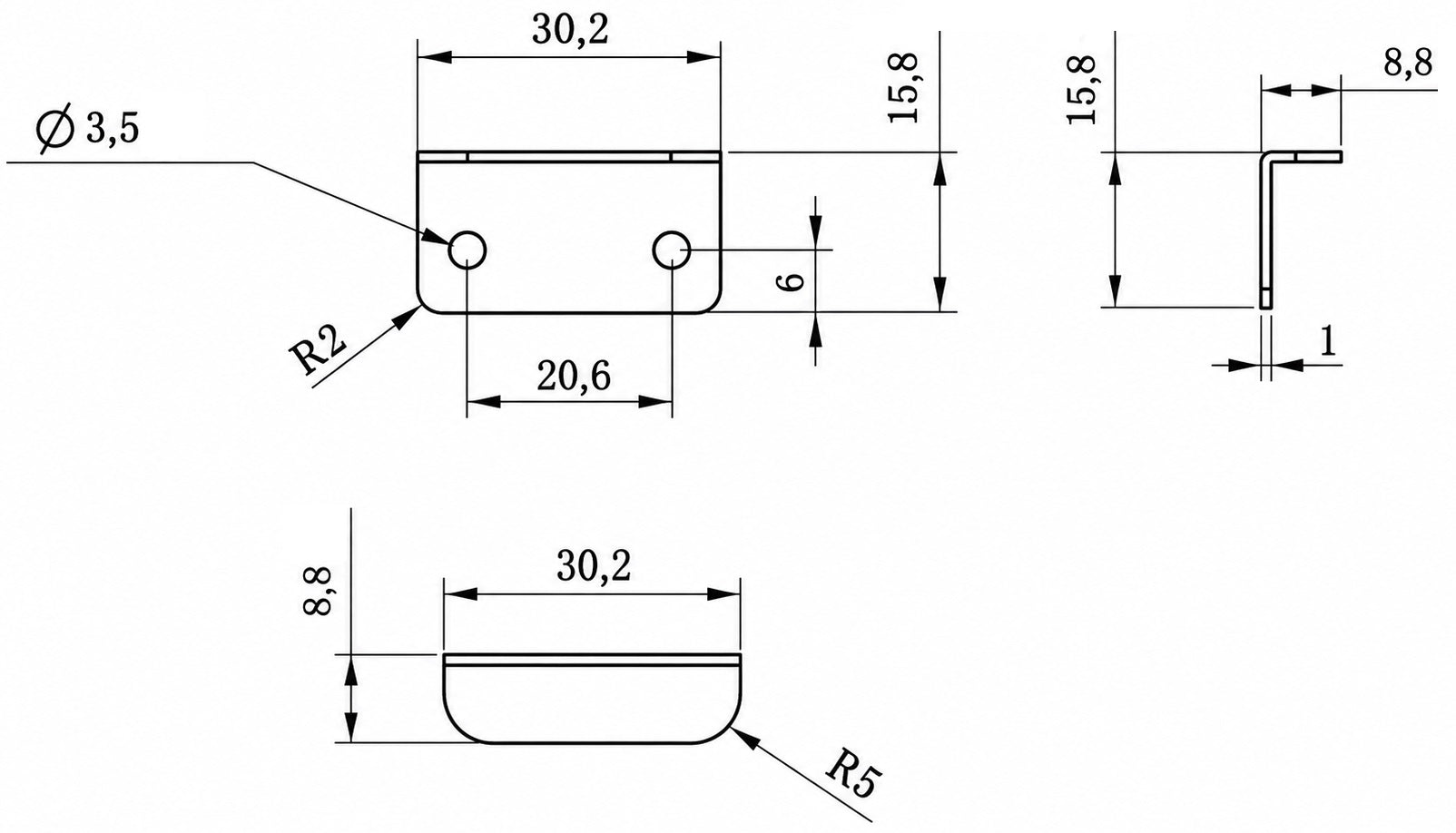

For further dimensions and details see technical drawing.

Included in delivery:

• 8 pieces of strike plate 14.01.064-1 made of robust steel, nickel-plated
• Please note that no fastening screws are included

Additional information:

• Download Reach Declaration

Manufacturer's reference numbers:

• Item identification number: 14.01.064-1
• GTIN number (EAN, UPS): 5704866453585

Manufacturer: SISO Denmark
