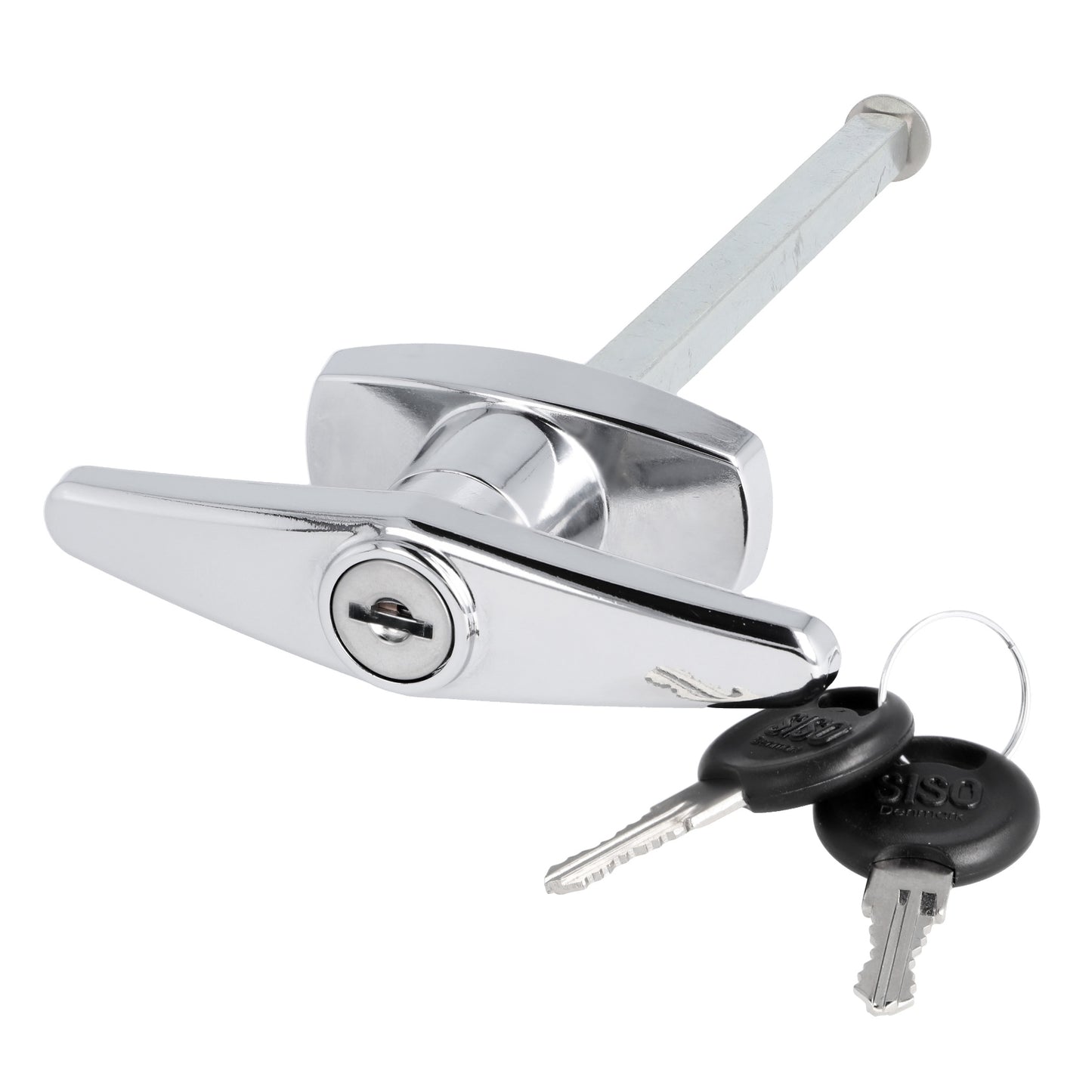

High-quality lockable garage door handle with locking cylinder, made of Zamak, with 8 mm square drive and two keys, for interior mounting, keyed separately, 14.08.054-0. Zamak cross handle for garage doors and much more, from SISO Denmark

High-quality garage door handle, with permanently mounted cylinder and two keys, made of solid die-cast zinc, surface: chrome-plated, for internal mounting, 14.08.054-0, design: individually keyed

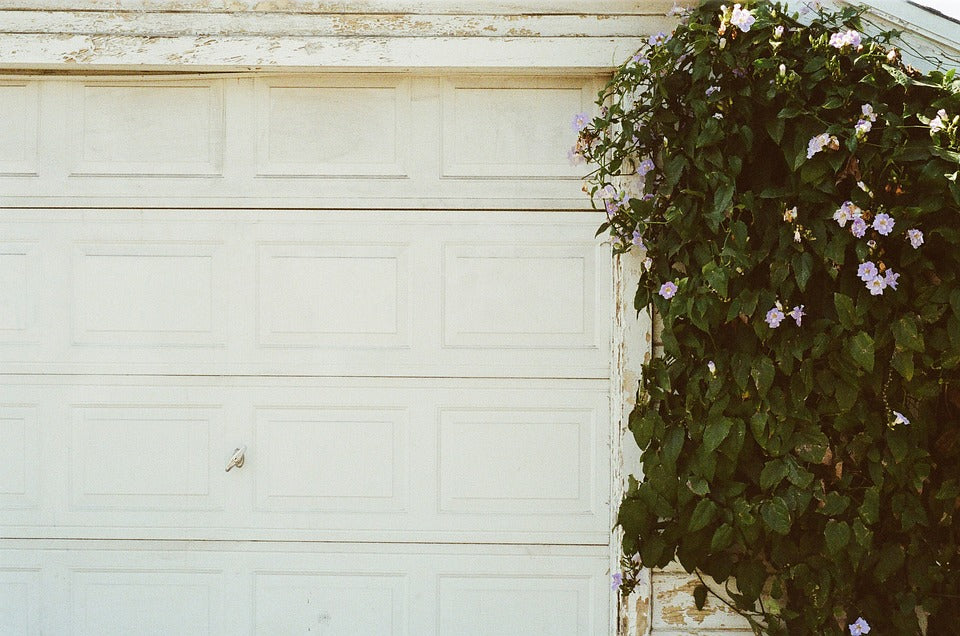

Application: Zamak cross handle for garage doors and much more. The cross handle 14.08.054-0 is suitable for most garage doors and garages. [caption id="attachment_128062" align="alignnone" width="420"] High-quality lockable garage door handle with locking cylinder, made of Zamak, with 8 mm square drive and two keys, for interior mounting, from SISO, design: individually keyed. Application[/caption] To close the garage door handle 14.08.054-0, the handle must be turned 90 degrees and then the key must be turned 180 degrees. If necessary, the cross handle 14.08.054-0 can also be locked in the open position with the key, for example to prevent the gate from being accidentally locked. The cross handle has a permanently mounted pin cylinder. No locking force: the key can be removed in the open and closed position. The high-quality garage door handles 14.08.054-0 have a simple and robust design and are ideal for, among others:

• locker
• locker
• metal cabinet
• Sheet metal housing
• cabinet door
• ash box
• container
• vehicle
• Motorhome
• Garage door

Material:

• The garage door handles 14.08.054-0 are made of solid die-cast zinc

Surface:

• Chrome-plated

Assembly:

• The mounting is done using the screws included in delivery (M4 x 0.7 mm)
• The cross handle 14.08.054-0 is for screwing
• The square is attached and tightened in the cross handle using the square key included in the delivery
• The mounting plate of the garage door handle 14.08.054-0 has two mounting holes with the hole spacing: 45 mm (1-49/64″)

Characteristics:

• Design: individually keyed
• Weight: 230 g
• Size: 99 mm (3.9″)
• high quality
• with square: 8 x 8 mm (5/16″)
• without locking force
• Mounting type: internal mounting
• Reversible key (key fits into the lock on both sides)
• Hole spacing: 45 mm (1-49/64″)
• with permanently mounted pin cylinder
• Cylinder shape: round cylinder
• Closing movement: 90 degrees
• 400 different key variants
• Chrome-plated
• Zamac
• zinc die-casting
• high brand quality from UMAXO®

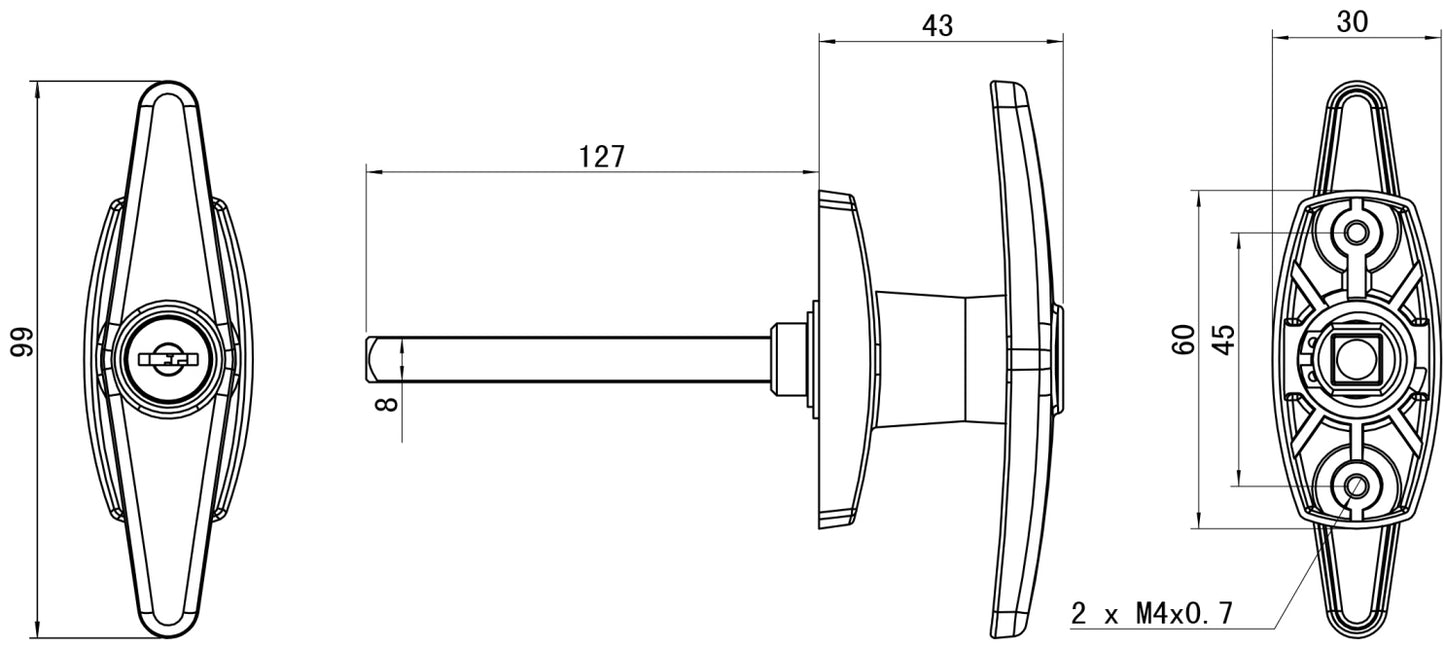

For further dimensions and details see technical drawing . The dimensions:

• Garage door handle length: 99 mm (3-57/64″)
• Mounting plate length: 60 mm (2-23/64″)
• Width of the mounting plate: 30 mm (1-3/16″)
• Hole spacing: 45 mm (1-49/64″)
• Square dimensions: 8 x 8 mm (5/16″)
• Length of the square: 127 mm (5″)

[caption id="attachment_128074" align="alignnone" width="420"] High-quality lockable garage door handle with locking cylinder, made of Zamak, with 8 mm square drive and two keys, for interior mounting, from SISO. Design: individually keyed. Technical drawing[/caption] Included in delivery:

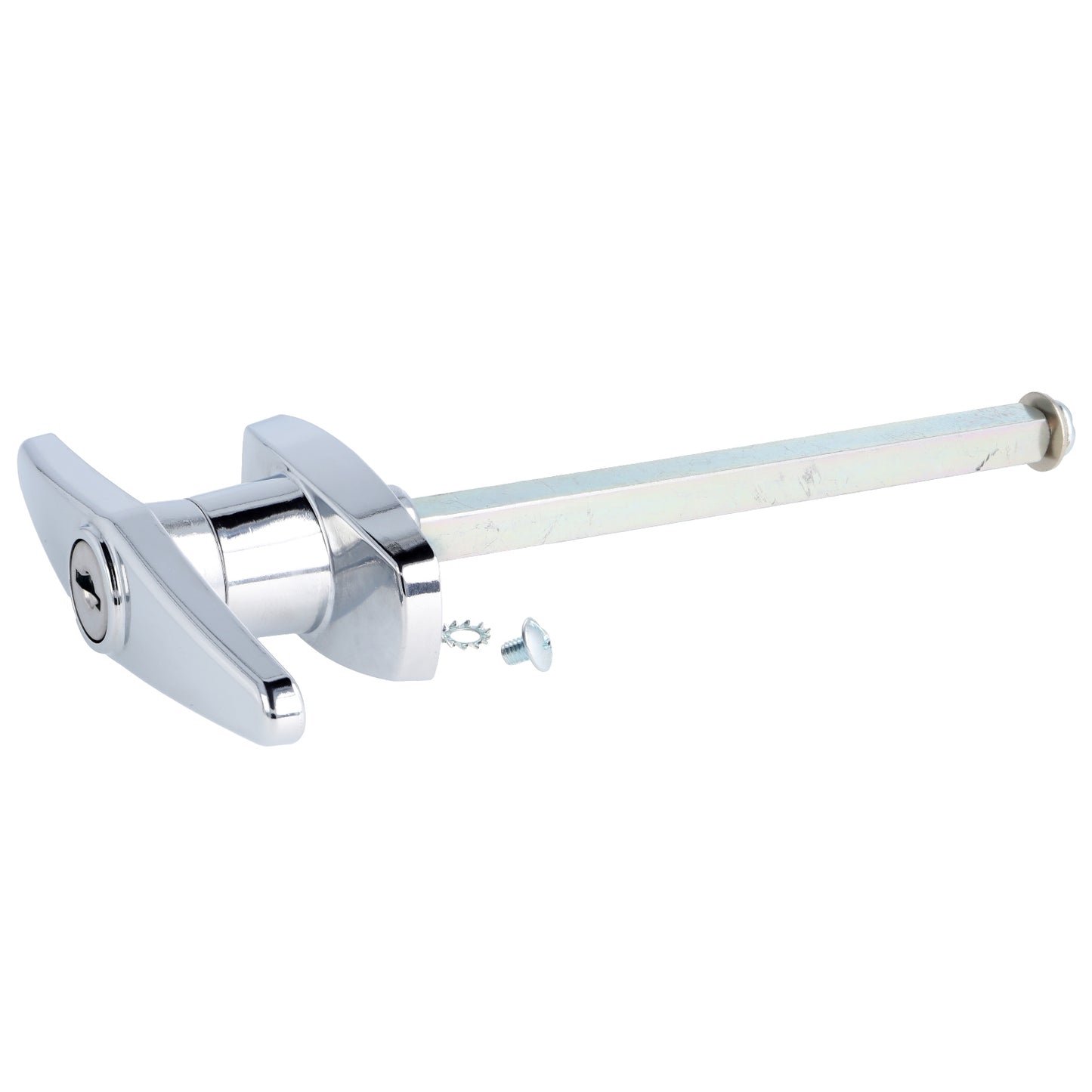

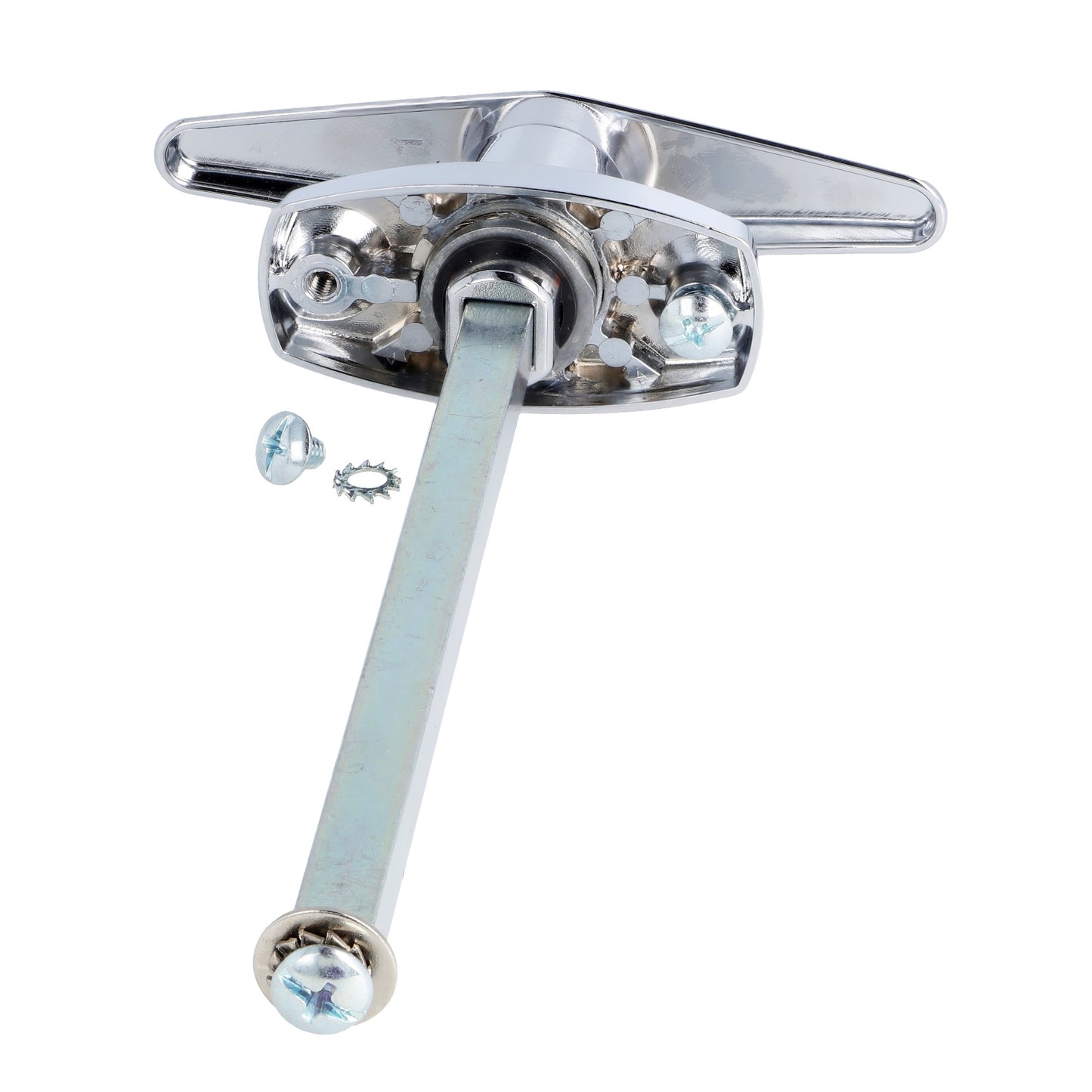

• 1 piece garage door handle 14.08.054-0 made of solid zinc die-cast, chrome-plated, with permanently mounted locking cylinder
• 2 x M4 x 0.7 mm fastening screws
• 1 piece square, 8 x 8 mm (5/16″), 127 mm (5″)
• 2 keys (reversible key)
• 1 piece fastening screw
• 1 piece washer
• 1 piece toothed washer
• 1 square key

Additional Information:

• Download the Reach Declaration

Manufacturer reference number:

• Article number: 14.08.054-0
• EAN number: 5704866506045

Manufacturer: SISO Denmark
