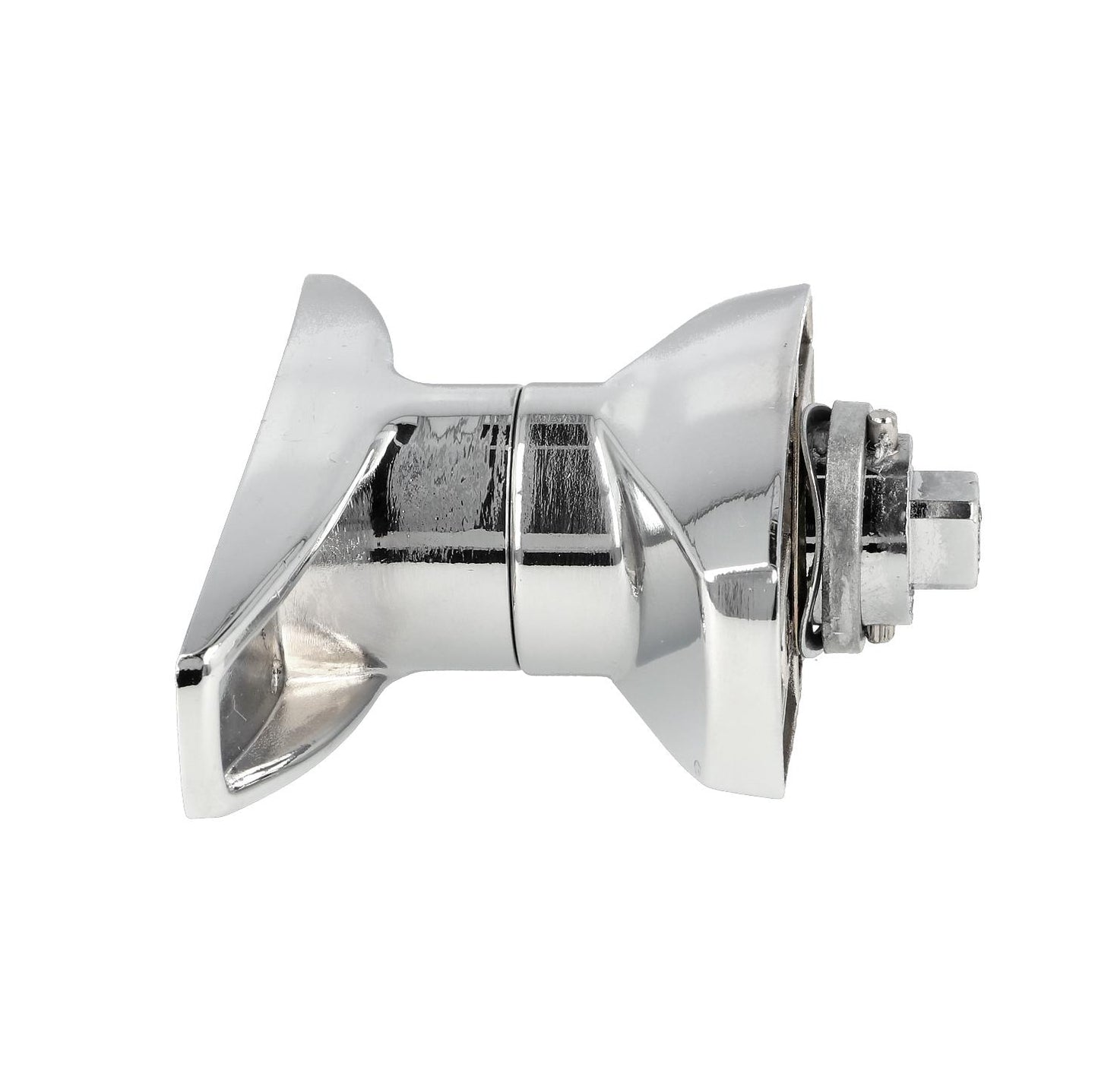

High-quality lockable control cabinet handle with locking cylinder, made of Zamak, with two keys, design: individually keyed, 14.08.055-1. T-handle made of Zamak for control cabinets, lockers, vehicles, and much more, from SISO Denmark

High-quality control cabinet handle, with permanently mounted cylinder and two keys, made of solid die-cast zinc, surface: chrome-plated, 14.08.055-1, design: individually keyed

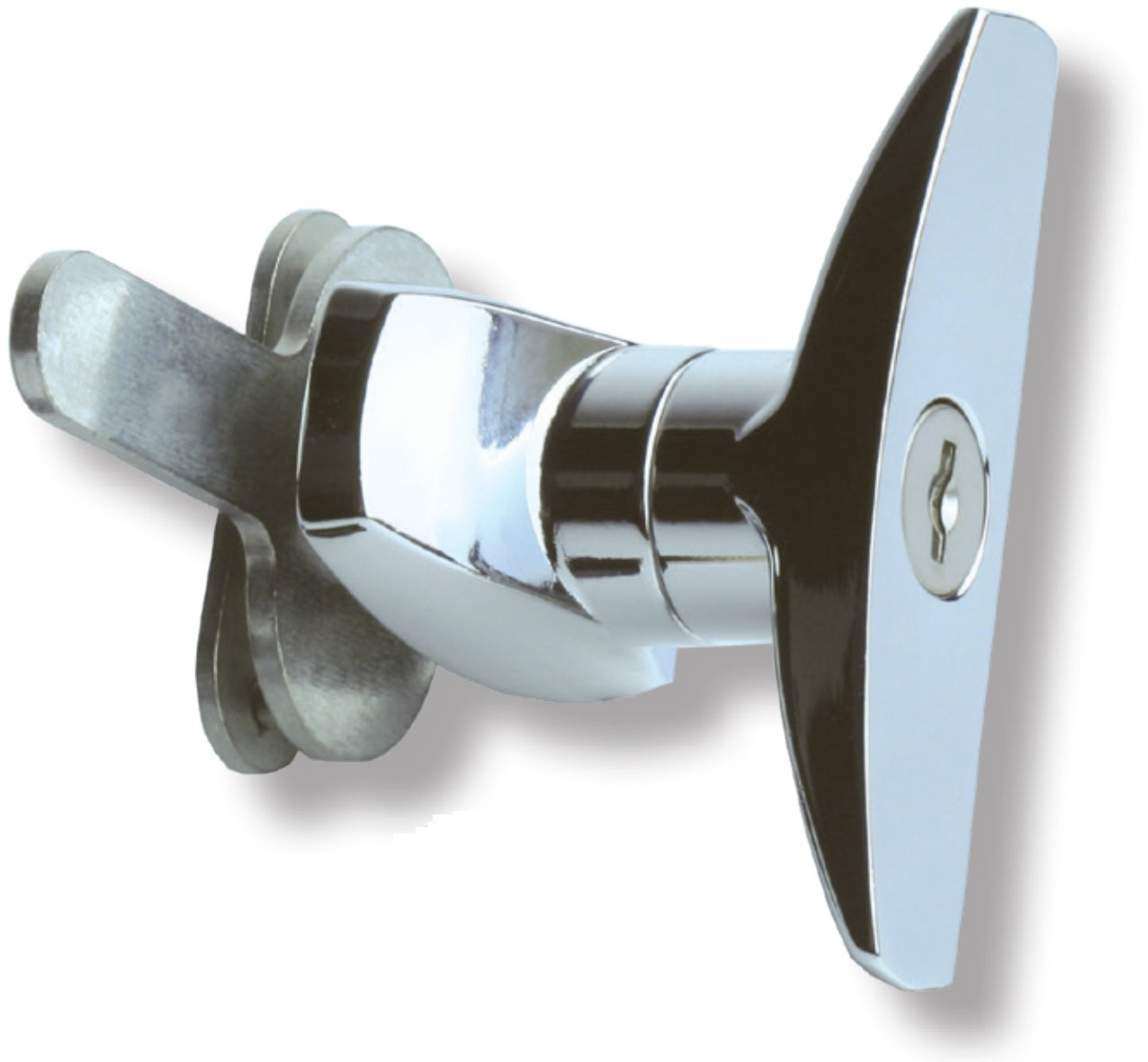

Application: T-handle made of Zamak for control cabinets, lockers, vehicles and much more. The T-handle 14.08.055-1 is suitable for locking metal cabinets, equipment, machines, special vehicles, housings and containers. [caption id="attachment_128176" align="alignnone" width="420"] High-quality lockable control cabinet handle with locking cylinder, made of Zamak, with two keys, from SISO, design: individually keyed. Application[/caption] To close the control cabinet handle 14.08.055-1, the handle must be turned 90 degrees and then the key must be turned 180 degrees. If necessary, the T-handle 14.08.055-1 can also be locked in the open position with the key, for example, to prevent the door from being accidentally locked. The T-handle has a permanently mounted pin cylinder. No locking force: the key can be removed in the open and closed position. The high-quality control cabinet locks 14.08.055-1 have a simple and robust design and are ideal for, among other things:

• locker
• metal cabinet
• Sheet metal housing
• cabinet door
• ash box
• container
• Motorhome
• control cabinet
• locker
• vehicle

Material:

• The control cabinet locks 14.08.055-1 are made of solid die-cast zinc

Surface:

• Chrome-plated

Assembly:

• The fastening is done using the screws included in delivery
• The T-handle 14.08.055-1 is for screwing
• The mounting plate of the control cabinet lock 14.08.055-1 has two mounting holes with the hole spacing: 36 mm (1-27/64″)

Characteristics:

• Design: individually keyed
• Weight: 233 g
• Size: 79 mm (3.2″)
• high quality
• with square: 8 x 8 mm (5/16″)
• without locking force
• Mounting type: internal mounting
• Reversible key (key fits into the lock on both sides)
• Hole spacing: 36 mm (1-27/64″)
• with permanently mounted pin cylinder
• Cylinder shape: round cylinder
• Closing movement: 90 degrees
• 400 different key variants
• Chrome-plated
• Zamac
• zinc die-casting
• high brand quality from UMAXO®

For further dimensions and details see technical drawing . The dimensions:

• Length of the control cabinet lock: 79 mm (3-7/64″)
• Mounting plate length: 58 mm (2-9/32″)
• Width of the mounting plate: 24 mm (15/16″)
• Hole spacing: 36 mm (1-27/64″)
• Square dimensions: 8 x 8 mm (5/16″)
• Length of the lock tongue: 54 mm (2-1/8″)

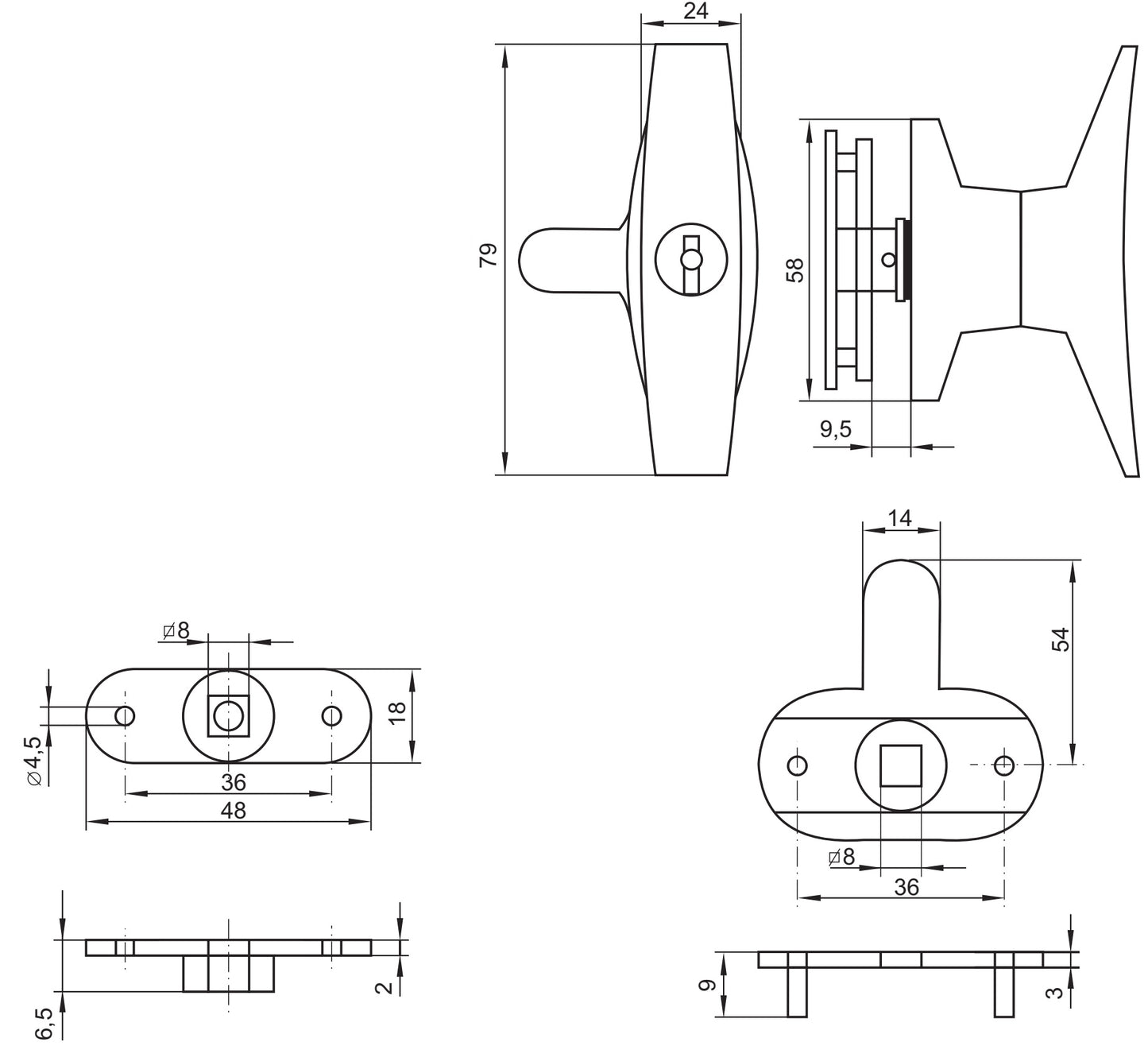

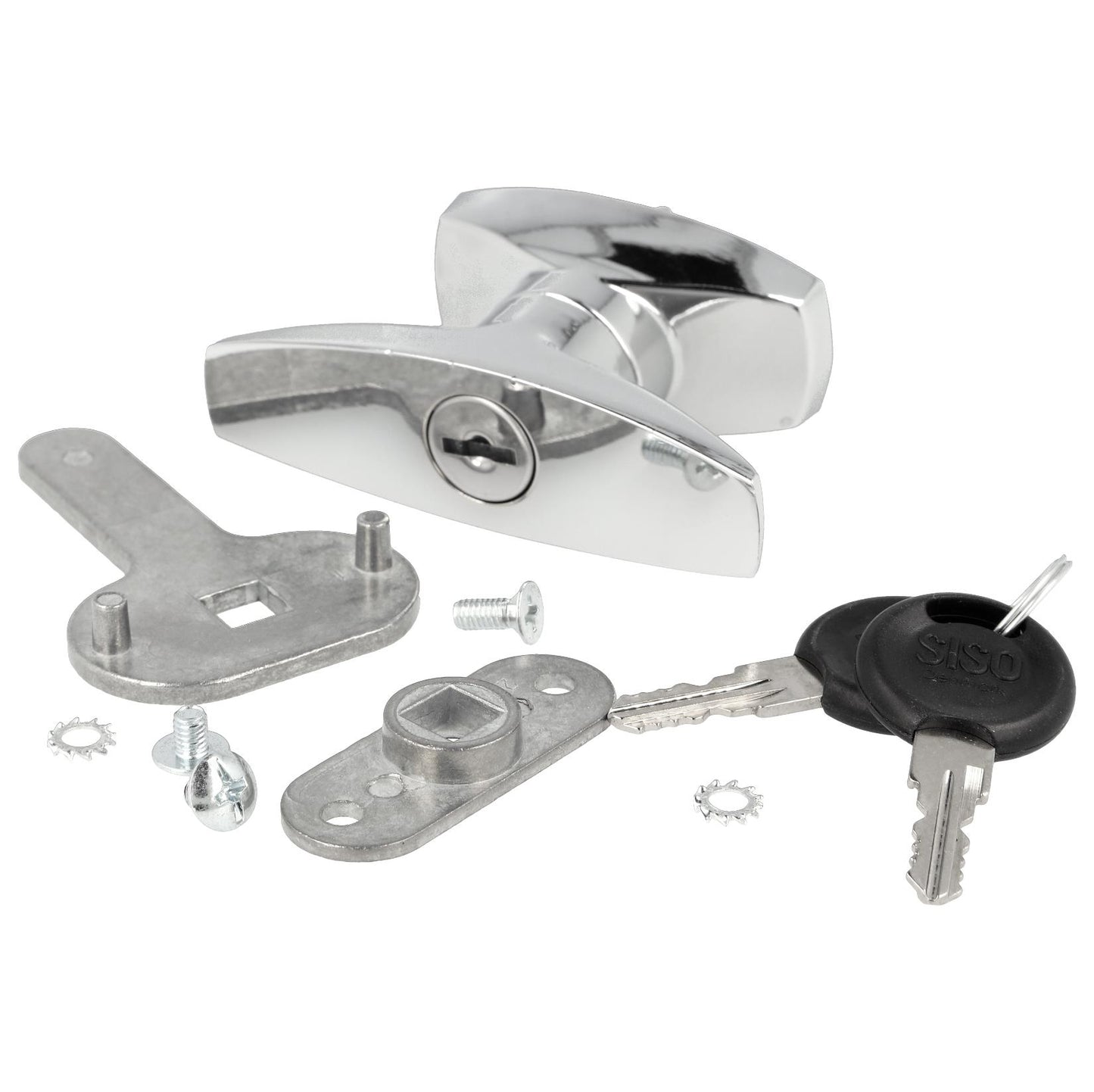

[caption id="attachment_128188" align="alignnone" width="420"] High-quality lockable control cabinet handle with locking cylinder, made of Zamak, with two keys, from SISO, design: individually keyed. Technical drawing[/caption] Included in delivery:

• 1 piece control cabinet handle 14.08.055-1 made of solid die-cast zinc, chrome-plated, with permanently mounted locking cylinder
• 2 fastening screws
• 2 keys (reversible key)
• 1 piece locking tongue
• 1 piece mounting bracket for the locking tongue
• 1 piece fastening screw for the locking tongue
• 2 pieces of toothed washer

Additional Information:

• Download the Reach Declaration

Manufacturer reference number:

• Article number: 14.08.055-1
• EAN number: 5704866044912

Manufacturer: SISO Denmark
