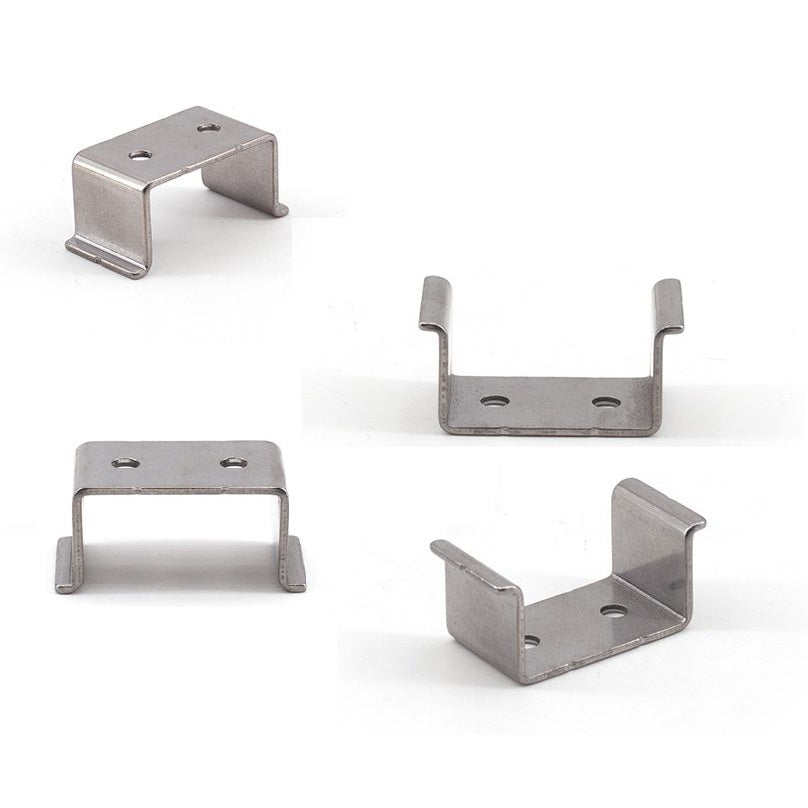

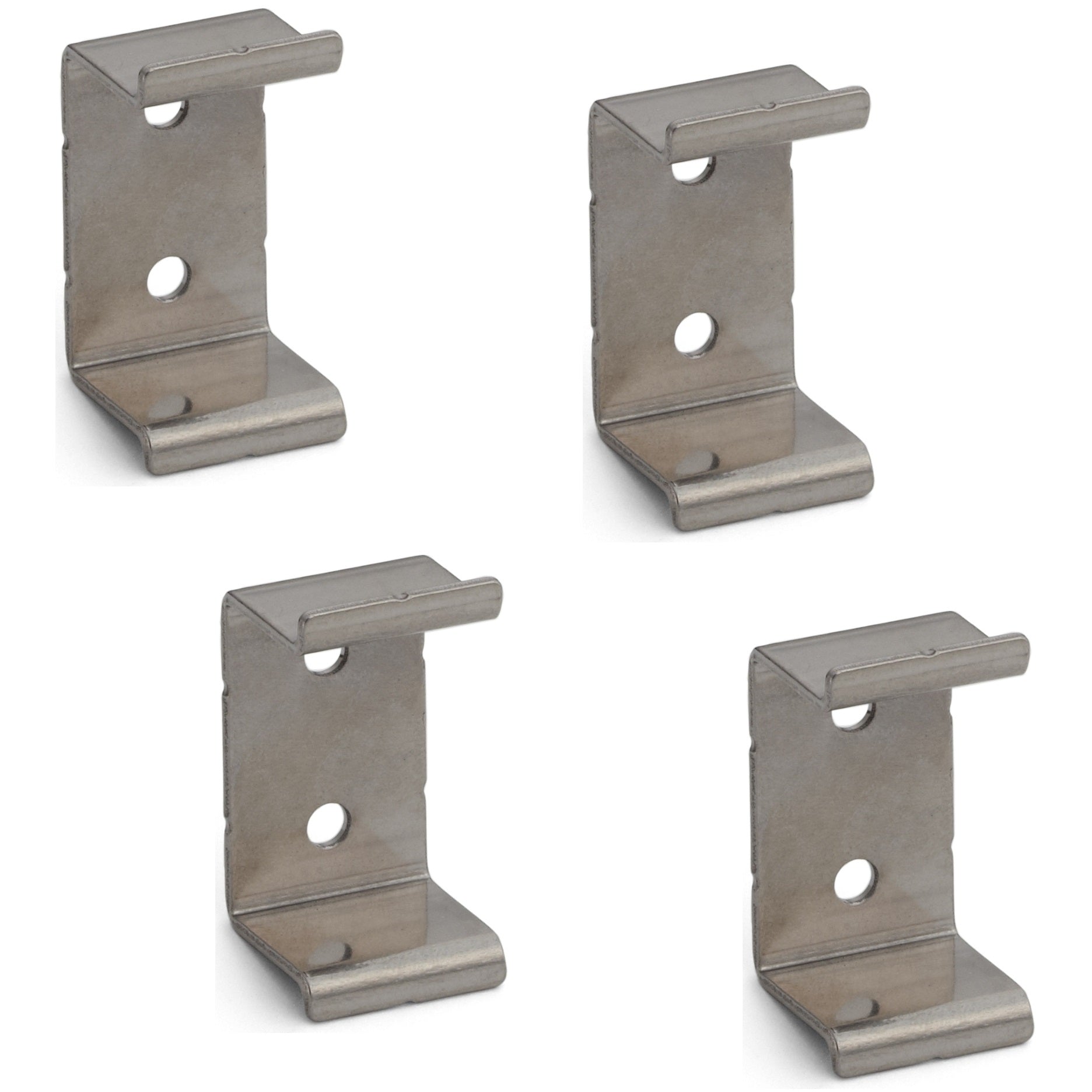

Mounting bracket made of SUS430, surface: glossy polished, 39.5 mm (1.6") XLA-HHA40B. Bracket XLA-HHA40B for Sugatsune recessed pull handles XLA-HHA300 and XLA-HHA600, from Sugatsune / LAMP® (Japan)

High-quality screw-on brackets made of high-quality stainless steel, surface: glossy polished, XLA-HHA40B

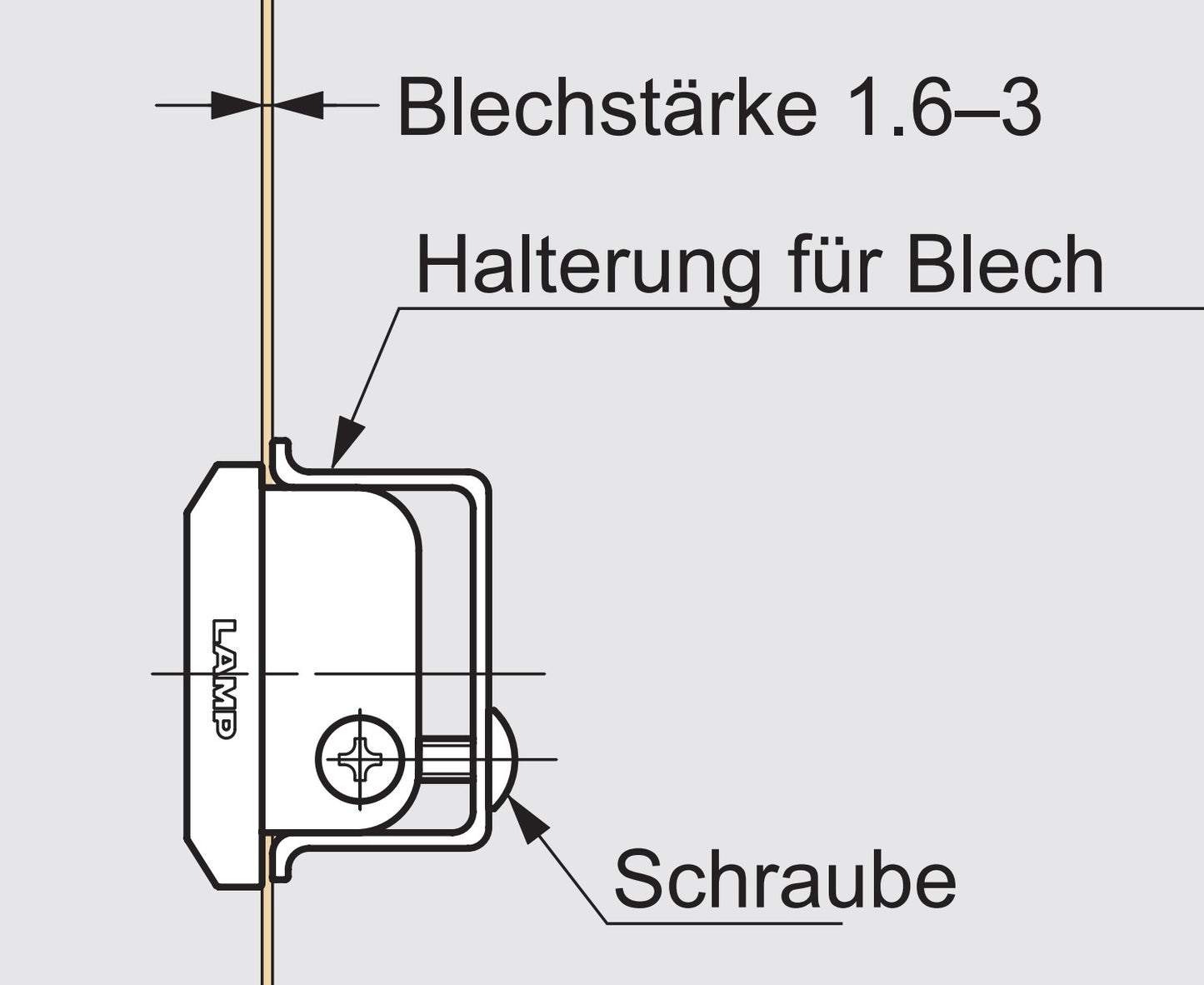

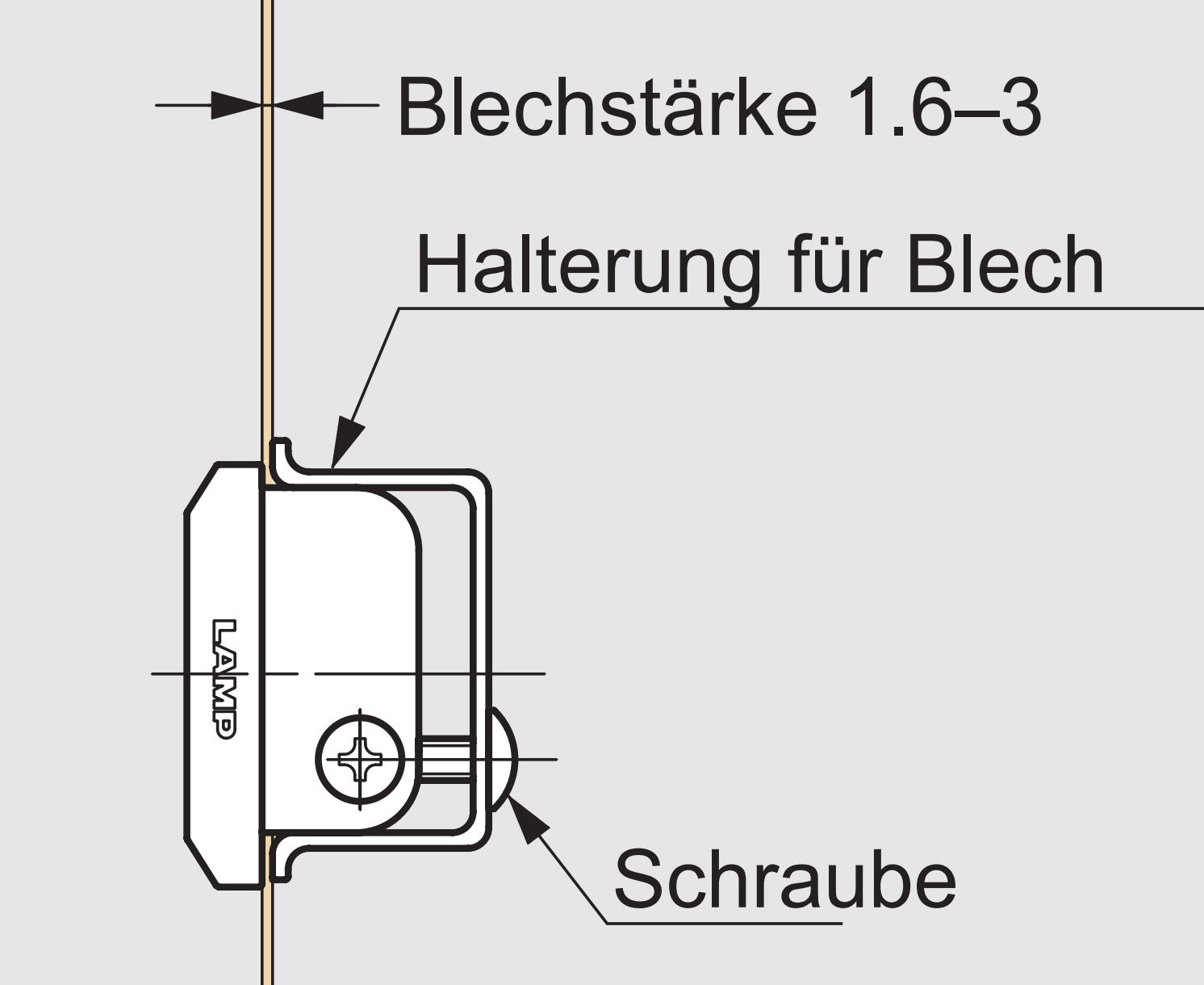

Application: [caption id="attachment_112350" align="alignnone" width="420"] Screw-on bracket made of SUS430, surface: glossy polished, XLA-HHA40B, 39.5 mm, from Sugatsune. Application[/caption] Bracket XLA-HHA40B for Sugatsune inlet handles XLA-HHA300 and XLA-HHA600. The XLA-HHA40B screw-on bracket is ideal for, among other things:

• Metal cabinets
• Electrical appliances
• industrial machinery
• Sugatsune inlet handles XLA-HHA300 and XLA-HHA600

Material:

• The high-quality screw-on brackets XLA-HHA40B are made of SUS430 (V4A)

Surface:

• Shiny polished

Assembly:

• The fastening is done with truss head screws M4 x 10 mm (not included)
• For installation, a cutout in the front with the length (C) 597 mm (23-1/2″) and the width 31 mm (1-7/32″) must be made
• The mounting holes are 200 mm (7-7/8″) or 150 mm (5-29/32″) apart

Characteristics:

• Weight: 14 g
• Size: 39.5 mm (1.6″)
• Elaborately processed
• Ergonomic
• Stable
• Robust
• Shiny polished
• High brand quality from Sugatsune / LAMP®

The dimensions: For further dimensions and details see technical drawing .

• Length of the screw bracket: 39.5 mm (1-9/16″)
• Width: 20 mm (25/32″)
• Depth of the bracket: 18 mm (45/64″)

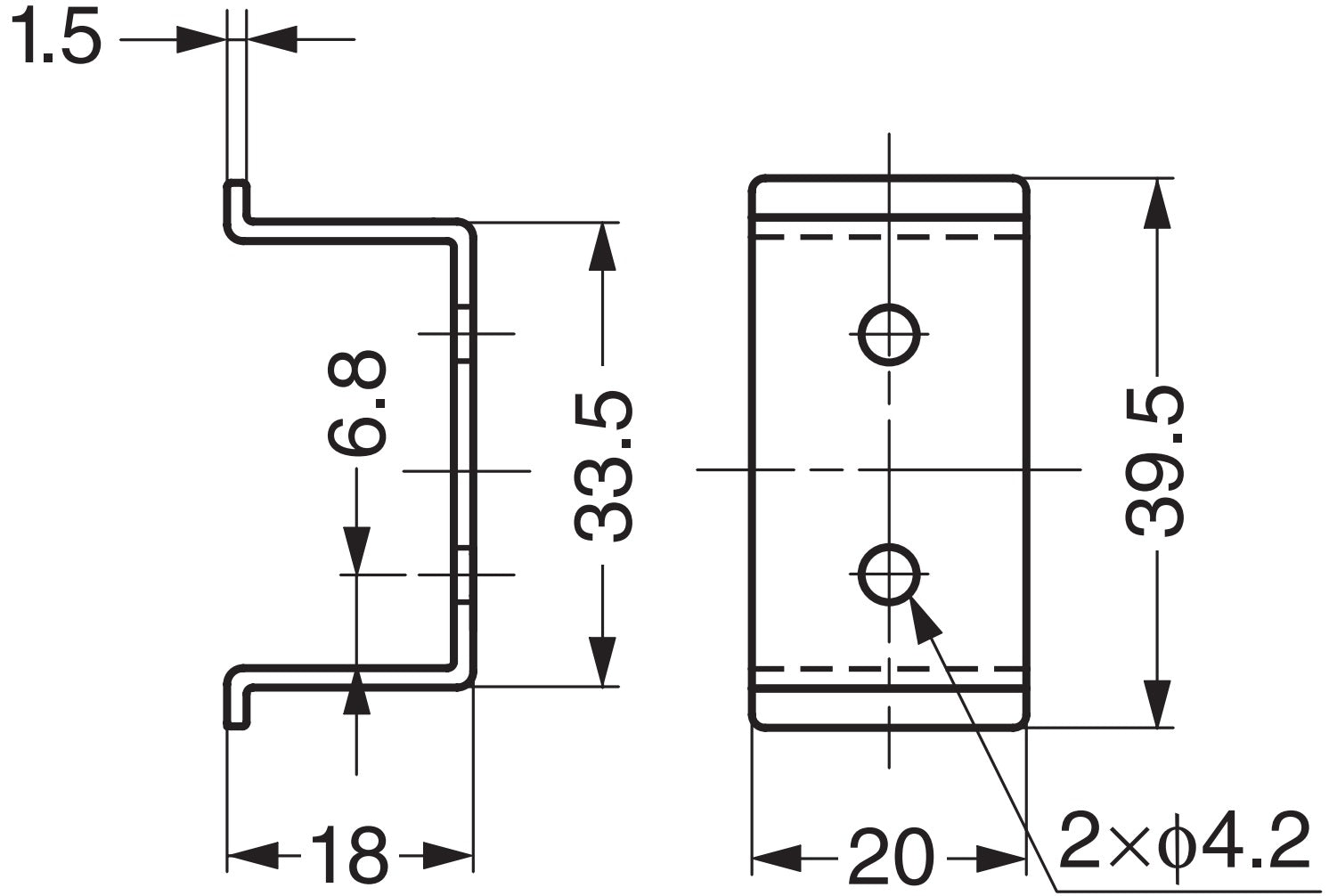

[caption id="attachment_112336" align="alignnone" width="420"] Screw-on bracket made of SUS430, surface: glossy polished, XLA-HHA40B, 39.5 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

• 1 piece screw-on bracket XLA-HHA40B made of high-quality stainless steel, shiny polished

Manufacturer reference number:

• Article number: 100-010-189
• Item number: XLA-HHA40B
• EAN number: 4510932040402

Manufacturer: Sugatsune / LAMP® (Japan)
