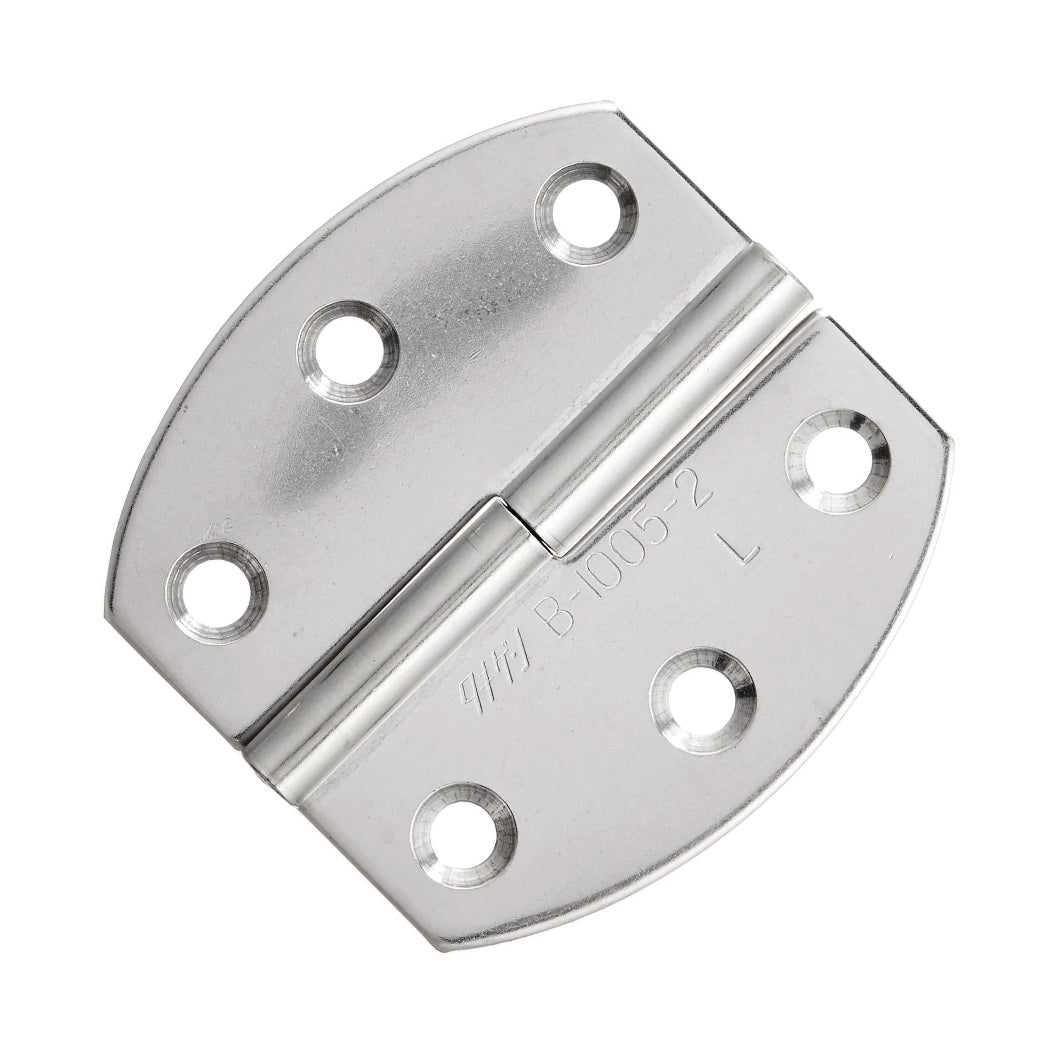

2 high-quality lift-off hinges made of SUS304 stainless steel, surface: glossy polished, 40 mm (1.6"), left-hand version, B-1005-1-L. High-quality V2A lift-off hinges for humid environments, ships, outdoor kitchens, and much more, from TAKIGEN (Japan).

2 pieces of hinge made of stainless steel (V2A), surface: shiny polished, B-1005-1-L

Application: High-quality lift-off hinge made of V2A for humid environments, ships, outdoor kitchens, outdoor furniture and much more. Thanks to the detachable function of the B-1005-1-L detachable hinge, the door can be easily removed after installation by simply lifting it. The door can then be quickly reinstalled in its original position. The B-1005-1-L hinges are only suitable for vertical use. The high-quality B-1005-1-L hinges have a simple design and are ideal for, among others:

• Bathroom furniture
• Cruise ships
• Caravan
• yachts
• Medical field
• humid environment
• ships
• outdoor kitchen
• Outdoor furniture

Material:

• The hinges B-1005-1-L are made of stainless steel (V2A)

Surface:

• Shiny polished

Assembly:

• The fastening is done with M3 screws (not included)
• One part of the hinge is attached to the door and one part to the wall or the furniture body
• Thanks to the removal function of the B-1005-1-L removal hinge, the door can be mounted very quickly in the desired location

Characteristics:

• Weight: 25 g
• Load capacity: 4 kg
• Size: 40 mm (1.6″)
• High quality
• Stable
• Robust
• Shiny polished
• weatherproof
• rustproof (corrosion-free)
• high brand quality from TAKIGEN®

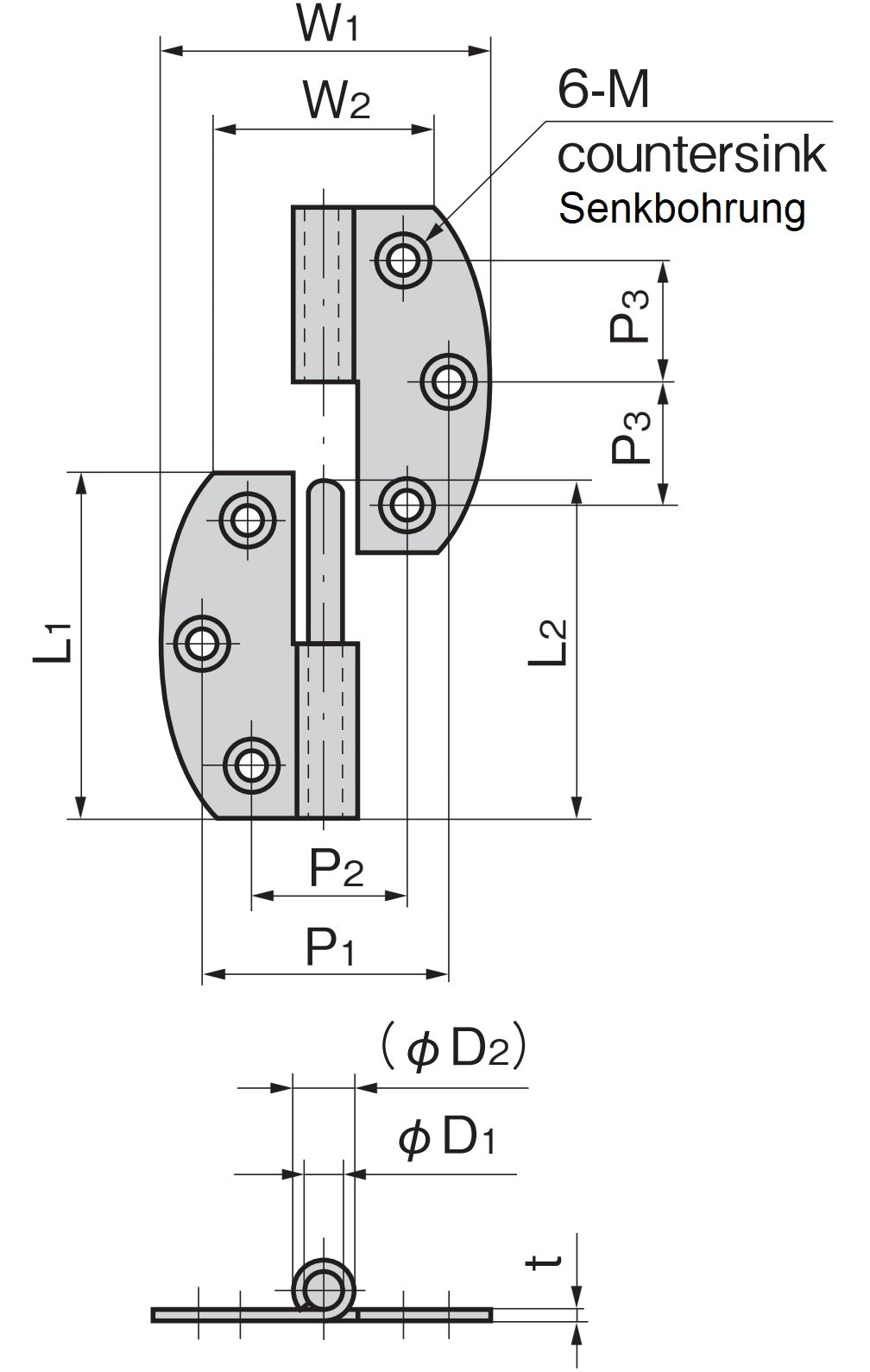

For further dimensions and details see technical drawing . The dimensions:

• Length of the hinge (L1): 40 mm (1-37/64″)
• Width (W1): 38 mm (1-1/2″)
• Material thickness (t): 1.2 mm (3/64″)
• Diameter of the axle (⌀D2): ⌀6.6 mm (17/64″)
• Distance between mounting holes (P3): 14 mm (35/64″)
• The drawing shows the right version of the hinge. The left version of the hinge has the same dimensions as the right version.

[caption id="attachment_123355" align="alignnone" width="266"] High-quality SUS304 stainless steel hinge, B-1005-1-L, 40 mm, from TAKIGEN, glossy polished. Technical drawing[/caption] Included in delivery:

• 2 pieces of hinge B-1005-1-L made of stainless steel, shiny polished

Manufacturer reference number:

• Article number: 10569
• Item number: B-1005-1-L

Manufacturer: TAKIGEN (Japan)
