4 pcs. Extendable table clamps made of galvanized steel, adjustable, with two position locks, 70 mm (2.8") 24.03.003-6. Catch #22 clamp made of galvanized steel, for extendable tables, boxes, instrument cases, worktops, from SISO Denmark
4 pcs. Extendable table clamps made of galvanized steel, adjustable, with two position locks, 70 mm (2.8") 24.03.003-6. Catch #22 clamp made of galvanized steel, for extendable tables, boxes, instrument cases, worktops, from SISO Denmark
Regular price
€14,99 EUR
Regular price
Sale price
€14,99 EUR
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
4 pieces of unique pull-out table clamp made of , galvanized, with adjustment option and with two position locks 24.03.003-6

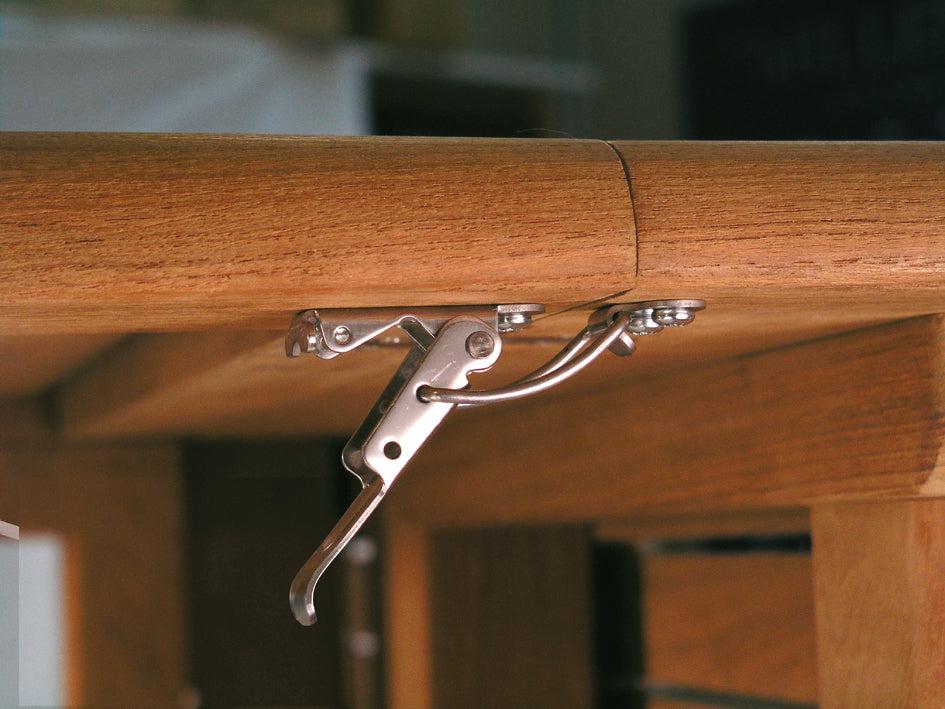

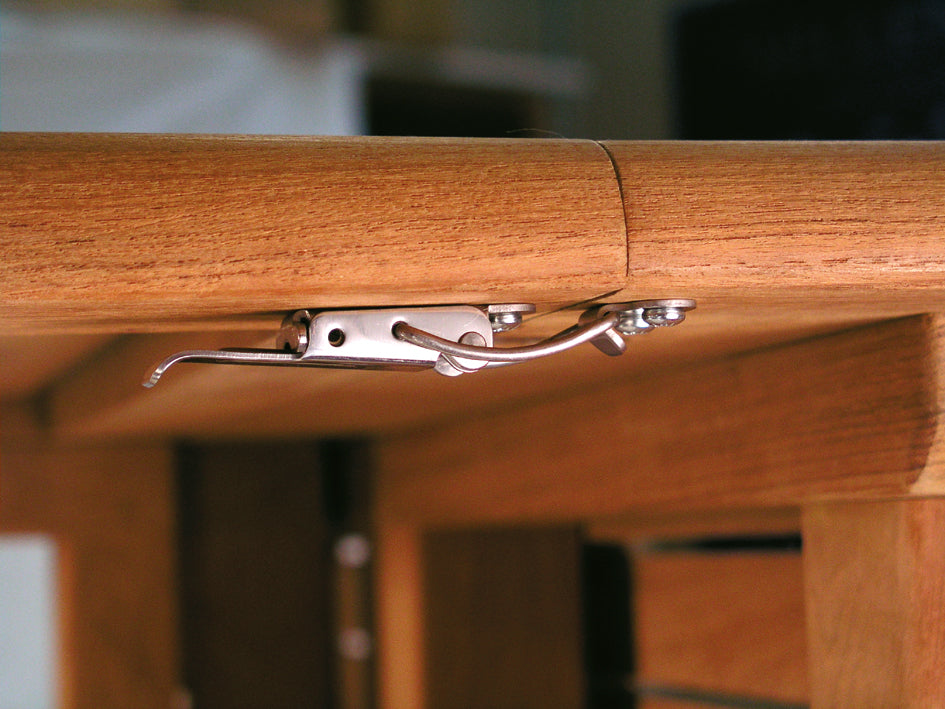

Application: [caption id="attachment_55702" align="alignnone" width="420"]
Extendable table clamp made of galvanized steel, adjustable, with two position locks, 70 mm, from SISO. Application[/caption]
Catch #22 tension lock made of galvanized steel for extending tables, boxes, instrument cases, worktops.
The 24.03.003-6 extendable table clamps, also known as "CATCH #22 clamps," can be used to connect extendable table tops. Their over-center design makes them vibration-resistant.
The special feature of the 24.03.003-6 extending table clamps is that the locking hooks can be secured under the table when opened, thus ensuring they are safely stowed away. This prevents scratches on the furniture surface and injuries. It also makes the extending table look more tidy.
[caption id="attachment_55716" align="alignnone" width="420"]

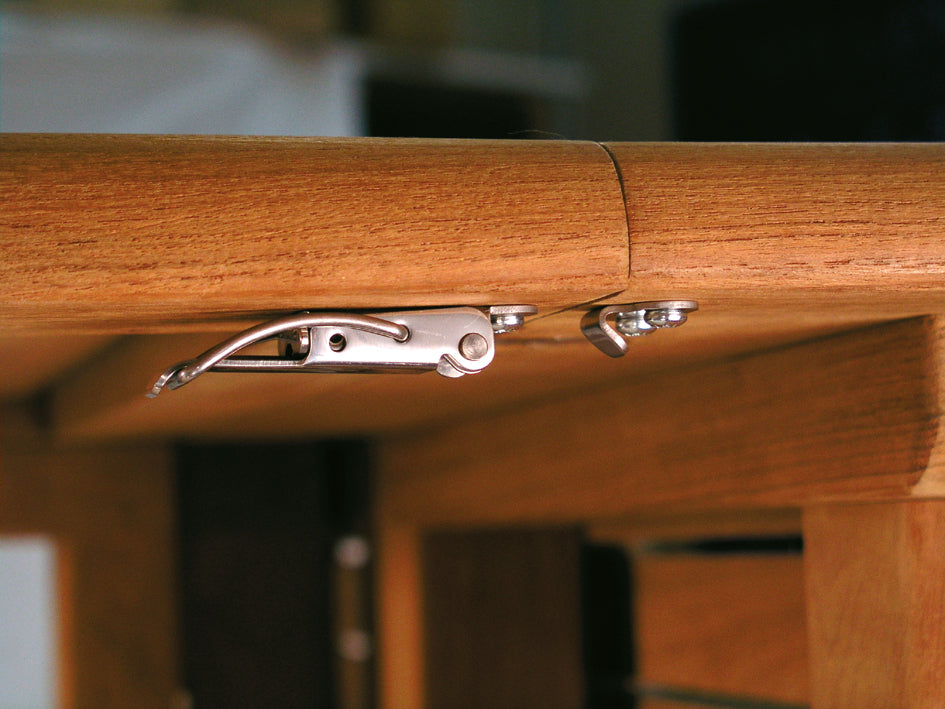

Adjustable, galvanized steel extension table clamp with two position locks, 70 mm, from SISO. Secured in the upper position.[/caption]
[caption id="attachment_55730" align="alignnone" width="420"]
Extendable table clamp made of galvanized steel, adjustable, with two position locks, 70 mm, from SISO. Unsecured[/caption]
To compensate for tolerances, the clamp has a movable clamping hook.
The CATCH #22 tension lock for extendable tables also offers the option of being secured when closed. The countertop tension lock has four holes on the sides through which a securing element, such as a cotter pin, can be inserted when closed.
The clamping hook can be adjusted via a slotted hole to build up sufficient tension or to compensate for tolerances.
The high-quality extendable table clamps 24.03.003-6 are ideal for connecting split table tops and for locking furniture, such as:
- Extendable table
- Box
- instrument case
- worktop
- The high-quality pull-out table clamps 24.03.003-6 are made of steel
- Galvanized
- The fastening is done with lens head wood screws Ø4 x 16 mm (not included in delivery) (for further details see assembly drawing )

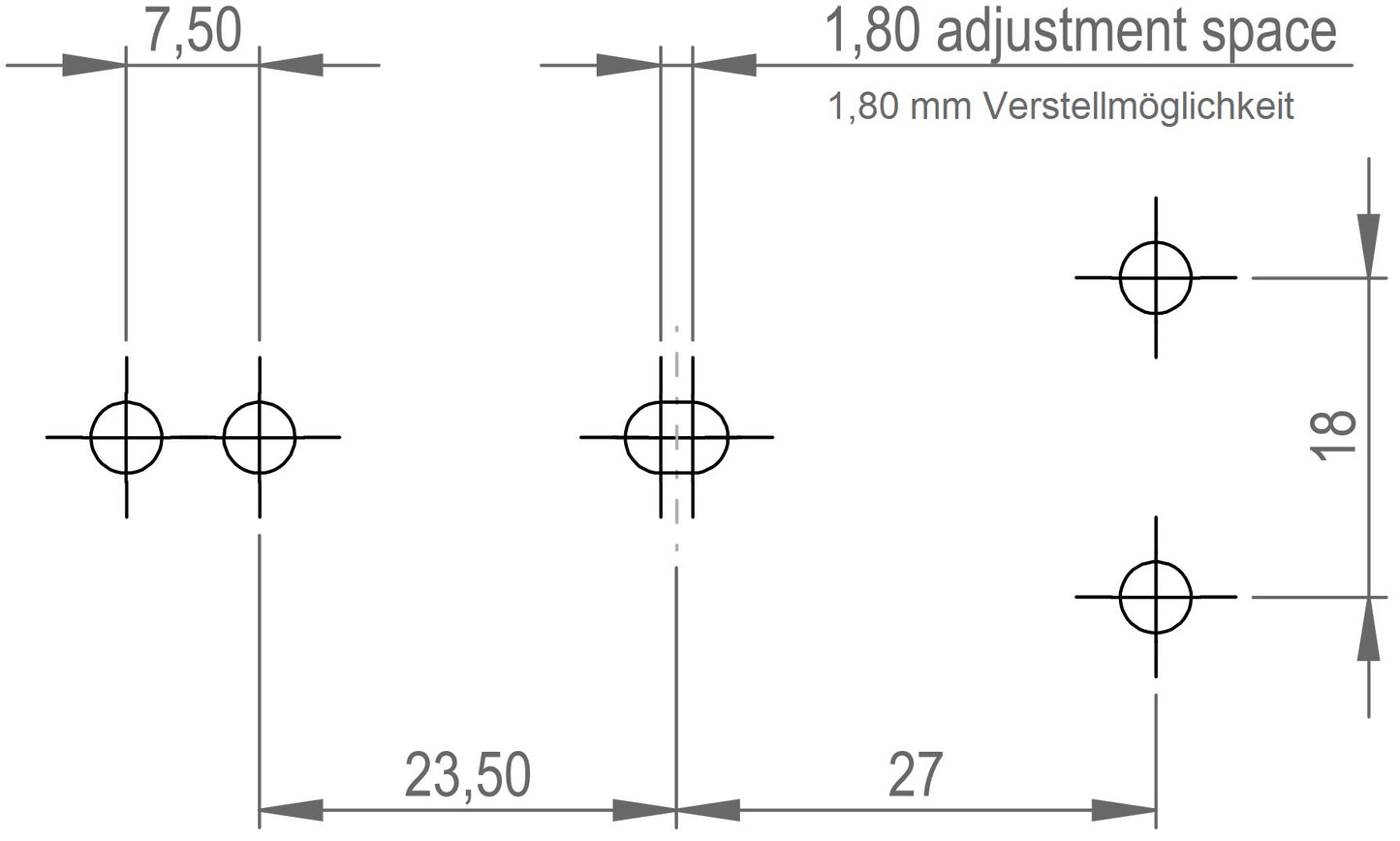

Extendable table clamp made of galvanized steel, adjustable, with two position locks, 70 mm, from SISO. Assembly drawing[/caption]
Characteristics:
- Weight: 37.5 g
- Size: 70 mm (2.8″)
- Positional security in the closed state
- Position securing in the open state
- Adjustable
- Ergonomic
- Robust
- Made of steel
- Galvanized
- High brand quality from UMAXO®
- Length of the extension table clamp lock: 70 mm (2-24/32″)
- Width: 30 mm (1-6/32″)
- Height: 12 mm (15/32″)
- Width of the locking lever: 15 mm (19/32″)
- Mounting plate length: 45 mm (1-25/32″)
- Length of the counter hook: 16.5 mm (21/32″)
- Distance between mounting holes: 18 mm (23/32″)

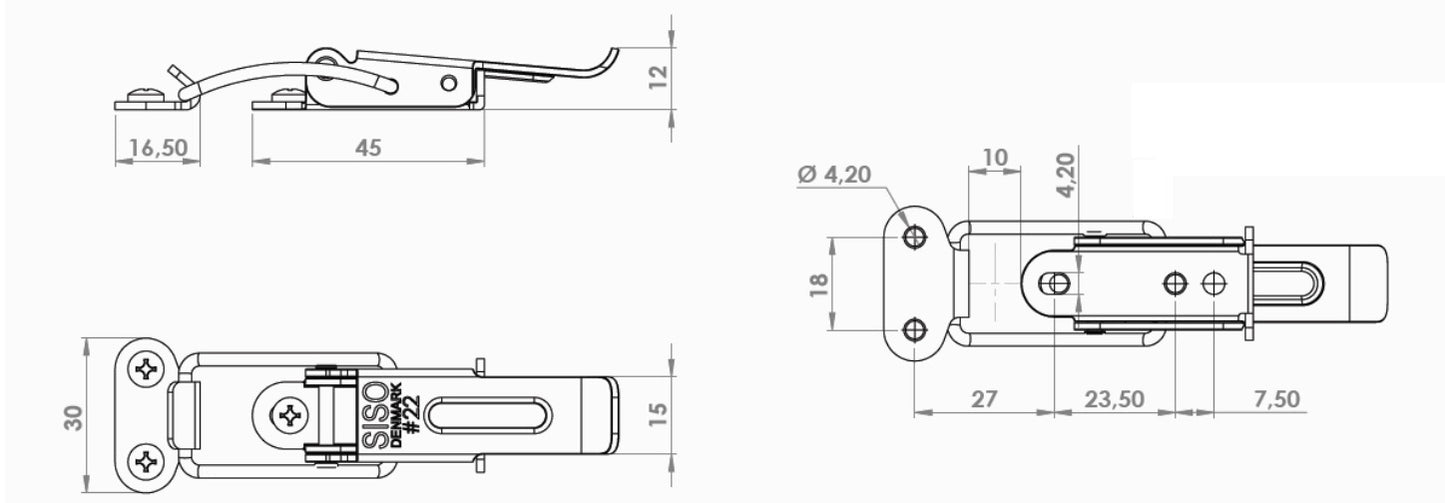

Extendable table clamp made of galvanized steel, adjustable, with two position locks, 70 mm, from SISO. Technical drawing[/caption]
[caption id="attachment_55772" align="alignnone" width="420"]

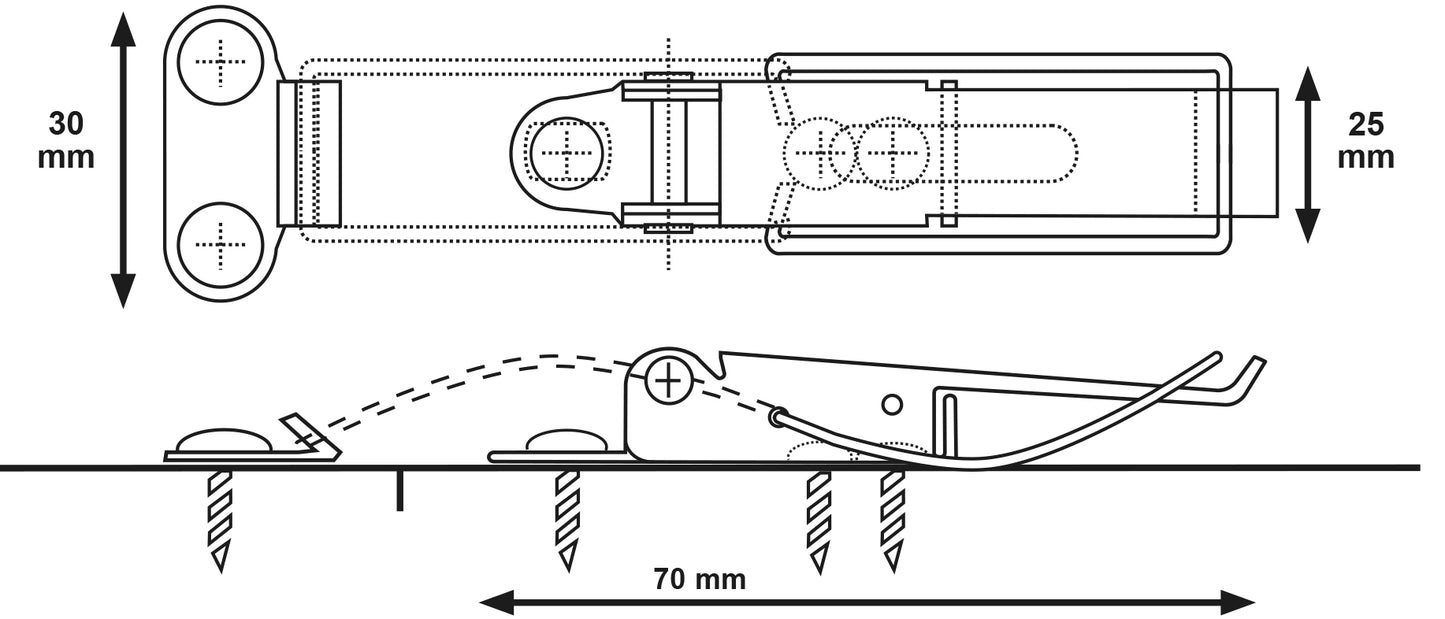

Extendable table clamp made of galvanized steel, adjustable, with two position locks, 70 mm, from SISO. Drawing in closed position.[/caption]
Included in delivery:

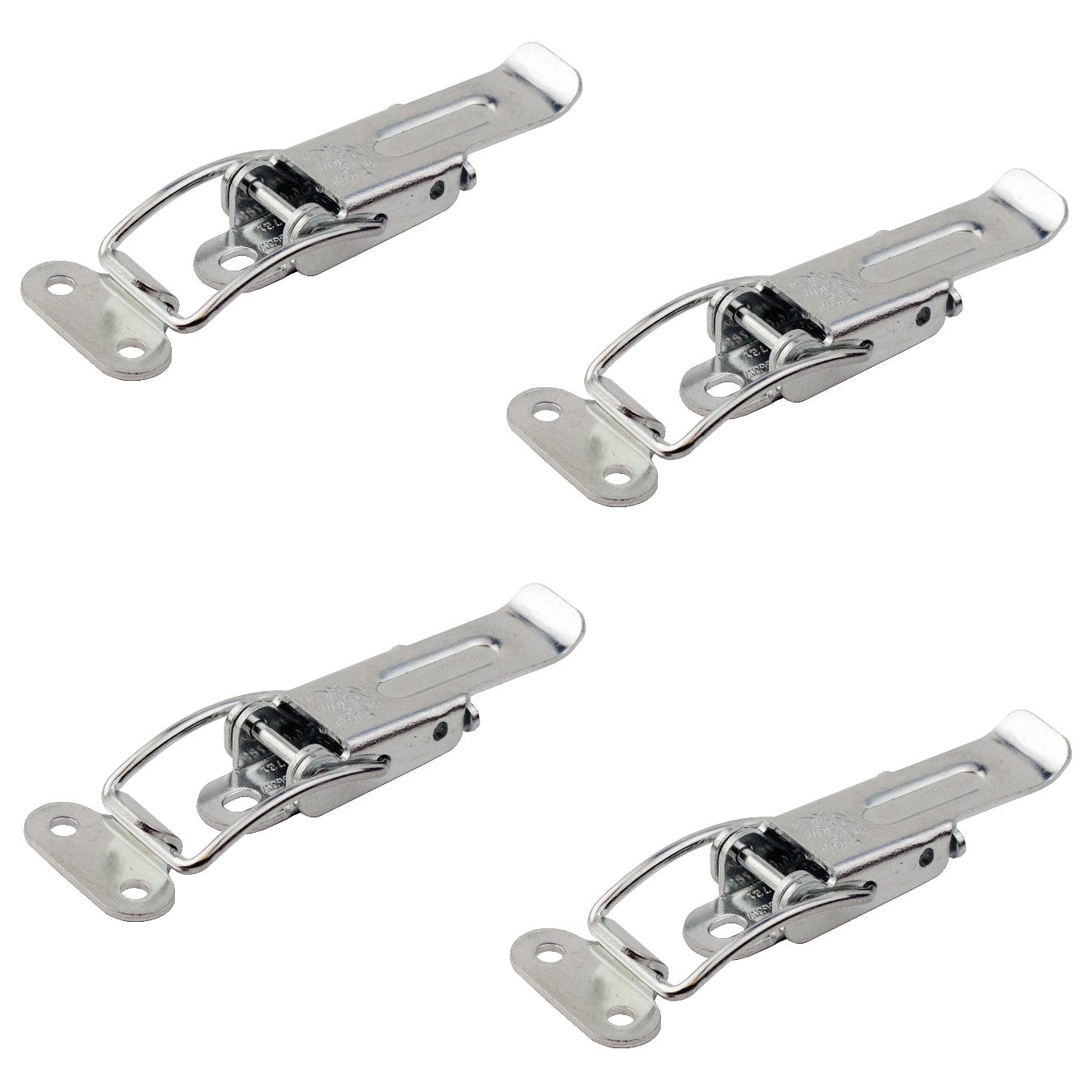

- 4 pieces of extendable table clamp 24.03.003-6 from SISO (CATCH #22 clamp) made of galvanized steel
- 1 piece counter hook made of steel, galvanized
- Article identification number: 24.03.003-6
- EAN number: 5704866500739
