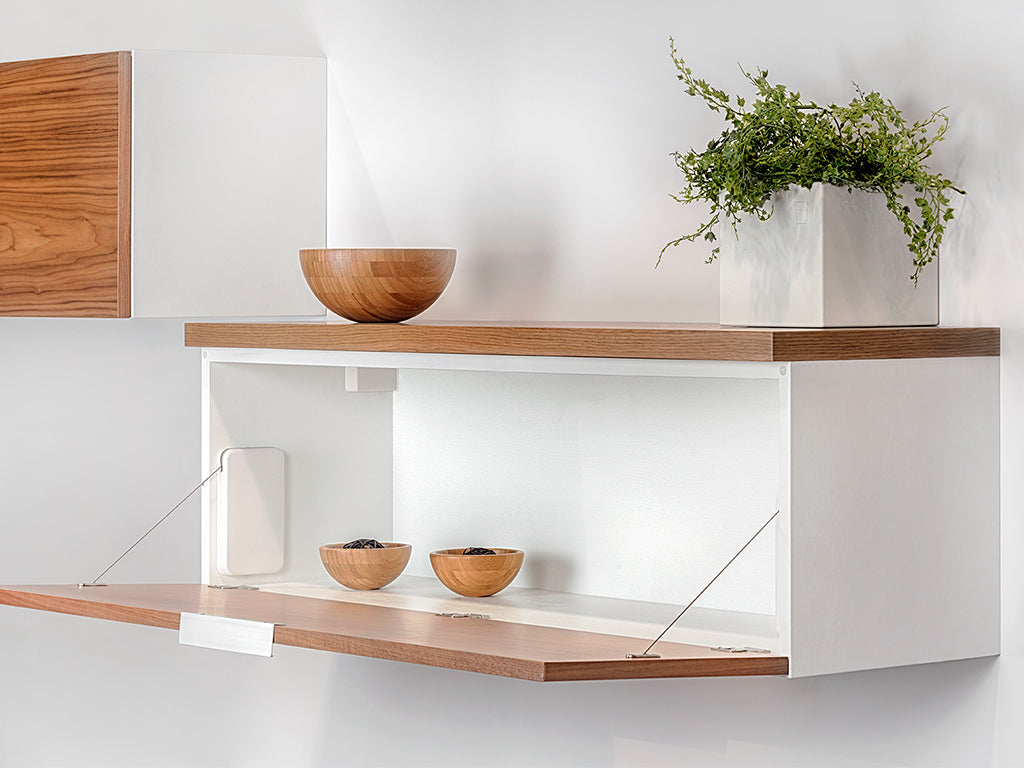

Hochwertiger Barfachklappenhalter mit Soft-Close Dämpfer und Selbsteinzug, inkl. Abdeckkappe und Befestigungsschrauben, Tragkraft: 4 kg, Oberfläche: weiß, 1009521. Seilzugklappenhalter für Barfach, Barfachklappe und viel mehr, von EMUCA

Bar compartment flap holder with soft-close damper and self-closing mechanism, for flaps with a height of 200 mm (7-7/8") to 480 mm (18-57/64") and flap weight up to 4 kg, made of metal and robust plastic, surface: white, 1009521

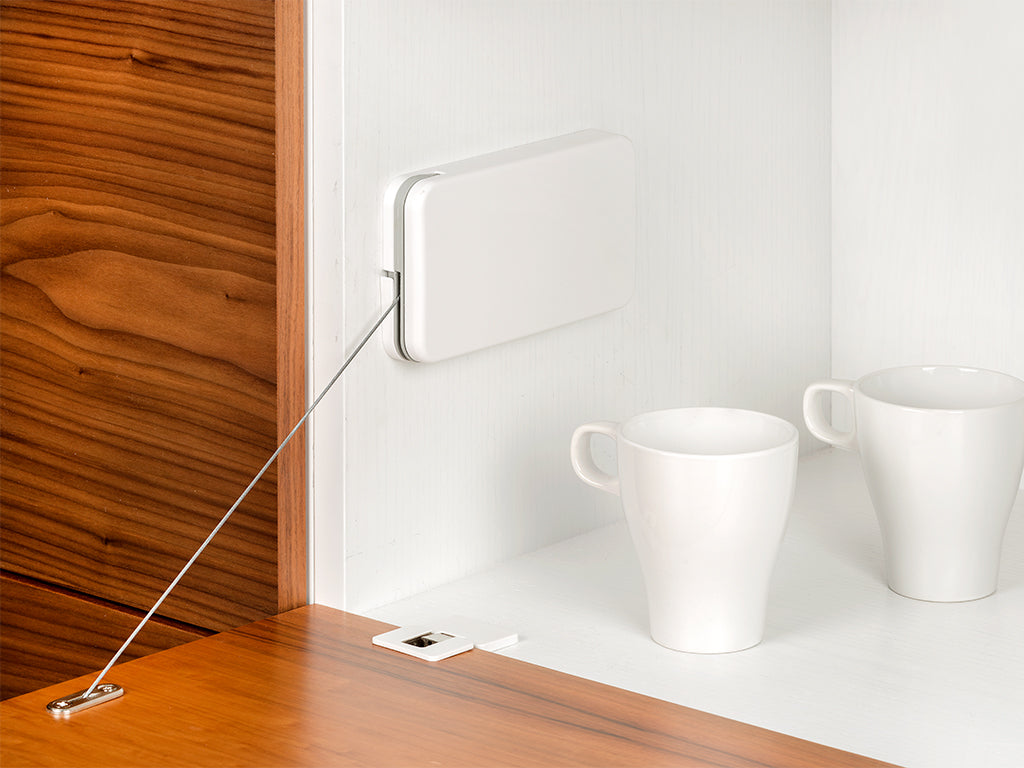

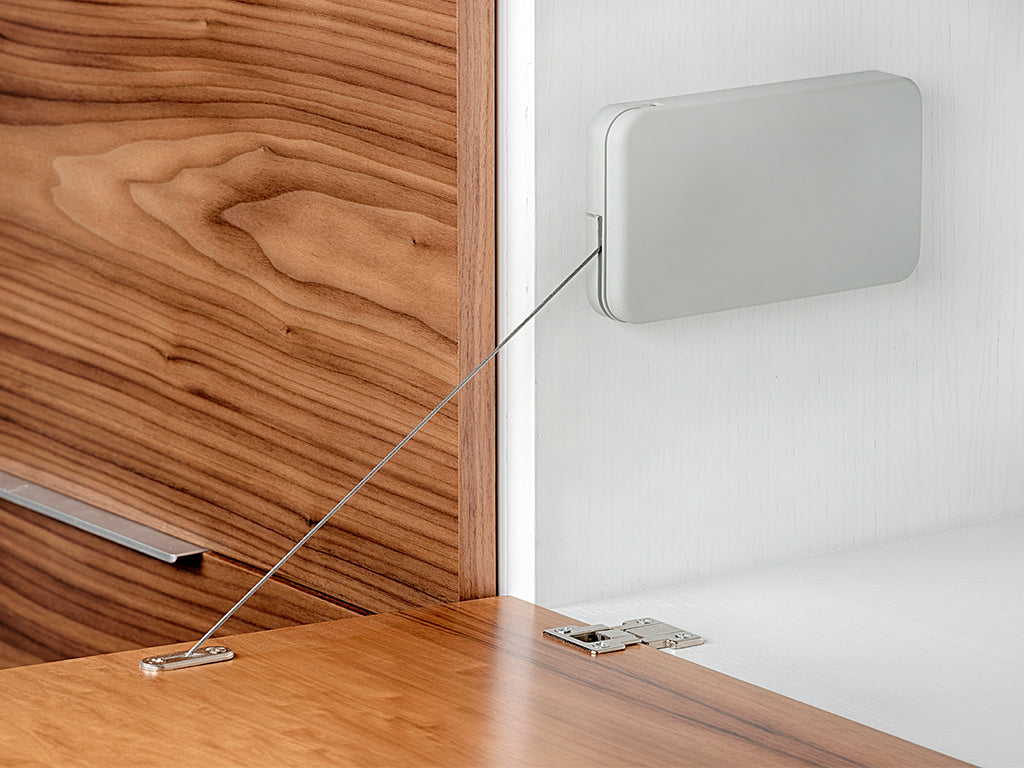

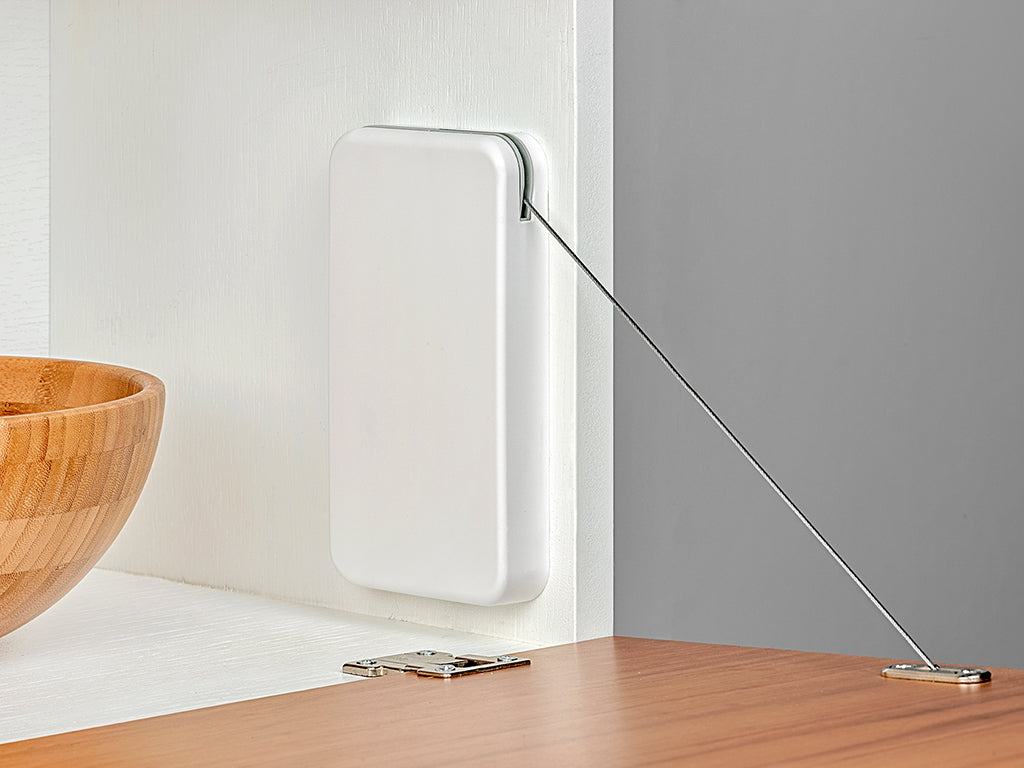

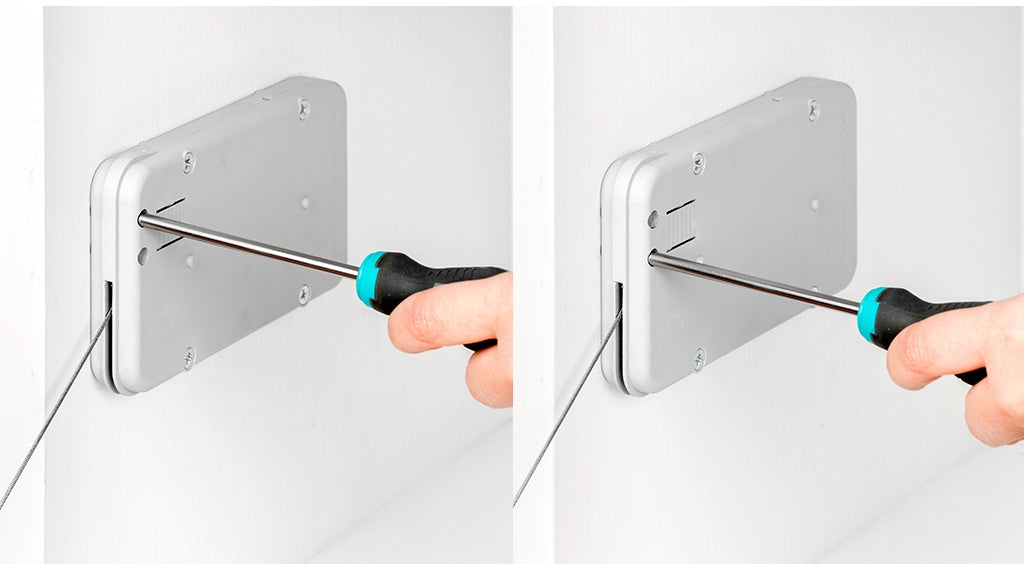

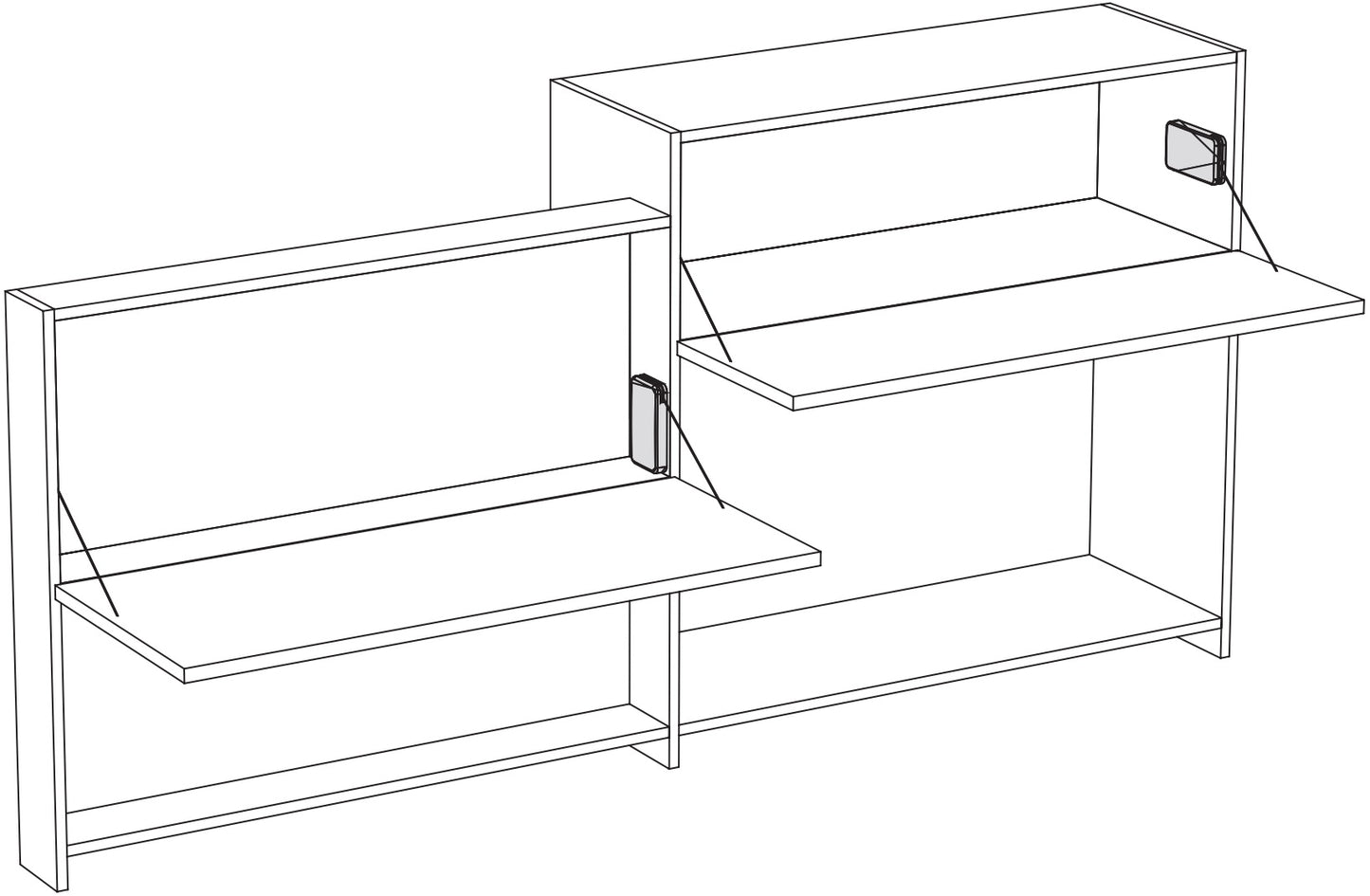

Application: Cable pull flap holder for bar compartment, bar compartment flap and much more. The bar compartment flap holder 1009521 (cable pull holder) is a modern cable pull fitting for flap weights up to max. 4 kg and is supplied with the matching cover cap in white. [caption id="attachment_141230" align="alignnone" width="420"] High-quality bar compartment flap holder with soft-close damper and self-closing mechanism, including cover cap and mounting screws, from EMUCA, load capacity: 4 kg, white. Application example for vertical installation.[/caption] The flap fitting with cable pull for furniture flaps and bar compartments 1009521 can be installed not only horizontally but also vertically, which means it can also be used for cabinets with a depth of 180 mm (7-3/32″) or more. [caption id="attachment_141240" align="alignnone" width="420"] High-quality bar compartment flap holder with soft-close damper and self-closing mechanism, including cover cap and mounting screws, from EMUCA, load capacity: 4 kg, white. Application example for horizontal installation.[/caption] The opening angle can be easily adjusted by turning a screwdriver. [caption id="attachment_141250" align="alignnone" width="420"] High-quality bar compartment flap holder with soft-close damper and self-closing mechanism, including cover cap and mounting screws, from EMUCA, load capacity: 4 kg, white. Adjustment options: opening angle and strength of the soft-close damper.[/caption] The high-quality bar compartment flap holders 1009521 have a simple and modern design and are ideal for, among others:

• flap
• flap cabinet
• Bar compartment
• Bar compartment flap

Material:

• The bar compartment flap holders 1009521 are made of metal and robust plastic

Surface:

• White

Assembly:

• The fastening is done using the screws included in delivery

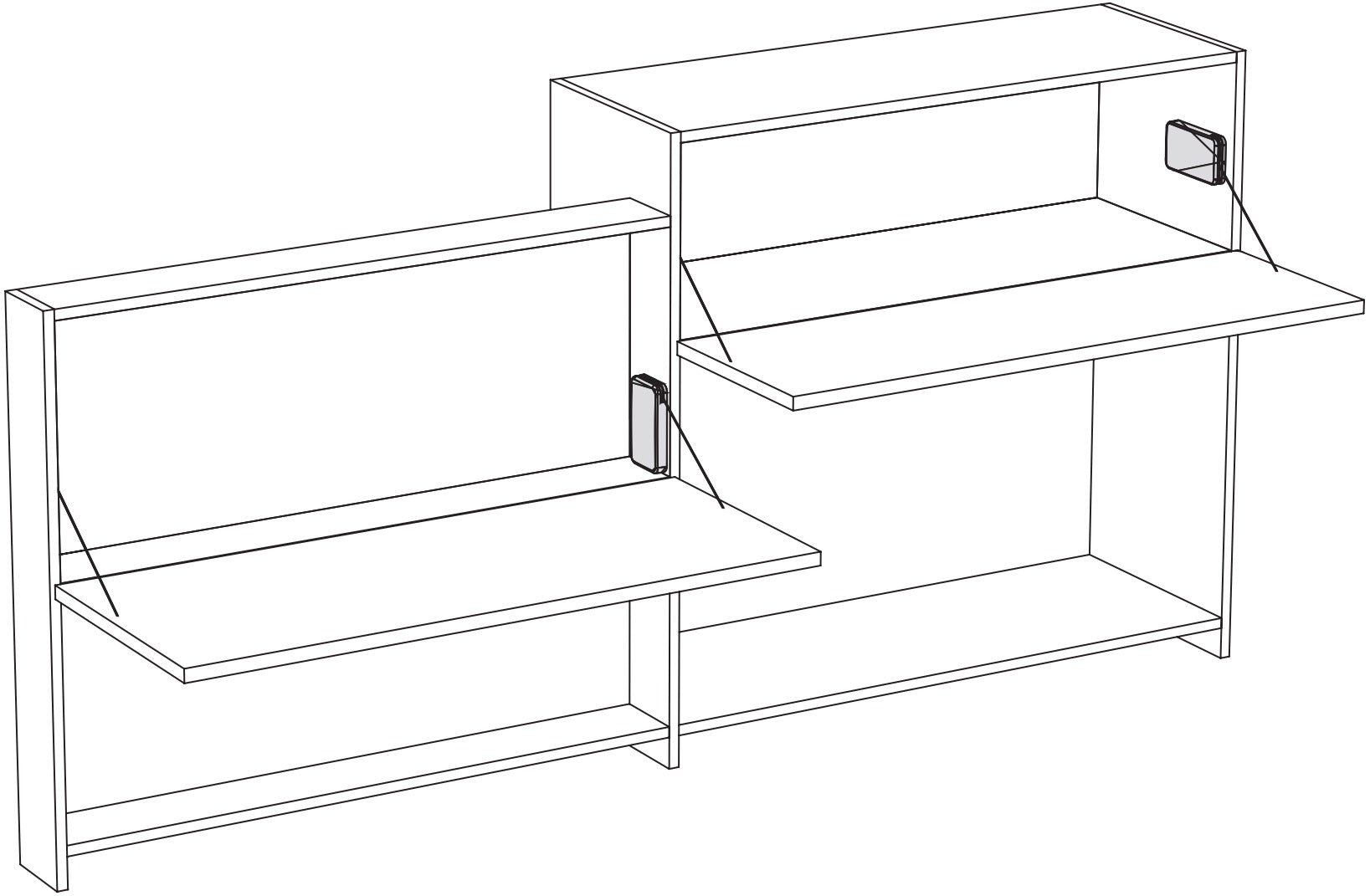

• The bar compartment flap holders 1009521 can be mounted both horizontally and vertically
• To mount the cable flap holder, six holes must be drilled in the body wall

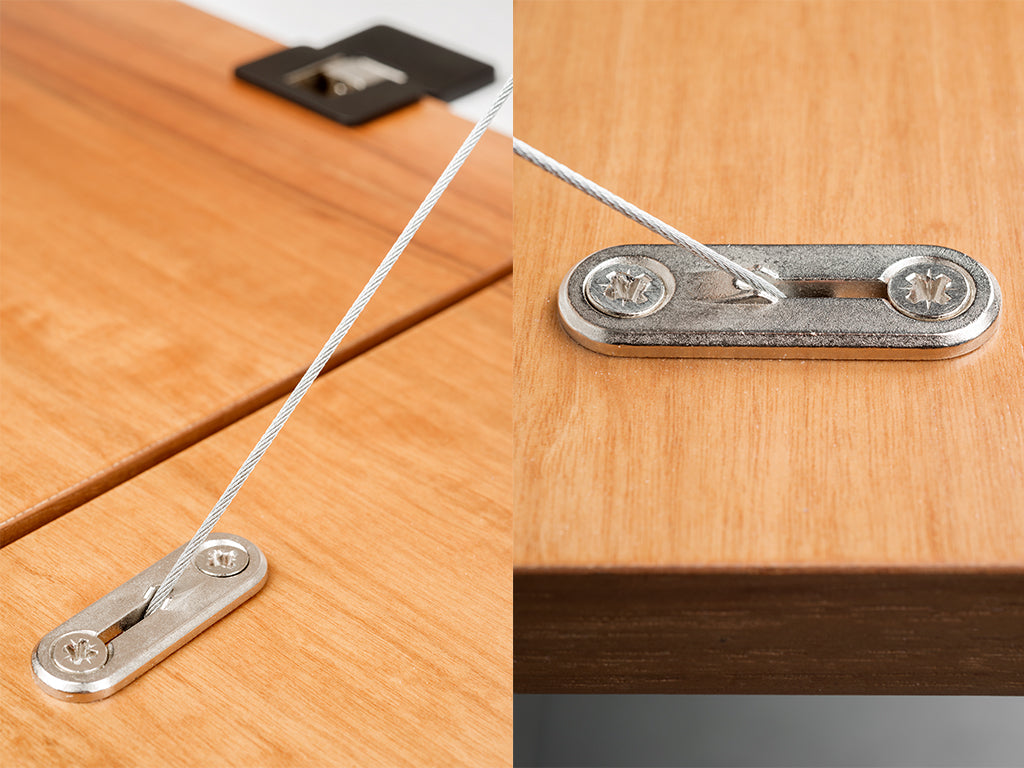

• To attach the rope to the flap, two mounting holes for the flap adapter must be made there
• The braking force of the soft-close damper can be adjusted (for further details see assembly drawing )

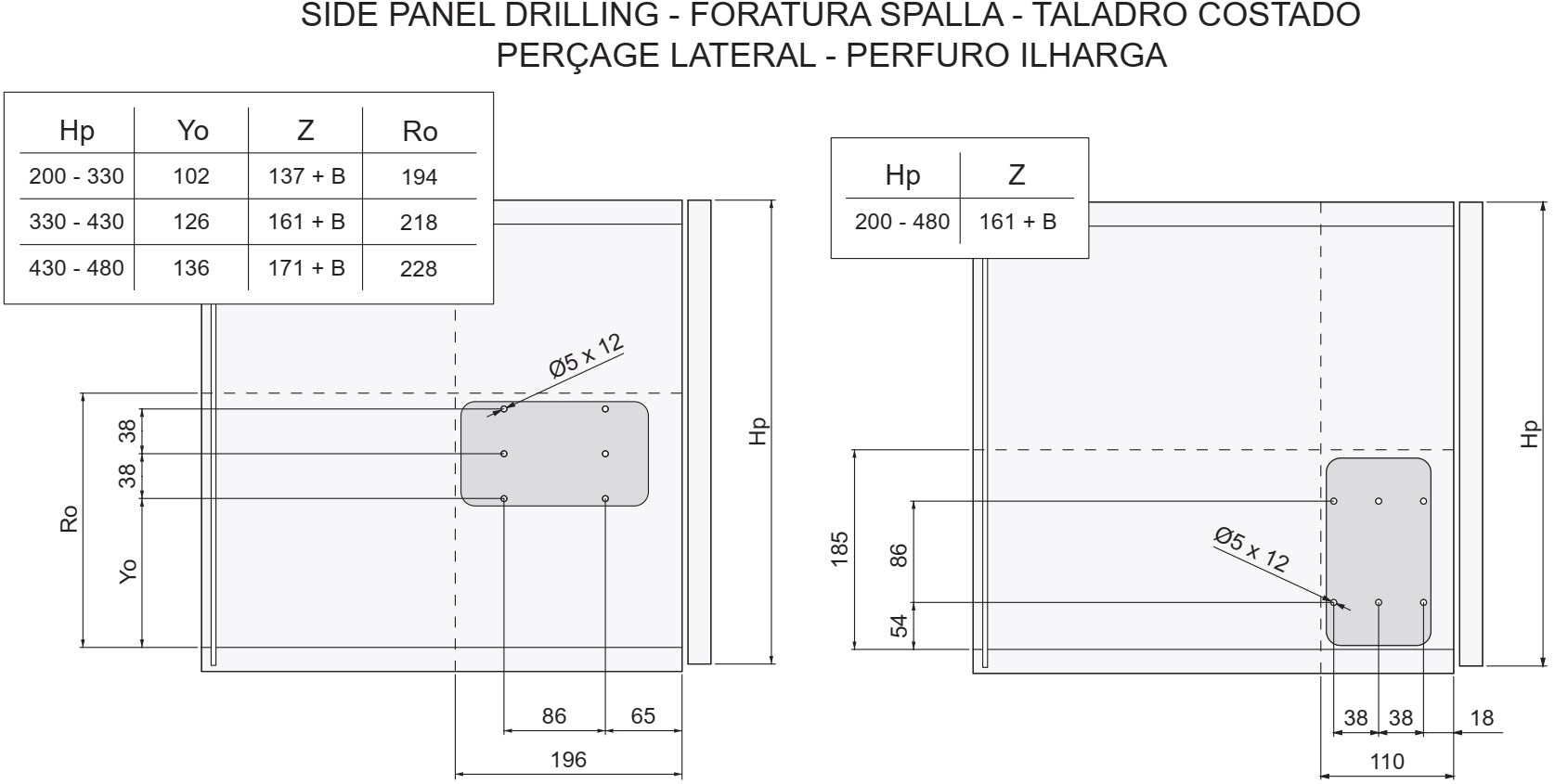

[caption id="attachment_141260" align="alignnone" width="420"] High-quality bar compartment flap holder with soft-close damper and self-closing mechanism, including cover cap and mounting screws, from EMUCA, load capacity: 4 kg, white. Assembly drawing[/caption] Characteristics:

• Weight: 335 g
• Load capacity: 4 kg
• Size: 162 mm (6.4″)
• for flaps weighing up to 4 kg
• for flaps with a height of 200 mm (7-7/8″) to 480 mm (18-57/64″)
• for horizontal installation: for clear cabinet depth from 180 mm (7-3/32″)
• for vertical installation: for clear cabinet depth from 82 mm (3-15/64″)
• can be used on the right and left
• Available in three colors: black, white and gray
• for wooden flaps
• incl. cover cap
• incl. fastening screws
• with adjustable opening angle
• with soft-close damping and self-closing
• simple and quick assembly
• white
• robust
• high brand quality from UMAXO®

For further dimensions and details see technical drawing . The dimensions:

• Cable flap holder length: 162 mm (6-3/8″)
• Width: 91 mm (3-37/64″)
• Depth: 20 mm (25/32″)

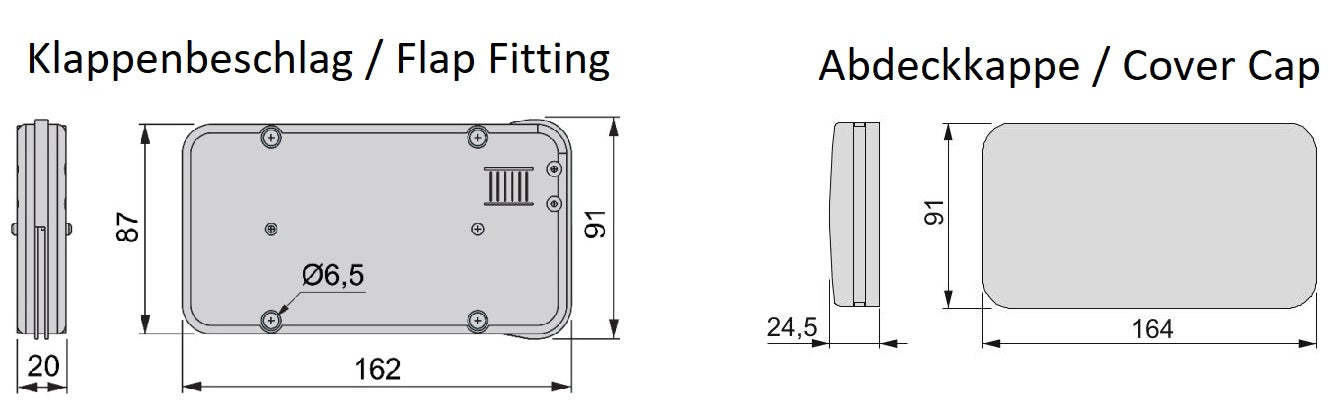

[caption id="attachment_141270" align="alignnone" width="420"] High-quality bar compartment flap holder with soft-close damper and self-closing mechanism, including cover cap and mounting screws, from EMUCA, load capacity: 4 kg, white. Technical drawing[/caption] Included in delivery:

• 1 piece bar compartment flap holder 1009521 made of metal and robust plastic, 1 piece cover cap, color: white
• 6 pieces of fastening screws
• 1 piece flap adapter for flap attachment

Watch product video: Additional Information:

• • Download assembly instructions

Manufacturer reference number:

• • • Article number: 1009521
    • EAN number: 8432393100562, 8432393100616

Manufacturer: EMUCA
