Payment coin lock with coin container for 1-euro coins, left-locking, 14.60.250-0 for clubs, swimming pools

Robust payment coin lock for 1-euro coins, made of metal and robust plastic (metal and plastic), surface: black, 14.60.250-0, design: left-locking

Application:

Coin lock with coin holder for clubs, swimming pools and much more.

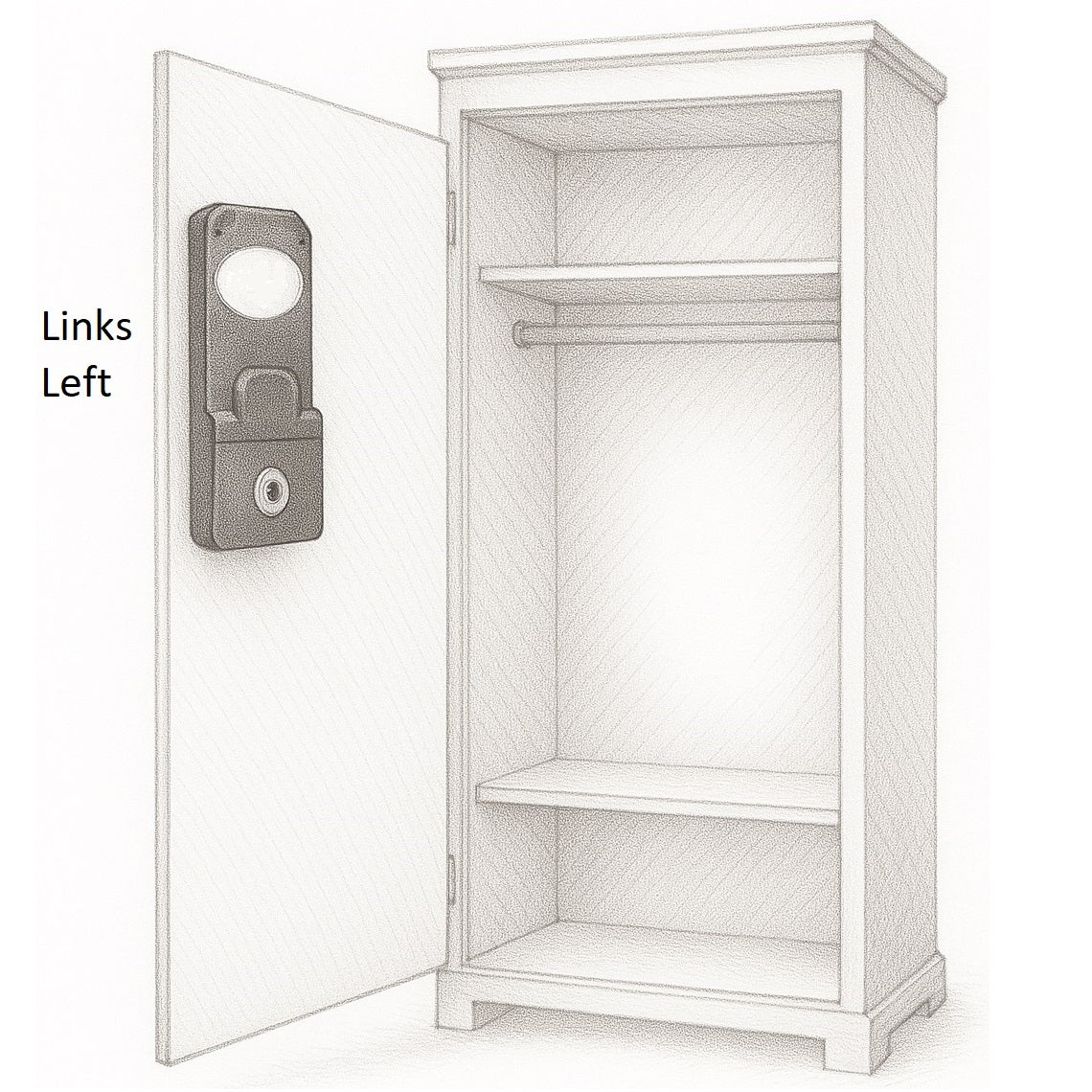

Left-hand closing means that the furniture hinges are on the left side of the door and the door handle and lock are on the right side (view from the outside of the closed door).

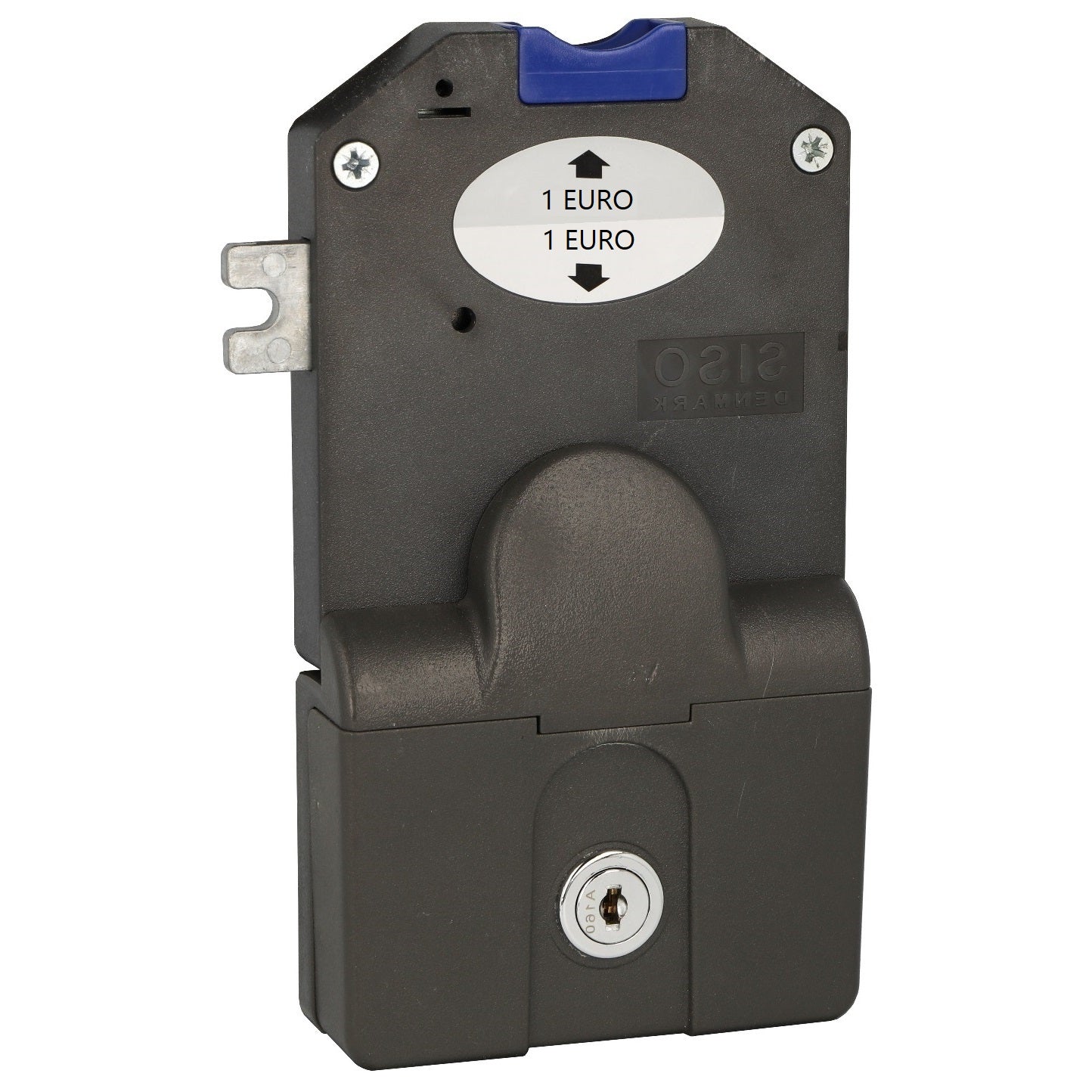

The payment coin lock 14.60.250-0+14.60.210-0 is a mechanical cashier lock for lockers that is operated with a 1-euro coin.

It is specifically designed to permanently retain the 1 euro coin, making it ideal for commercial use.

After inserting the 1-euro coin, the lock mechanism is released and the user can lock the locker with the key.

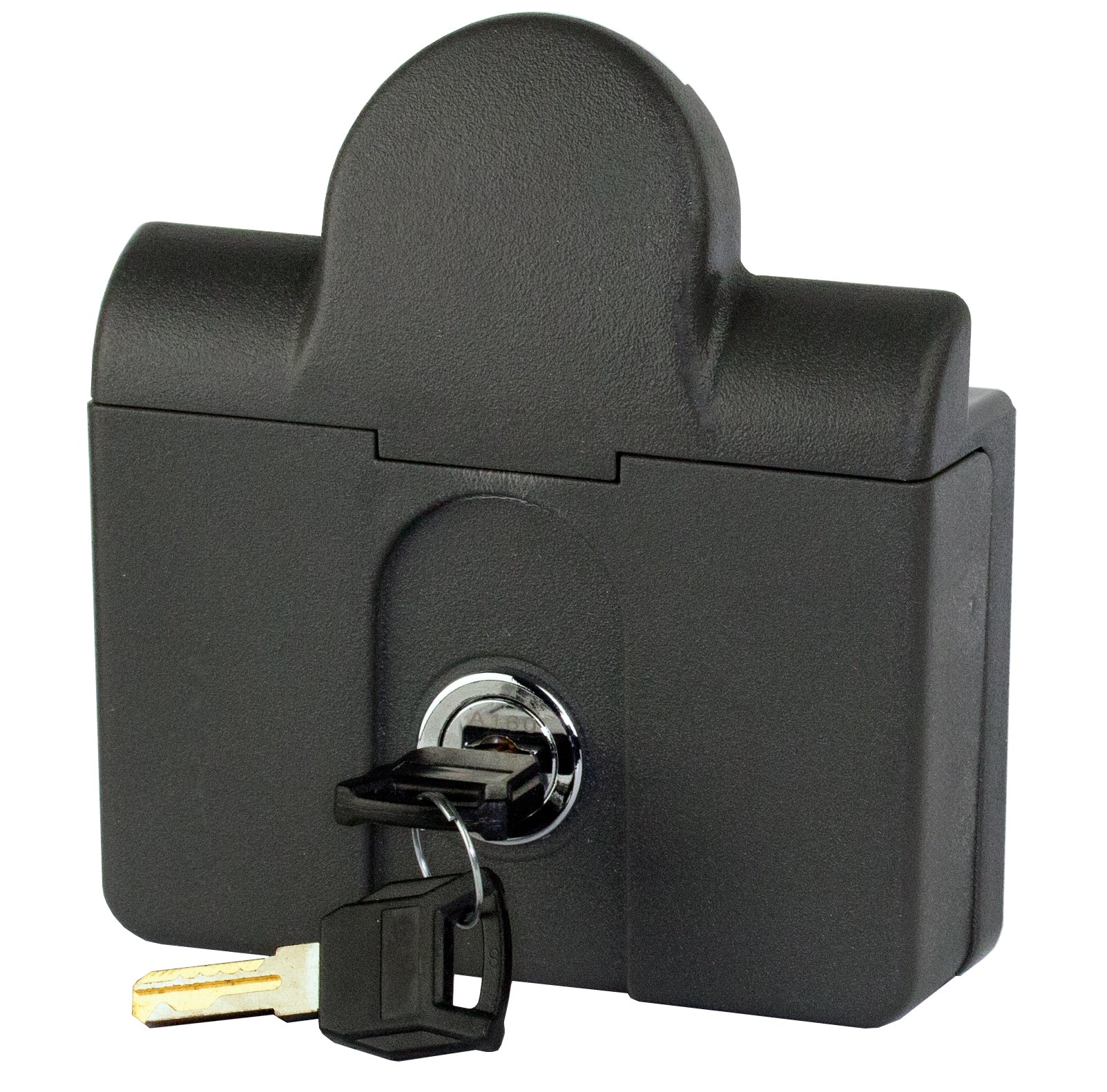

The 1-euro coin falls into an integrated, lockable coin container, which can be emptied regularly by the operator.

When you open the locker, the key remains in the lock, so the locker can only be locked again by inserting more money.

This ensures continuous payment per use.

The system operates entirely mechanically, is particularly low-maintenance and requires no power connection.

It has a robust construction and is protected against vandalism.

It is particularly suitable for use in heavily frequented areas such as discotheques, swimming pools, campsites or sports facilities.

With this lock, operators can easily collect a usage fee while ensuring orderly use of the lockers.

The 14.60.250-0 coin-operated locks are suitable for installation in new furniture as well as for repairing existing cabinets.

The high-quality payment coin locks 14.60.250-0 are ideal for, among other things:

• Hostel
• sports facility
• discotheque
• leisure pool
• campsite
• gym
• Event
• festival
• Club
• Swimming pool

Material:

• The payment coin locks 14.60.250-0 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic offers an optimal balance of strength and flexibility, making the fittings robust yet adaptable
• In addition, this material combination enables improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• Black
• Black surfaces exude a timeless elegance and can help make a room appear more luxurious and stylish
• While interior design styles can change, black always remains a safe choice that can easily be adapted to new trends
• Black surfaces can be used in different rooms, be it the kitchen, living room or office

Assembly:

• Payment coin lock 14.60.250-0 is for screwing
• First, the coin lock is mounted
• The blue plastic coin catcher must be removed
• The coin container is then screwed onto it
• The coin lock 14.60.250-0 has four mounting holes with a diameter of 6 mm (15/64″)
• The coin container has four mounting holes with a diameter of 4.5 mm (11/64″)

Characteristics:

• Version: left-closing
• Weight: 520.45 g
• Size: 125 mm (4-59/64″)
• 1 euro coin
• easy to assemble
• practical
• stable
• Coin acceptance for 1 euro coins
• Retention of the coin (no return)
• Mechanical operation without electricity
• Integrated, lockable coin container
• Robust, vandal-proof construction
• black
• robust
• high brand quality from UMAXO®

The dimensions:

• Height of the payment coin lock: 125 mm (4-59/64″)
• Width: 110 mm (4-21/64″)
• Depth: 18 mm (45/64″)
• Coin container height: 119 mm (4-11/16″)
• Width: 110 mm (4-21/64″)
• Depth: 33.5 mm (1-5/16″)

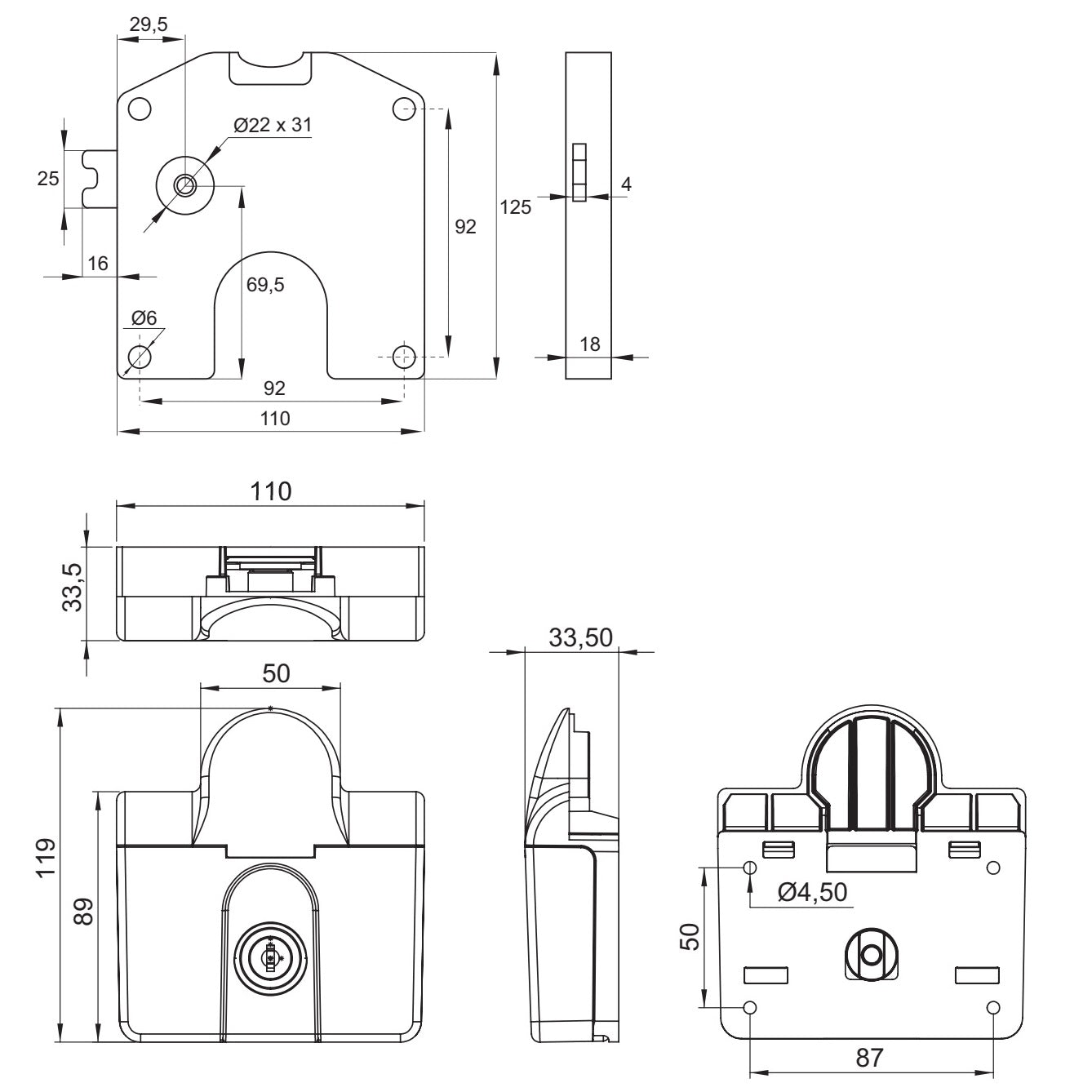

For further dimensions and details see technical drawing .

Included in delivery:

• 1 piece payment coin lock 14.60.250-0 made of metal and robust plastic, black, design: left-closing
• Incl. locking cylinder
• 2 keys for the coin lock
• 1 piece cylinder rosette
• 1 blue plastic coin catcher (removable)
• 1 piece coin blank
• 2 keys for the coin container
• Please note that the mounting screws are not included in delivery

Additional Information:

• Download the Reach Declaration

Manufacturer reference number:

• Article identification number: 14.60.250-0 and 14.60.210-0
• EAN number: 5704866051835 and 5704866442381

Manufacturer: SISO Denmark
