Payment coin lock with coin container for 1-euro coins, right-hand closing, 14.60.249-1 for clubs, swimming pools

Robust coin-operated lock for 1-euro coin, made of metal and robust plastic (metal and plastic), surface: black, 14.60.249-1, version: right-closing

Application:

Coin-operated lock with coin retention for clubs, swimming pools, and much more.

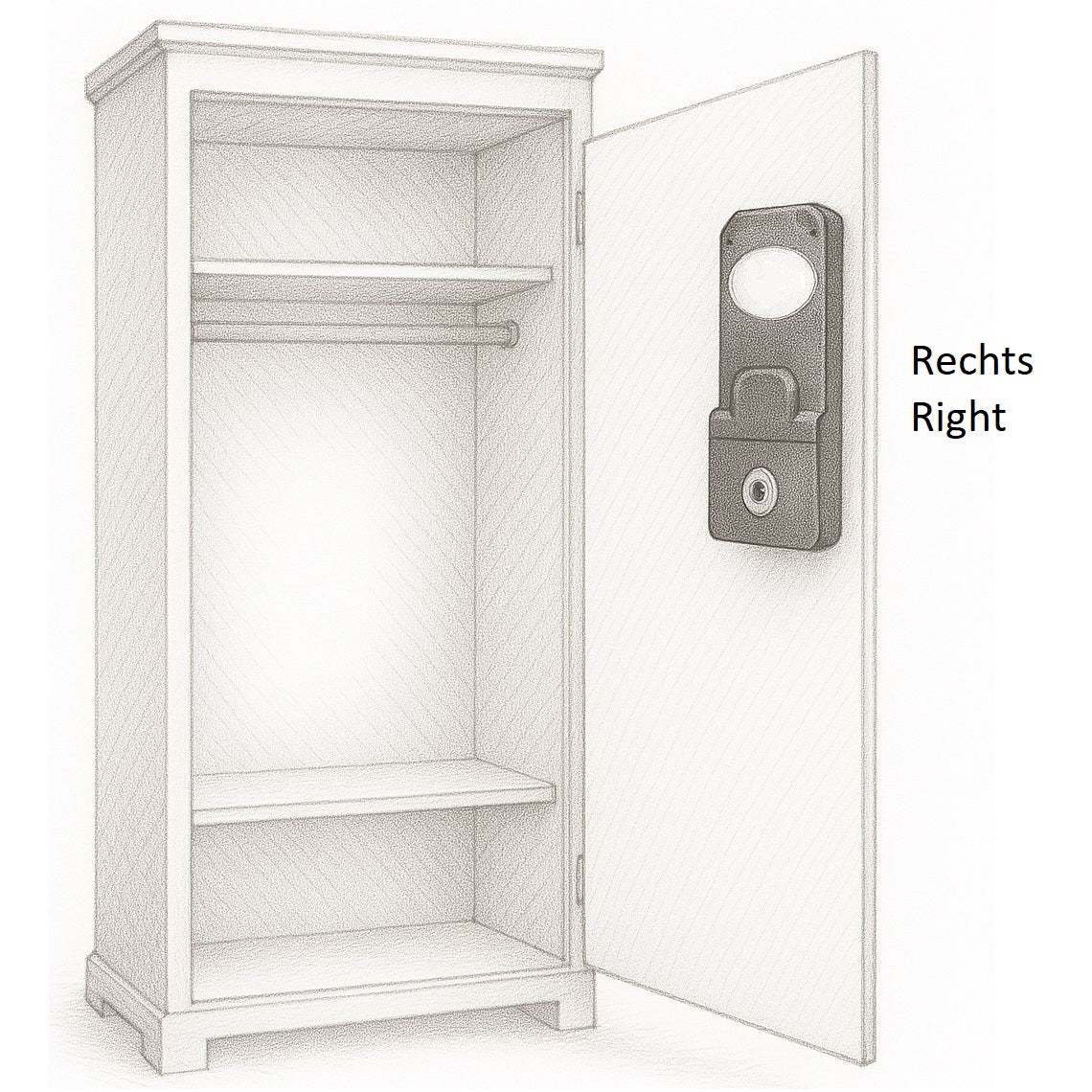

Right-closing means that the cabinet hinges are on the right side of the door and the door handle and lock are on the left side (viewed from the outside of the closed door).

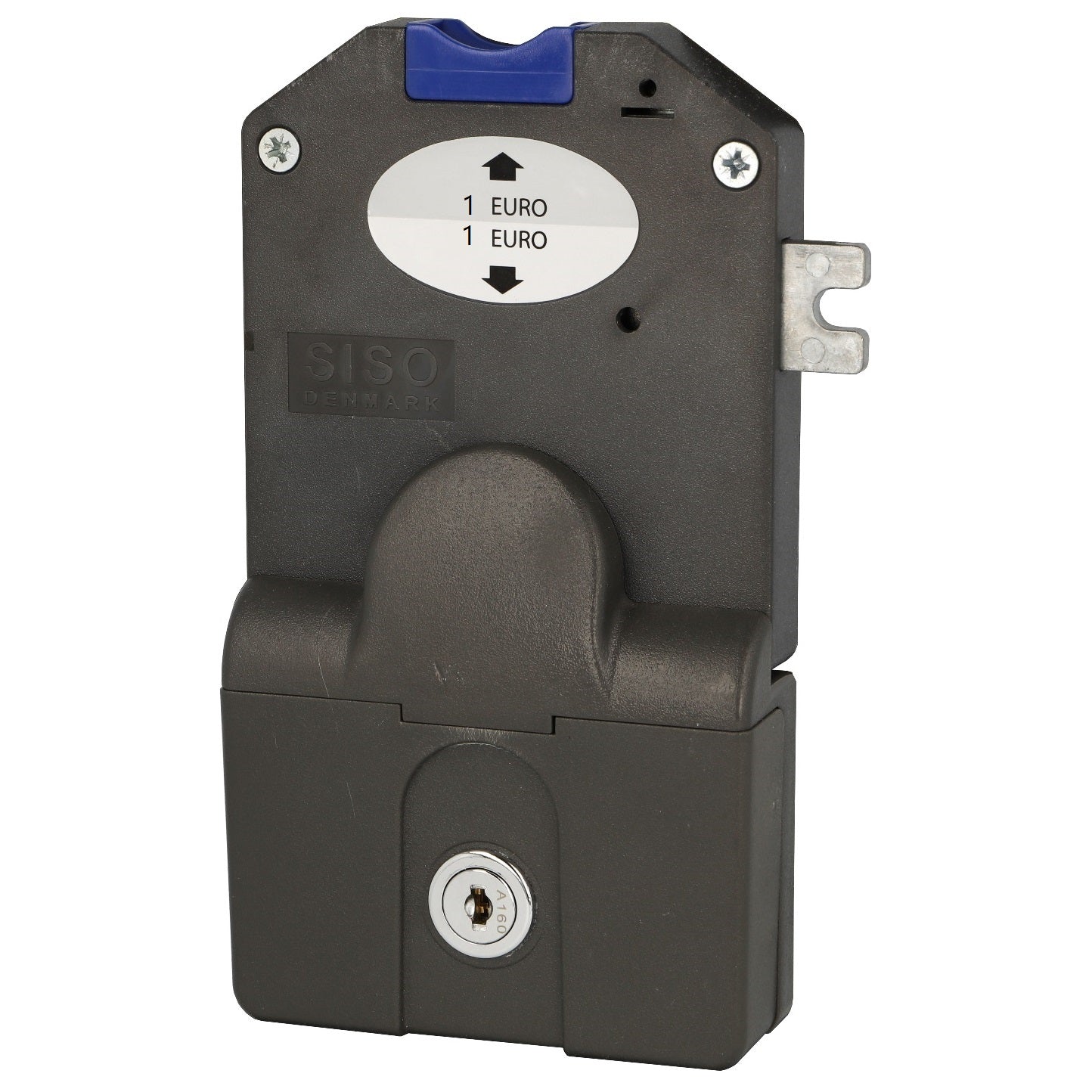

The coin-operated lock 14.60.249-1+14.60.210-0 is a mechanical coin-operated lock for lockers that is operated with a 1-euro coin.

It is specifically designed to permanently retain the 1-euro coin, making it ideal for commercial use.

After inserting the 1-euro coin, the lock mechanism is released and the user can lock the locker with the key.

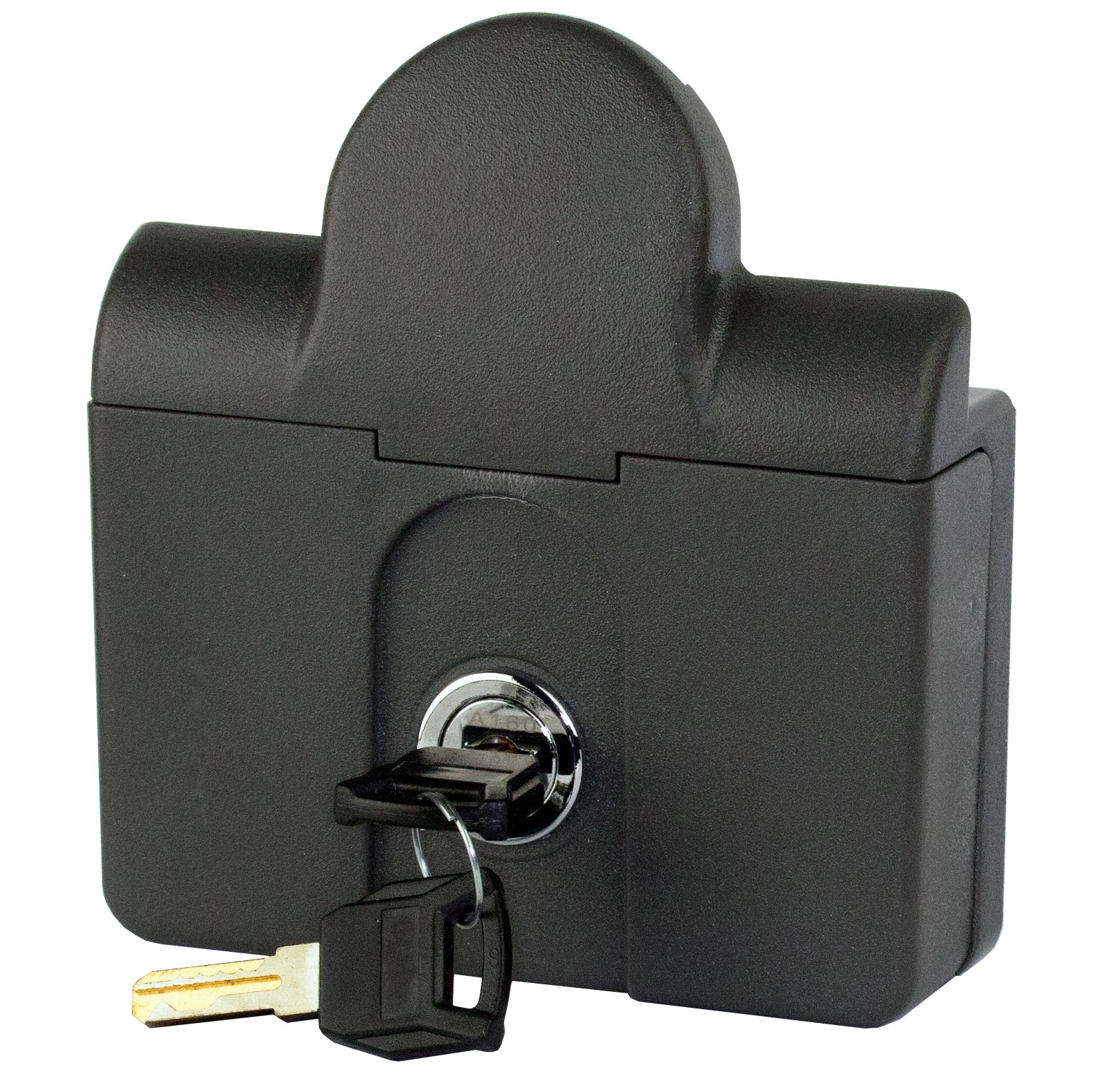

The 1-euro coin falls into an integrated, lockable coin container, which can be emptied regularly by the operator.

When opening the locker, the key remains stuck in the lock, so the locker can only be locked again by inserting money again.

This ensures continuous payment per use.

The system works completely mechanically, is particularly low-maintenance, and does not require an electrical connection.

It features a robust design and is protected against vandalism.

The use is particularly suitable for high-traffic areas such as discotheques, swimming pools, campsites, or sports facilities.

With this lock, operators can easily charge a usage fee while simultaneously ensuring orderly use of the lockers.

The coin-operated locks 14.60.249-1 are suitable both for installation in new furniture and for repairing existing cabinets.

The high-quality coin-operated locks 14.60.249-1 are ideally suited for, among other things:

• Indoor playgrounds
• Hostels
• Sports facilities
• Discotheques
• Leisure pools
• Campsites
• Gyms
• Events
• Festivals
• Clubs
• Swimming pools

Material:

• The coin-operated locks 14.60.249-1 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic offers an optimal balance of strength and flexibility, making the fittings robust and at the same time adaptable
• In addition, this material combination enables improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• Black
• Black surfaces radiate a timeless elegance and can contribute to making a room appear more luxurious and stylish
• While furnishing styles can change, black always remains a safe choice that can be easily adapted to new trends
• Black surfaces can be used in various rooms, whether in the kitchen, living room, or office

Installation:

• Coin-operated lock 14.60.249-1 is for screwing
• First, the coin lock is mounted
• The blue plastic coin catcher must be removed

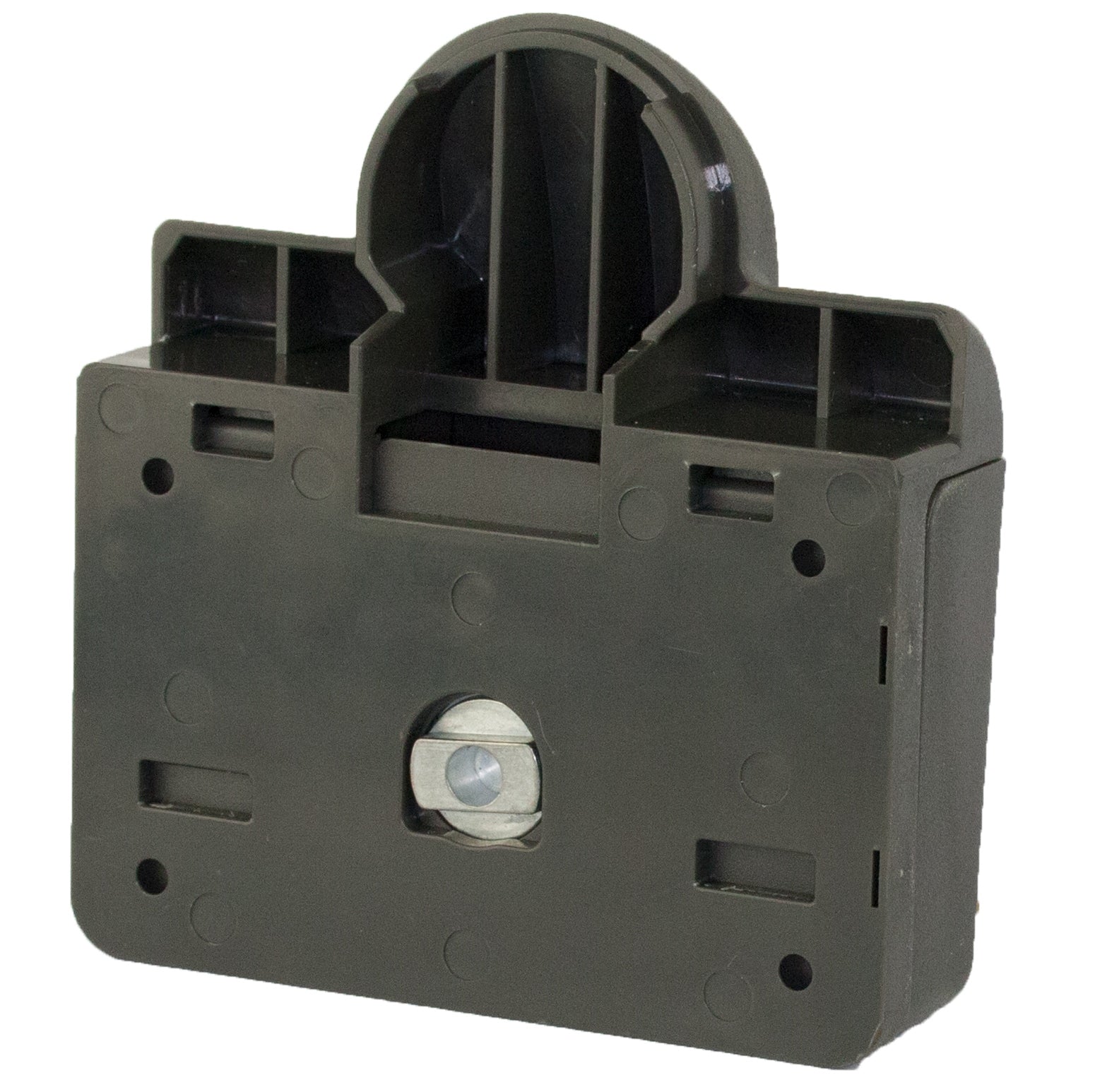

• Then the coin container is screwed onto it
• The coin-operated lock 14.60.249-1 has four mounting holes with a diameter of 6 mm (15/64″)
• The coin container has four mounting holes with a diameter of 4.5 mm (11/64″)

Features:

• Version: right-closing
• Weight: 520.45 g
• Size: 125 mm (4-59/64″)
• 1-euro coin
• easy to install
• practical
• stable
• Coin acceptance for 1-euro coin
• Retention of the coin (no return)
• Mechanical operation without electricity
• Integrated, lockable coin container
• Robust, vandal-proof construction
• black
• robust
• high brand quality from UMAXO®

Dimensions:

• Height of the coin-operated lock: 125 mm (4-59/64″)
• Width: 110 mm (4-21/64″)
• Depth: 18 mm (45/64″)
• Height of the coin container: 119 mm (4-11/16″)
• Width: 110 mm (4-21/64″)
• Depth: 33.5 mm (1-5/16″)

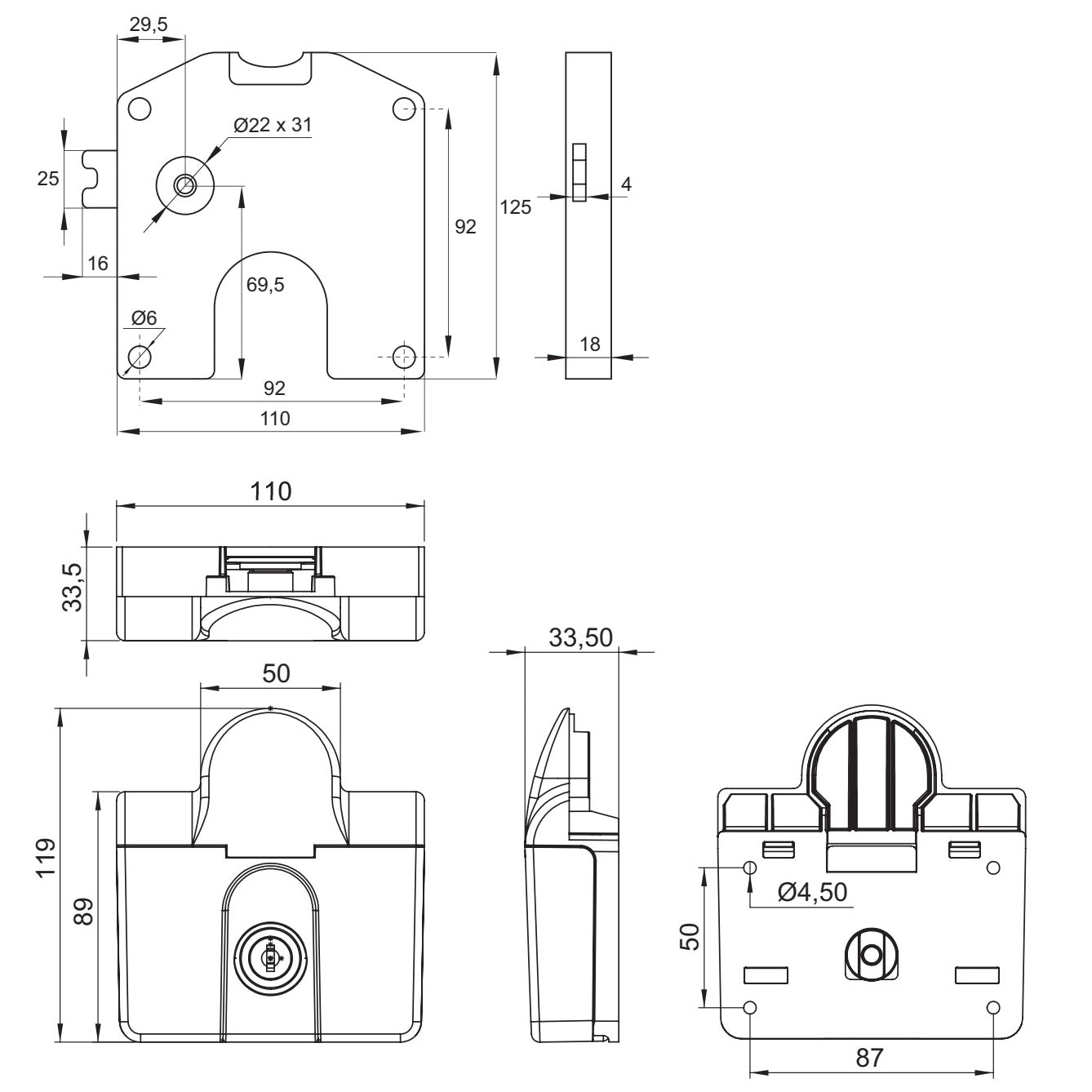

For further dimensions and details see technical drawing.

Included in delivery:

• 1 piece coin-operated lock 14.60.249-1 made of metal and robust plastic, black, version: right-closing
• Incl. locking cylinder
• 2 pieces keys for the coin lock
• 1 piece cylinder rosette
• 1 piece blue plastic coin catcher (removable)
• 1 piece coin blank
• 2 pieces keys for the coin container
• Please note that the mounting screws are not included in the delivery

Additional information:

• Download Reach Declaration

Manufacturer's reference number:

• Item identification number: 14.60.249-1 and 14.60.210-0
• EAN number: 5704866051811 and 5704866442381

Manufacturer: SISO Denmark
