High-quality push-button handle made of zinc alloy, surface: gold-colored, glossy polished, PK04GA. High-quality, solid and elegant push-lock made of ZDC for drawers, RV furniture, boats, private aircraft, and much more, from Sugatsune / LAMP® (Japan)

Push-button handle made of solid zinc alloy (ZDC), surface: gold-colored, shiny polished, PK04GA

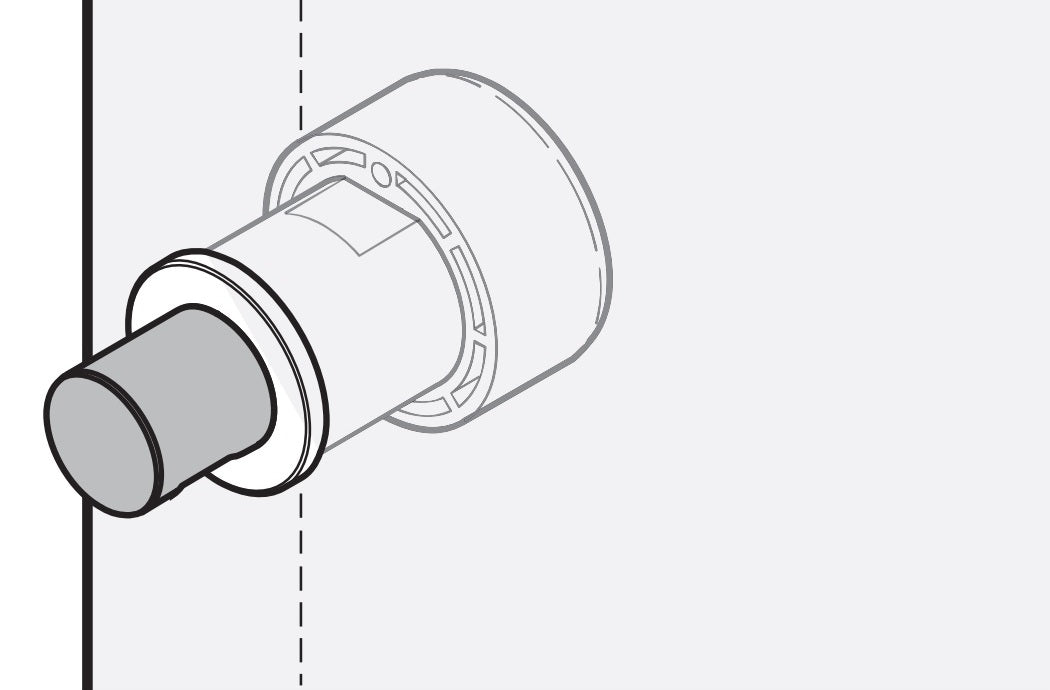

Application: High quality solid and elegant pushlock made of ZDC for drawers, RV furniture, boats, private aircraft and much more. [caption id="attachment_123778" align="alignnone" width="420"] High-quality zinc alloy push-button handle, PK04GA, from Sugatsune, gold-colored, glossy polished. Application[/caption] The PK04GA push-button handles can be recessed into the door surface when not in use. This is particularly practical for mobile spaces such as caravans, yachts, ships, and private aircraft. The high-quality PK04GA push-button handles have an attractive, natural design and are ideal for, among other things:

• Cruise ships
• yachts
• Cabinet door
• Drawer
• Motorhome furniture
• boats
• Private aircraft

Material:

• The high-quality push-button handles PK04GA are made of solid zinc alloy (ZDC)

Surface:

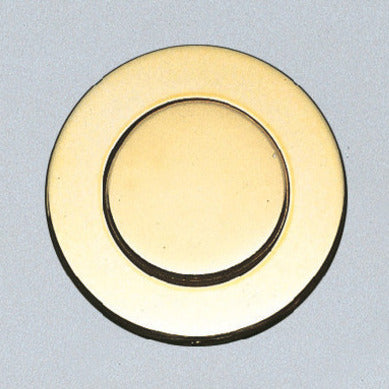

• Gold-colored, shiny polished

Assembly:

• The fastening is carried out using the screws included in the delivery (truss head screw M3 x 20)
• The push-button handle has a mounting hole with internal thread
• For doors with a thickness of 15 mm (19/32″) to 25 mm (63/64″), only one hole with a diameter of ⌀25 mm (63/64″) must be made
• For doors with a thickness of 26 mm (1-1/32″) to 35 mm (1-3/8″), an additional partial bore with a diameter of ⌀40 mm must be made in order to (partially) store the counterpart (for further details see assembly drawing ).

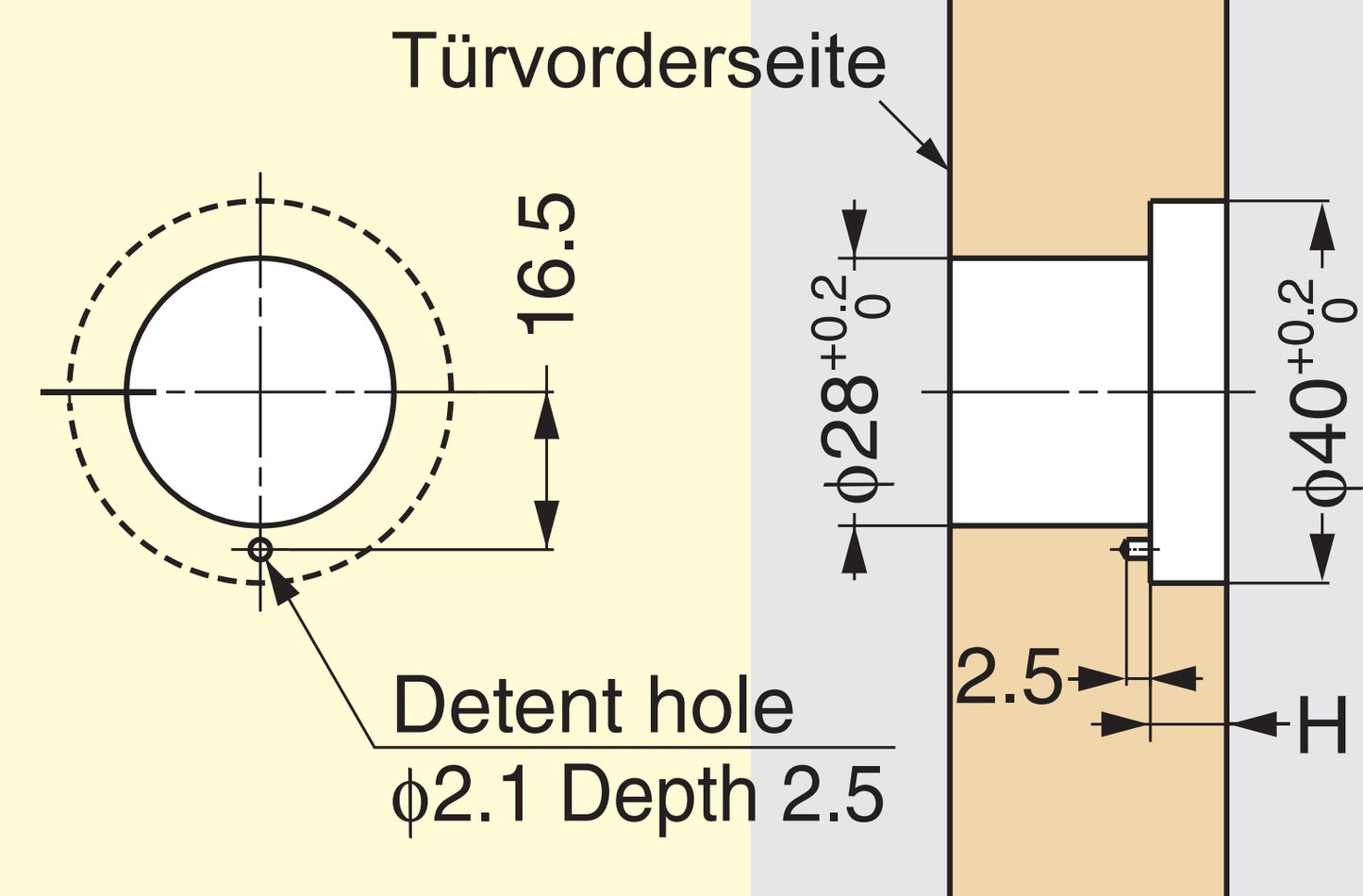

[caption id="attachment_123791" align="alignnone" width="420"] High-quality zinc alloy push-button handle, PK04GA, from Sugatsune, gold-colored, glossy polished. Assembly drawing[/caption] Characteristics:

• Weight: 76 g
• Load capacity: 2 kg
• Size: 19 mm (0.8″)
• Elaborately processed
• High quality
• Ergonomic
• Stable
• Robust
• Gold-colored, shiny polished
• zinc alloy
• ZDC
• zinc die-casting
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Diameter of the push-button handle (⌀D): ⌀19 mm (3/4″)
• Length (H): 19 mm (3/4″)

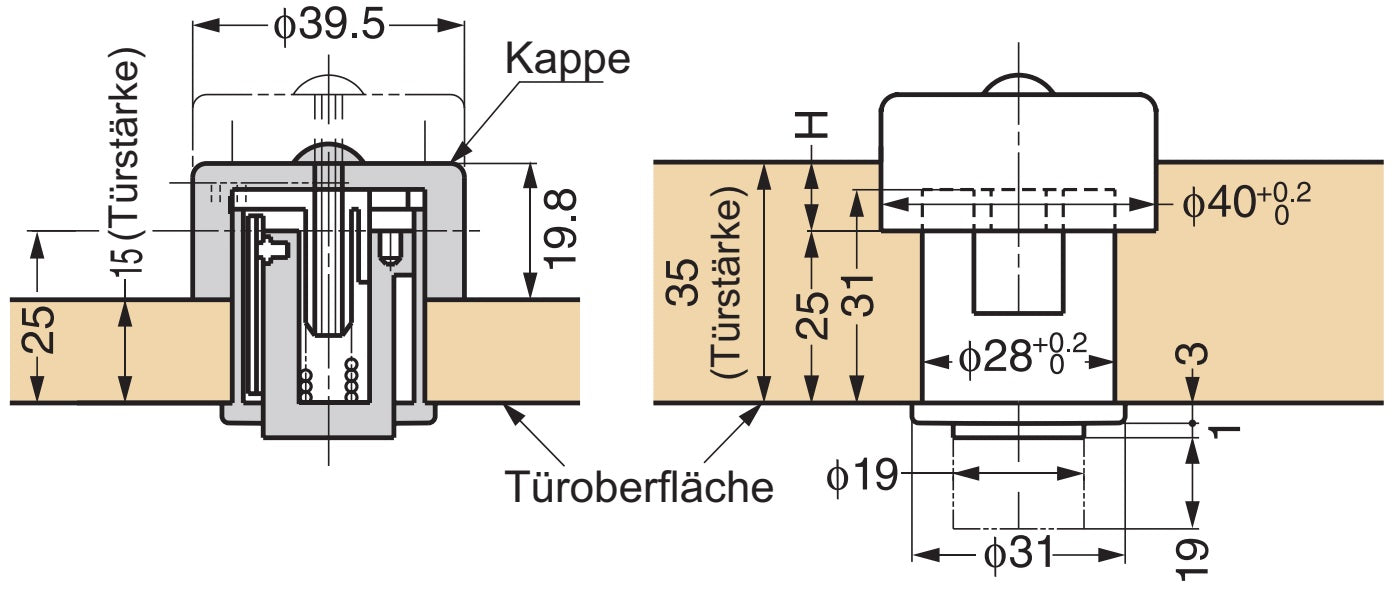

[caption id="attachment_123804" align="alignnone" width="420"] High-quality zinc alloy push-button handle, PK04GA, from Sugatsune, gold-colored, glossy polished. Technical drawing[/caption] Included in delivery:

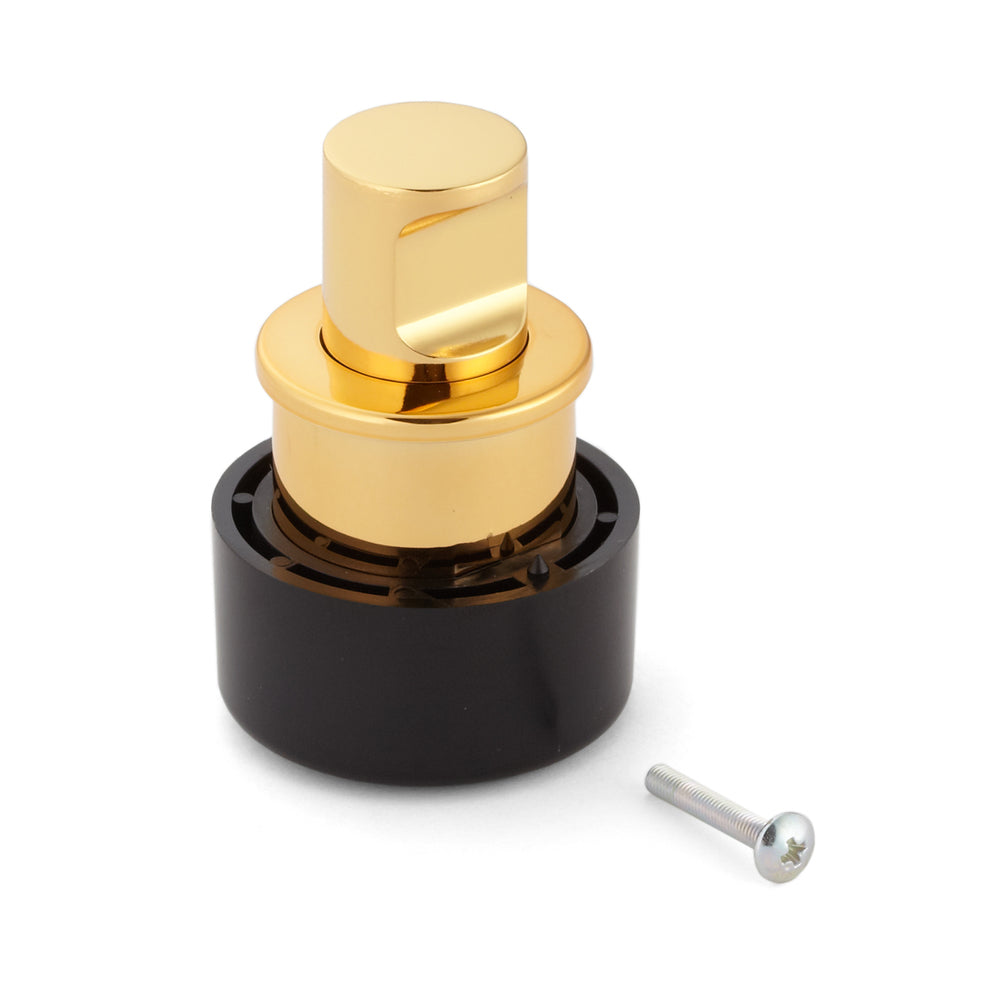

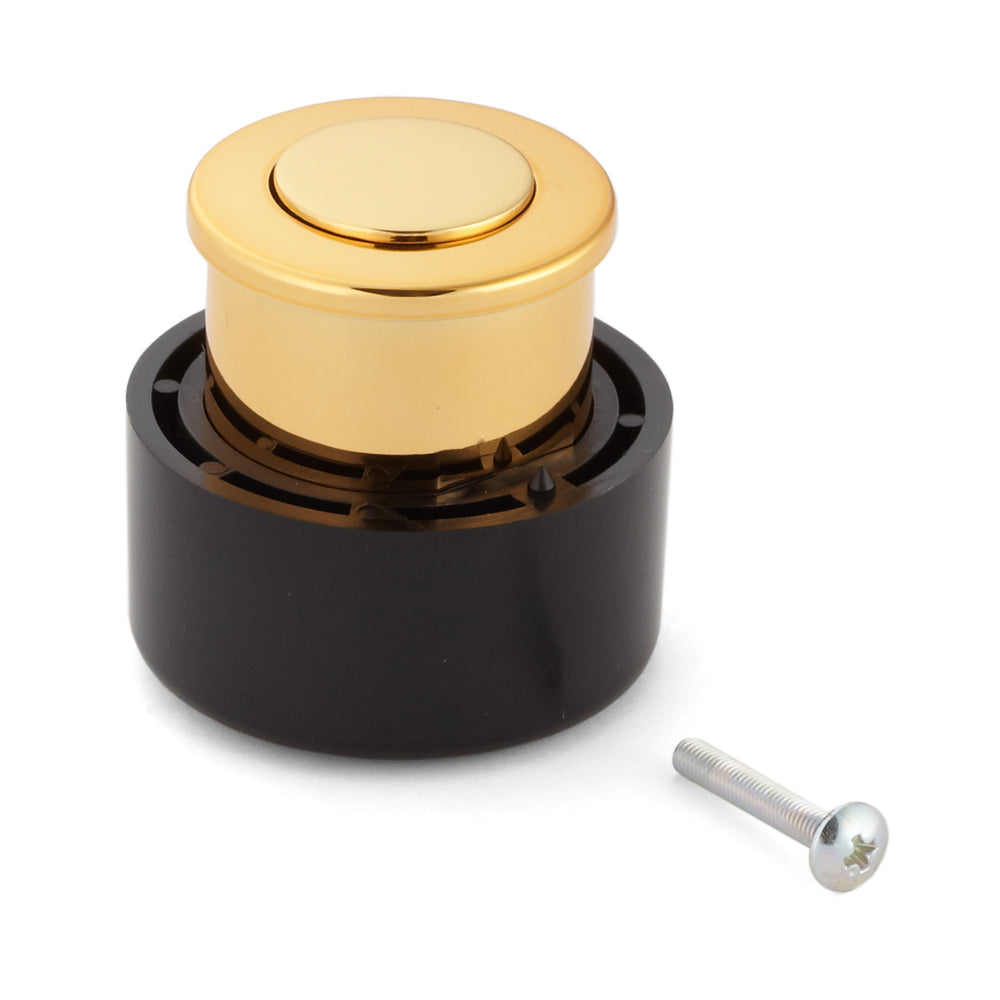

• 1 piece push button handle PK04GA made of solid zinc alloy, gold-colored, shiny polished
• 1 piece M3 x 20 truss head screw made of steel

Additional Information:

• • Download assembly instructions

Manufacturer reference number:

• • • Article number: 100-015-025
    • Item number: PK04GA
    • EAN number: 4510932012263

Manufacturer: Sugatsune / LAMP® (Japan)
