High-quality push-button handle made of zinc alloy, surface: gold-colored, glossy polished PK03GA. High-quality, solid and elegant push-lock made of ZDC for drawers, RV furniture, boats, private aircraft, and much more, from Sugatsune / LAMP® (Japan)

Push-button handle made of solid zinc alloy (ZDC), surface: gold-colored, shiny polished, PK03GA

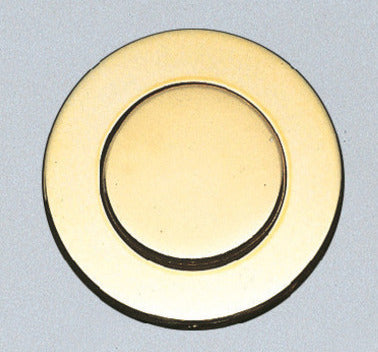

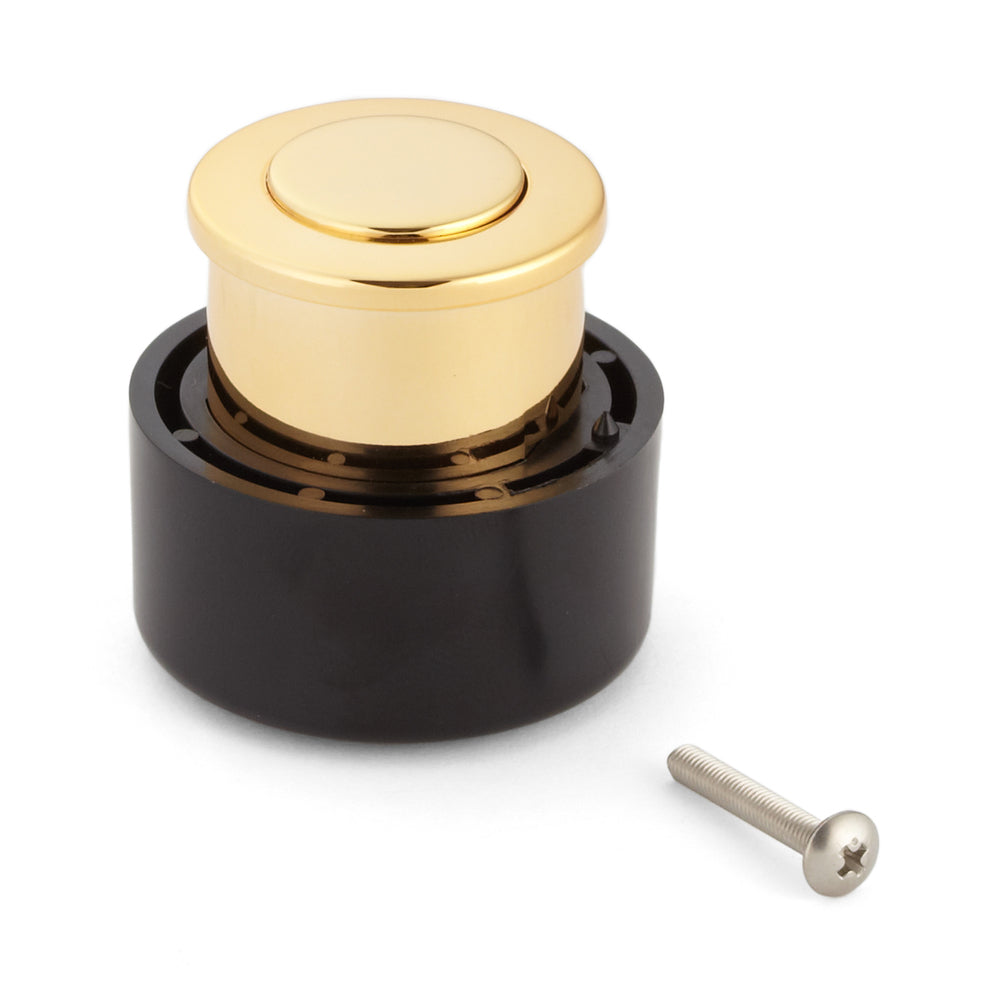

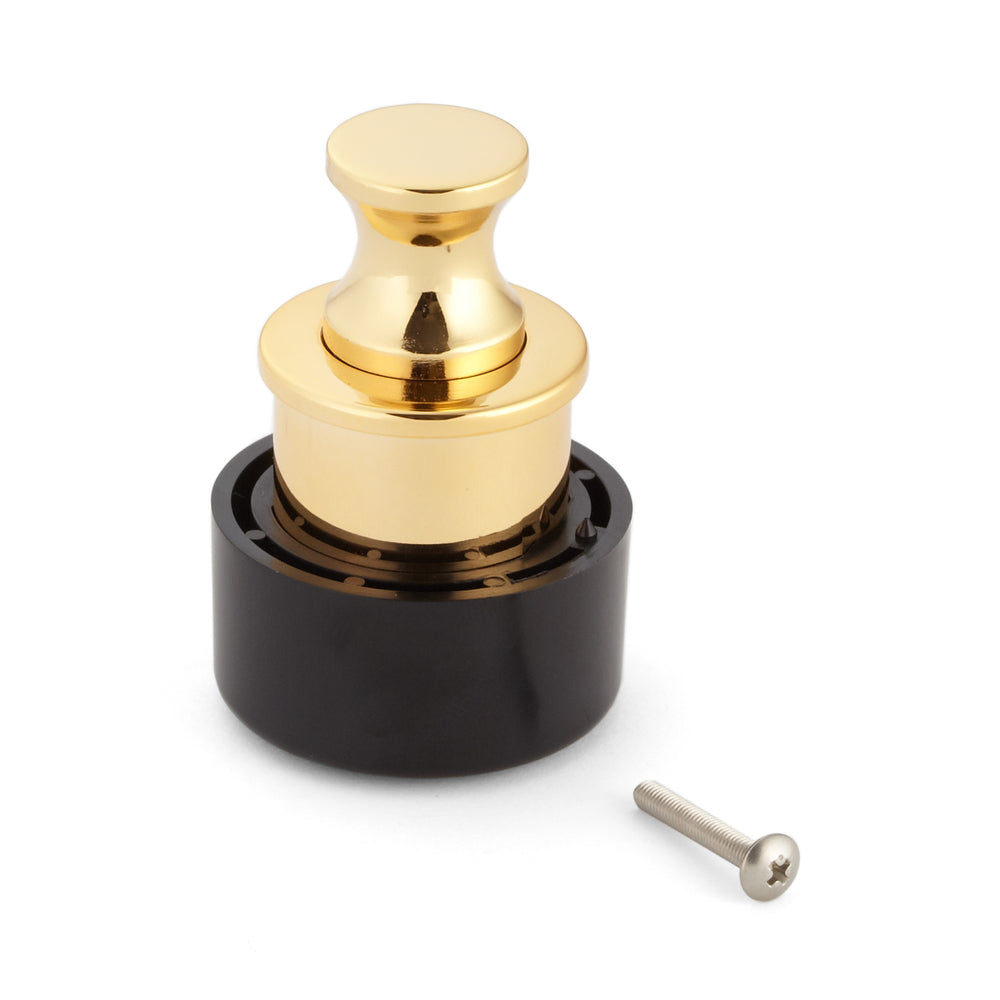

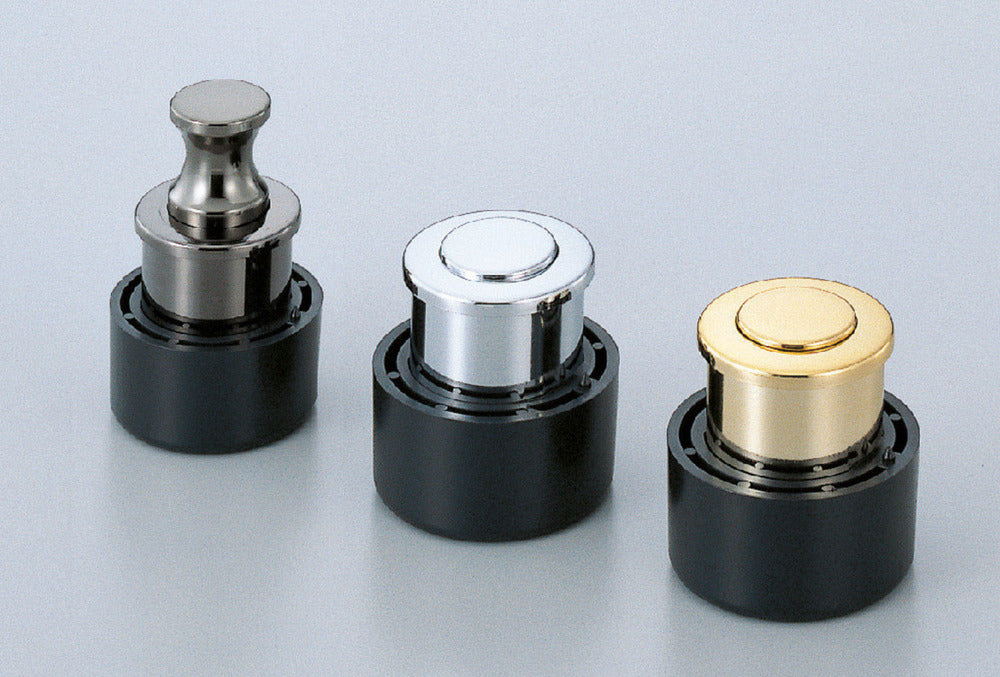

Application: High quality solid and elegant pushlock made of ZDC for drawers, RV furniture, boats, private aircraft and much more. [caption id="attachment_122985" align="alignnone" width="420"] High-quality zinc alloy push-button handle, surface: gold-colored, glossy polished, PK03GA, from Sugatsune. Application[/caption] The PK03GA push-button handles can be recessed into the door surface when not in use. This is particularly practical for mobile spaces such as caravans, yachts, ships, and private aircraft. [caption id="attachment_122998" align="alignnone" width="378"] High-quality zinc alloy push-button handle, surface: gold-colored, glossy polished, PK03GA, from Sugatsune. Color[/caption] The high-quality PK03GA furniture handles have an attractive, natural design and are ideal for:

• Cruise ships
• yachts
• Cabinet door
• Drawer
• Motorhome furniture
• boats
• Private aircraft

Material:

• The high-quality push-button handles PK03GA are made of solid zinc alloy (ZDC)

Surface:

• Gold-colored, shiny polished

Assembly:

• The fastening is carried out using the screws included in the delivery (truss head screw M3 x 20)
• The push-button handle has a mounting hole with internal thread
• For doors with a thickness of 15 mm (19/32″) to 25 mm (63/64″), only one hole with a diameter of ⌀28 mm (1.11″) must be made
• For doors with a thickness of 26 mm (1-1/32″) to 35 mm (1-3/8″), an additional partial bore with a diameter of 40 mm must be made in order to (partially) store the counterpart (see drawing) (for further details see assembly drawing )

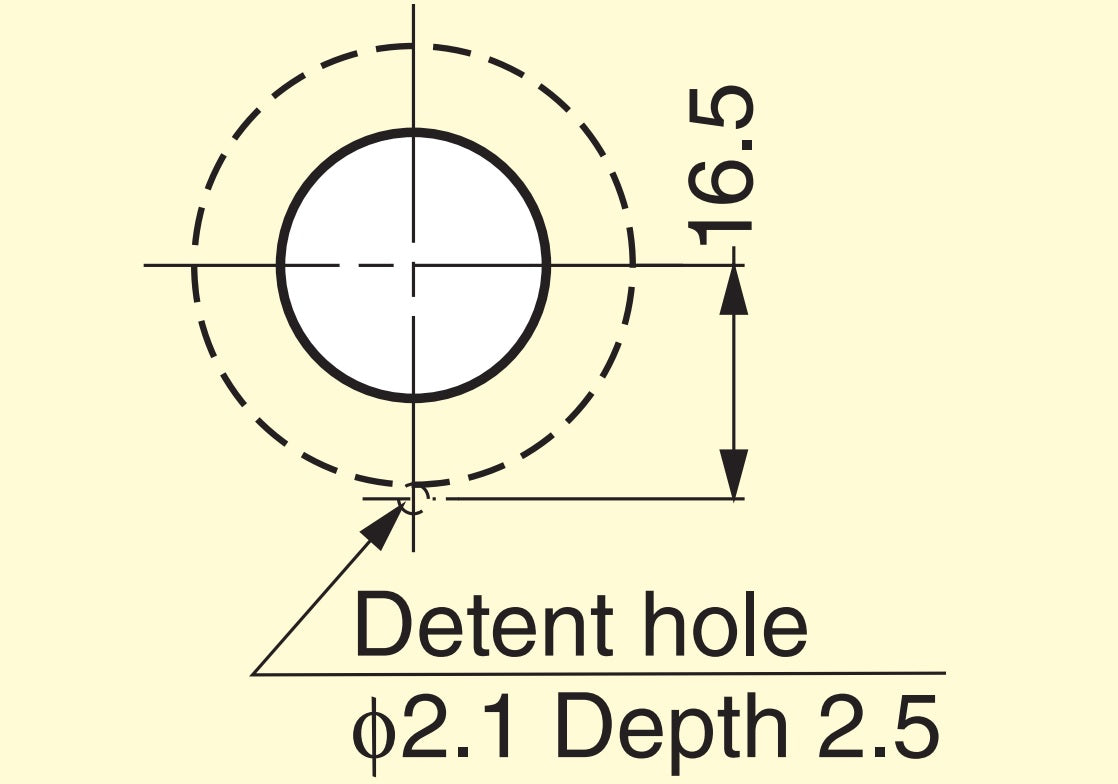

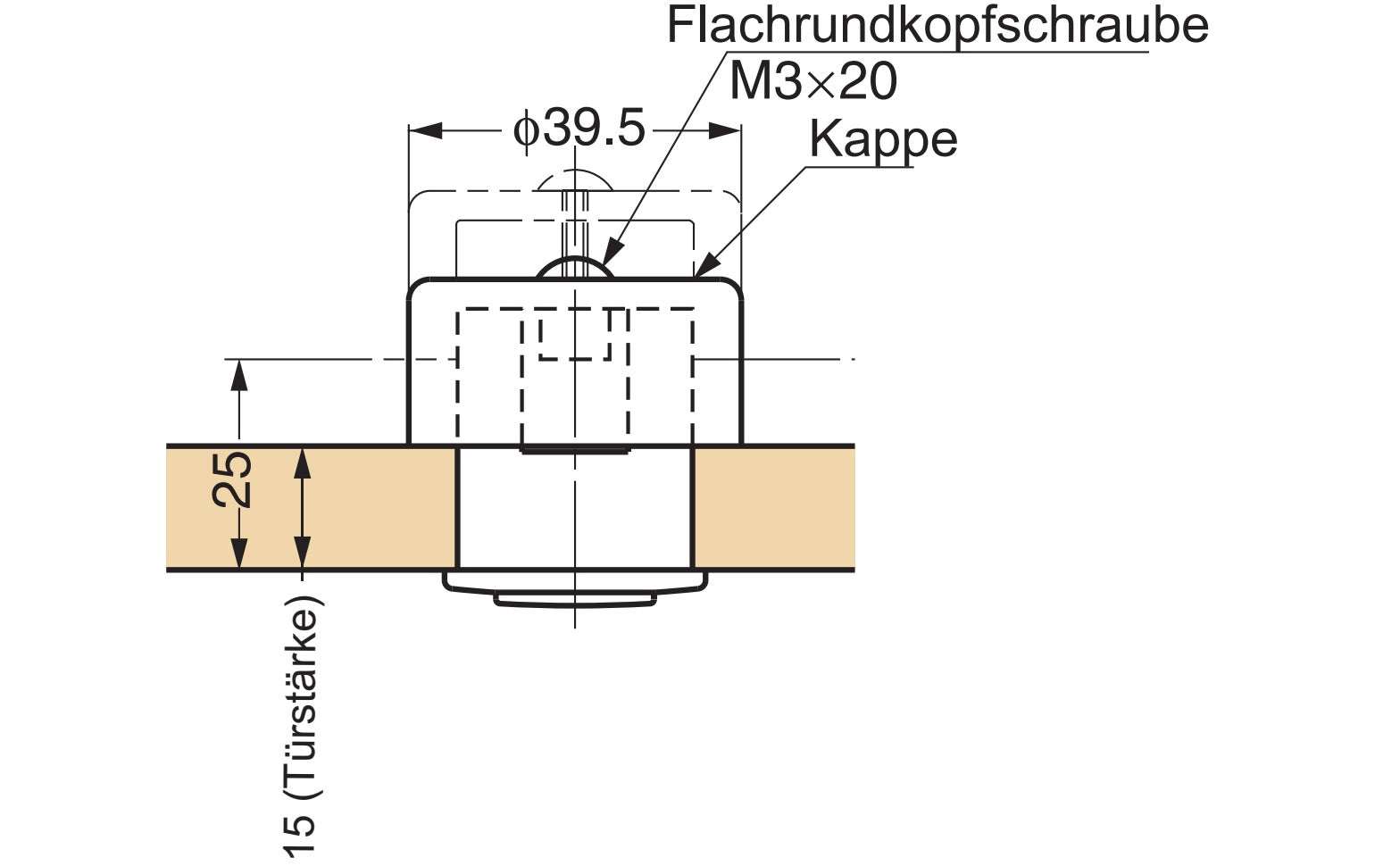

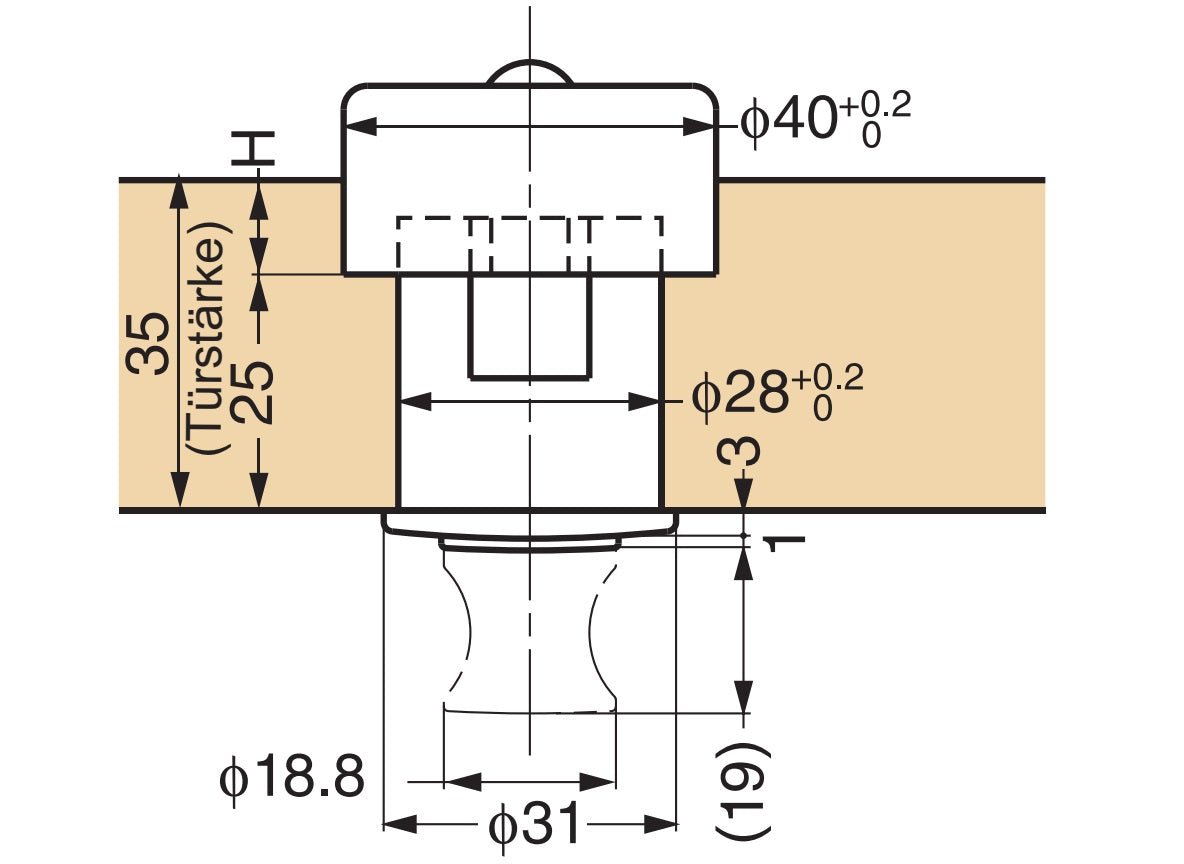

[caption id="attachment_123011" align="alignnone" width="420"] High-quality zinc alloy push-button handle, surface: gold-colored, glossy polished, PK03GA, from Sugatsune. Assembly drawing[/caption] [caption id="attachment_123024" align="alignnone" width="420"] High-quality zinc alloy push-button handle, surface: gold-colored, glossy polished, PK03GA, from Sugatsune. For installation in a thick door.[/caption] [caption id="attachment_123037" align="alignnone" width="420"] High-quality zinc alloy push-button handle, surface: gold-colored, glossy polished, PK03GA, from Sugatsune. Dimensions cutout[/caption] Characteristics:

• Weight: 67 g
• Size: 18.8 mm (0.8″)
• Elaborately processed
• High quality
• Ergonomic
• Stable
• Robust
• Gold-colored, shiny polished
• High brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Diameter of the push-button handle (⌀D): ⌀18.8 mm (47/64″)
• Length (H): 19 mm (3/4″)

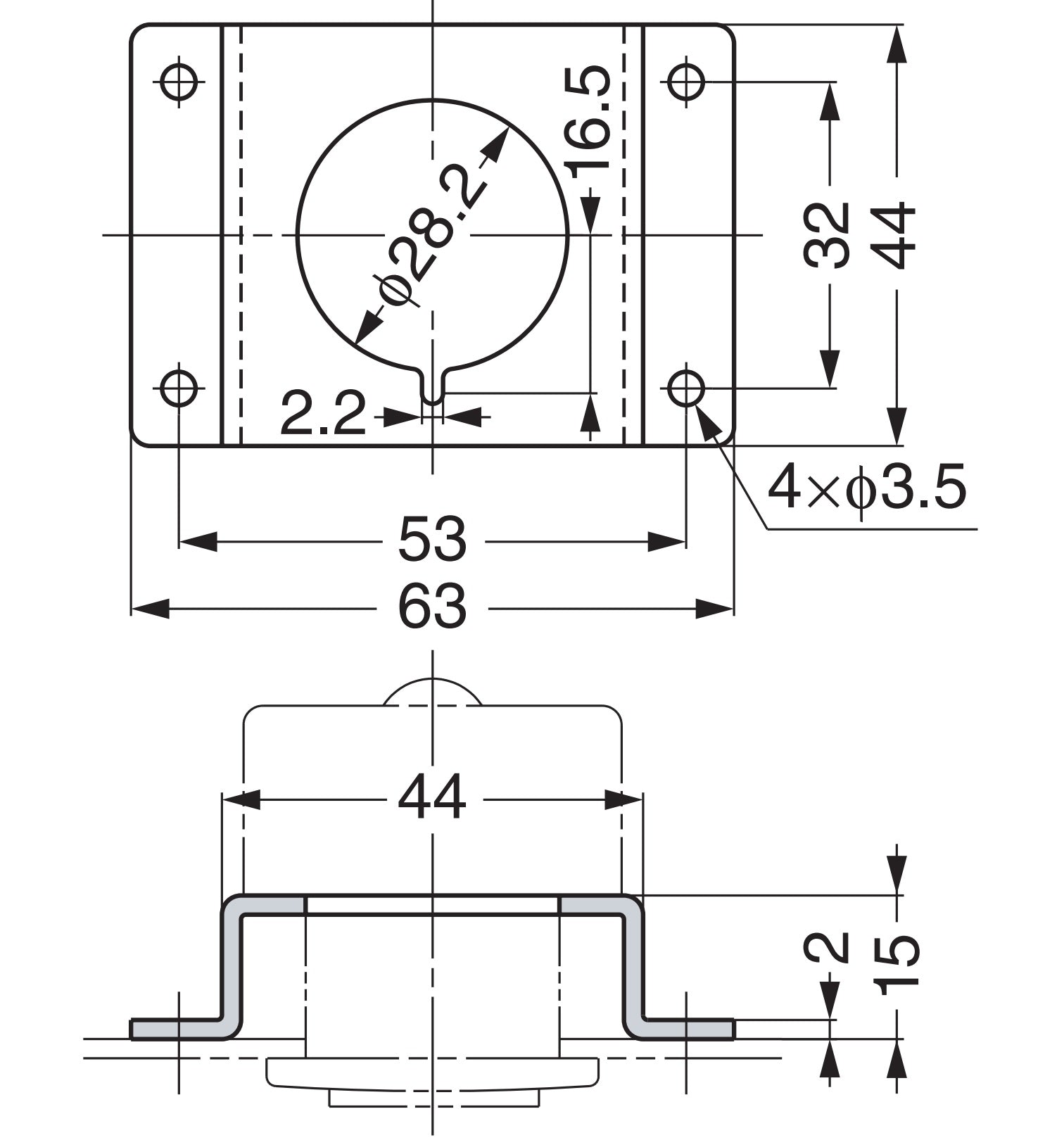

[caption id="attachment_123050" align="alignnone" width="392"] High-quality zinc alloy push-button handle, surface: gold-colored, glossy polished, PK03GA, from Sugatsune. Technical drawing[/caption] Included in delivery:

• 1 piece push button handle PK03GA made of solid zinc alloy, gold-colored, shiny polished
• 1 piece M3 x 20 truss head screw made of steel

Manufacturer reference number:

• Article number: 100-019-954
• Item number: PK03GA
• EAN number: 4510932012232

Manufacturer: Sugatsune / LAMP® (Japan)
