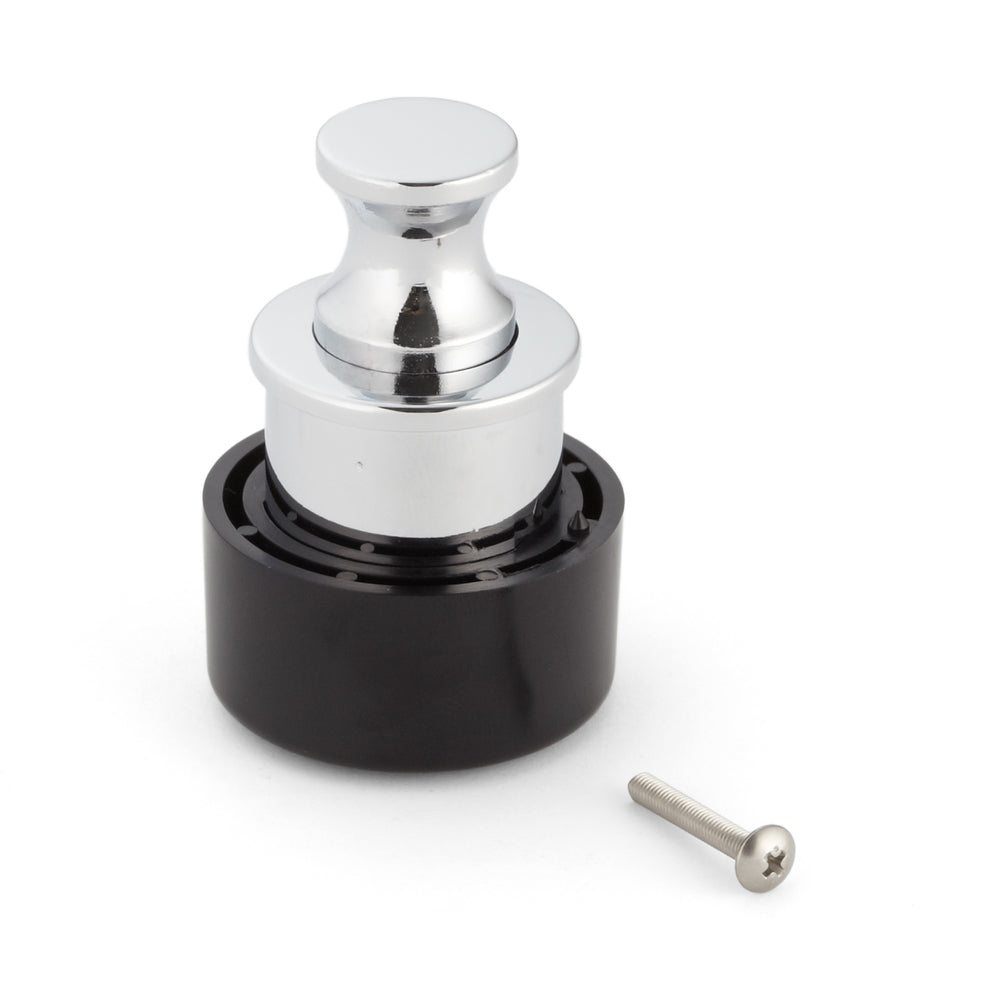

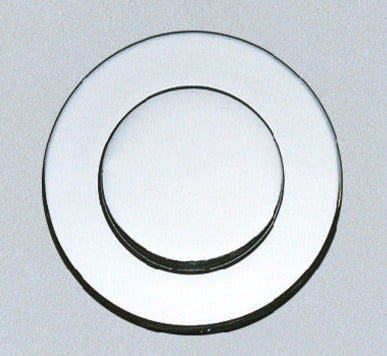

High-quality zinc alloy push-button handle, chrome-plated finish, 18.8 mm (0.8") PK03CR. A high-quality, solid and elegant push-lock made of zinc alloy for drawers, RV furniture, boats, private aircraft, and much more, from Sugatsune / LAMP® (Japan).

Push-button handle made of solid zinc alloy (ZDC), surface: chrome-plated, PK03CR

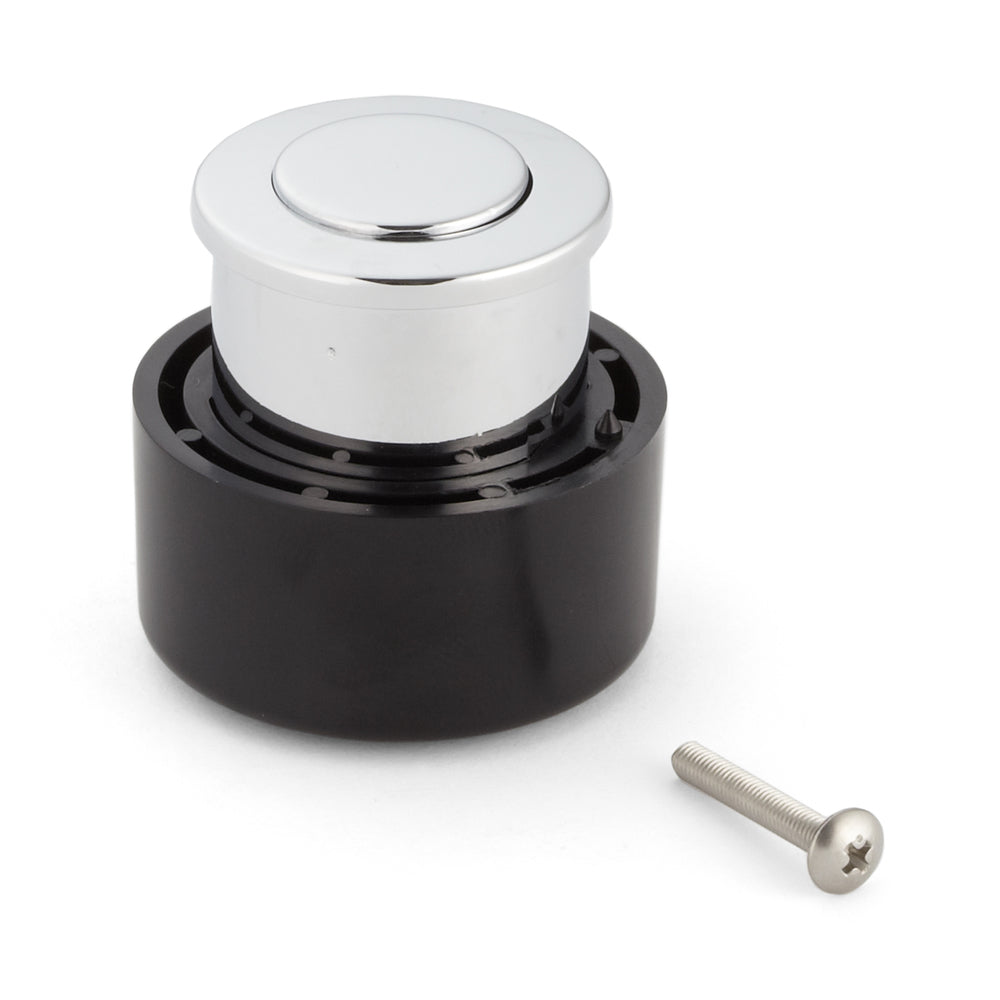

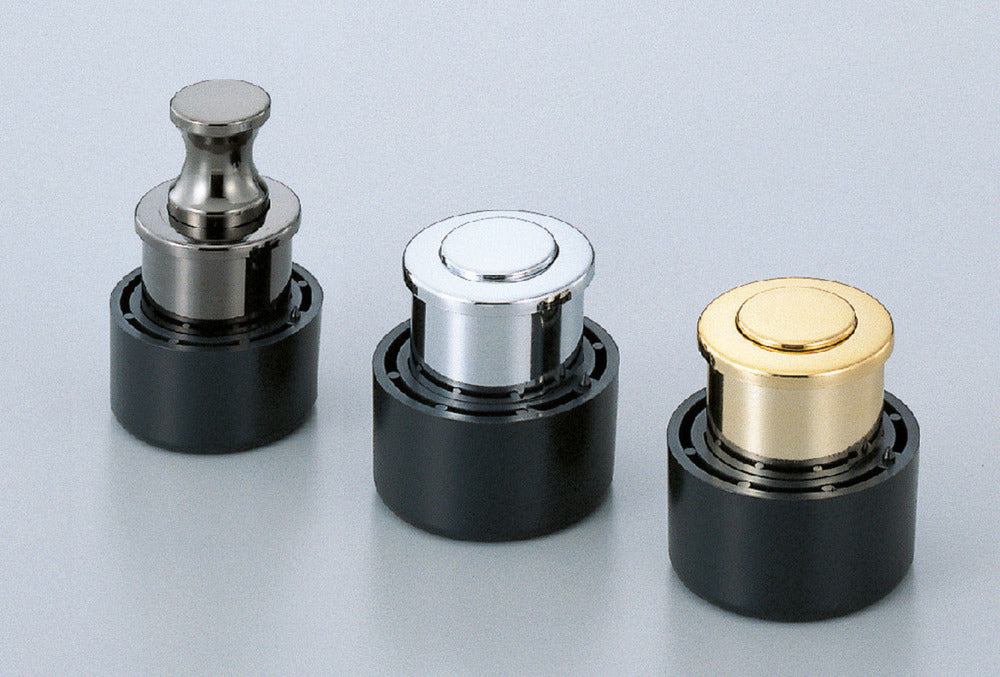

Application: High quality solid and elegant pushlock made of ZDC for drawers, RV furniture, boats, private aircraft and much more. [caption id="attachment_123104" align="alignnone" width="420"] High-quality zinc alloy push-button handle, chrome-plated finish, PK03CR, 18.8 mm, from Sugatsune. Application[/caption] The PK03CR push-button handles can be recessed into the door surface when not in use. This is particularly practical for mobile spaces such as caravans, yachts, ships, and private aircraft. The high-quality PK03CR push-button handles have an attractive, natural design and are ideal for, among other things:

• Cruise ships
• yachts
• Cabinet door
• Drawer
• Motorhome furniture
• boats
• Private aircraft

Material:

• The high-quality push-button handles PK03CR are made of solid zinc alloy (ZDC)

Surface:

• Chrome-plated

Assembly:

• The fastening is carried out using the screws included in the delivery (truss head screw M3 x 20)
• The push-button handle has a mounting hole with internal thread
• For doors with a thickness of 15 mm (19/32″) to 25 mm (63/64″), only one hole with a diameter of ⌀25 mm (63/64″) must be made
• For doors with a thickness of 26 mm (1-1/32″) to 35 mm (1-3/8″), an additional partial bore with a diameter of 40 mm must be made in order to (partially) store the counterpart (see drawing) (for further details see assembly drawing )

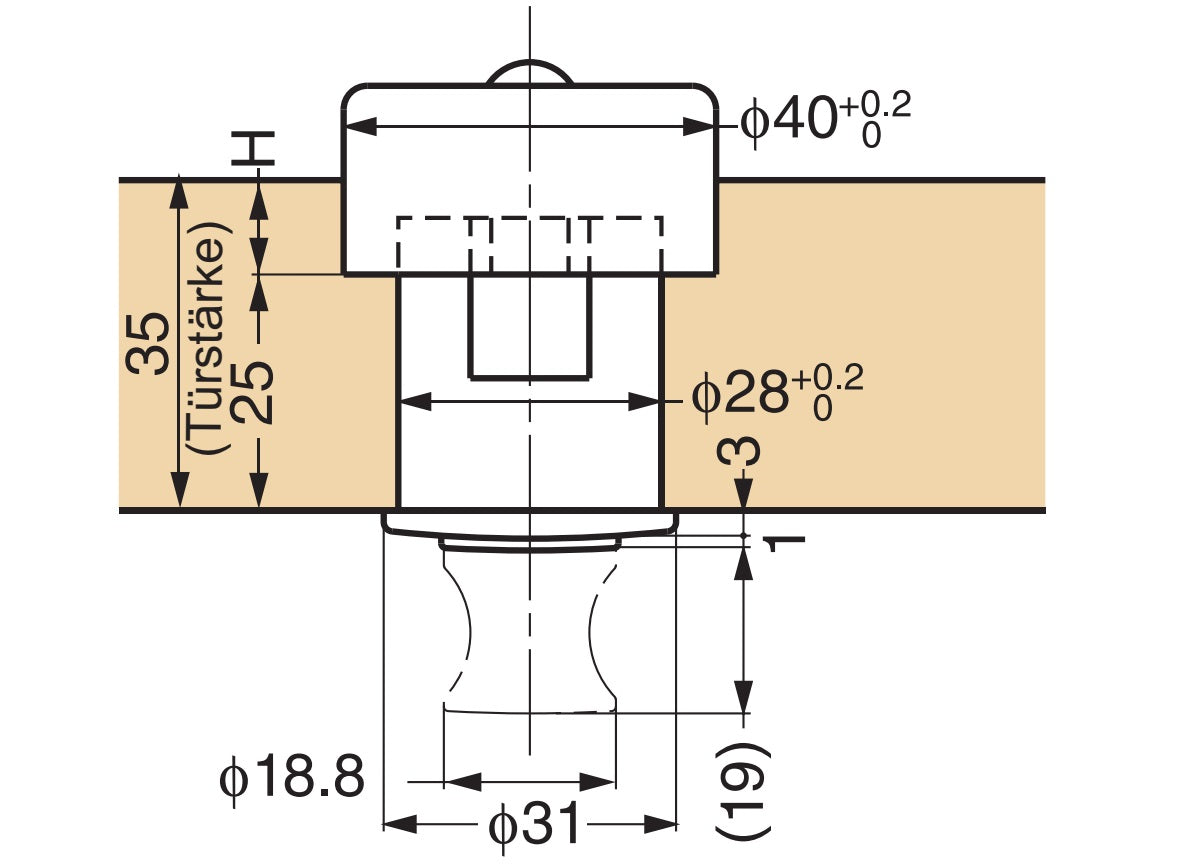

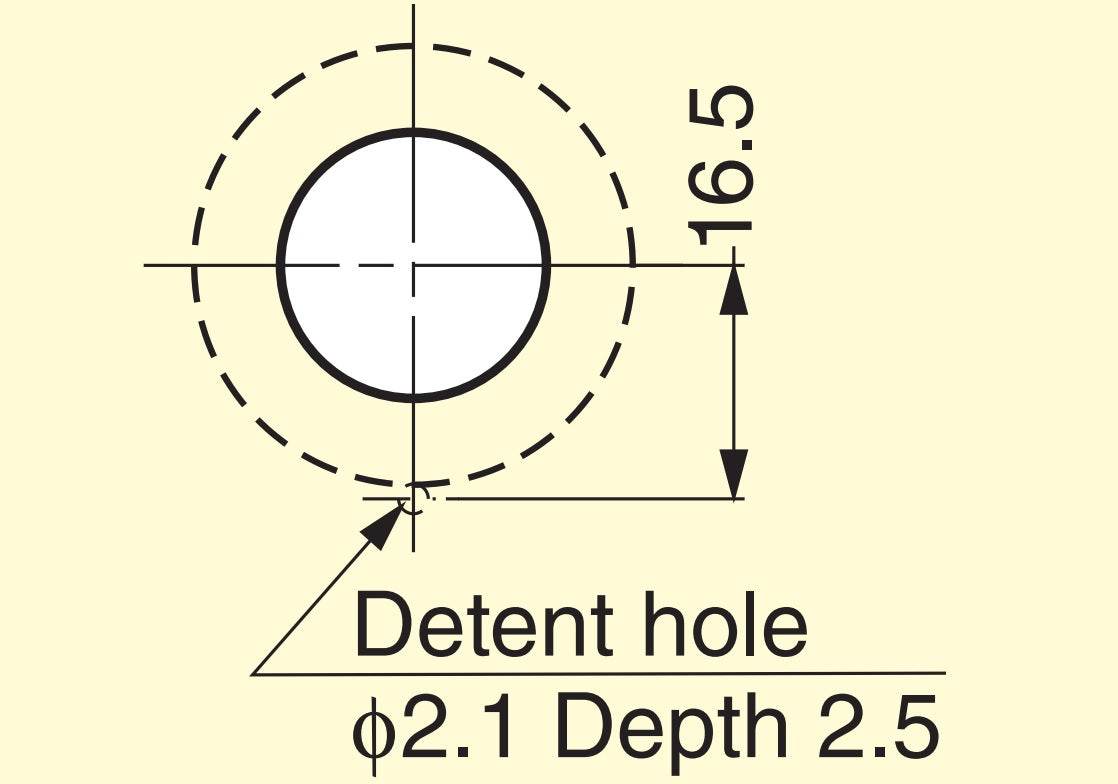

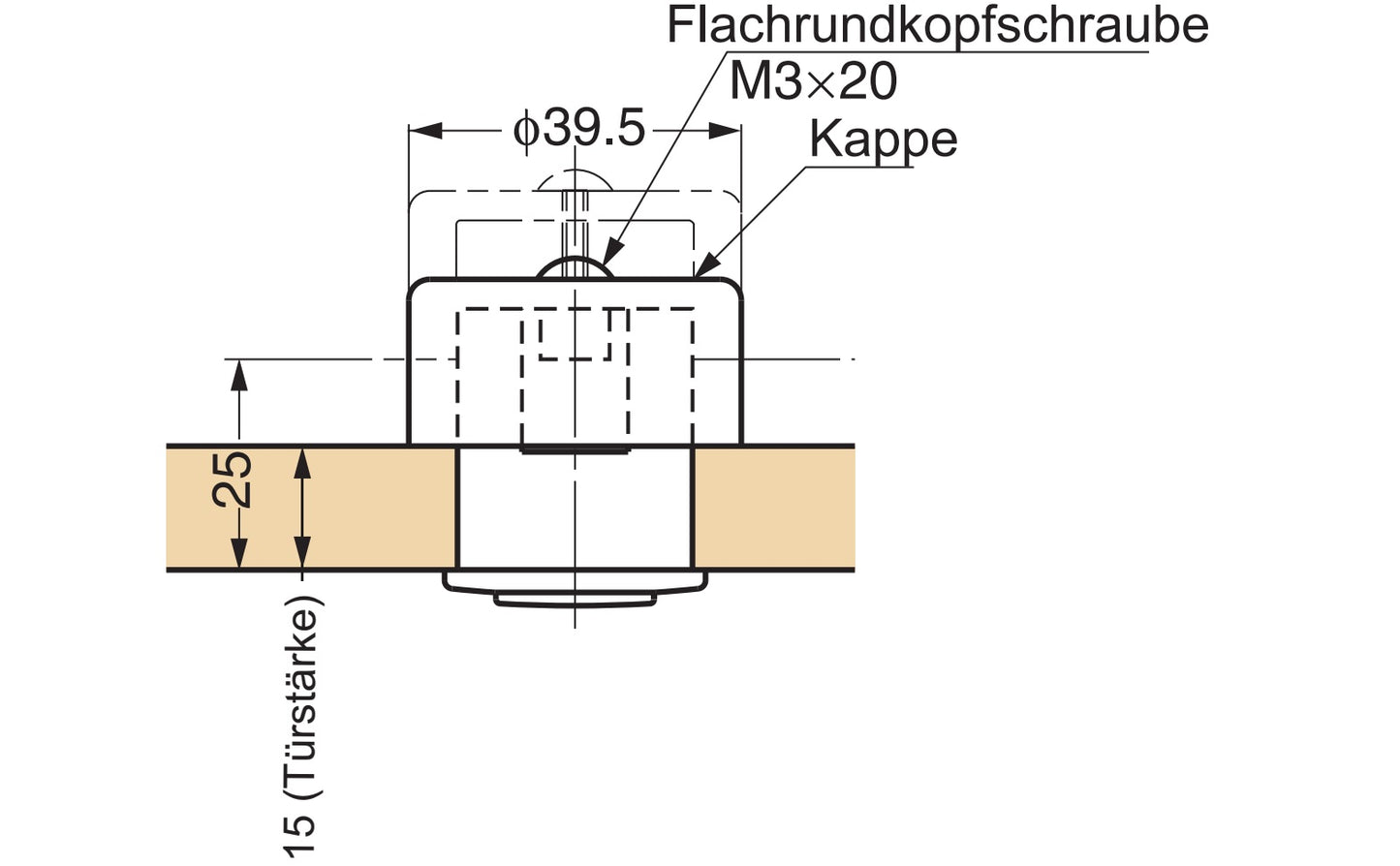

[caption id="attachment_123117" align="alignnone" width="420"] High-quality zinc alloy push-button handle, chrome-plated finish, PK03CR, 18.8 mm, from Sugatsune. Assembly drawing[/caption] [caption id="attachment_123130" align="alignnone" width="420"] High-quality zinc alloy push-button handle, chrome-plated finish, PK03CR, 18.8 mm, from Sugatsune. Installation drawing for thick doors[/caption] [caption id="attachment_123143" align="alignnone" width="420"] High-quality zinc alloy push-button handle, chrome-plated finish, PK03CR, 18.8 mm, from Sugatsune. The dimensions for the drill hole[/caption] Characteristics:

• Weight: 67 g
• Size: 18.8 mm (0.8″)
• Elaborately processed
• High quality
• Ergonomic
• Stable
• Robust
• Chrome-plated
• High brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Diameter of the push-button handle (⌀D): ⌀18.8 mm (47/64″)
• Length (H): 19 mm (3/4″)

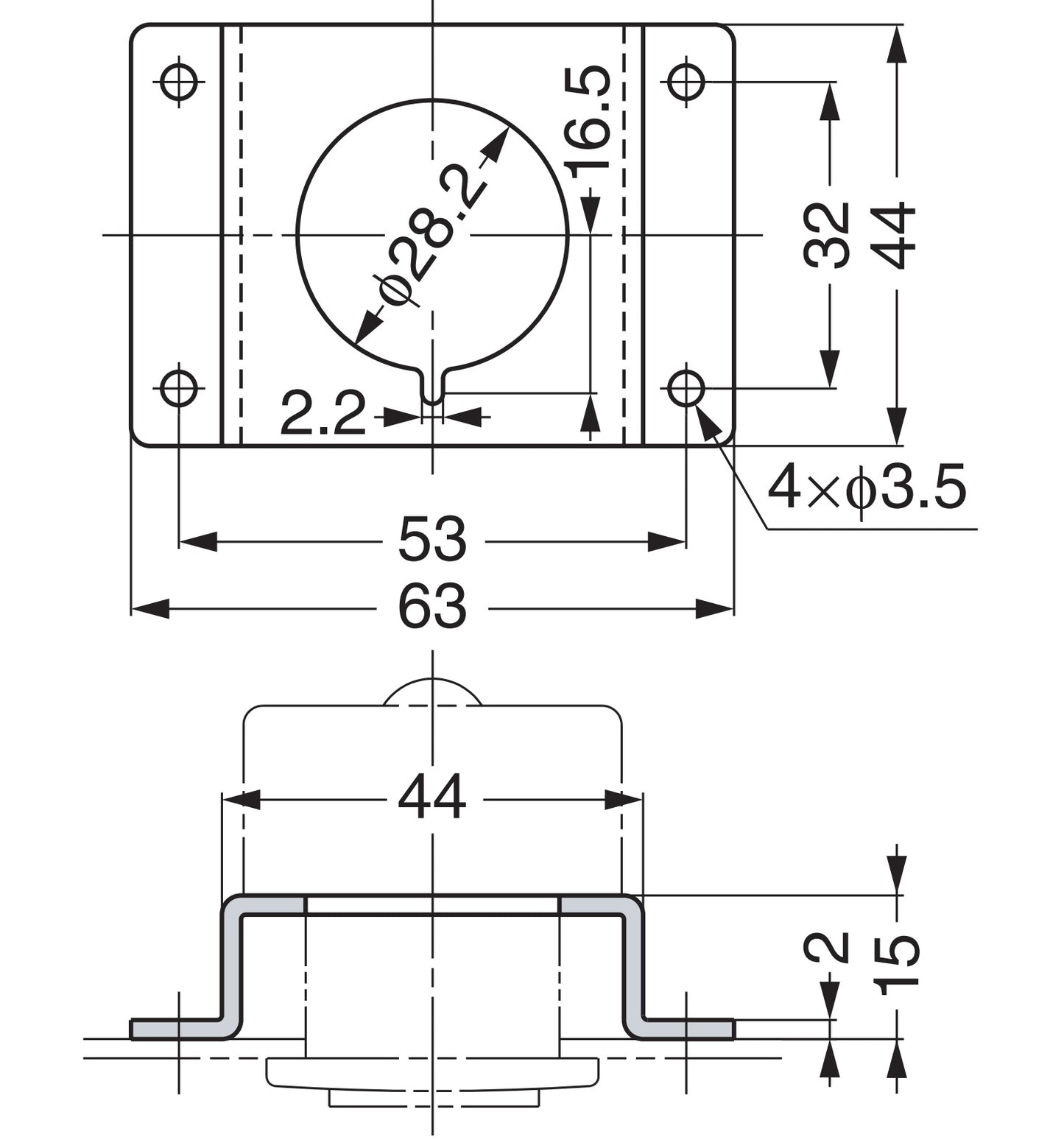

[caption id="attachment_123156" align="alignnone" width="392"] High-quality zinc alloy push-button handle, chrome-plated finish, PK03CR, 18.8 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

• 1 piece push button handle PK03CR made of solid zinc alloy, chrome-plated
• 1 piece M3 x 20 truss head screw made of steel

Manufacturer reference number:

• Article number: 100-019-956
• Item number: PK03CR
• EAN number: 4510932012249

Manufacturer: Sugatsune / LAMP® (Japan)
