Stainless steel finger pull, V2A (SUS304), 100 mm (4") YK-W100. High-quality stainless steel finger pull made of V2A (SUS304), satin-finished, for sliding doors, bathrooms, ships, and humid environments from Sugatsune / LAMP® (Japan).

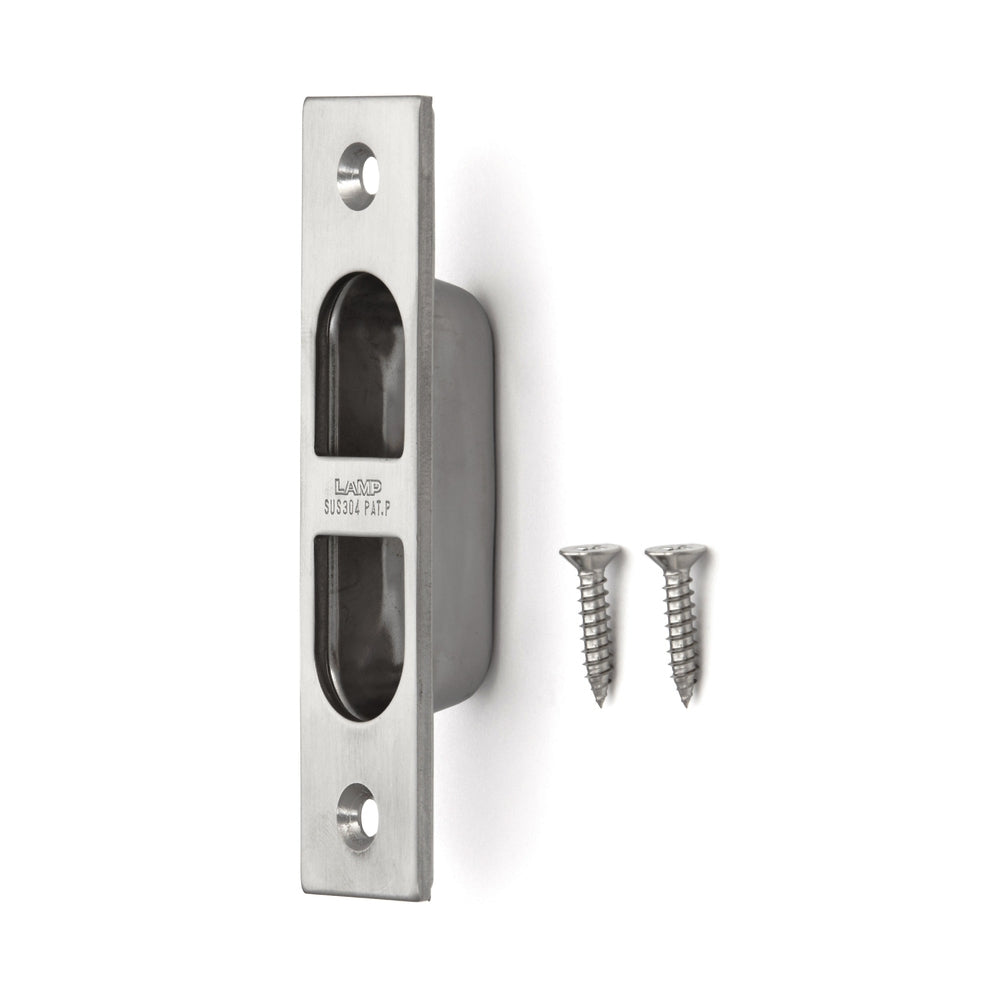

Compact stainless steel handle shell made of stainless steel V2A (SUS304) YK-W100

Application: High-quality stainless steel handle shell made of V2A (SUS304) stainless steel, satin matt, for sliding doors, bathrooms, ships, humid environments. The stainless steel YK-W100 handles have an opening and can be used, for example, to open a door or sliding door with two fingers. The minimum door thickness is 30 mm (1-6/32″) The high-quality YK-W100 stainless steel handle shells are ideal for:

• Sliding door
• door
• bathroom
• ships
• humid environments
• Cruise ships
• yachts
• public bath
• beach hotel

Material: The stainless steel handle shells YK-W100 are made of high-quality stainless steel SUS304. They are corrosion-resistant and rust-proof. The stainless steel handles YK-W100 made of SUS304 stainless steel are also ideal for use in swimming pools, shipbuilding (interior design), etc. Surface:

• Satin matt
• The stainless steel handle shells YK-W100 appear high-quality and robust

Assembly:

• The mounting is done using the screws included in delivery (4 × 20 mm)
• The fastening screws are also made of stainless steel
• For installation, the door must be milled out (for further details see assembly drawing )

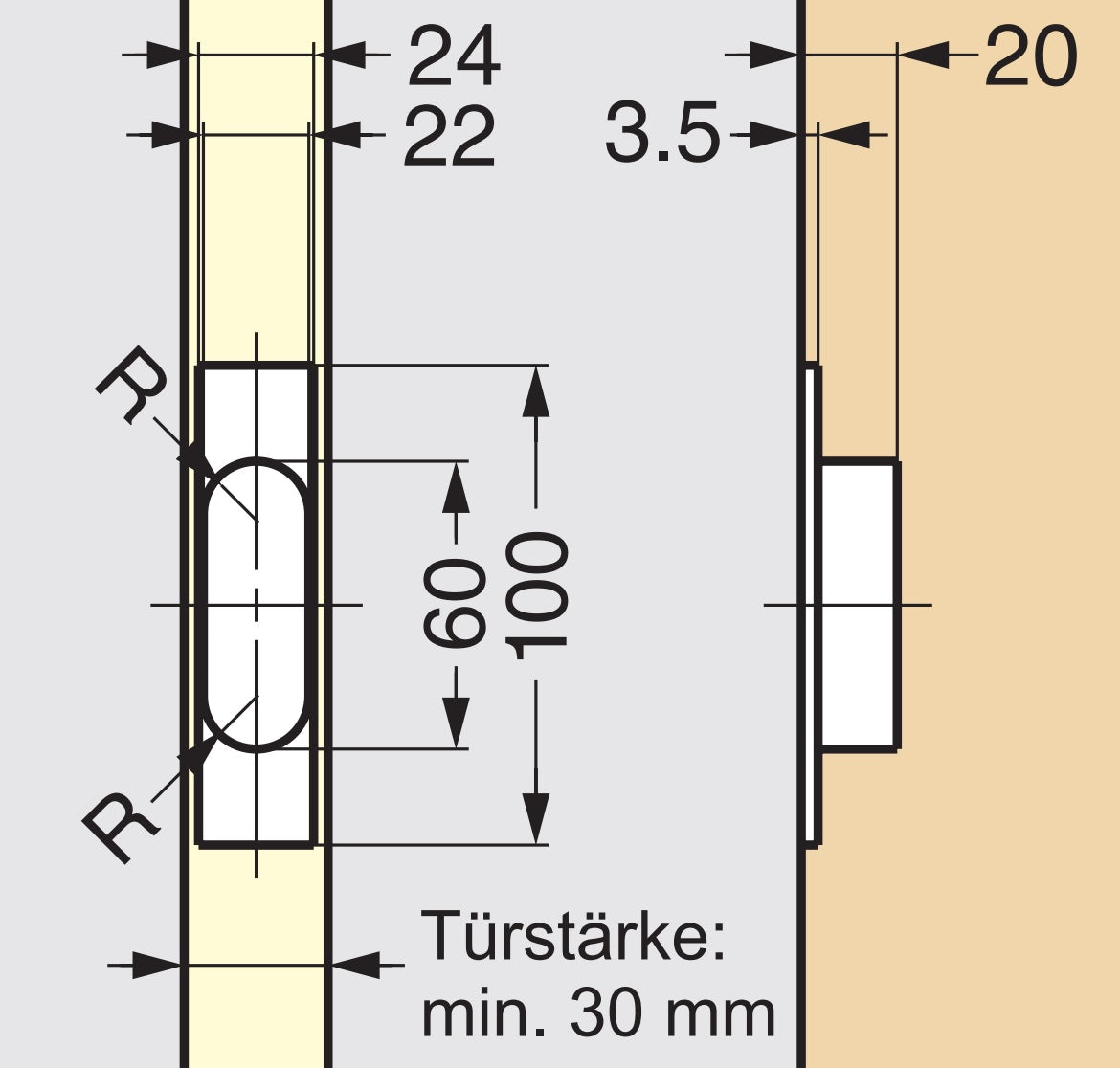

[caption id="attachment_43462" align="alignnone" width="420"] Sugatsune's stainless steel finger grip, V2A (SUS304), YK-W100 (100 mm), satin finish. Assembly drawing[/caption] Characteristics:

• Weight: 45 g
• Size: 100 mm (4″)
• Compact
• High quality
• Robust
• Stainless steel
• Corrosion-resistant

Dimensions: For further dimensions and details see technical drawing .

• Length of the stainless steel handle shell: 100 mm (3-30/32″)
• Width: 24 mm (30/32″)
• Grip length: 56 mm (2-7/32″)
• Grip width: 18 mm (23/32″)
• Distance between mounting holes: 80 mm (3-5/32″)
• Depth: 18 mm (23/32″)

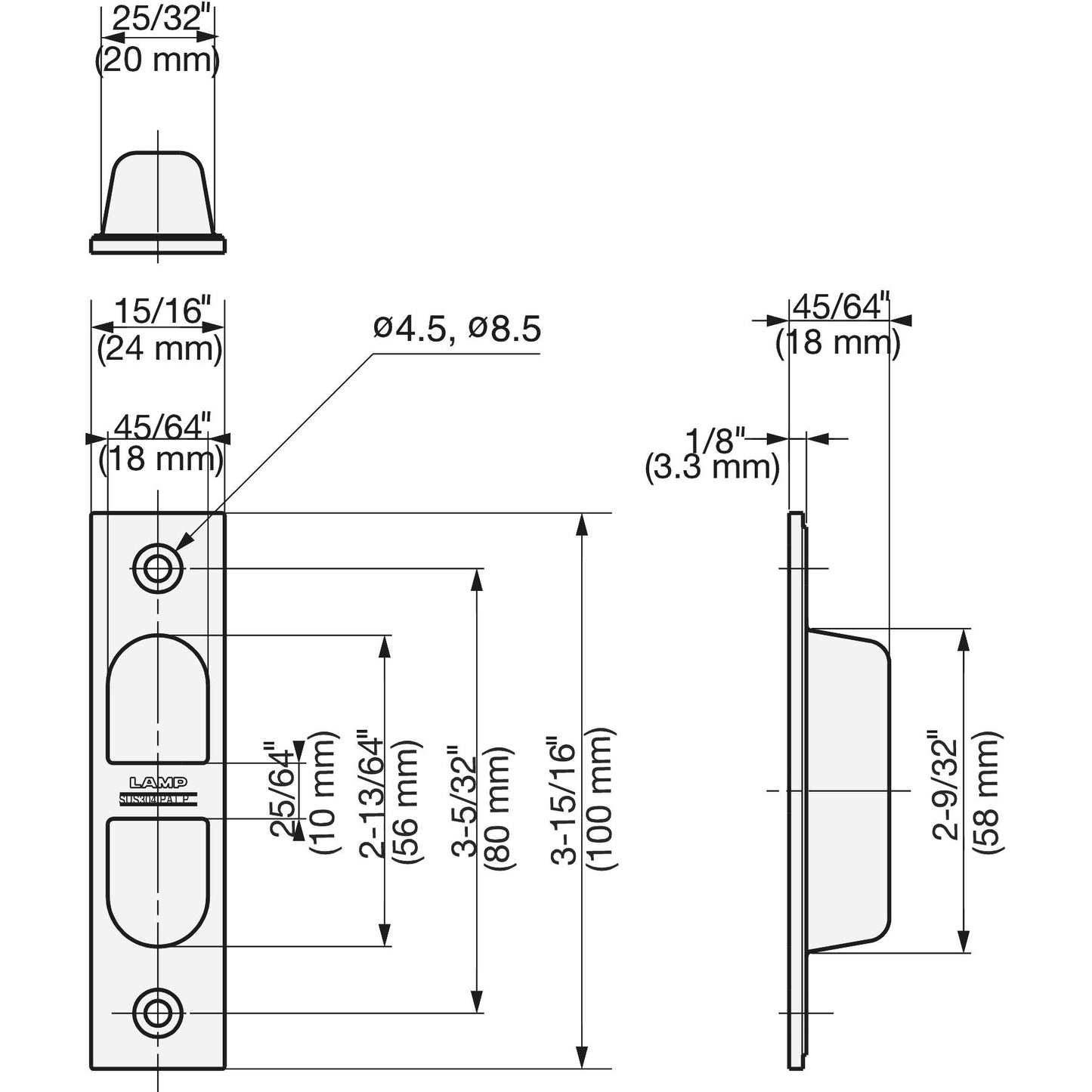

[caption id="attachment_43475" align="alignnone" width="420"] Sugatsune's stainless steel finger grip, V2A (SUS304), YK-W100 (100 mm), satin finish. Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel handle shell YK-W100 made of stainless steel SUS304 (V2A)
• 2 x 4 × 20 mm stainless steel fastening screws

Manufacturer reference number:

• Article number: 100-010-391
• Article name: YK-W100
• EAN number: 4510932009812

Manufacturer: SUGATSUNE / LAMP® (Japan)
