Edelstahl-Klappgriff SUS304, 90 mm (3,6″) HR-90S. Drehbarer Edelstahl-Klappgriff aus rostfreiem Edelstahl V2A, satiniert matt, für Revisionsklappe, Revisionstür, Wartungstür, feuchte Umgebung, Schiff, Caravan von Sugatsune / LAMP® (Japan)

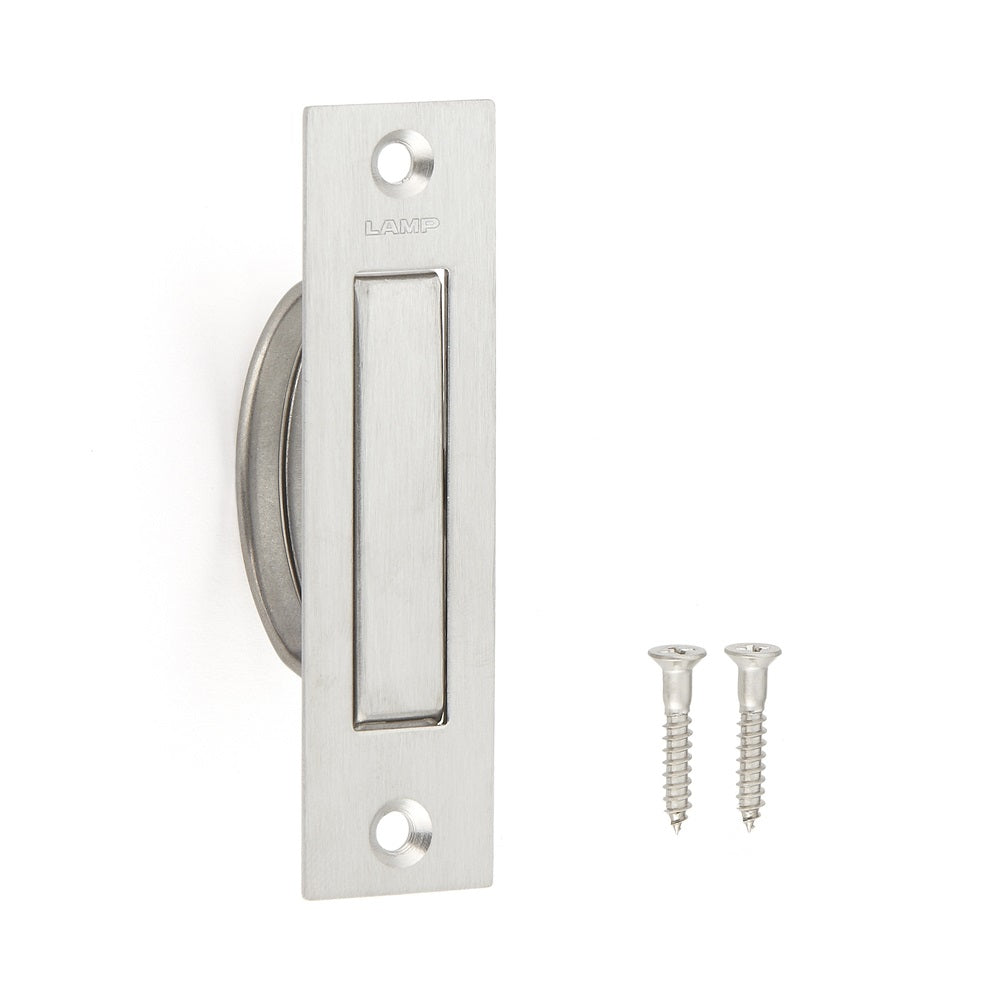

Stainless steel folding handle made of stainless steel V2A (SUS304) HR-90S

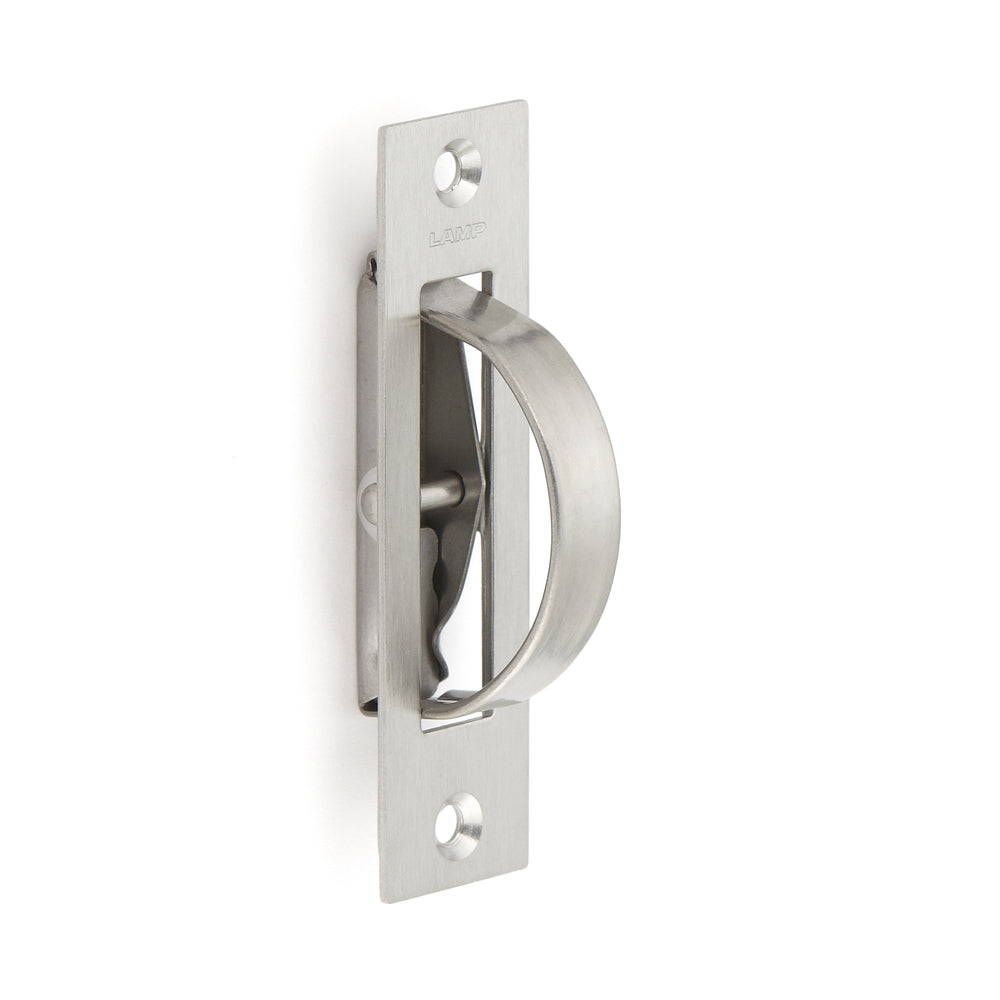

Sugatsune's SUS304 stainless steel folding handle, HR-90S (90 mm), satin finish. Application[/caption] Rotatable stainless steel folding handle made of V2A stainless steel, satin matt, for inspection hatch, inspection door, maintenance door, damp environment, ship, caravan. The stainless steel folding handles HR-90S have a simple and elegant design and can be used in a variety of ways. The HR-90S inset handles can only be mounted vertically. They are not suitable for use with floor hatches or ceiling flaps. The high-quality HR-90S stainless steel folding handles are ideal for:

• Inspection hatch
• inspection door
• Maintenance door
• humid environment
• Ship
• Caravan
• Maintenance opening
• Cleaning flap

Material: The stainless steel folding handles HR-90S are made of high-quality SUS304 stainless steel. They are corrosion-resistant and rust-proof. Surface:

• Satin matt

Assembly:

• The stainless steel folding handles HR-90S are designed for
• The mounting is done using the screws included in delivery (3.5 × 22 mm)
• The fastening screws are also made of stainless steel
• For installation, a cutout measuring 52.5 x 18 mm and a depth of at least 36.5 mm must be made on the door
• Please ensure that the upper and lower sides are correctly positioned during assembly

Characteristics:

• Weight: 49 g
• Load capacity: 127 N (13 kp)
• Size: 90 mm (3.6″)
• Shape: rectangular
• Unique design
• Made of stainless steel
• Stainless steel
• Corrosion-resistant
• High quality
• Material thickness: 1.5 mm

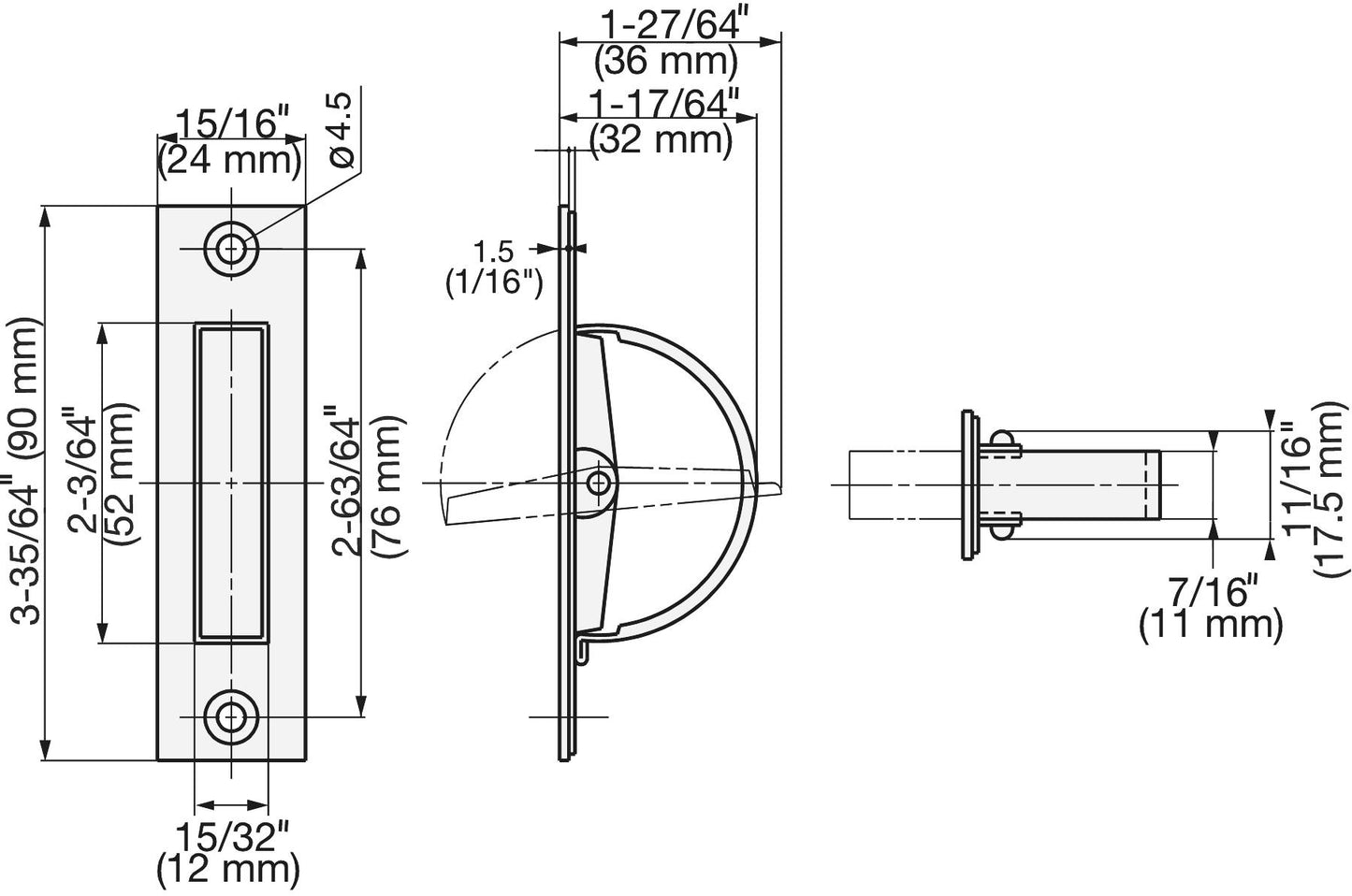

Dimensions: For further dimensions and details

• Height of the stainless steel folding handle: 90 mm (3-17/32″)
• Width: 24 mm (30/32″)
• Distance between mounting holes: 76 mm (3 ″)
• Grip area size: 52 mm (2-2/32″)

• 1 piece stainless steel folding handle HR-90S made of stainless steel SUS304 (V2A)
• 2 x 3.5 × 22 mm stainless steel fastening screws

• Article number: 100-012-614
• Article name: HR-90S
• EAN number: 4510932004169
