Stainless steel door handle V2A (SUS304), 109 mm (4.3") LX-110M. High-quality solid stainless steel door handle made of V2A (SUS304) for humid environments, ships, food processing, medical, and laboratory equipment from Sugatsune / LAMP® (Japan).

Stainless steel door handle made of stainless steel V2A (SUS304) LX-110M

Application: High-quality solid stainless steel door handle made of V2A (SUS304) stainless steel for humid environments, ships, food industry, medical sector, laboratory facilities. The LX-110M stainless steel door handles are ideal for:

• ships
• yachts
• boats
• bathroom
• public bath
• beach hotel
• Medical field
• Laboratory equipment
• Food sector

Material: The LX-110M stainless steel door handles are made of solid high-quality SUS304 stainless steel. They are corrosion-resistant and rust-proof. The LX-110M stainless steel door handles made of SUS304 stainless steel are also ideal for use in swimming pools, shipbuilding (interior design), etc. Surface:

• Shiny polished
• The stainless steel door handles LX-110M appear solid and high-quality

Assembly:

• The mounting is done using the screws included in delivery (M4 × 25 mm)
• The fastening screws are also made of stainless steel
• The depth of the holes in the handle is 10 mm (0.4″)

Characteristics:

• Weight: 80 g
• Size: 109 mm (4.3″)
• Robust
• Stainless steel
• Corrosion-resistant

Dimensions: For further dimensions and details see technical drawing .

• Width of the stainless steel door handle: 109 mm (4.3″)
• Distance between mounting holes: 96 mm (3.78″)
• The handle height: 30 mm (1.19″)
• The inner handle height: 25 mm (0.99″)
• Material thickness: Φ6 mm (0.24″)

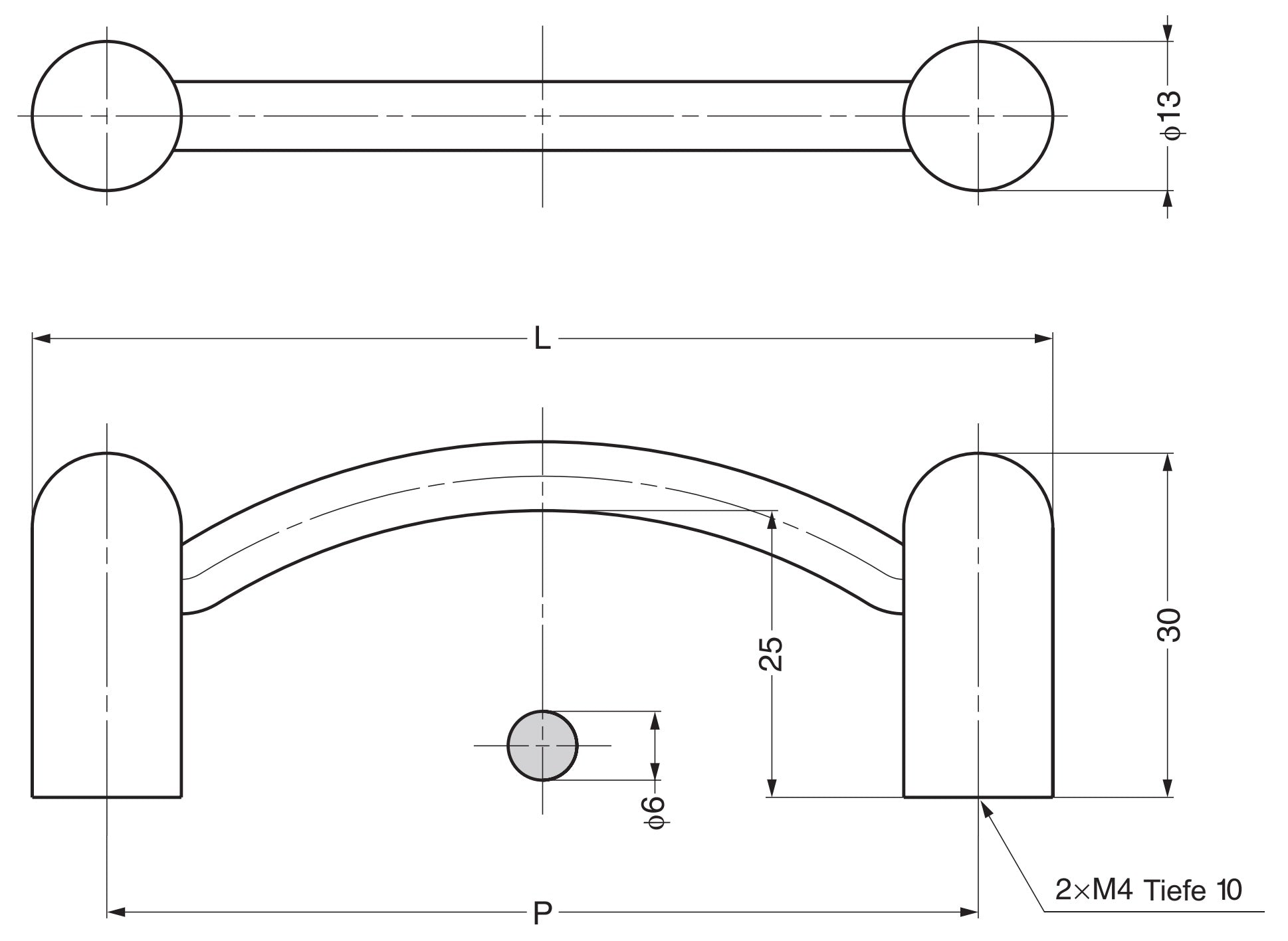

[caption id="attachment_41296" align="alignnone" width="420"] Sugatsune's stainless steel door handle V2A (SUS304), LX-110M (109 mm). Technical drawing[/caption] Included in delivery:

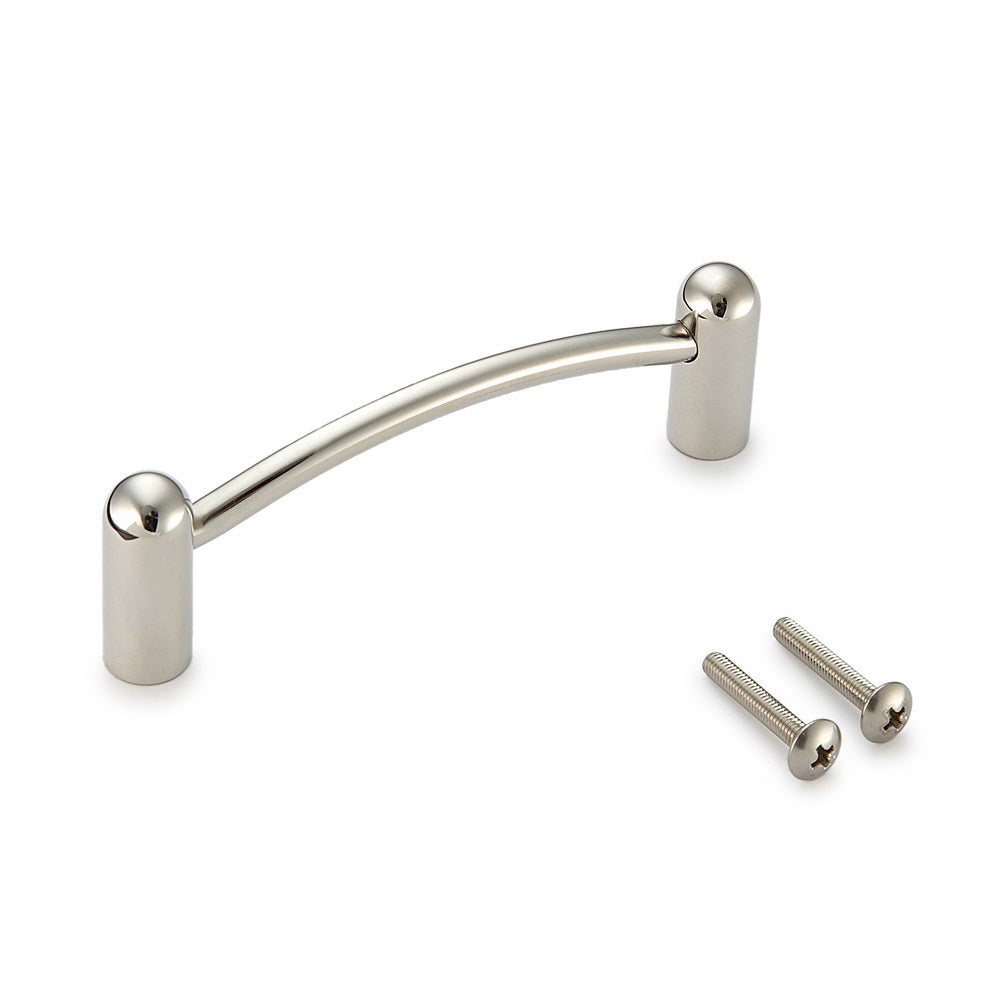

• 1 piece stainless steel door handle LX-110M made of stainless steel SUS304 (V2A)
• 2 x M4 × 25 mm mounting screws

Manufacturer reference number:

• Article number: 100-010-426
• Item name: LX-110M
• EAN number: 4510932007252

Manufacturer: SUGATSUNE / LAMP® (Japan)
