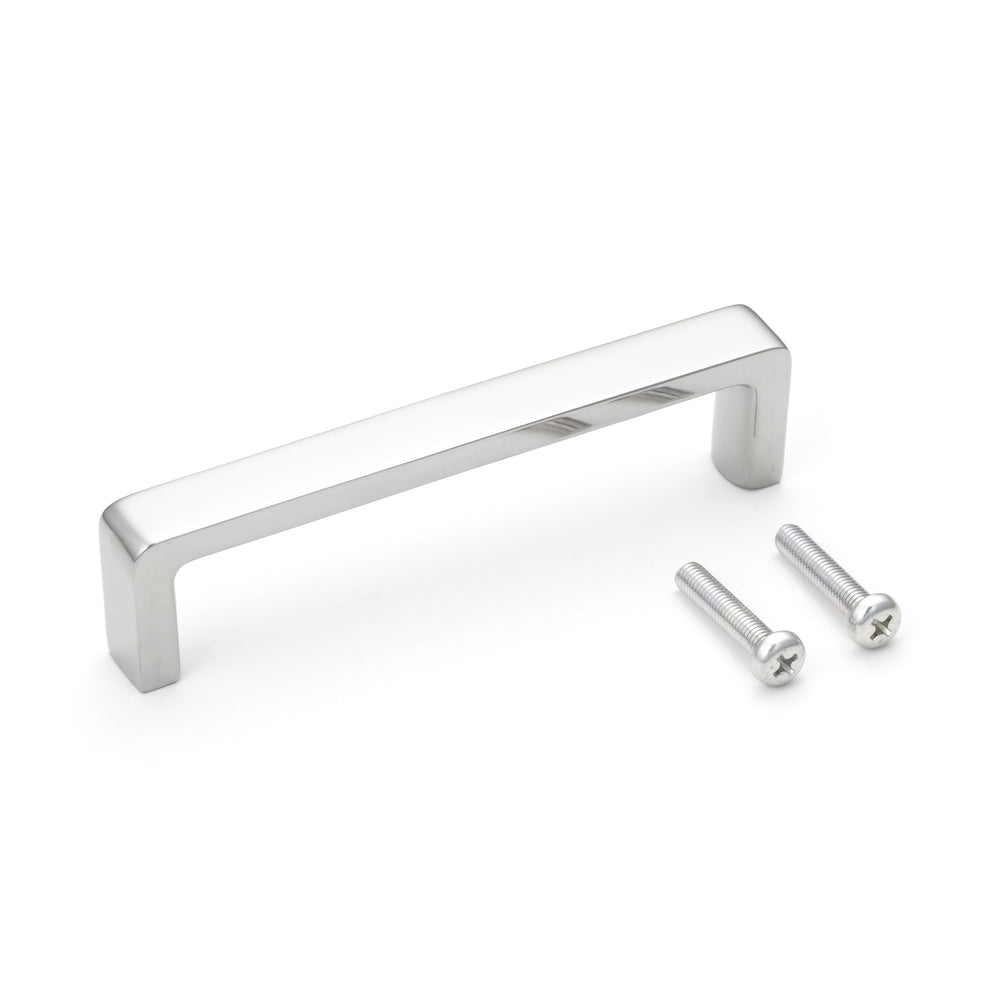

Edelstahl-Türgriff V2A (SUS304), 110 mm (4,4″) FB-110. Hochwertiger massiver Edelstahl-Türgriff aus rostfreiem Edelstahl V2A (SUS304), glänzend poliert, für feuchte Umgebungen, Schiffe, Lebensmittelbereich, Medizinbereich von Sugatsune / LAMP® (Japan)

Rectangular stainless steel door handle, made of stainless steel V2A (SUS304) FB-110

Application: High-quality solid stainless steel door handle made of V2A (SUS304) stainless steel, glossy polished, for humid environments, ships, food industry, medical sector. The FB-110 stainless steel door handles are ideal for:

• ships
• yachts
• boats
• bathroom
• public bath
• beach hotel
• Medical field
• Laboratory equipment
• Food sector

Material: The FB-110 stainless steel door handles are made of solid high-quality SUS304 stainless steel. They are corrosion-resistant and rust-proof. The FB-110 stainless steel door handles made of SUS304 stainless steel are also ideal for use in swimming pools, shipbuilding (interior design), etc. Surface:

• Shiny polished
• The stainless steel door handles FB-110 appear solid and high-quality

Assembly:

• The mounting is done using the screws included in delivery (M5 × 25 mm)
• The fastening screws are also made of stainless steel
• The depth of the holes in the handle is 12 mm (15/32″)

Characteristics:

• Weight: 100 g
• Size: 110 mm (4.4″)
• Shape: rectangular
• Robust
• Stainless steel
• Corrosion-resistant

Dimensions: For further dimensions and details see technical drawing .

• Width of the stainless steel door handle: 110 mm (4-11/32″)
• Distance between mounting holes (P): 102 mm (4-1/32″)
• Handle height (H): 28 mm (1-3/32″)
• Inner handle height: 21 mm (26/32″)
• Material thickness: 12.5 mm (16/32″) x 7 mm (9/32″)

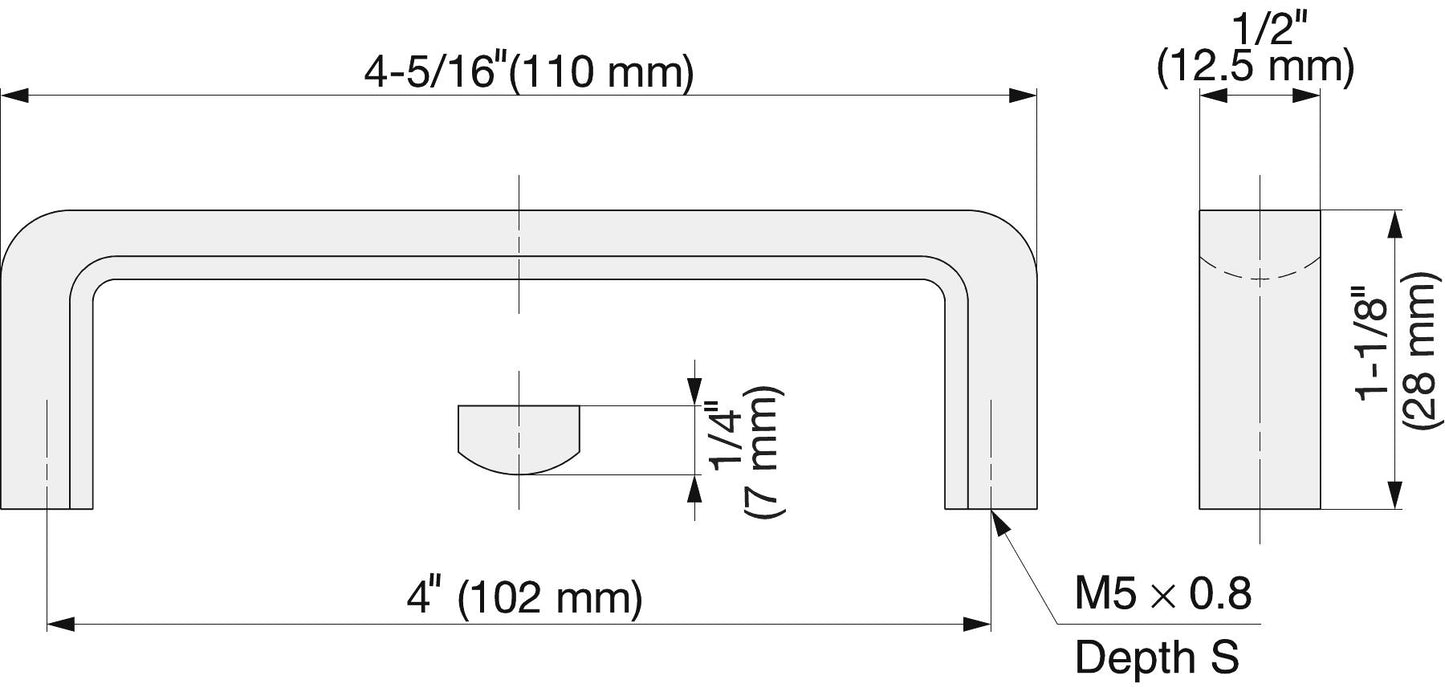

[caption id="attachment_41864" align="alignnone" width="420"] Sugatsune stainless steel door handle V2A (SUS304), FB-110 (110 mm). Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel door handle FB-110 made of stainless steel SUS304 (V2A)
• 2 x M5 × 25 mounting screws

Manufacturer reference number:

• Article number: 100-010-075
• Article name: FB-110
• EAN number: 4510932007115

Manufacturer: SUGATSUNE / LAMP® (Japan)
