Stainless steel door handle V2A (SUS304), 80 mm (3.2") EC-80M. High-quality solid stainless steel door handle made of V2A (SUS304) for humid environments, ships, food processing, and medical applications from Sugatsune / LAMP® (Japan)

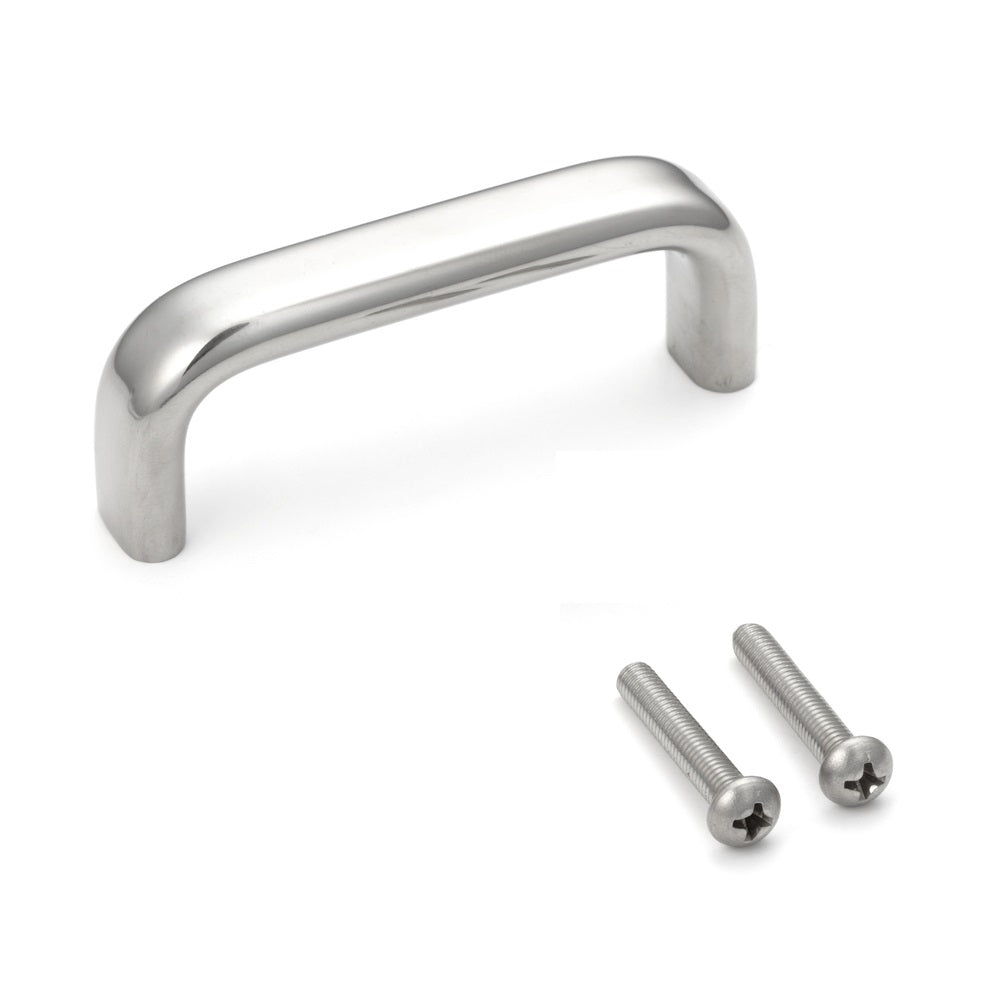

Stainless steel door handle made of stainless steel V2A (SUS304) EC-80M

Application: High-quality solid stainless steel door handle made of V2A (SUS304) stainless steel for humid environments, ships, food industry, medical sector. The EC-80M stainless steel door handles are ideal for:

• ships
• yachts
• boats
• bathroom
• public bath
• beach hotel
• Medical field
• Laboratory equipment
• Food sector

Material: The EC-80M stainless steel door handles are made of solid high-quality SUS304 stainless steel. They are corrosion-resistant and rust-proof. The EC-80M stainless steel door handles made of SUS304 stainless steel are also ideal for use in swimming pools, shipbuilding (interior design), etc. Surface:

• Shiny polished
• The stainless steel door handles EC-80M appear solid and high-quality

Assembly:

• The mounting is done using the screws included in delivery (M5 × 28 mm)
• The fastening screws are also made of stainless steel
• The depth of the holes in the handle (S) is 8 mm (0.32″)

Characteristics:

• Weight: 94 g
• Size: 80 mm (3.2″)
• Robust
• Stainless steel
• Corrosion-resistant

Dimensions: For further dimensions and details see technical drawing .

• Width of the stainless steel door handle (L): 80 mm (3.15″)
• Distance between mounting holes (P): 72 mm (2.84″)
• Handle height (H): 30 mm (1.19″)
• Inner handle height: 22 mm (0.87″)
• Material thickness: 8 mm (0.32″) x 14 mm (0.56″)

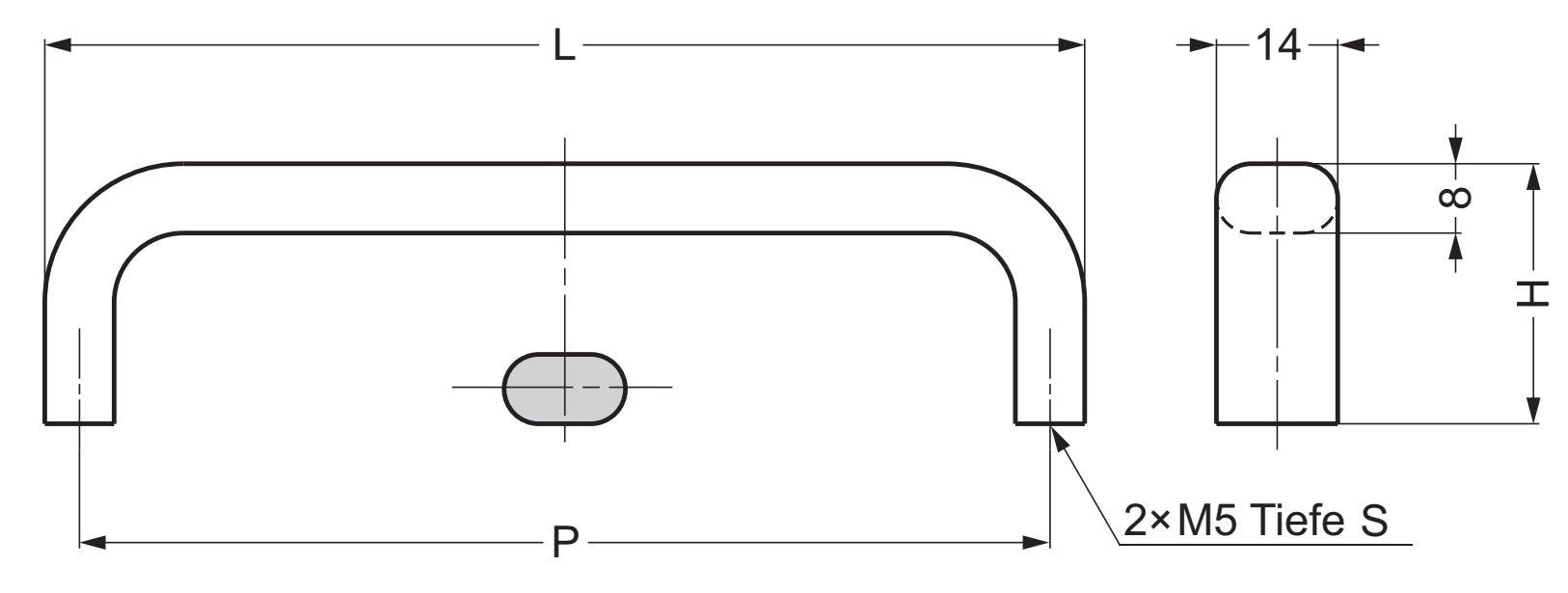

[caption id="attachment_41336" align="alignnone" width="420"] Sugatsune's V2A (SUS304) stainless steel door handle, EC-80M (80 mm). Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel door handle EC-80M made of stainless steel SUS304 (V2A)
• 2 x M5 × 28 mounting screws

Manufacturer reference number:

• Article number: 100-017-226
• Article name: EC-80M
• EAN number: 4510932006897

Manufacturer: SUGATSUNE / LAMP® (Japan)
