Edelstahl-Türgriffgriff V4A (SUS316), 1000 mm (39″) MP-1000. Hochwertiger massiver Edelstahl-Türgriffgriff aus feinstem Edelstahl V4A (SUS316) für Medizinbereich, Laboreinrichtung, feuchte, raue und hochkorrosive Umgebungen von Sugatsune / LAMP® (Japan)

Stainless steel door handle made of stainless steel V4A (SUS316) MP-1000

Application: High-quality solid stainless steel door handle made of the finest V4A (SUS316) stainless steel for medical applications, laboratory equipment, humid, harsh and highly corrosive environments. The SUS316 stainless steel gives the MP-1000 stainless steel door handles unique properties. The MP-1000 stainless steel door handles are ideal for:

• Cruise ships
• yachts
• boats
• Outdoor area
• coastal facilities
• bathroom
• public bath
• beach hotel
• Medical field
• Laboratory equipment

Material: The MP-1000 stainless steel door handles are made of solid high-quality SUS316 stainless steel. SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance. Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used and expressly recommended for use near the coast. MP-1000 stainless steel door handles made of SUS316 stainless steel are also ideal for use in swimming pools, shipbuilding, the chemical industry, etc. Surface:

• Shiny polished
• The stainless steel door handles MP-1000 appear solid and high-quality

Assembly:

• The fastening is done with screws (not included)
• For assembly, four screws of the type countersunk head screw M4, countersunk head sheet screw 4 or countersunk wood screw 4.1 are required

Characteristics:

• Weight: 1600 g
• Size: 1000 mm (39.4″)
• Solid construction
• Robust
• Stainless steel
• Corrosion-resistant

Dimensions: For further dimensions and details see technical drawing .

• Width of the stainless steel door handle: 1000 mm (39.38″)
• Distance between mounting holes: 964 mm (37.96″) and 28 mm (1.11″)
• Material thickness: 25.4 mm (1″)

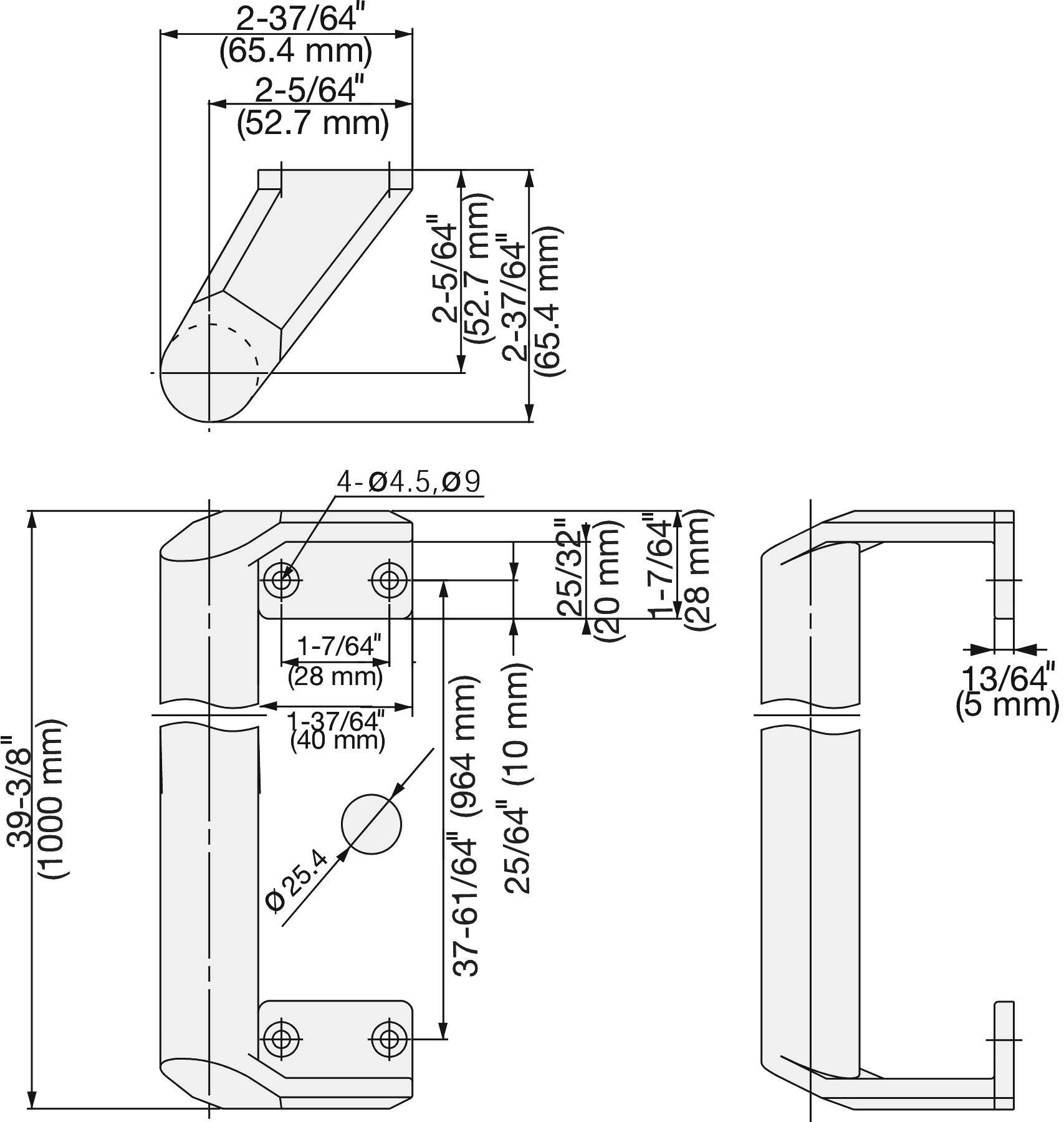

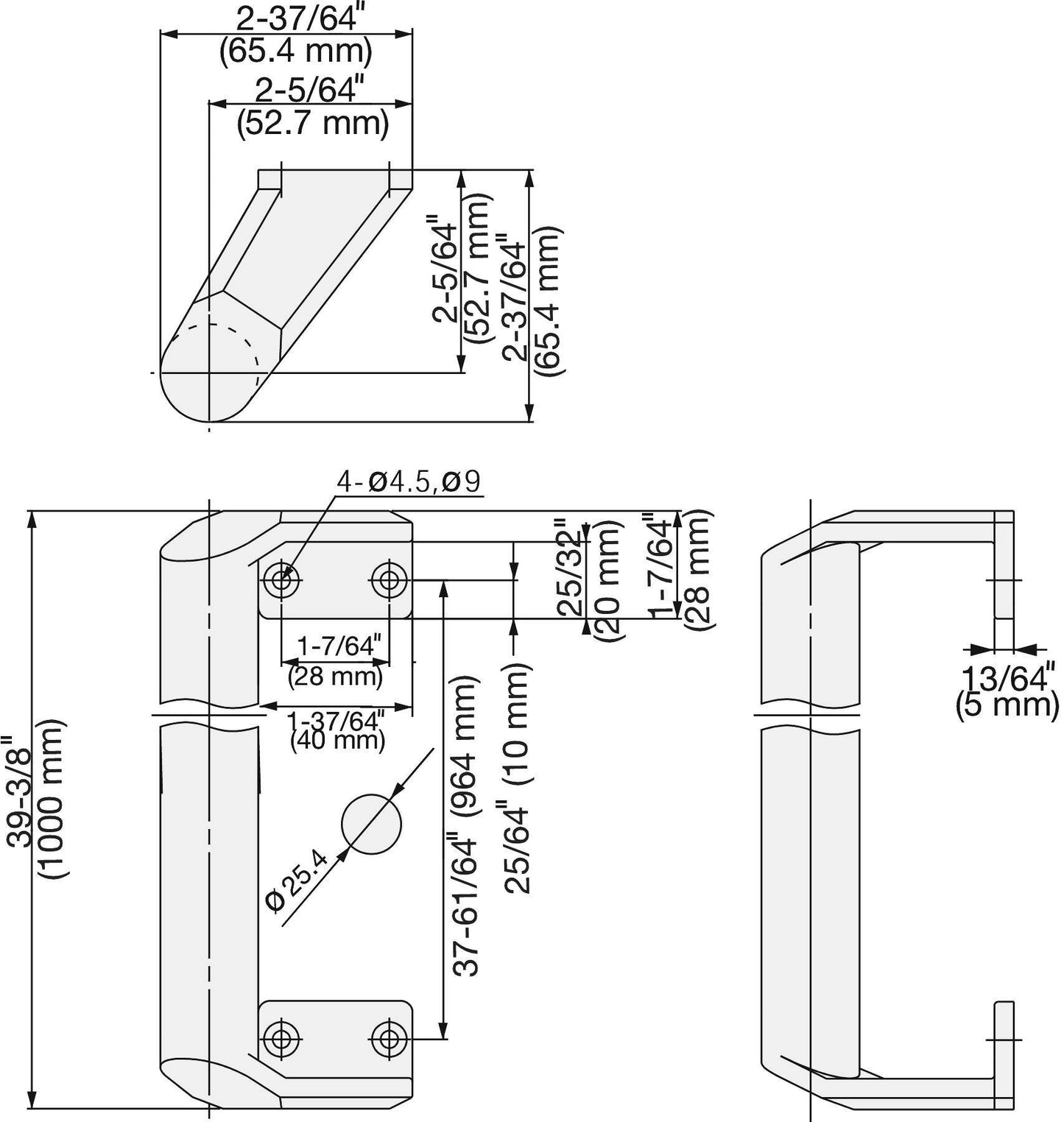

[caption id="attachment_41000" align="alignnone" width="420"] Sugatsune's stainless steel door handle V4A (SUS316), MP-1000 (1000 mm). Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel door handle MP-1000 made of stainless steel SUS316 (V4A)

Manufacturer reference number:

• Article number: 100-010-502
• Article name: MP-1000
• EAN number: 4510932002011

Manufacturer: SUGATSUNE / LAMP® (Japan)
