High-quality, solid stainless steel angled handle, mirror polished, 200 mm (7.9") SN-200M. Furniture handle SN-200M for boats, yachts, stainless steel kitchens, beach hotels, doctor's offices, kitchen cabinets, and drawers, by Sugatsune / LAMP® (Japan)

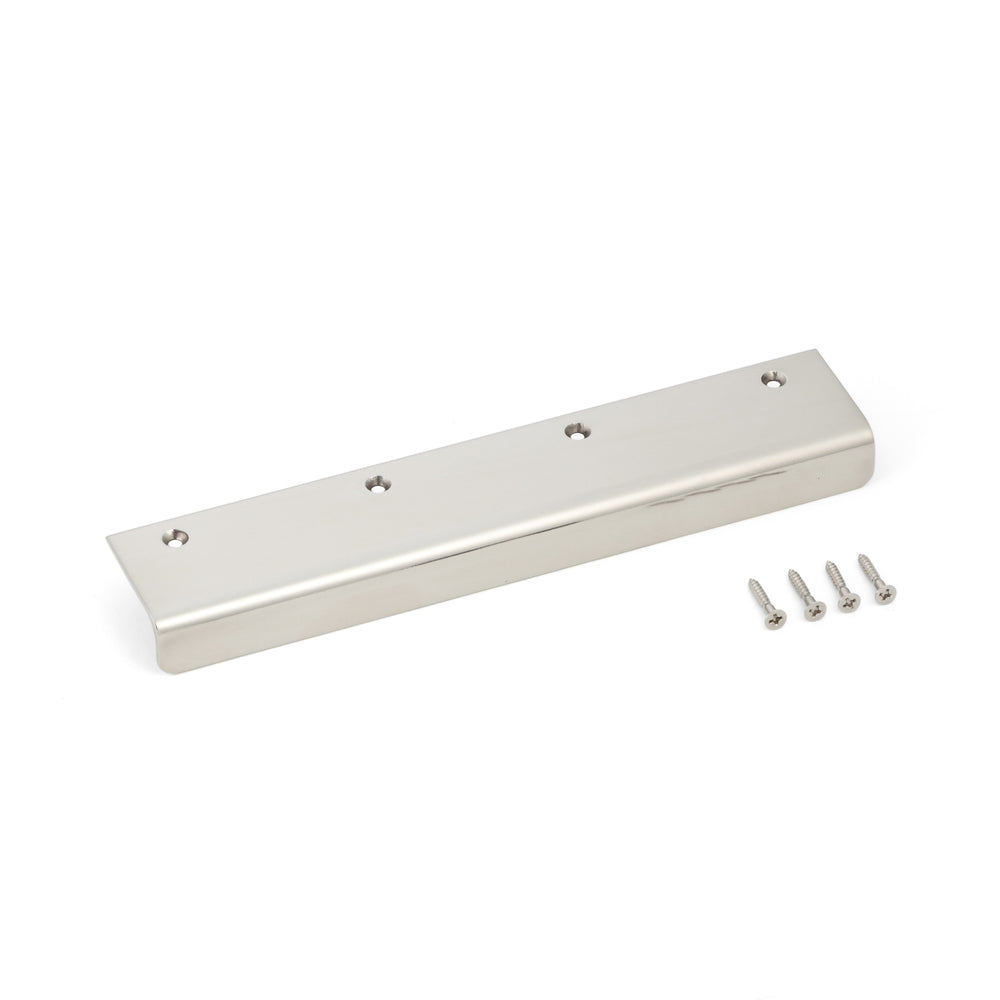

High-quality stainless steel angle handle, shiny polished SN-200M

Application: Furniture handle SN-200M for boat, yacht, stainless steel kitchen, beach hotel, doctor's office, kitchen cabinet, drawer. The high-quality stainless steel angle handles SN-200M are ideal for, among other things:

• boat
• yacht
• stainless steel kitchen
• beach hotel
• doctor's office
• kitchen cabinet
• drawer
• Living room cabinet
• Office furniture
• bedroom furniture

Material:

• The high-quality stainless steel angle handles SN-200M are made of stainless steel (V2A)

Surface:

• Shiny polished

Assembly:

• The fastening is carried out using the screws included in delivery (countersunk wood screw 3.1 x 20 mm)
• The fastening screws are also made of stainless steel

Characteristics:

• Weight: 200 g
• Size: 200 mm (7.9″)
• Elaborately processed
• No sharp edges
• Ergonomic
• Solid
• Robust
• Shiny polished
• High brand quality from Sugatsune / LAMP®

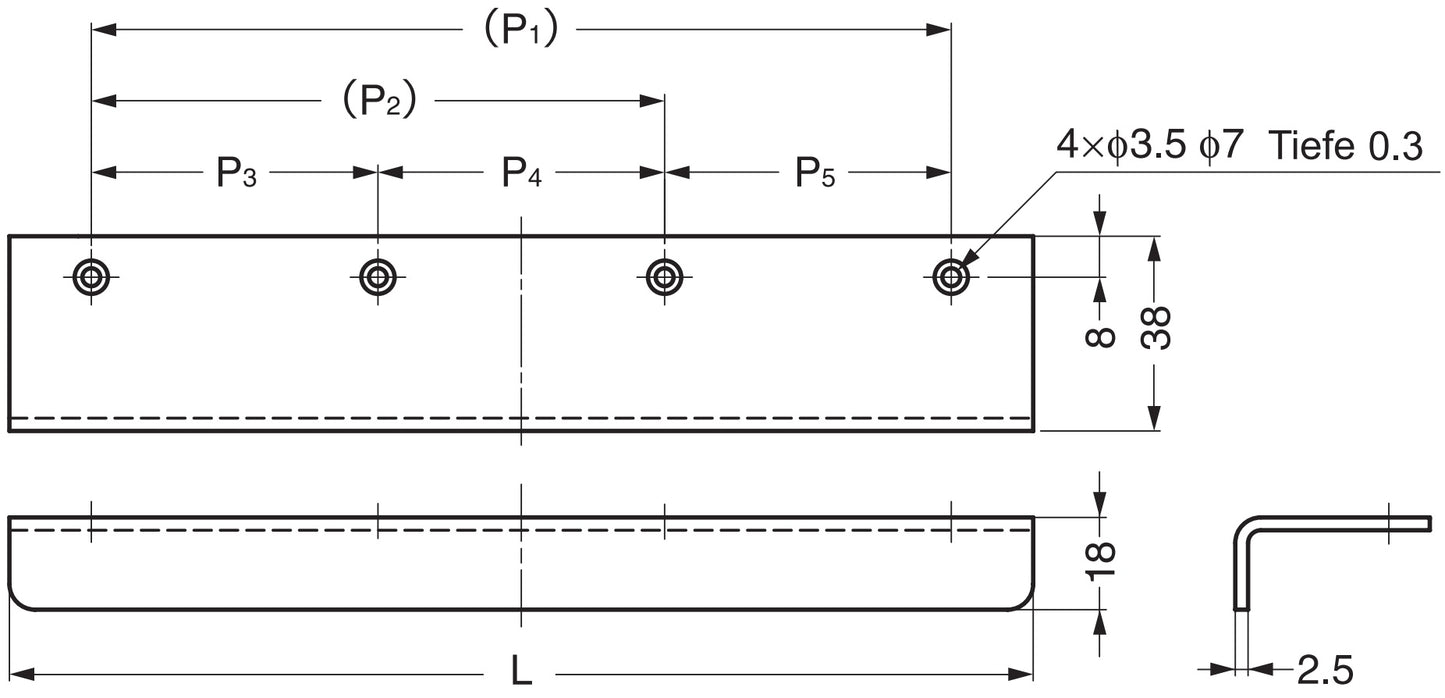

Dimensions: For further dimensions and details see technical drawing .

• Length of the stainless steel angle handle (L): 200 mm (7-7/8″)
• Height (H): 18 mm (45/64″)
• Distance between mounting holes (P1): 168 mm (6-39/64″)
• Distance between mounting holes (P2): 112 mm (4-13/32″)
• Distance between mounting holes (P3): 56 mm (2-13/64″)
• Distance between mounting holes (P4): 56 mm (2-13/64″)
• Distance between mounting holes (P5): 56 mm (2-13/64″)
• Handle depth: 38 mm (1-1/2″)
• Material thickness: 2.5 mm (3/32″)

[caption id="attachment_105907" align="alignnone" width="420"] High-quality, solid stainless steel angled handle, shiny polished, SN-200M, 200 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel angle handle SN-200M made of stainless steel, shiny polished
• 4 countersunk wood screws 3.1 x 20 mm made of stainless steel

Manufacturer reference number:

• Article number: 100-021-721
• Item number: SN-200M
• EAN number: 4510932009607

Manufacturer: Sugatsune / LAMP® (Japan)
