Edelstahlgriff SUS304 mit weichem Griffbereich, 70 mm (2,8″) HS-70S. Weicher Edelstahlgriff aus rostfreiem Edelstahl V2A, satiniert matt, für Küche, Wohnmöbel, Badezimmermöbel, feuchte Umgebung, Schiff, Wohnwagen, von Sugatsune / LAMP® (Japan)

Stainless steel handle made of stainless steel V2A (SUS304) HS-70S

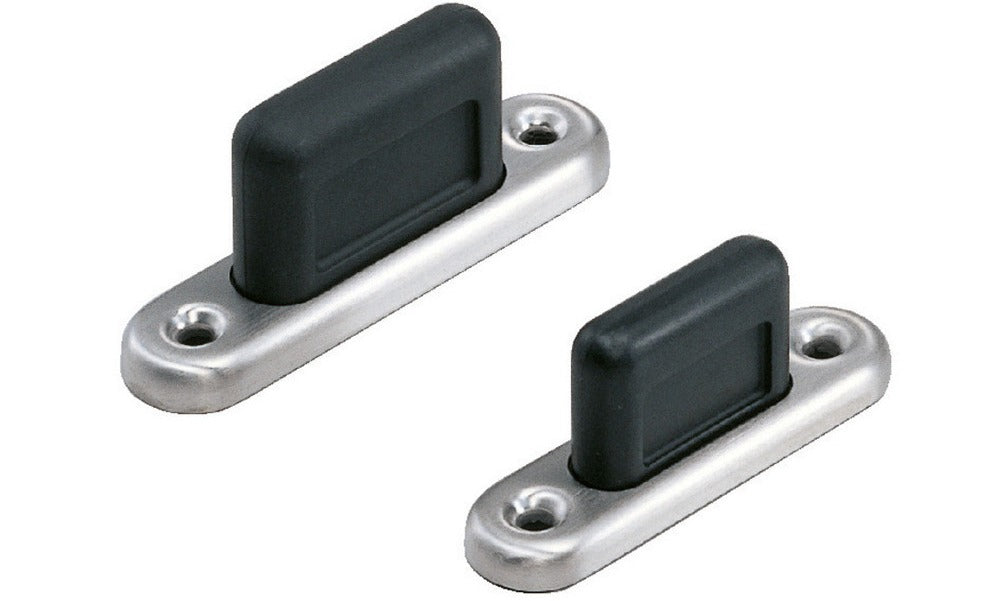

Application: [caption id="attachment_47355" align="alignnone" width="420"] Sugatsune HS-70S (70 mm) SUS304 stainless steel handle with soft grip, satin finish. Application[/caption] Soft stainless steel handle made of V2A stainless steel, satin matt, for kitchen, living room furniture, bathroom furniture, damp environments, ships, caravans. The special feature of the unique stainless steel handles HS-70S is that their grip area is made of a soft but very strong material. This gives the corrosion-free HS-70S handles unique properties, such as increased safety and more comfortable gripping. On the one hand, the HS-70S stainless steel handles are robust and corrosion-resistant, on the other hand, they are soft and ensure greater safety during use. They can be used, for example, in households where small children are present to minimize the risk of injury. These soft handles can also provide greater safety on ships. In addition, the soft grip area of ​​the HS-70S stainless steel handles is much more comfortable to use. They can be mounted both horizontally and vertically. The high-quality HS-70S stainless steel handles are ideal for:

• Kitchen
• Home furniture
• Bathroom furniture
• humid environment
• Ship
• Caravan
• cruise ship
• yacht
• boat
• Outdoor area
• bathroom
• sauna
• Outdoor furniture
• Restaurant furnishings

Material: The HS-70S stainless steel handles are made of solid, high-quality SUS304 stainless steel and robust elastomer (TPE). The ring handle is also ideal for use in swimming pools, shipbuilding, etc. Surface:

• Satin matt
• Handle area: in trendy black

Assembly:

• The stainless steel handles HS-70S are for screwing
• The mounting is done using the screws included in delivery (3.1 × 20 mm)
• The fastening screws are also made of stainless steel
• For installation, two holes for the screws must be drilled with a distance of 38 mm (1-16/32″)

Characteristics:

• Weight: 20 g
• Size: 70 mm (2.8″)
• Soft grip area
• Shape: rectangular
• Unique design
• Made of stainless steel and elastomer
• Stainless steel
• Corrosion-resistant
• High quality

Dimensions: For further dimensions and details see technical drawing .

• Size of the stainless steel handle (L1): 70 mm (2-24/32″)
• Width of the grip area (L2): 38 mm (1-16/32″)
• Depth (H): 30 mm (1-6/32″)
• Distance between mounting holes (P): 53 mm (2-3/32″)
• The soft stainless steel handles HS-70S are available in two sizes

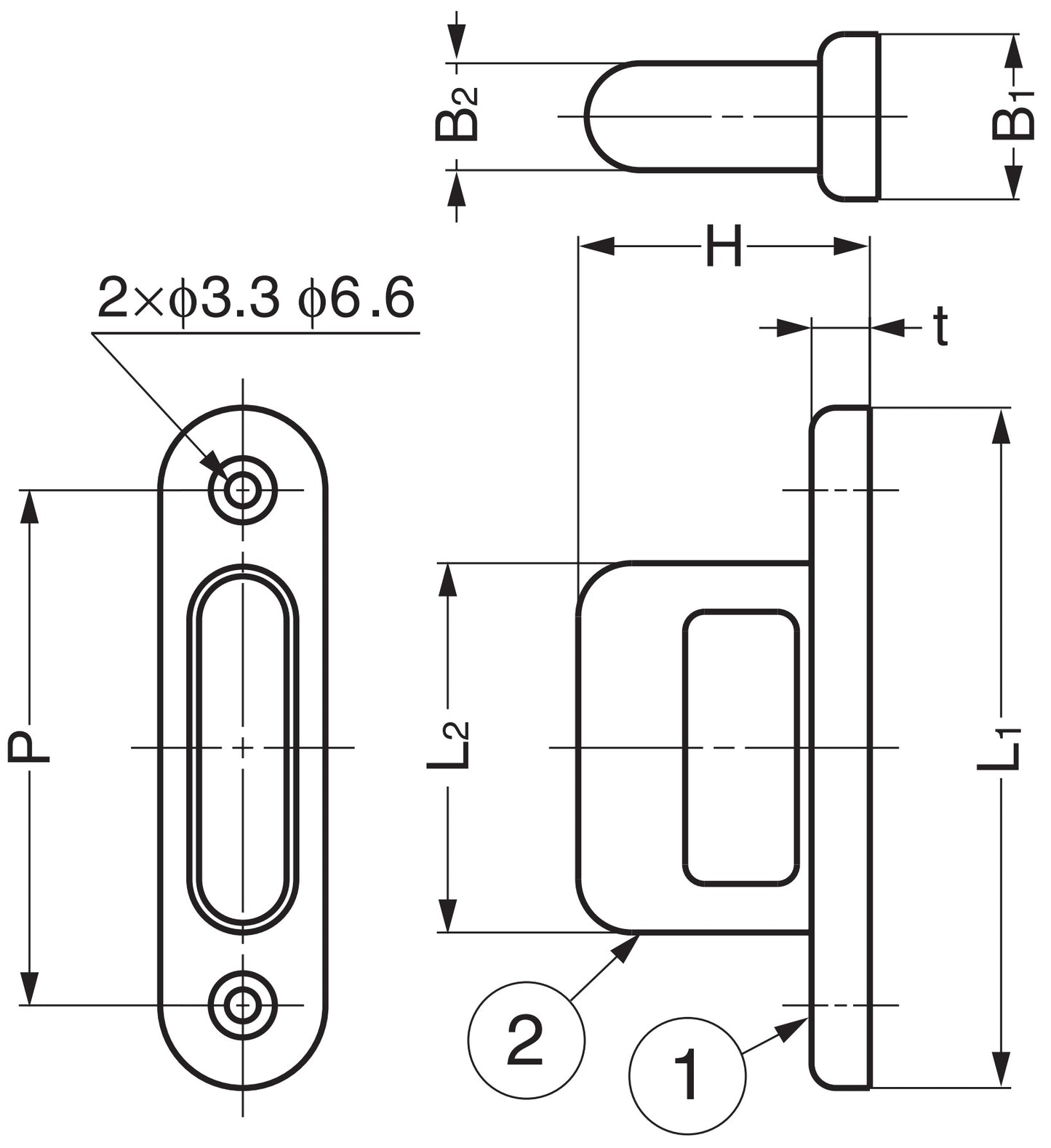

[caption id="attachment_47368" align="alignnone" width="420"] Sugatsune HS-70S (70 mm) SUS304 stainless steel handle with soft grip, satin finish. Technical drawing[/caption] Included in delivery:

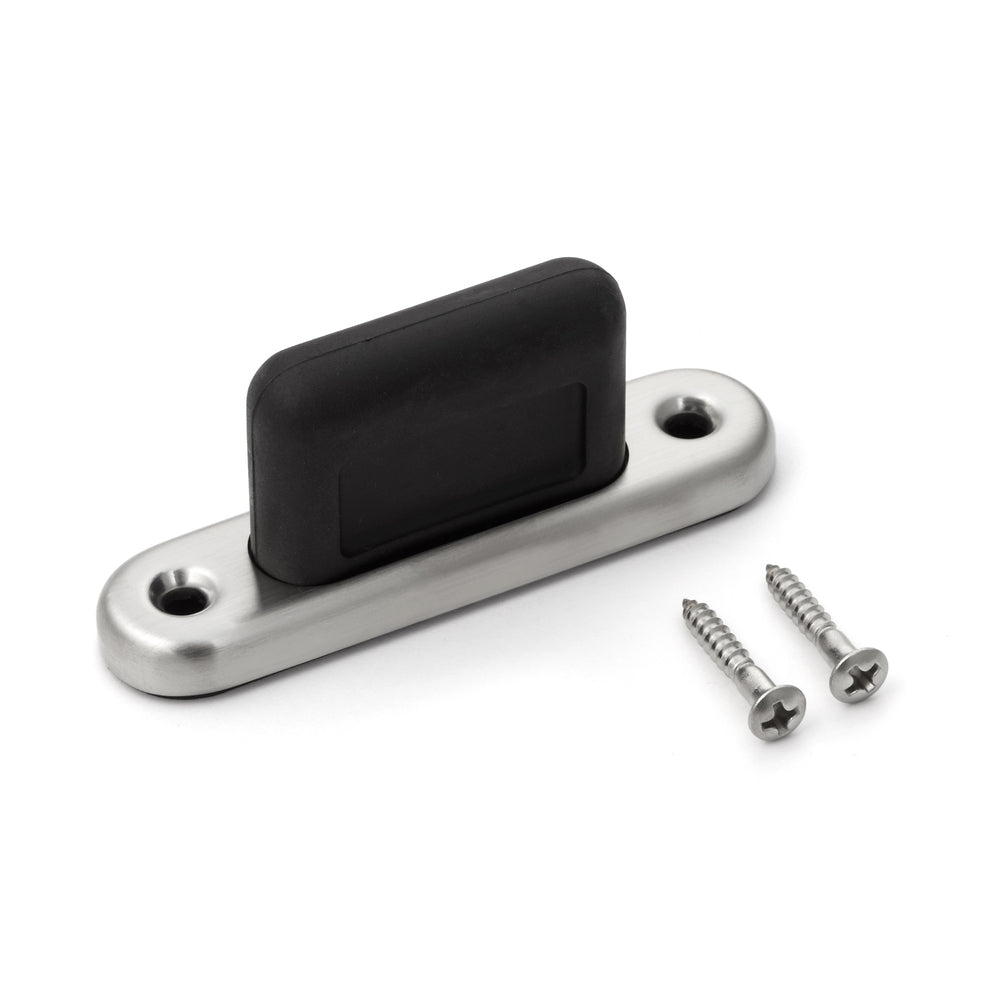

• 1 piece stainless steel handle HS-70S made of stainless steel SUS304 (V2A)
• 2 x 3.1 × 20 mm stainless steel fastening screws

Manufacturer reference number:

• Article number: 100-012-193
• Item name: HS-70S
• EAN number: 4510932011488

Manufacturer: SUGATSUNE / LAMP® (Japan)
