Edelstahlgriff V4A (SUS316), 90 mm (3,6″) RD-90SM. Hochwertiger Edelstahlgriff aus feinstem Edelstahl V4A (SUS316) für exklusive Raumgestaltung, hochwertige Einrichtungen sowie für feuchte, raue und hochkorrosive Umgebungen von Sugatsune / LAMP® (Japan)

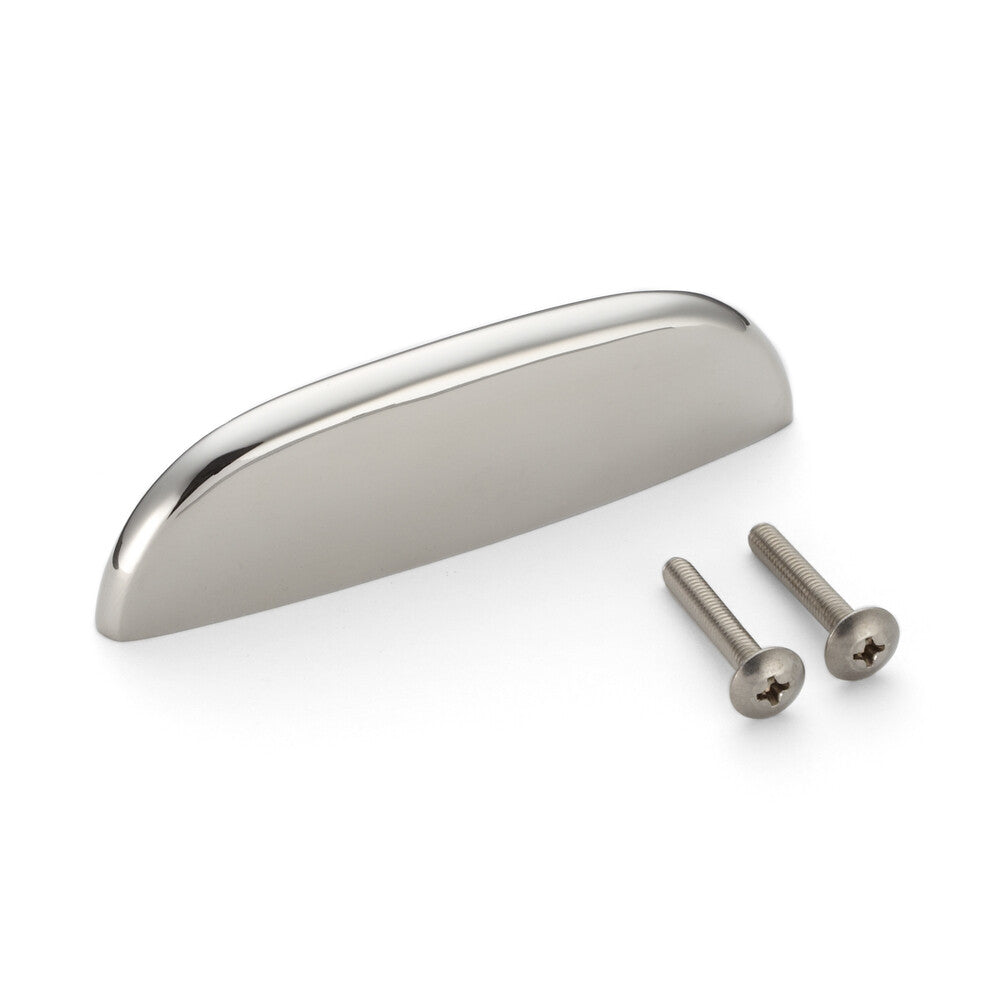

Stainless steel handle made of stainless steel V4A (SUS316) RD-90SM

Application: High-quality stainless steel handle made of the finest V4A (SUS316) stainless steel for exclusive interior design, high-quality furnishings and for humid, harsh and highly corrosive environments. The SUS316 stainless steel gives the RD-90SM stainless steel handles unique properties. The RD-90SM stainless steel handles are ideal for:

• Cruise ships
• yachts
• boats
• Outdoor area
• coastal facilities
• exclusive bathrooms
• public bath
• beach hotel
• laboratory
• Medical field
• Laboratory equipment

Material: The RD-90SM stainless steel handles are made of solid high-quality SUS316 stainless steel. SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance. Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used and expressly recommended for use near the coast. RD-90SM stainless steel handles made of SUS316 stainless steel are also ideal for use in swimming pools, shipbuilding, the chemical industry, etc. Surface:

• Shiny polished
• The stainless steel handles RD-90SM appear solid and high-quality

Assembly:

• The mounting is done using the screws included in delivery (M4 × 25 mm)
• The fastening screws are also made of stainless steel

Characteristics:

• Weight: 80 g
• Size: 90 mm (3.6″)
• Stainless steel
• Corrosion-resistant

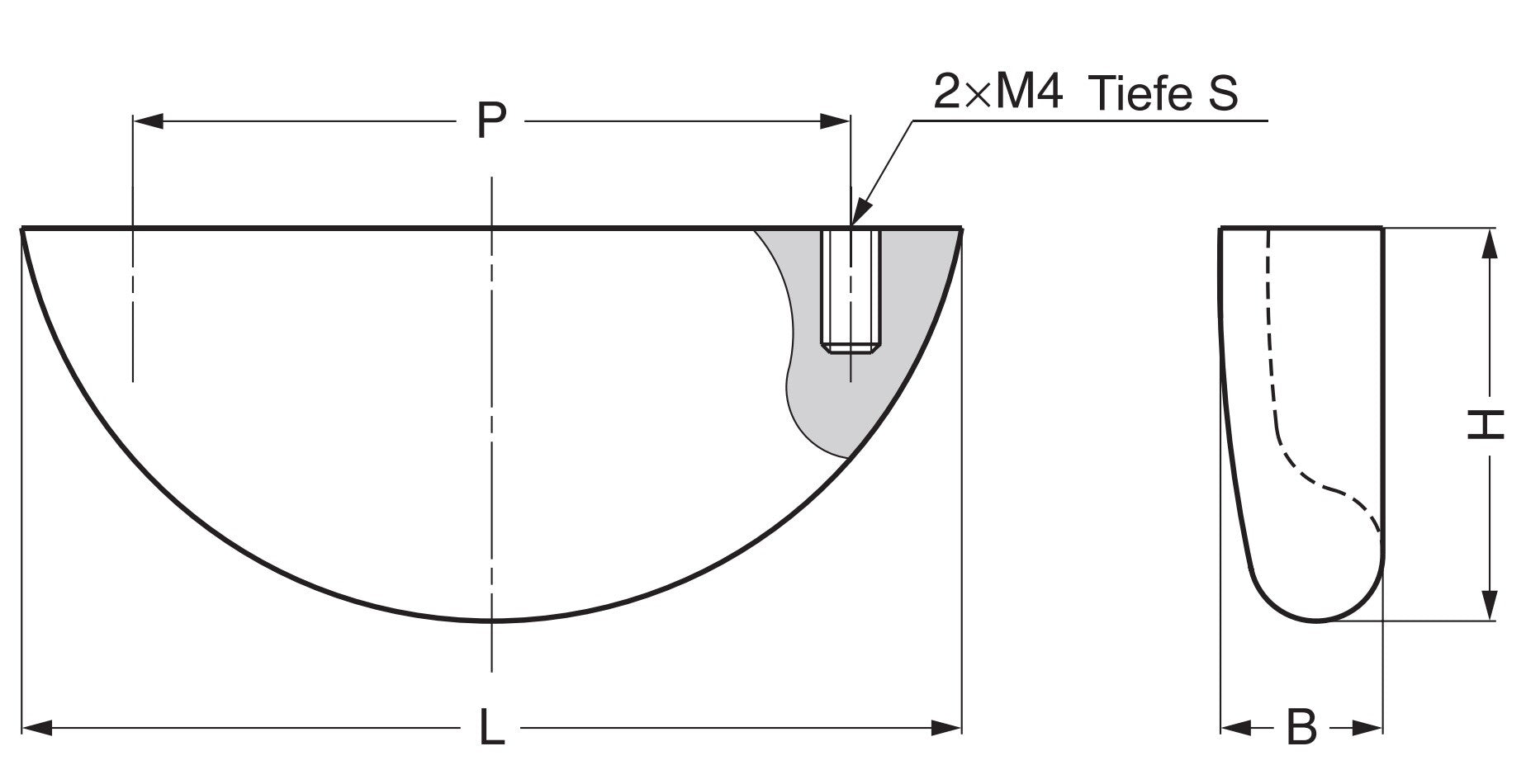

Dimensions: For further dimensions and details see technical drawing .

• Width of the stainless steel handle (L): 90 mm (3.55″)
• Height (W): 10.5 mm (0.42″)
• Depth (H): 25.5 mm (1.01″)
• Distance between holes (P): 74 mm (2.92″)
• Depth of drill holes (S): 10 mm (0.4″)

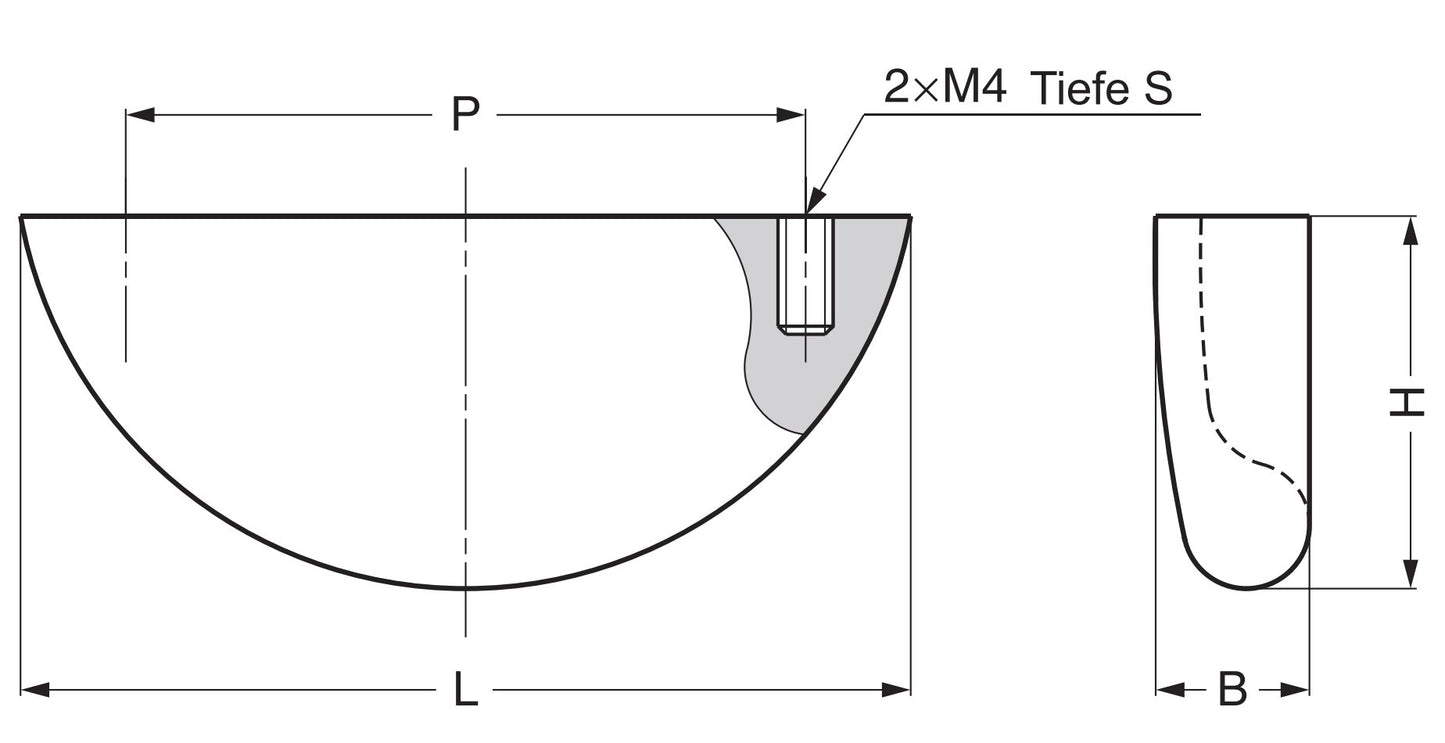

[caption id="attachment_40883" align="alignnone" width="420"] Sugatsune V4A (SUS316) stainless steel handle, RD-90SM (90 mm). Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel handle RD-90SM made of stainless steel SUS316 (V4A)
• 2 x M4 × 25 mm mounting screws

Manufacturer reference number:

• Article number: 100-901-050
• Article name: RD-90SM
• EAN number: 4510932008730

Manufacturer: SUGATSUNE / LAMP® (Japan)
