Hochwertiger Edelstahlmöbelgriff aus SUS304 (V2A), satiniert matt, 83 mm (3,3″) ECH-75S. Edelstahltürgriff aus SUS304 (V2A), satiniert matt, für Boot, Yacht, Edelstahlküche, Strandhotel, Arztpraxis, Möbel, von Sugatsune / LAMP® (Japan)

High-quality solid stainless steel furniture handle, satin matt ECH-75S

Application: Stainless steel door handle made of SUS304 (V2A), satin matt, for boat, yacht, stainless steel kitchen, beach hotel, doctor's office, furniture. The high-quality stainless steel furniture handles ECH-75S are ideal for:

• boat
• yacht
• stainless steel kitchen
• beach hotel
• doctor's office
• Furniture
• yacht
• cruise ship
• beach hotel
• Food sector
• Medical field
• Outdoor furniture
• doctor's office

Material:

• The high-quality stainless steel furniture handles ECH-75S are made of stainless steel SUS304 (V2A)

Surface:

• Satin matt

Assembly:

• The mounting is done using the screws included in delivery (M5 x 28 mm)

Characteristics:

• Weight: 110 g
• Size: 83 mm (3.3″)
• Ergonomic
• Robust
• Made of SUS304 (V2A)
• Satin matt
• High brand quality from Sugatsune / LAMP®

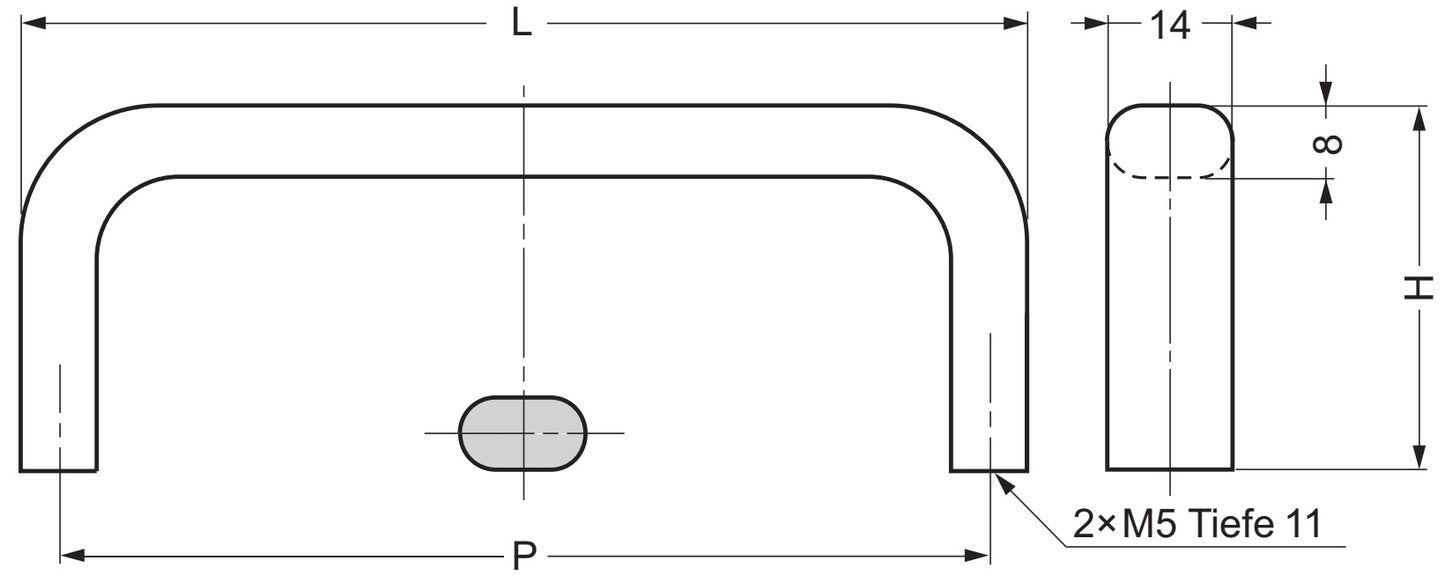

Dimensions: For further dimensions and details see technical drawing .

• Width of the stainless steel furniture handle (L): 83 mm (3-9/32″)
• Height (H): 40 mm (1-18/32″)
• Distance between mounting holes (P): 75 mm (2-30/32″)
• Material thickness: 14 mm (18/32″) x 8 mm (10/32″)
• Inner handle height: 34 mm (1-11/32″)
• Depth of holes in the handle: 11 mm (14/32″)

[caption id="attachment_58679" align="alignnone" width="420"] High-quality stainless steel furniture handle made of SUS304 (V2A), satin finish, ECH-75S, 83 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

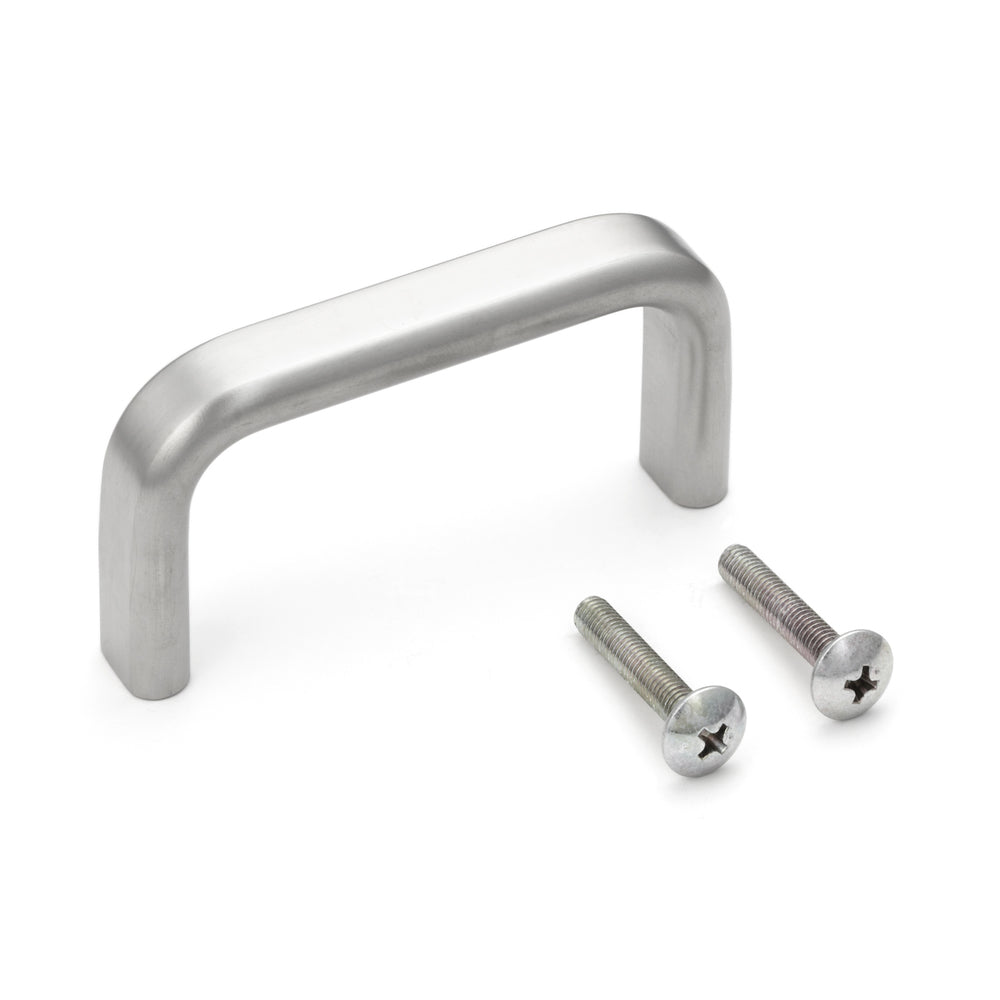

• 1 piece stainless steel furniture handle ECH-75S made of stainless steel SUS304 (V2A)
• 2 x M5 x 28 mm fastening screws

Manufacturer reference number:

• Article number: 100-017-249
• Item number: ECH-75S
• EAN number: 4510932007009

Manufacturer: Sugatsune / LAMP® (Japan)
