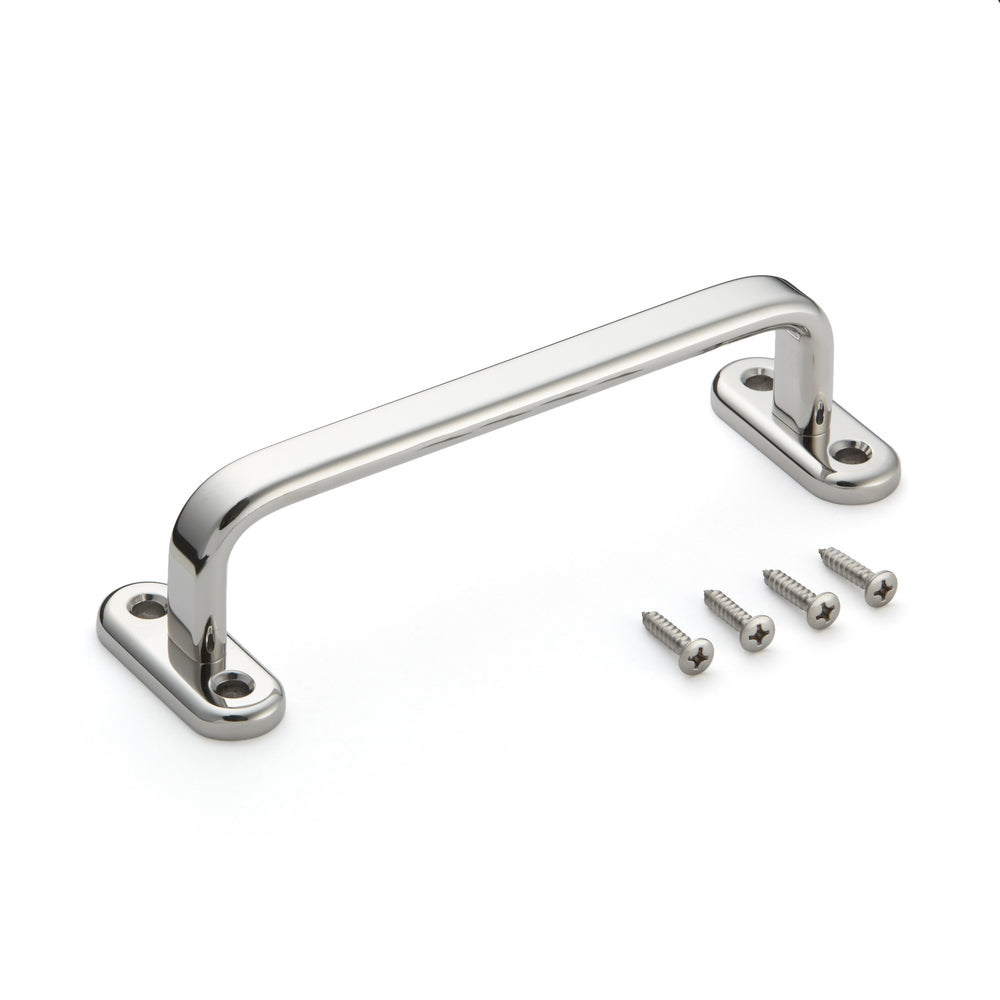

Hochwertiger massiver Edelstahlmöbelgriff aus SUS304 (V2A) mit Vierpunktbefestigung, 165 mm (6,5″) EC-H-165. Edelstahltürgriff EC-H-165 aus SUS304 (V2A) mit vier Befestigungslöchern für Boot, Yacht, Edelstahlküche, von Sugatsune / LAMP® (Japan)

High-quality solid stainless steel furniture handle made of SUS304 (V2A) stainless steel with four mounting holes EC-H-165

Application: Stainless steel door handle EC-H-165 made of SUS304 (V2A) with four mounting holes for boat, yacht, stainless steel kitchen. The high-quality stainless steel furniture handles EC-H-165 are ideal for:

• boat
• yacht
• stainless steel kitchen
• cruise ship
• beach hotel
• Food sector
• Medical field
• Outdoor furniture
• doctor's office
• beach hotel

Material:

• The high-quality stainless steel furniture handles EC-H-165 are made of stainless steel SUS304 (V2A)

Surface:

• Shiny polished

Assembly:

• The fastening is carried out using the screws included in delivery (countersunk head self-tapping screw 4 x 20 mm)
• The fastening screws are also made of stainless steel
• For installation, four holes for the fixing screws must be pre-drilled in the front with a distance of 145 mm (5-45/64″) and 30 mm

Characteristics:

• Weight: 260 g
• Size: 165 mm (6.5″)
• Height of the handle area: 34 mm
• Four holes for extra secure fastening
• Ergonomic
• Solid
• Robust
• Made of SUS304 (V2A)
• Shiny polished
• High brand quality from Sugatsune / LAMP®

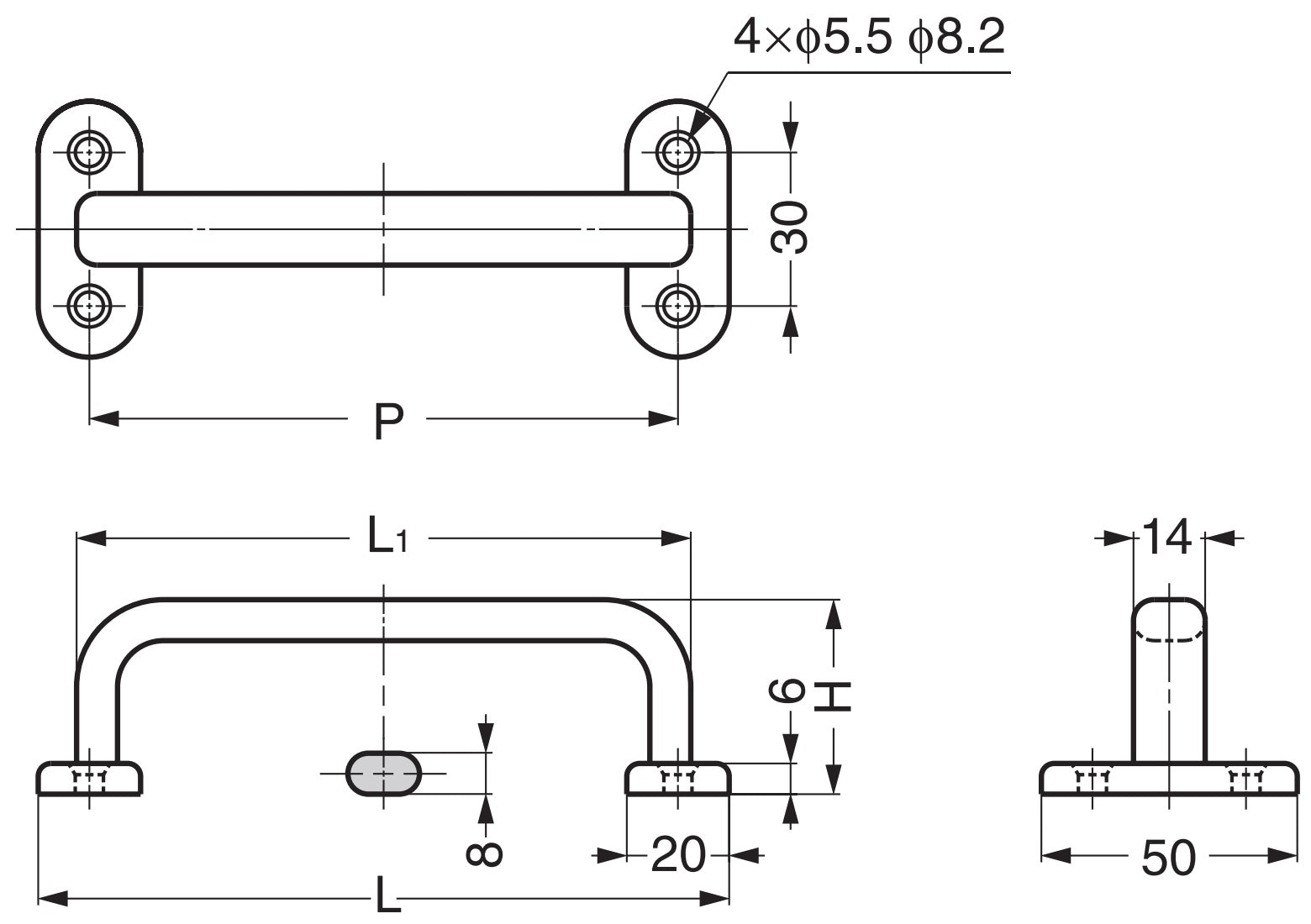

Dimensions: For further dimensions and details see technical drawing .

• Length of the stainless steel furniture handle (L): 165 mm (6-1/2″)
• Height (H): 42 mm (1-21/32″)
• Width of the grip area (L1): 150 mm (5-29/32″)
• Distance between mounting holes (P): 145 mm (5-45/64″)
• Material thickness: 14 mm (35/64″) x 8 mm (5/16″)
• Length of mounting plates: 50 mm (1-31/32″)

[caption id="attachment_91151" align="alignnone" width="420"] High-quality solid stainless steel furniture handle made of SUS304 (V2A) with four-point fastening, EC-H-165, 165 mm, by Sugatsune, glossy polished. Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel furniture handle EC-H-165 made of stainless steel SUS304 (V2A)
• 4 pieces of raised countersunk head self-tapping screw 4 x 20 mm made of stainless steel

Manufacturer reference number:

• Article number: 100-010-057
• Item number: EC-H-165
• EAN number: 4510932009119

Manufacturer: Sugatsune / LAMP® (Japan)
