Edelstahlmöbelgriff SUS316, 280 mm (11,1″) FT-280. Massiver stabiler Griff aus feinstem korrosionsfreiem Edelstahl V4A (SUS316) für hochwertige Einrichtungen, Außenbereich, feuchte, raue und hochkorrosive Umgebungen von Sugatsune / LAMP® (Japan)

High-quality solid stainless steel handle made of V4 (SUS316) stainless steel with four mounting holes, glossy surface, height 62 mm (2.45″) FT-280

Application: Solid, sturdy handle made of the finest corrosion-free stainless steel V4A (SUS316) for high-quality facilities, outdoor use, humid, harsh and highly corrosive environments. The stainless steel SUS316 gives the handles unique properties. With four mounting holes, this robust handle offers a particularly secure hold even on heavy doors and flaps. Thanks to its solid construction, this stainless steel handle can also be used for particularly demanding applications. The corrosion-free handles are ideal for:

• Cruise ships
• yachts
• boats
• ships
• Outdoor area
• coastal facilities
• bathroom
• Swimming pool
• sauna
• Medical field
• Laboratory equipment
• Outdoor furniture
• Restaurant furnishings
• stainless steel kitchen

Material: Made of solid high quality SUS316 stainless steel. SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance. Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used and expressly recommended for use near the coast. Handles made of SUS316 stainless steel are also ideal for use in swimming pools, shipbuilding, the chemical industry, etc. Surface:

• Shiny polished

Assembly:

• The assembly is carried out using the screws included in delivery (6 × 35 mm)
• The mounting screws are also made of stainless steel

Characteristics:

• Weight: 1250 g
• Size: 280 mm (11.1″)
• Four mounting holes for secure attachment
• Corrosion-resistant
• Stainless steel
• Easy to grip due to the ergonomic shape
• Available in sizes: 200 mm and 280 mm

Dimensions: For further dimensions and details see technical drawing .

• Length: 280 mm (11.03″)
• Distance between holes: 253 mm (9.97″) and 55 mm (2.17″)
• Inner size: 250 mm (9.85″)
• Handle height: 62 mm (2.45″)
• Material thickness: 26 mm (1.03″)
• Screw hole diameter: Φ7 mm

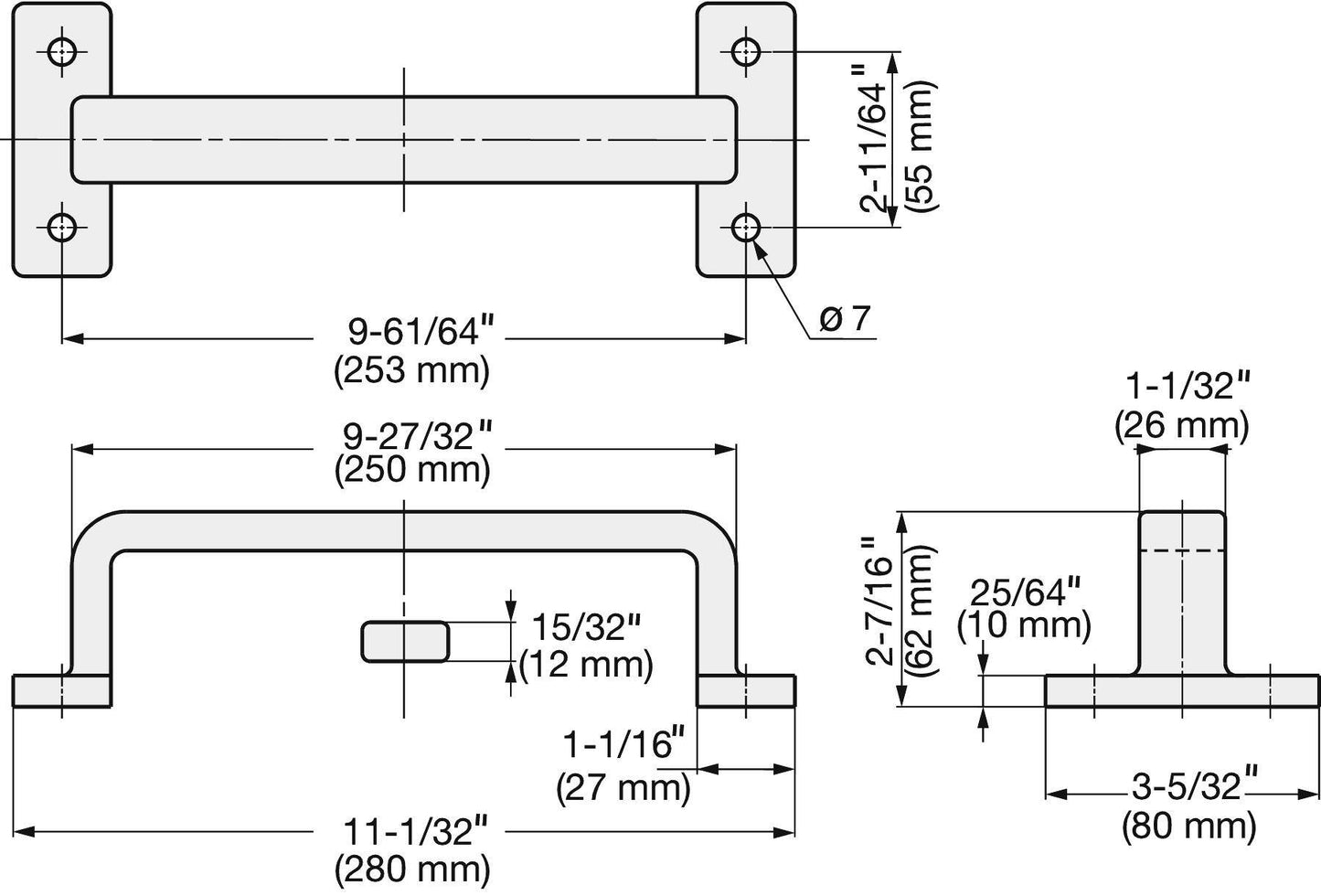

[caption id="attachment_38482" align="alignnone" width="420"] FT-280 SUS316 stainless steel furniture handle, 280 mm. Technical drawing[/caption] Included in delivery:

• 1 piece handle made of stainless steel SUS316 (V4A)
• 4 mounting screws made of corrosion-resistant stainless steel (6 × 35 mm)

Manufacturer reference number:

• Article number: 100-010-070
• Article name: FT-280
• EAN number: 4510932711685

Manufacturer: SUGATSUNE / LAMP® (Japan)
