Edelstahlmöbelgriff SUS316, matte und glänzende Oberfläche, 102 mm (4,1″), XL-JSR100TT. Möbelgriff, aus feinstem Edelstahl V4A (SUS316) für hochwertige Einrichtungen, sowie für den Außenbereich, feuchte und raue Umgebungen von Sugatsune / LAMP® (Japan)

High-quality solid stainless steel handle SUS316, combined matte and glossy surface, height 30 mm XL-JSR100TT

Application: Furniture handle made of the finest stainless steel V4A (SUS316) for high-quality furnishings, as well as for outdoor use, damp and harsh environments. The stainless steel SUS316 gives the furniture handles unique properties. The furniture handles are ideal for:

• Cruise ships
• yachts
• boats
• ships
• Outdoor area
• coastal facilities
• bathroom
• Swimming pool
• sauna
• Medical field
• Laboratory equipment
• Outdoor furniture
• Restaurant furnishings
• stainless steel kitchen

Material: Made of solid high quality SUS316 stainless steel. SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance. Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used and expressly recommended for use near the coast. Fittings made of SUS316 stainless steel are also ideal for use in swimming pools, shipbuilding, the chemical industry, etc. Surface:

• Combined glossy polished and satin matt surface

Assembly:

• The assembly is carried out using the M4 × 25 mm screws included in delivery
• The mounting screws are also made of stainless steel

Characteristics:

• Weight: 57 g
• Size: 102 mm (4.1″)
• Corrosion-resistant
• Available in sizes: 38 mm, 70 mm, 102 mm and 134 mm

Dimensions: For further dimensions and details see technical drawing .

• Distance between holes: 96 mm
• Depth of drill holes: 10 mm
• Handle height: 30 mm
• Material thickness: 6 mm

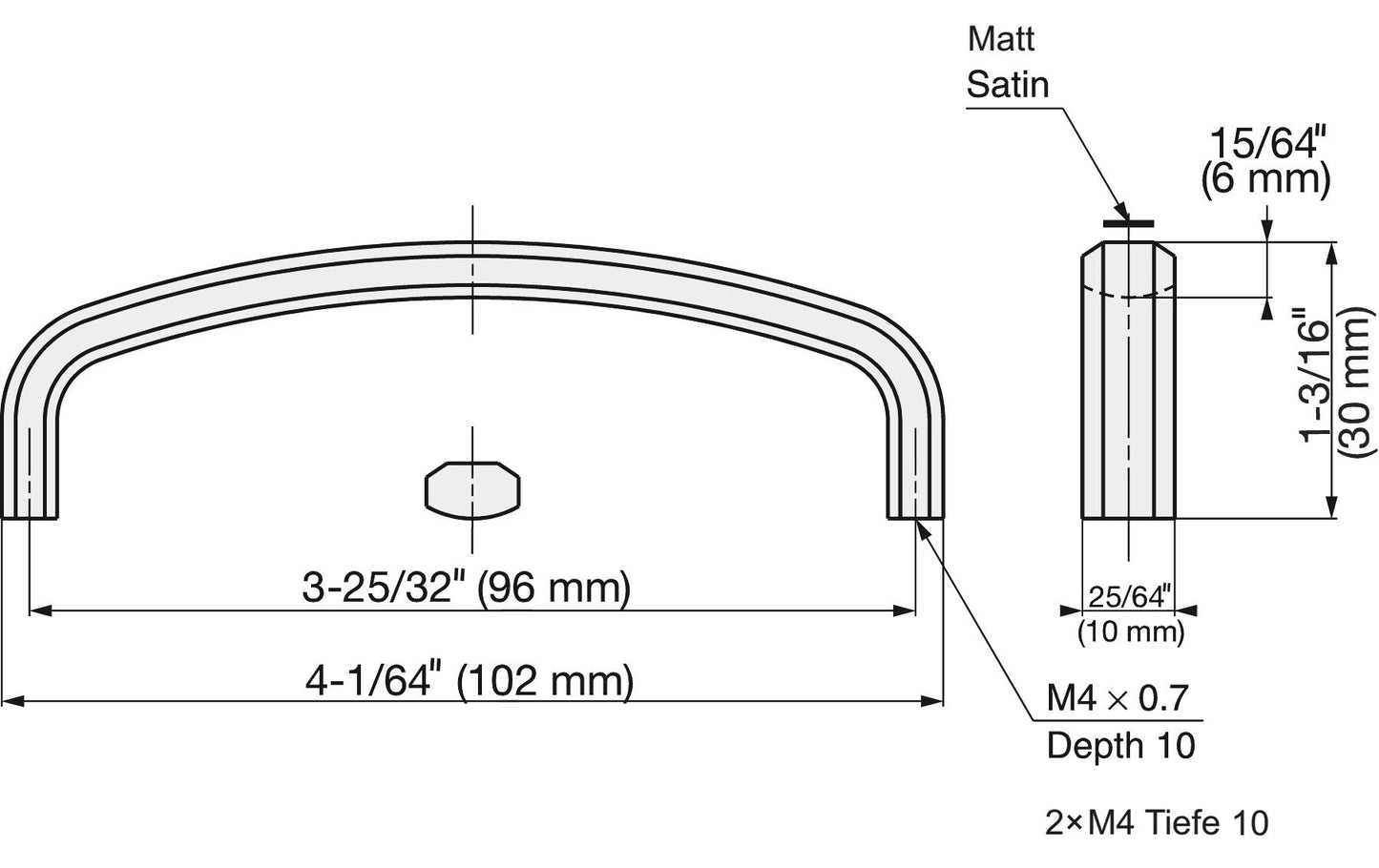

[caption id="attachment_37308" align="alignnone" width="420"] XL-JSR100TT SUS316 stainless steel furniture handle, matte and glossy finish, 102 mm. Technical drawing[/caption] Included in delivery:

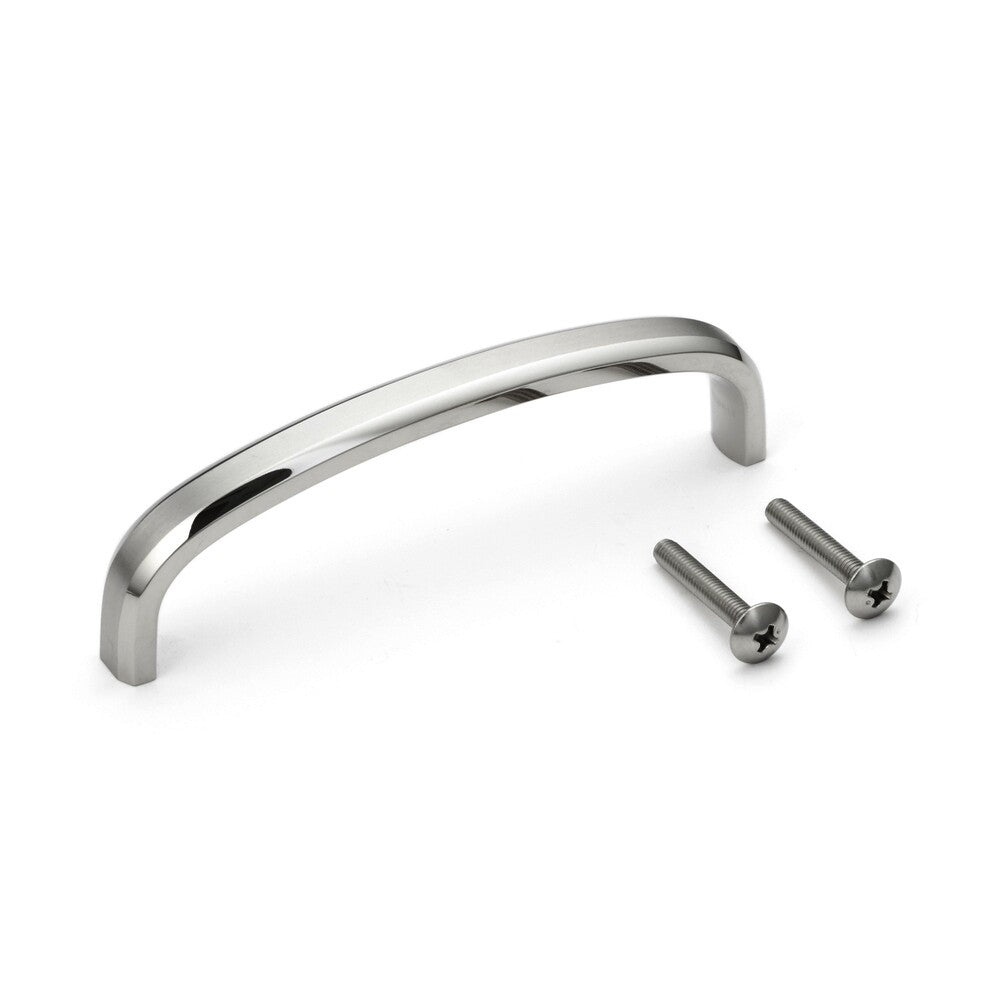

• 1 piece furniture handle made of stainless steel SUS316 (V4A)
• 2 stainless steel mounting screws (round head screws M4 × 25 mm)

Manufacturer reference number:

• Article number: 100-012-797
• Article name: XL-JSR100TT
• EAN number: 4510932001113

Manufacturer: SUGATSUNE / LAMP® (Japan)
