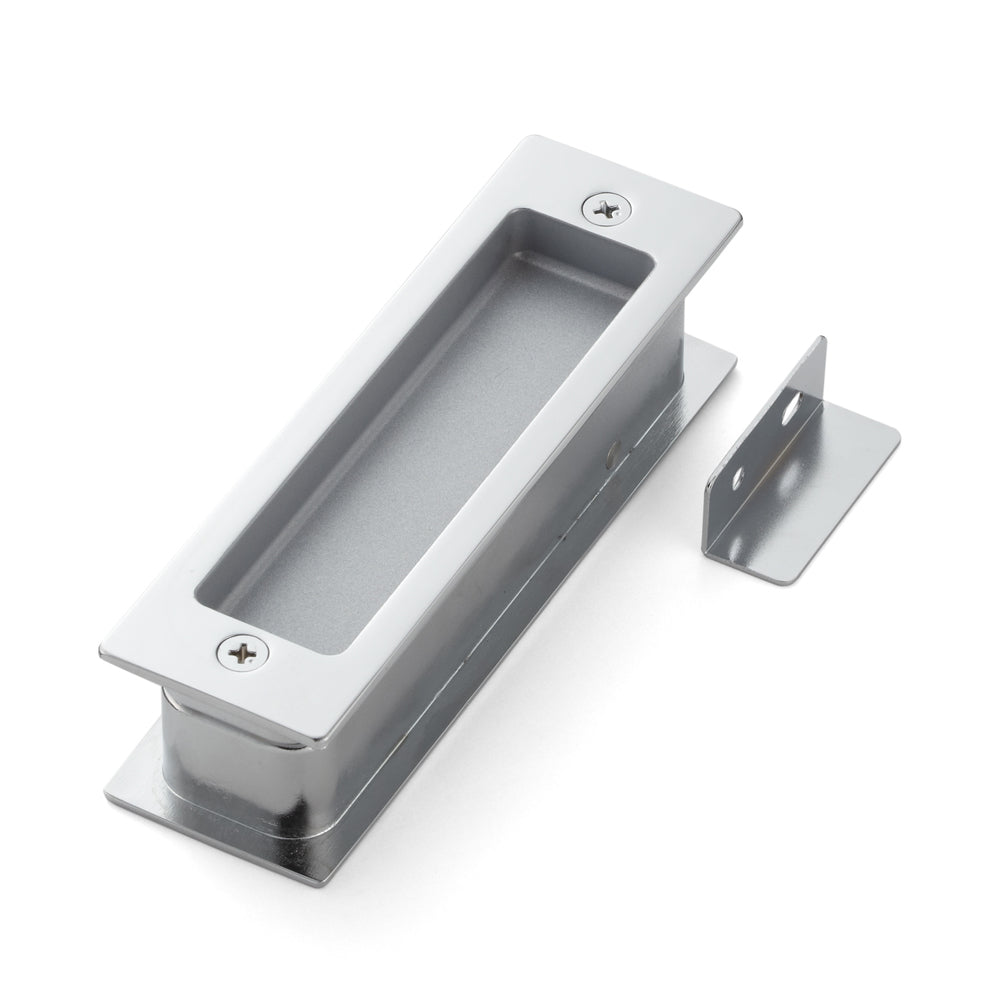

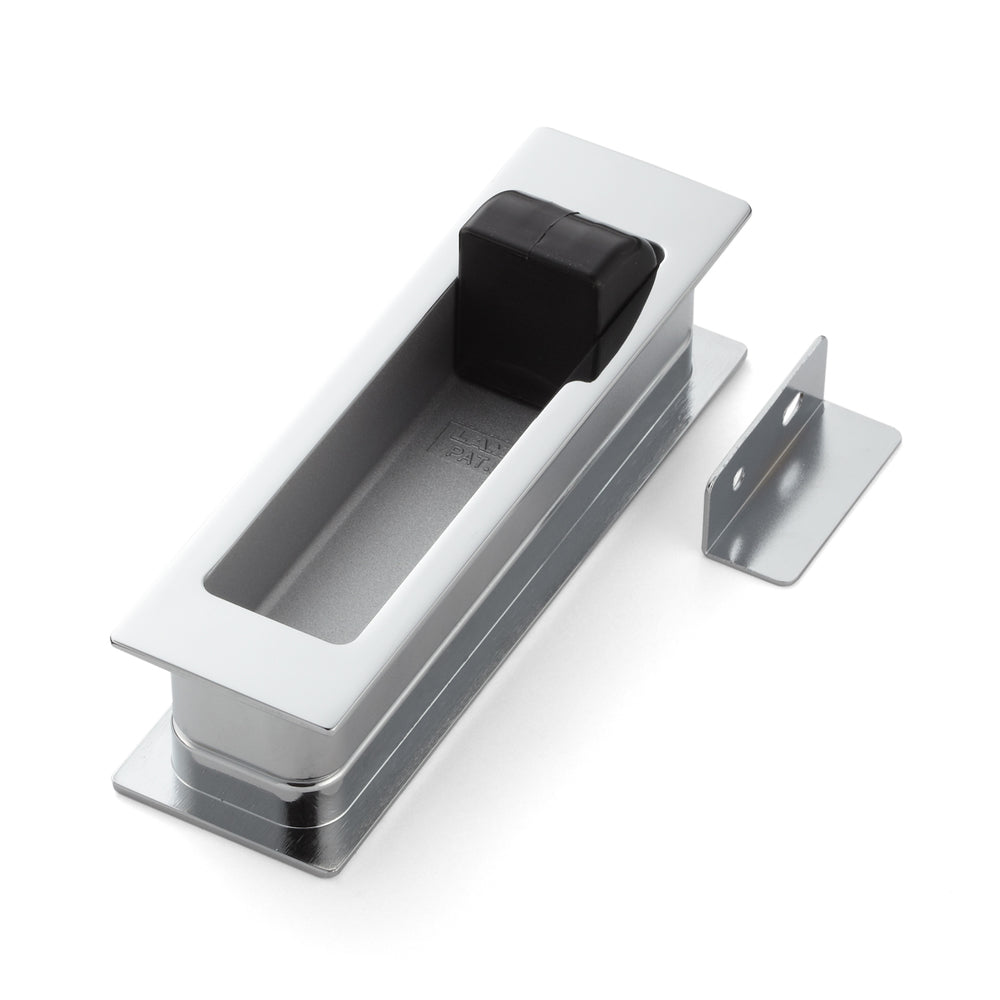

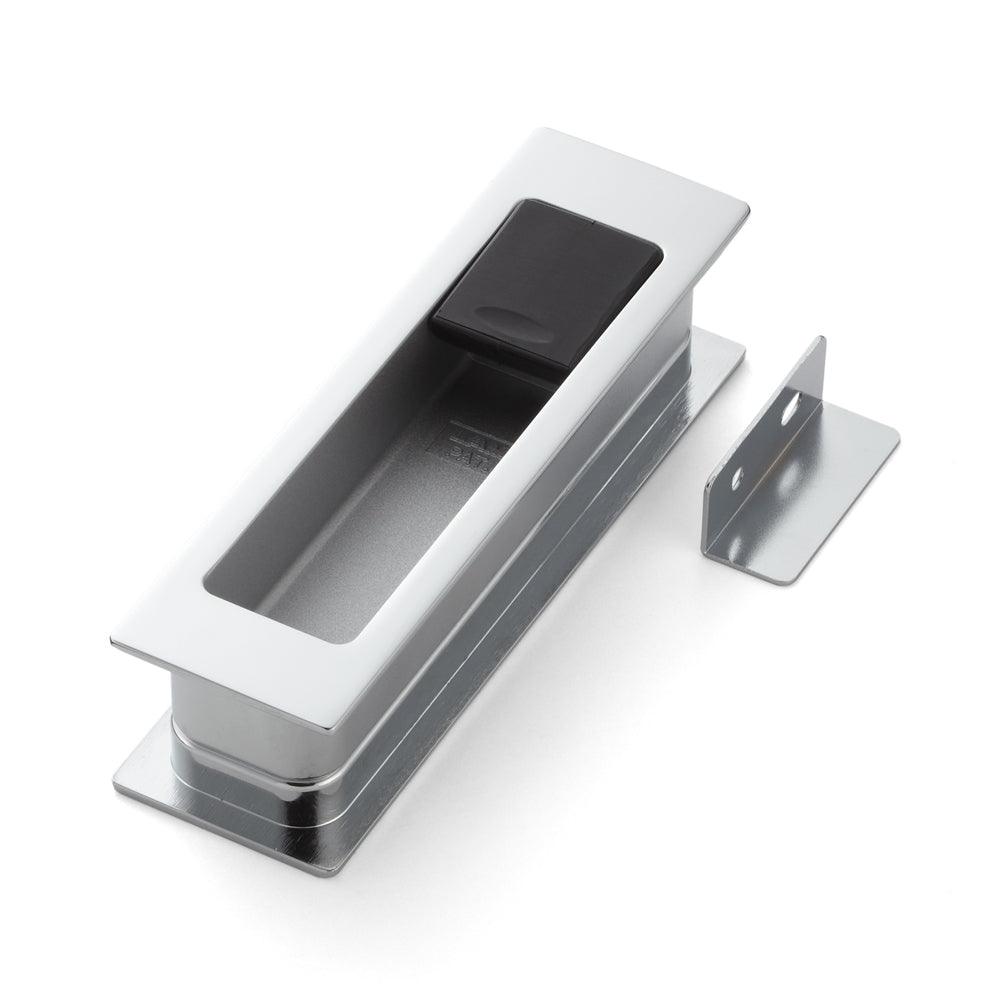

Zinc alloy flush pull with integrated fold-out door stop, chrome-plated finish, 135 mm (5.4") HH-P135CR. HH-P135CR flush pull with buffer for sliding doors, from Sugatsune / LAMP® (Japan)

High-quality recessed handle made of solid zinc alloy with integrated fold-out stop buffer, surface: chrome-plated, HH-P135CR

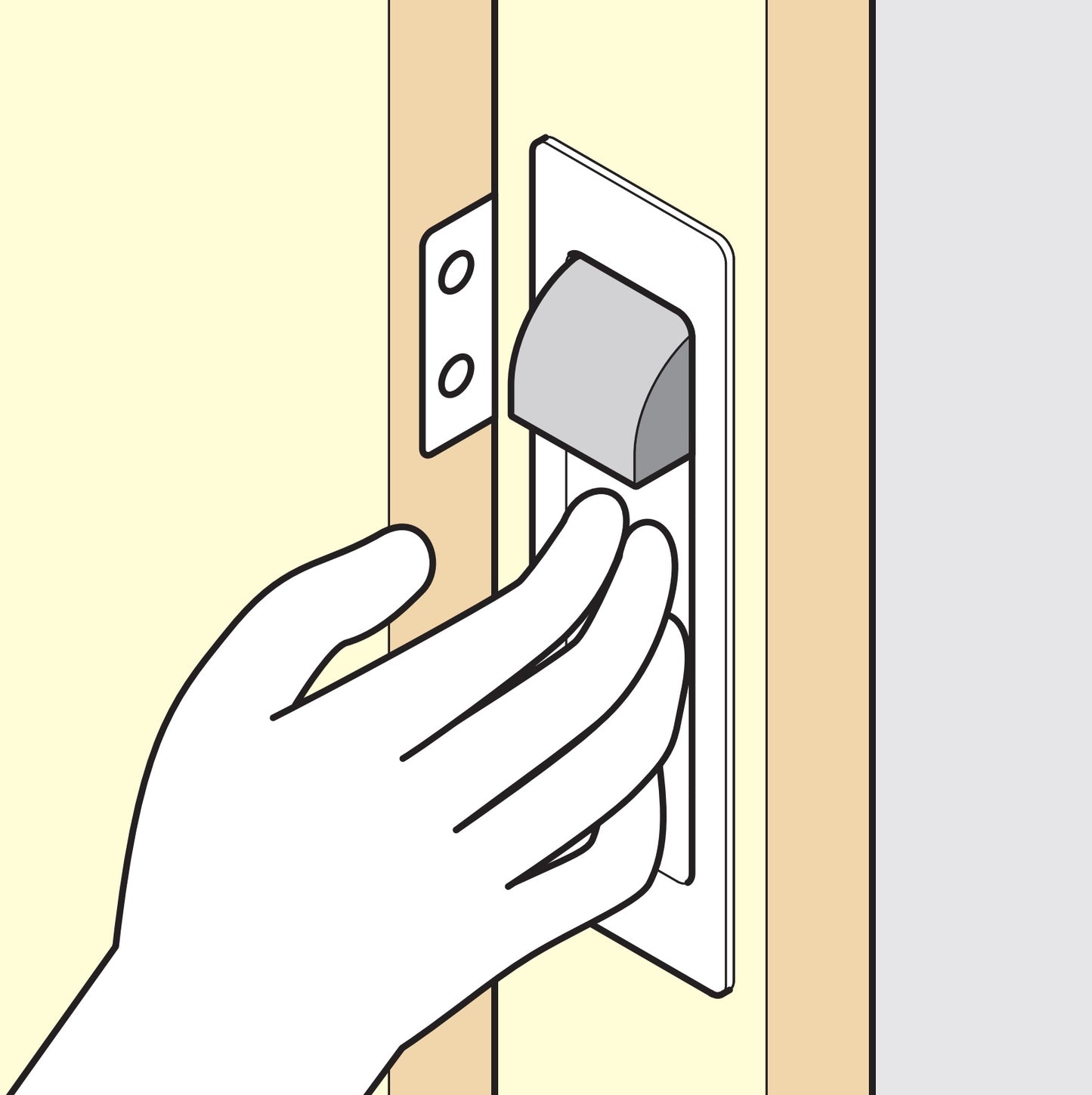

Application: Recessed handle HH-P135CR with stop buffer for sliding doors. The high-quality HH-P135CR flush pulls feature an integrated fold-out doorstop. This buffer prevents the door from slamming against the cabinet wall. [caption id="attachment_112847" align="alignnone" width="420"] Zinc alloy flush pull with integrated fold-out doorstop, chrome-plated finish, HH-P135CR, 135 mm, from Sugatsune. Application[/caption] In addition, the doorstop can protect hands and fingers from getting trapped, as it prevents the handle from retracting behind the cabinet wall. The stop buffer can be folded back in to fully open the door. The HH-P135CR flush pull handle can be installed on doors with a thickness of 30-50 mm. When installing on doors with a thickness of 40-50 mm, longer screws are required (not included). The inlet handle HH-P135CR is ideal for, among others:

• Sliding door

Material:

• The high-quality recessed handles HH-P135CR are made of zinc alloy (ZDC)

Surface:

• Chrome-plated

Assembly:

• The fastening is carried out using the screws included in delivery (countersunk screw M4 x 25)

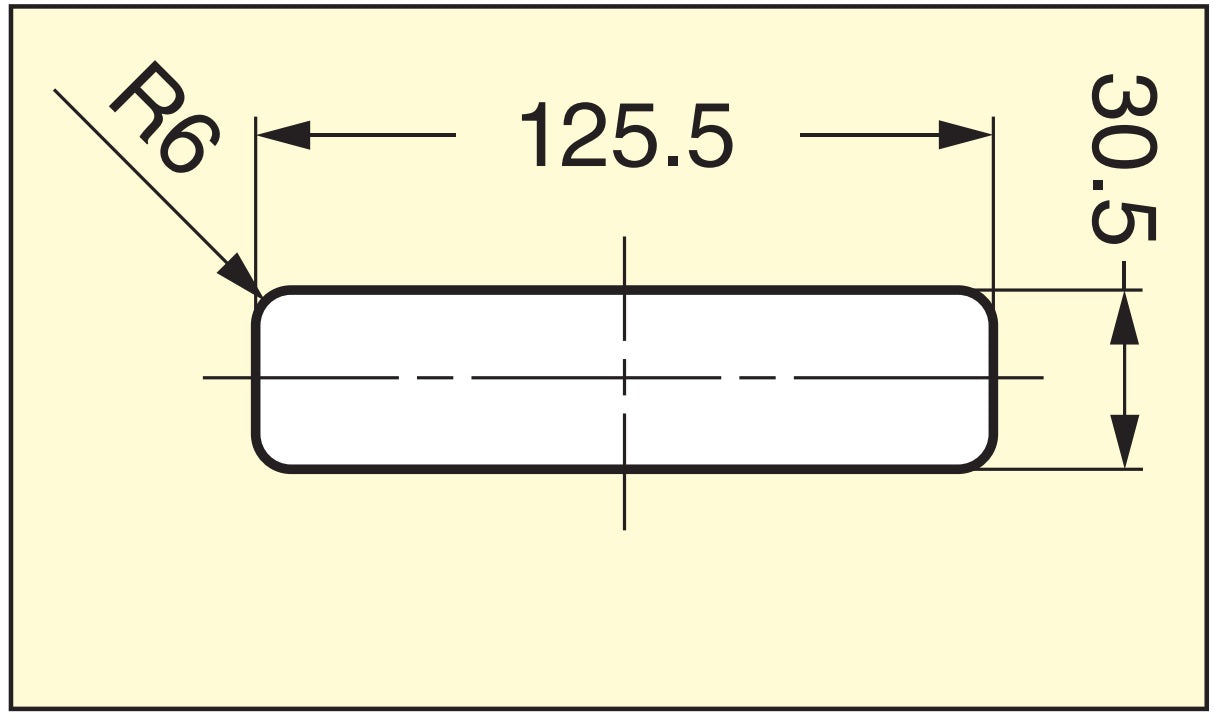

• For installation, a cutout in the front with a length of 125.5 mm (4-15/16″) and a width of 30.5 mm (1-13/64″) must be made
• When used with counter plate, the distance marked with (※) on the technical drawing must be increased to 7 mm (for further details see assembly drawing )

[caption id="attachment_112861" align="alignnone" width="420"] Zinc alloy flush pull with integrated fold-out doorstop, chrome-plated finish, HH-P135CR, 135 mm, from Sugatsune. Assembly drawing[/caption] Characteristics:

• Weight: 290 g
• Size: 135 mm (5.4″)
• Elaborately processed
• Ergonomic
• Stable
• Robust
• Chrome-plated
• High brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Length of the inlet shell handle: 135 mm (5-5/16″)
• Width: 40 mm (1-37/64″)
• Grip area size: 70 mm (2-3/4″) x 26 mm (1-1/32″)
• Depth of the grip area: 20 mm (25/32″)

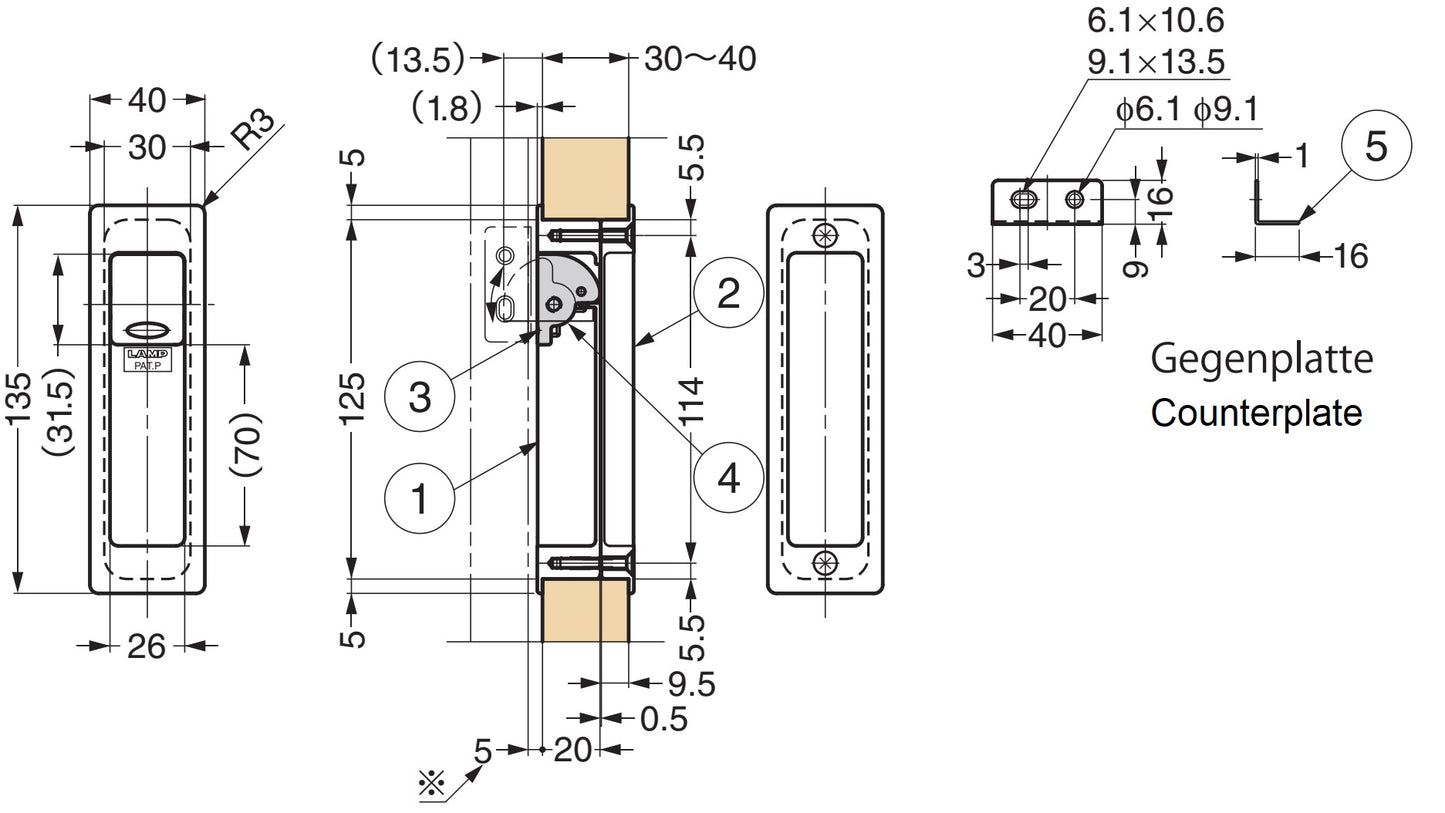

[caption id="attachment_112875" align="alignnone" width="420"] Zinc alloy flush pull with integrated fold-out doorstop, chrome-plated finish, HH-P135CR, 135 mm, by Sugatsune. Technical drawing[/caption] Included in delivery:

• 1 piece inlet handle HH-P135CR made of solid zinc alloy, chrome-plated
• 2 countersunk head screws M4 x 25 made of steel

Manufacturer reference number:

• Article number: 100-010-097
• Item number: HH-P135CR
• EAN number: 4510932010429

Manufacturer: Sugatsune / LAMP® (Japan)
