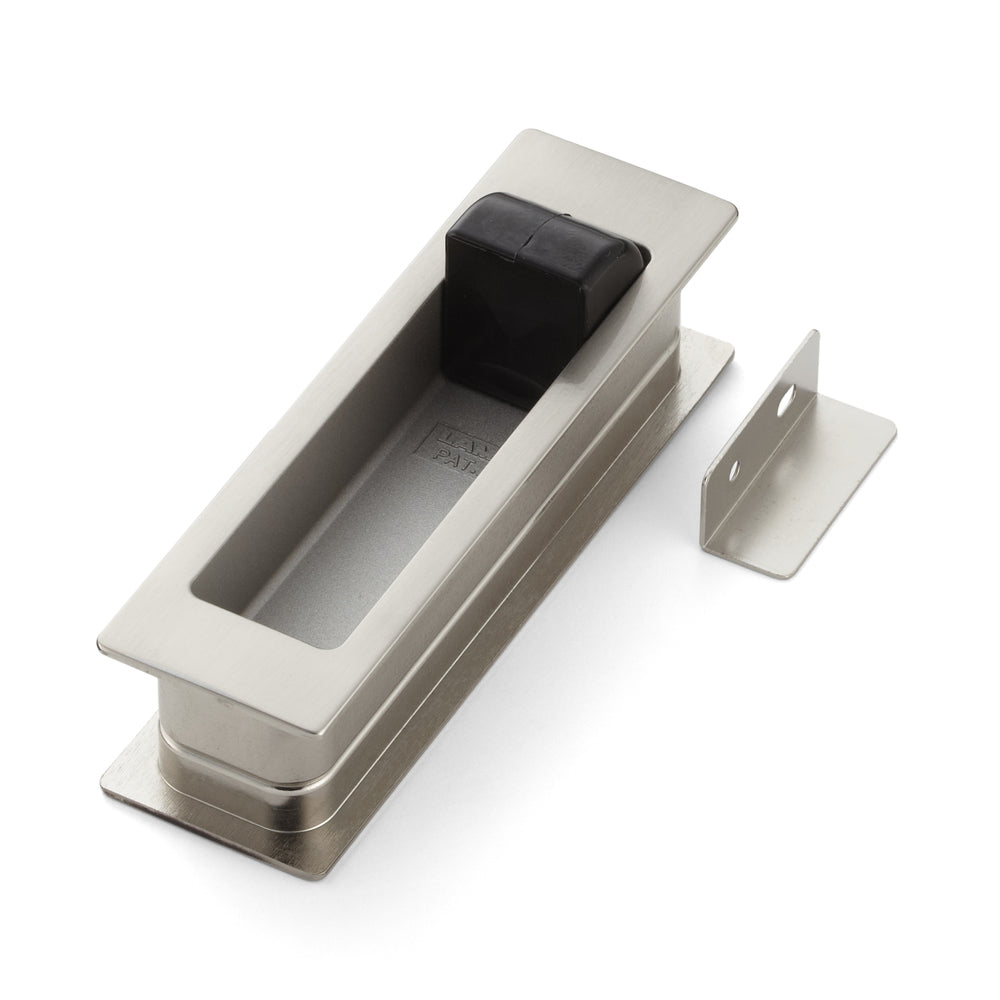

Recessed pull handle made of zinc alloy with integrated fold-out doorstop, finish: nickel-plated, satin matte, 135 mm (5.4") HH-P135SN. Recessed pull handle HH-P135SN with buffer for sliding doors, from Sugatsune / LAMP® (Japan)

High-quality recessed handle made of solid zinc alloy with integrated fold-out stop buffer, surface: nickel-plated, satin matt, HH-P135SN

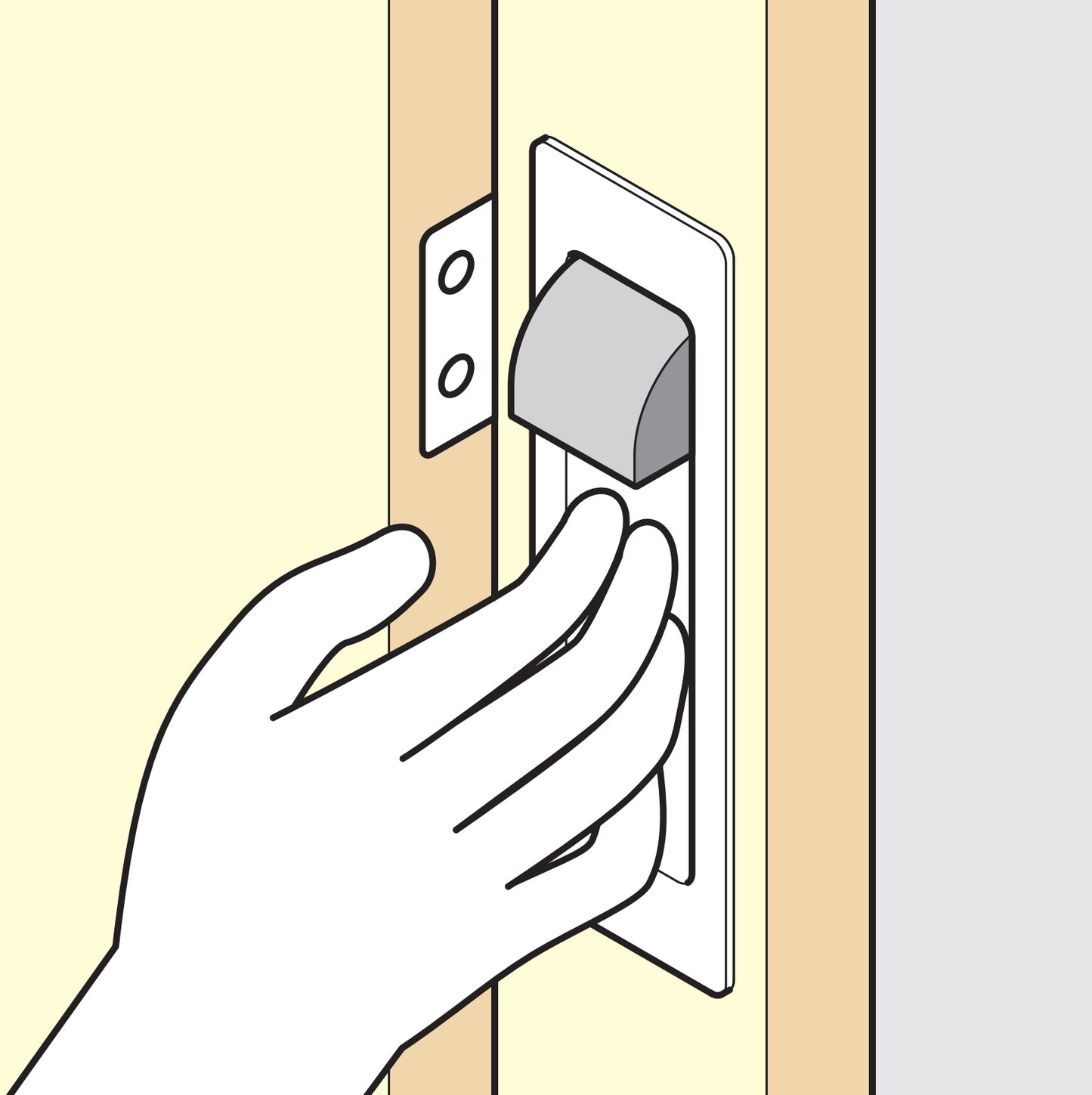

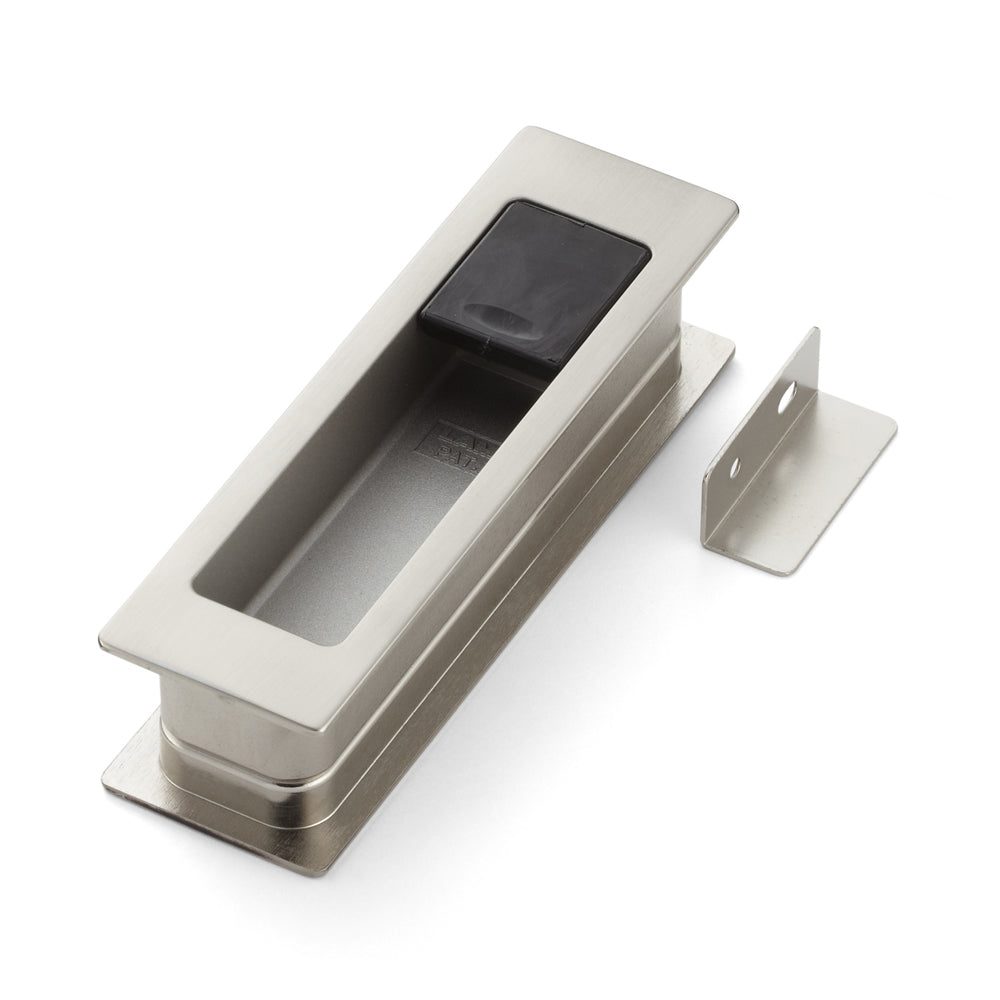

Application: Recessed handle HH-P135SN with buffer for sliding doors. [caption id="attachment_112734" align="alignnone" width="420"] Zinc alloy flush pull with integrated fold-out doorstop, finish: nickel-plated, satin matte, HH-P135SN, 135 mm, by Sugatsune. Application[/caption] The high-quality HH-P135SN flush pulls feature an integrated, fold-out doorstop. This buffer prevents the door from slamming against the cabinet wall. In addition, the doorstop can protect hands and fingers from getting trapped, as it prevents the handle from retracting behind the cabinet wall. The stop buffer can be folded back in to fully open the door. The HH-P135SN flush pull handle can be installed on doors with a thickness of 30-50 mm. When installing on doors with a thickness of 40-50 mm, longer screws must be used (not included). The inlet handle HH-P135SN is ideal for, among others:

• Sliding door

Material:

• The high-quality recessed handles HH-P135SN are made of zinc alloy (ZDC)

Surface:

• Nickel-plated, satin matt

Assembly:

• The fastening is carried out using the screws included in delivery (countersunk screw M4 x 25)

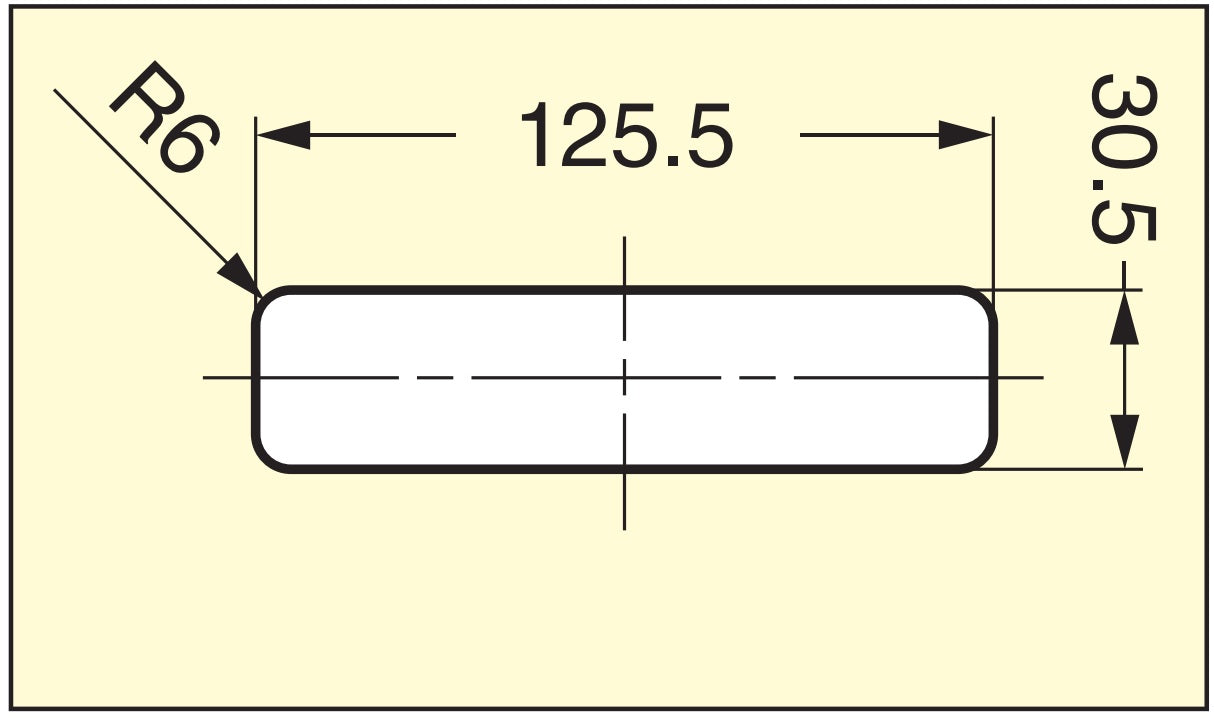

• For installation, a cutout in the front with a length of 125.5 mm (4-15/16″) and a width of 30.5 mm (1-13/64″) must be made
• When used with counter plate, the distance marked with (※) on the technical drawing must be increased to 7 mm (for further details see assembly drawing )

[caption id="attachment_112748" align="alignnone" width="420"] Zinc alloy flush pull with integrated fold-out doorstop, finish: nickel-plated, satin matte, HH-P135SN, 135 mm, by Sugatsune. Assembly drawing[/caption] Characteristics:

• Weight: 290 g
• Size: 135 mm (5.4″)
• Elaborately processed
• Ergonomic
• Stable
• Robust
• Nickel-plated, satin matt
• High brand quality from Sugatsune / LAMP®

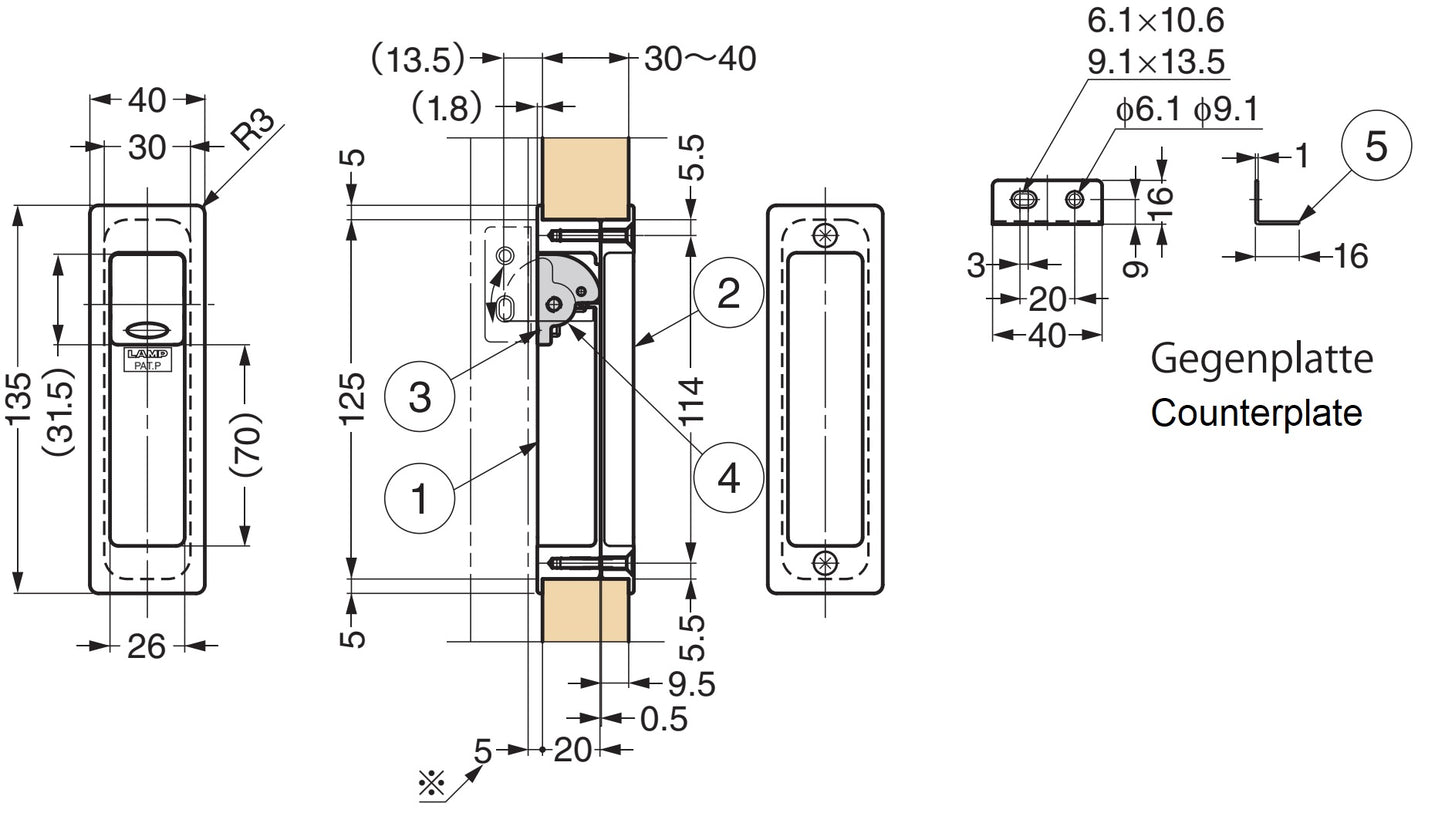

For further dimensions and details see technical drawing . The dimensions:

• Length of the inlet shell handle: 135 mm (5-5/16″)
• Width: 40 mm (1-37/64″)
• Grip area size: 70 mm (2-3/4″) x 26 mm (1-1/32″)
• Depth of the grip area: 20 mm (25/32″)

[caption id="attachment_112762" align="alignnone" width="420"] Zinc alloy flush pull with integrated fold-out doorstop, finish: nickel-plated, satin matte, HH-P135SN, 135 mm, by Sugatsune. Technical drawing[/caption] Included in delivery:

• 1 piece recessed handle HH-P135SN made of solid zinc alloy, nickel-plated, satin matt
• 2 countersunk head screws M4 x 25 made of steel

Manufacturer reference number:

• Article number: 100-010-096
• Item number: HH-P135SN
• EAN number: 4510932010412

Manufacturer: Sugatsune / LAMP® (Japan)
