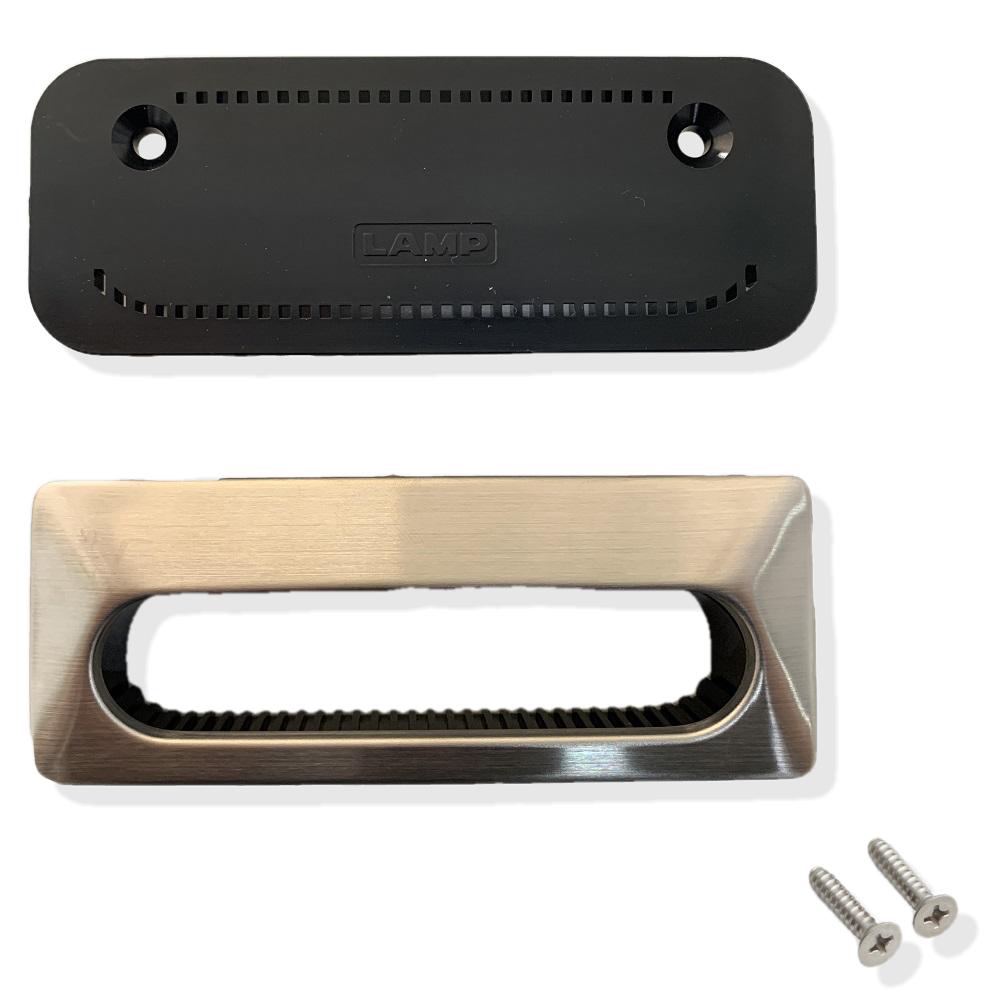

Unique V2A (SUS304) vented pull handle, black, 105 mm (4.2") UTA-105BL. Ventilated pull handle made of stainless steel V2A (SUS304), satin finish, for drawers, cabinets, humid environments, ships from Sugatsune / LAMP® (Japan)

Practical ventilation handle made of stainless steel V2A (SUS304) UTA-105BL

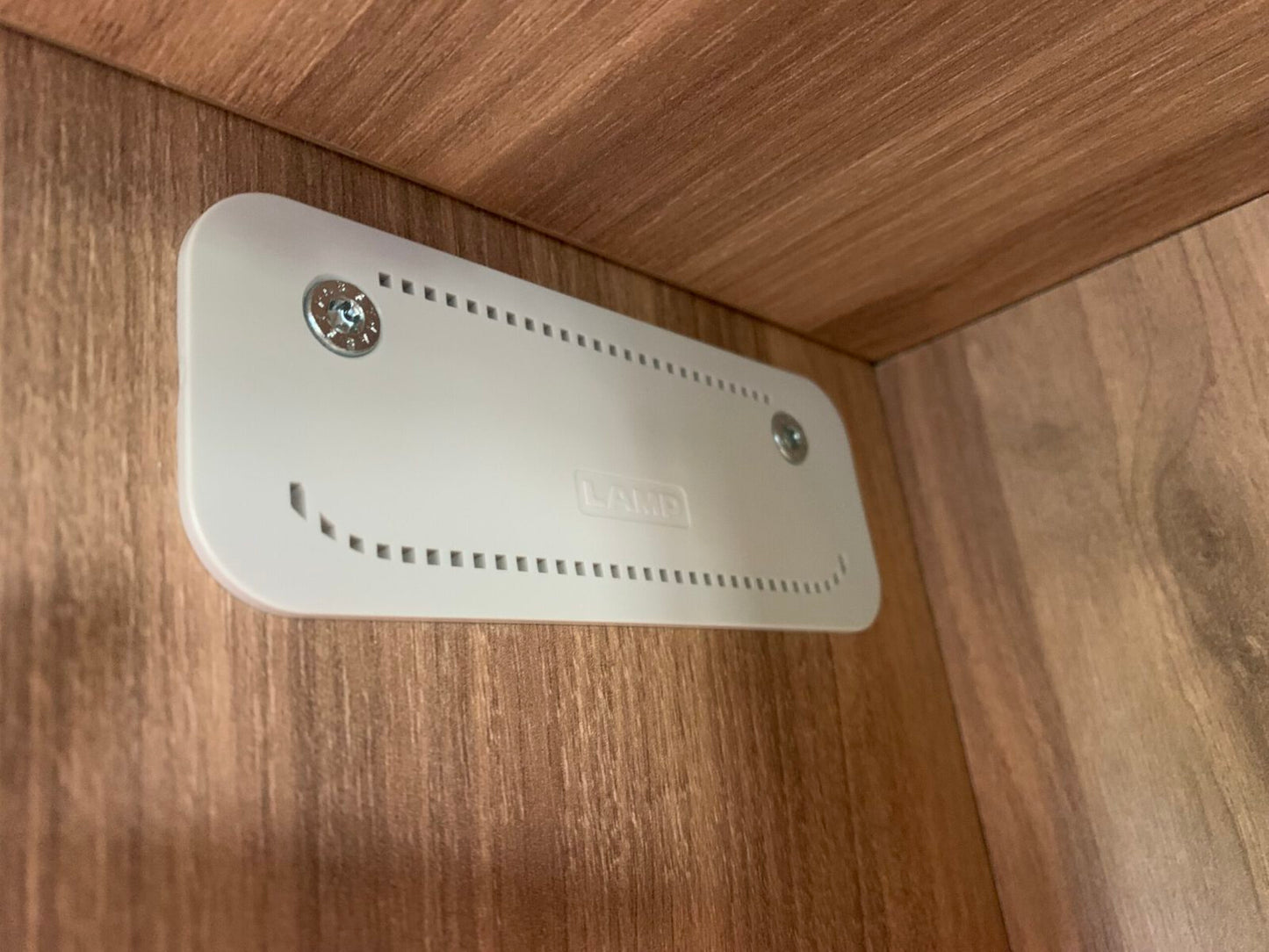

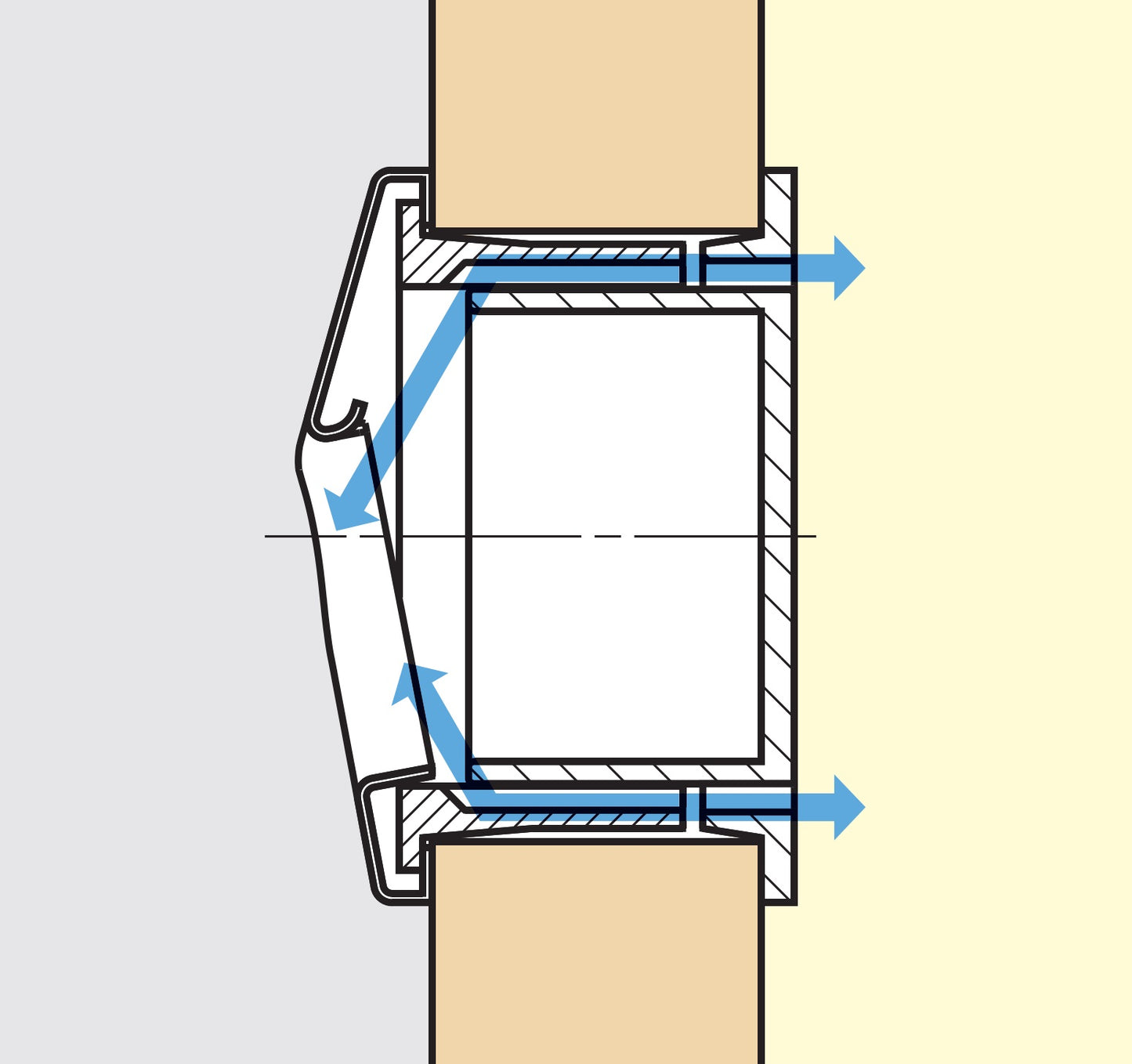

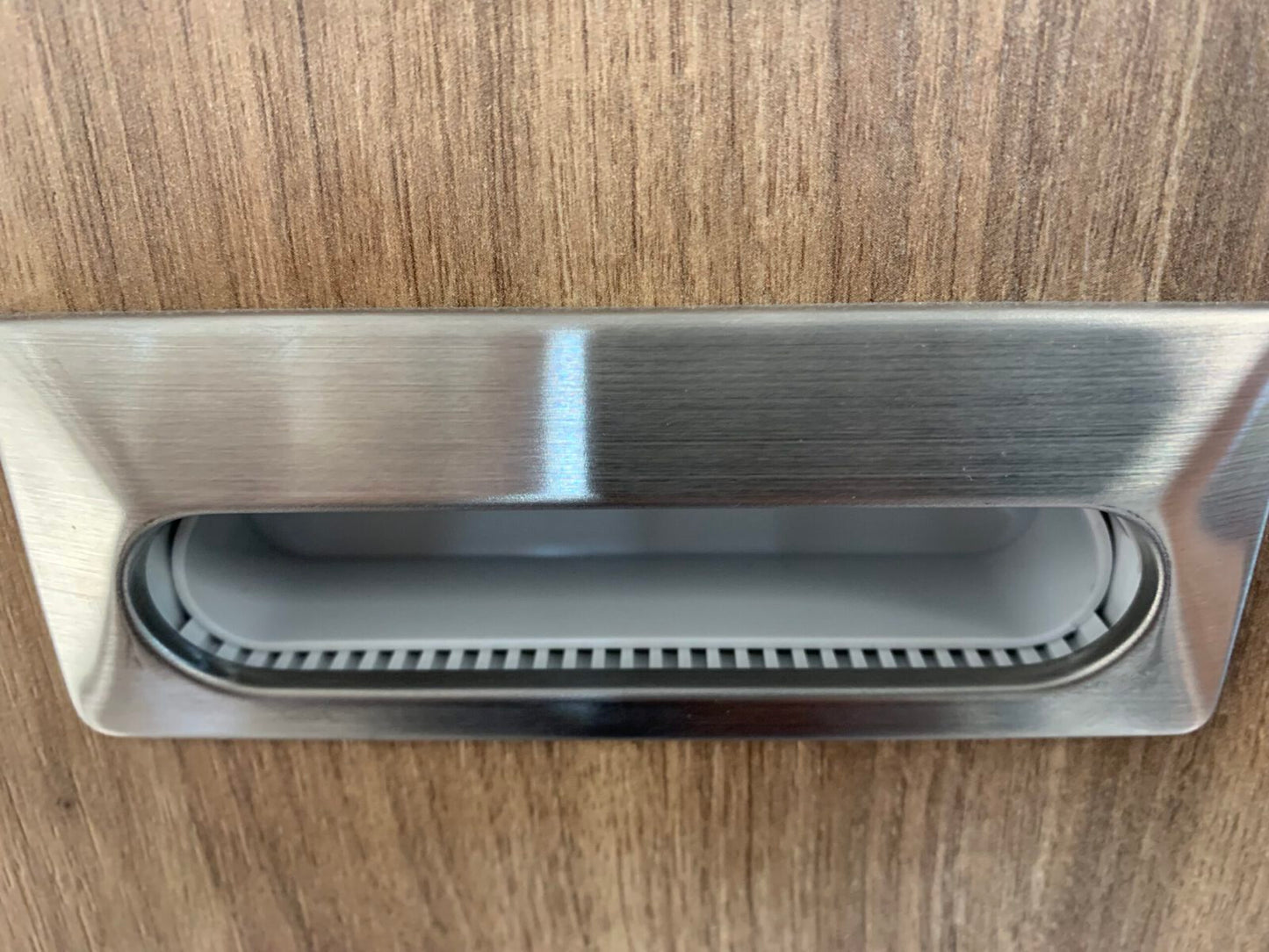

Application: [caption id="attachment_43848" align="alignnone" width="420"] Unique ventilation grip shell made of V2A (SUS304), black from Sugatsune, UTA-105BL (105 mm), satin finish. Application[/caption] Ventilation handle shell made of stainless steel V2A (SUS304), satin matt, for drawers, cabinets, humid environments, ships. The UTA-105BL ventilation grips combine the grip function with the ventilation function. The air grille is not visible to the user. [caption id="attachment_43861" align="alignnone" width="420"] Unique ventilation grip shell made of V2A (SUS304), black by Sugatsune, UTA-105BL (105 mm), satin finish. Ventilation function.[/caption] They can be used in numerous applications where the use of an additional ventilation grille is not desired due to design or functionality. The high-quality UTA-105BL ventilation grips are ideal for:

• drawers
• Cabinets
• humid environments
• ships
• beach hotel
• Hotel minibar
• Medical field
• Laboratory equipment

Material: The UTA-105BL ventilation handles are made of high-quality SUS304 stainless steel. They are corrosion-resistant and rust-proof. Housing: ABS Cover cap: ABS Surface:

• Satin matt
• Case color: Black
• Available with the case in black, light grey and ivory

Assembly:

• The mounting is done using the screws included in delivery (4 × 20 mm)
• The fastening screws are also made of stainless steel

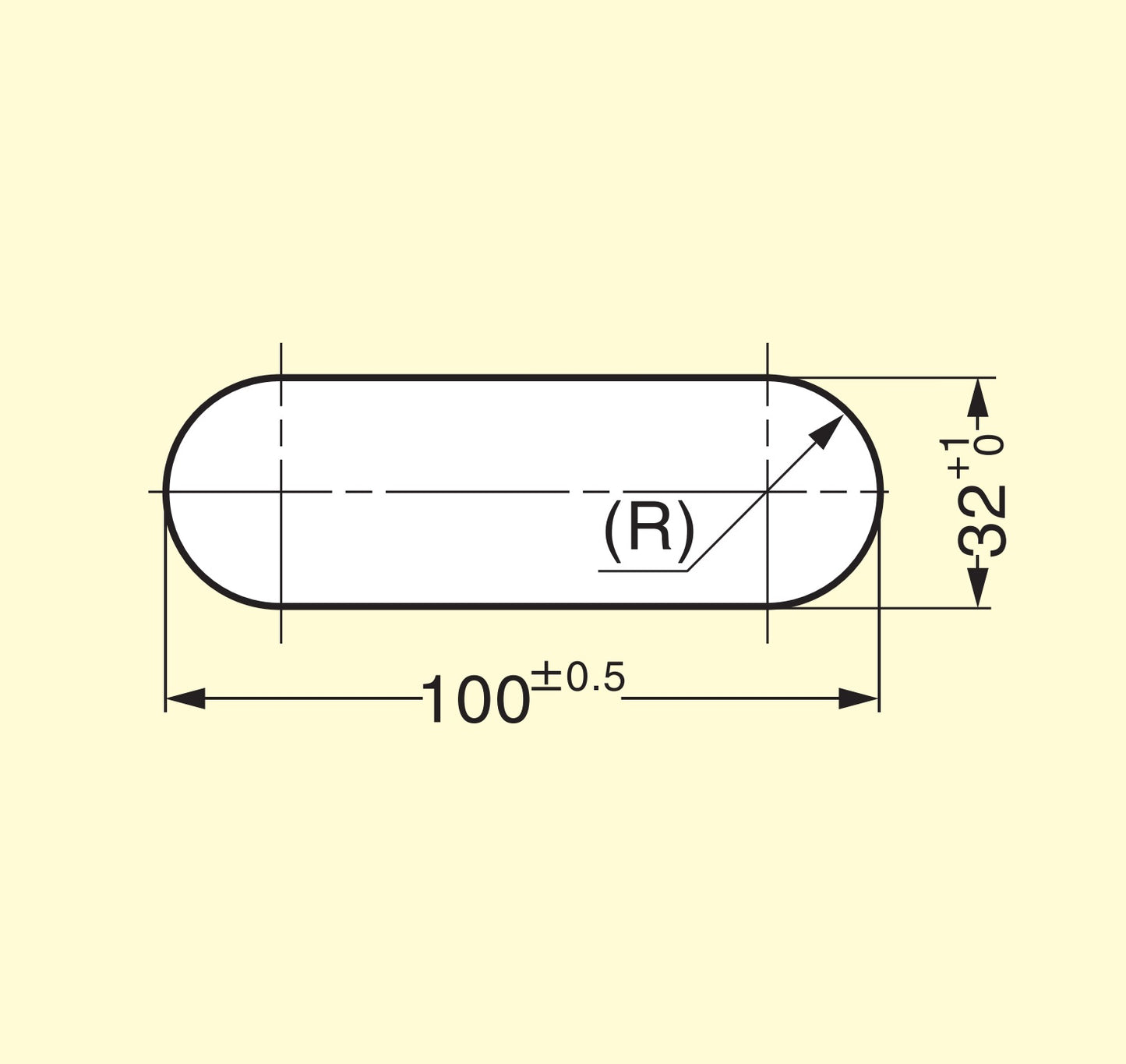

• For installation, a 100 mm (3-30/32″) x 32 mm (1-8/32″) cutout must be made in the door (for further details see installation drawing )

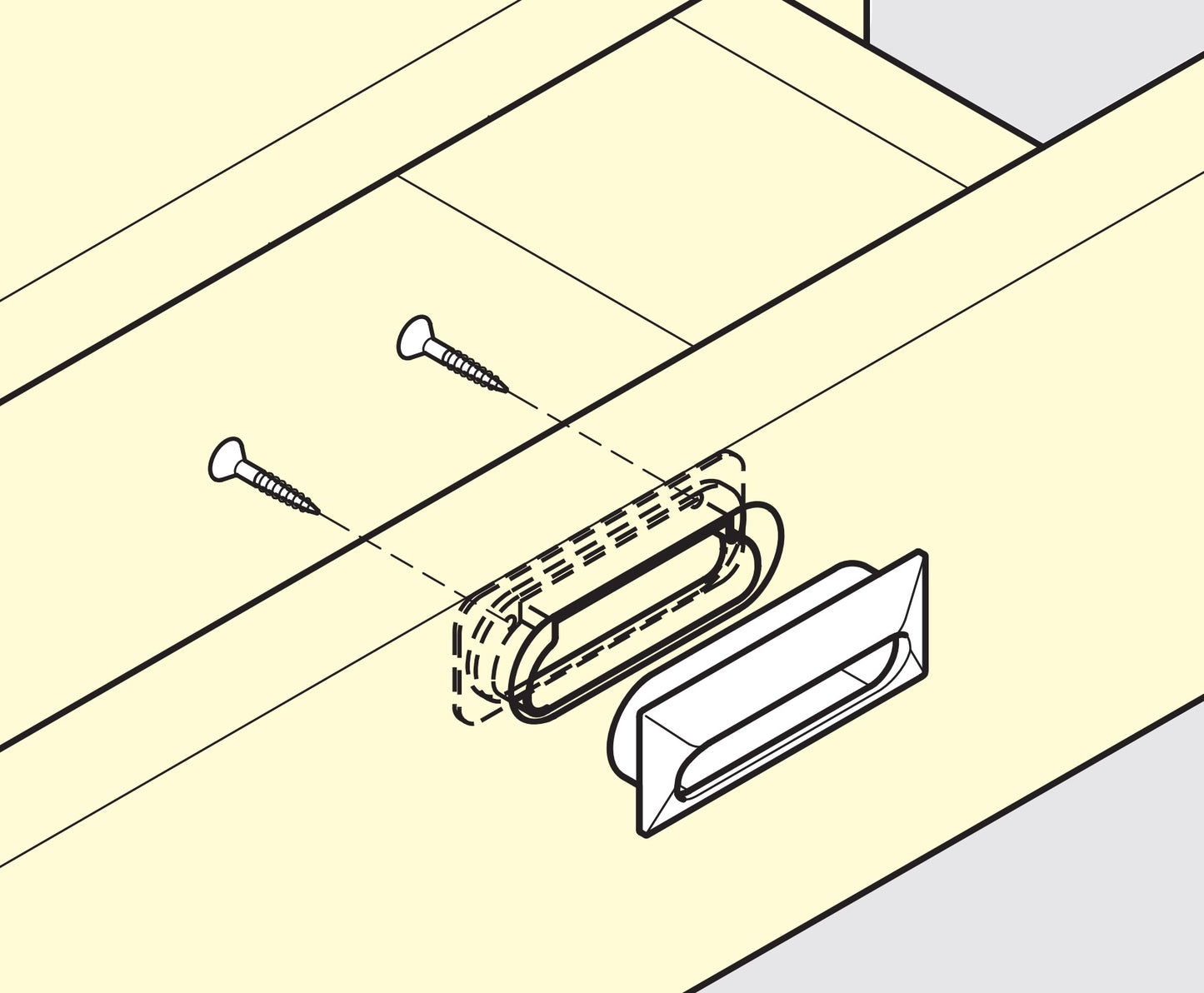

[caption id="attachment_43874" align="alignnone" width="420"] Unique V2A (SUS304) black vented handle from Sugatsune, UTA-105BL (105 mm), satin finish. Assembly drawing[/caption] Characteristics:

• Weight: 40 g
• Size: 105 mm (4.2″)
• With ventilation function
• Maximum exhaust air area: 136 mm²
• Door thickness: from 18 mm (23/32″) to 25 mm (31/32″)
• Small ventilation holes to prevent insects from entering
• Made of stainless steel
• Large grip area
• Stainless steel
• Corrosion-resistant
• High quality

Dimensions: For further dimensions and details see technical drawing .

• Width of the ventilation grip shell: 105 mm (4-4/32″)
• Height: 40 mm (1-18/32″)
• Grip width: 86 mm (3-12/32″)

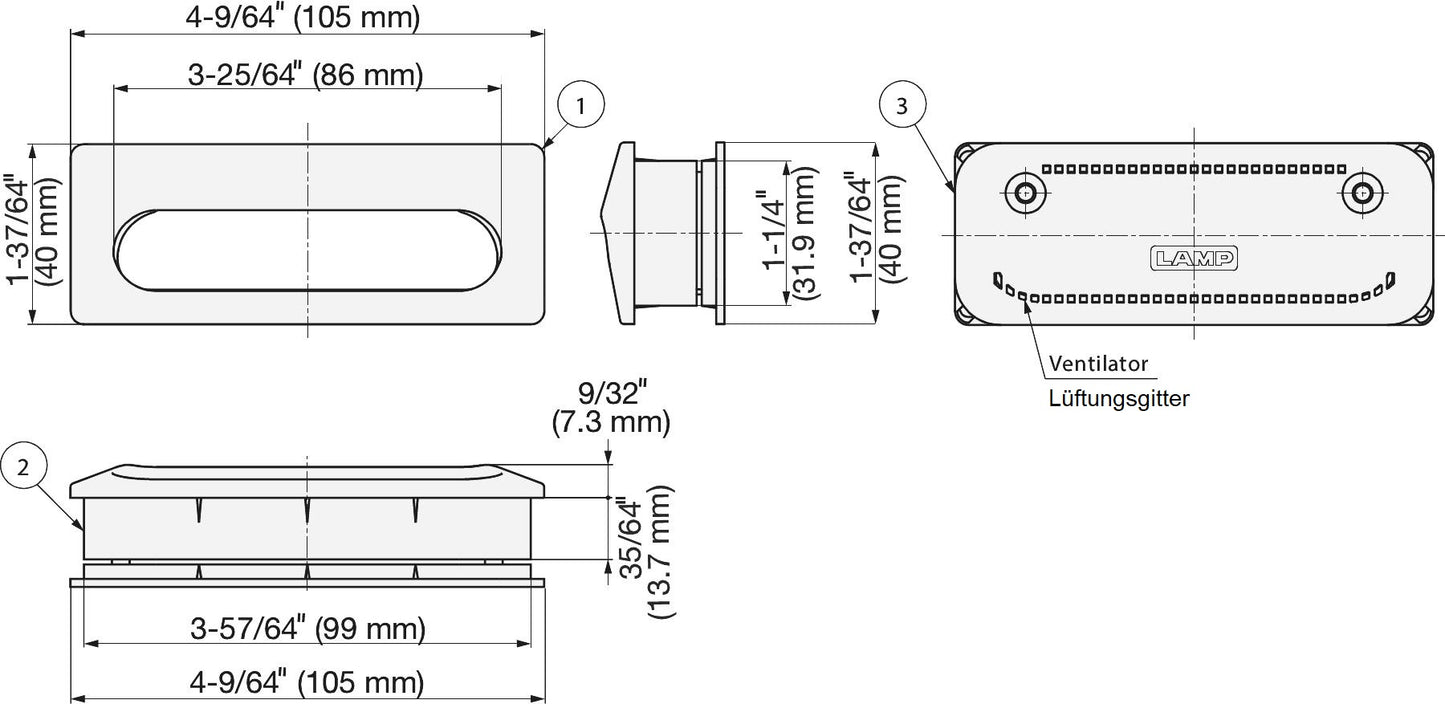

[caption id="attachment_43887" align="alignnone" width="420"] Unique ventilation grip shell made of V2A (SUS304), black by Sugatsune, UTA-105BL (105 mm), satin finish. Technical drawing[/caption] Included in delivery:

• 1 piece ventilation handle shell UTA-105BL made of stainless steel SUS304 (V2A)
• 2 x 4 × 20 mm stainless steel fastening screws

Manufacturer reference number:

• Article number: 100-026-733
• Article name: UTA-105BL
• EAN number: 4510932140218

Manufacturer: SUGATSUNE / LAMP® (Japan)
