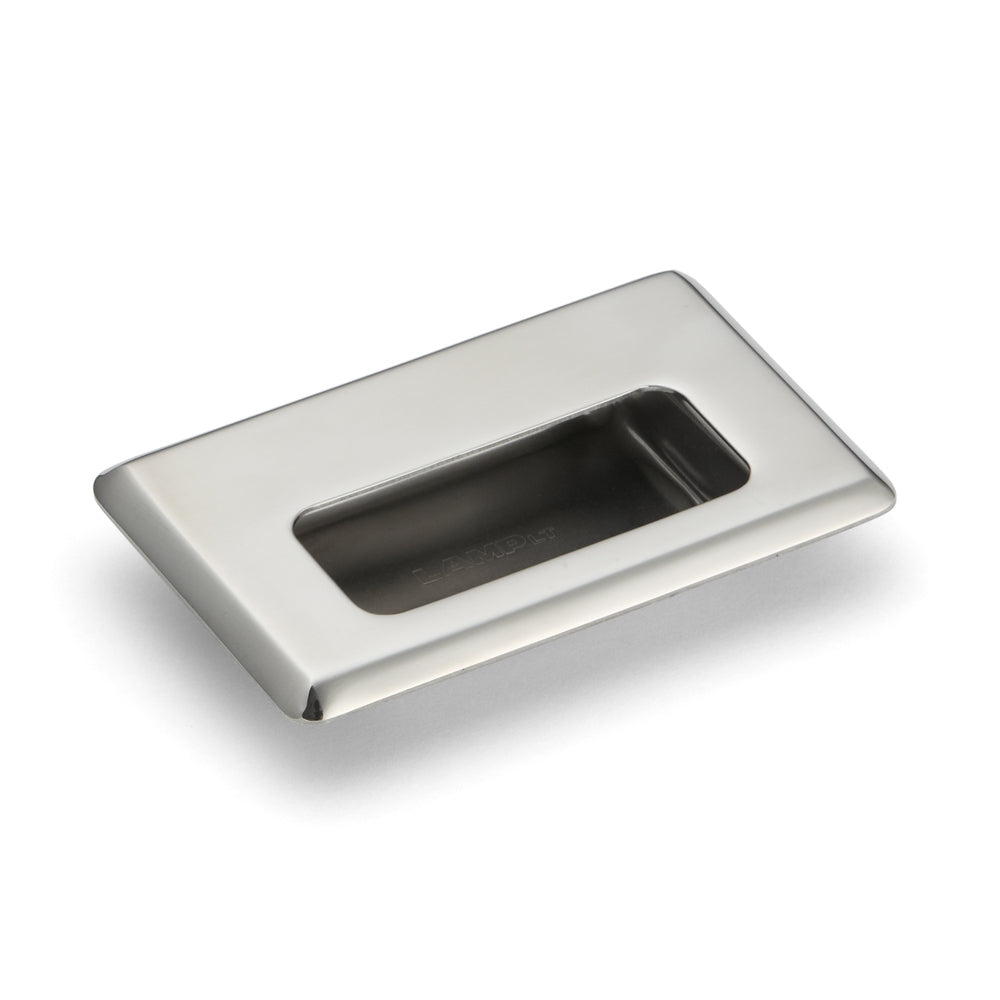

Exclusive SUS304 stainless steel flush pull, 94 mm (3.8") HH-FC-3M. Stainless steel flush pull made of V2A stainless steel, with a glossy finish, for drawers, cabinets, humid environments, ships, machinery, and appliances from Sugatsune / LAMP® (Japan).

Stainless steel handle shell made of stainless steel V2A (SUS304) HH-FC-3M

Application: Stainless steel handle shell made of V2A stainless steel, shiny polished, for drawers, cabinets, damp environments, ships, machines, devices. HH-FC-3M stainless steel handles have a simple and elegant design and can be used in a variety of ways. The high-quality HH-FC-3M stainless steel handle shells are ideal for:

• drawers
• Cabinets
• humid environments
• ships
• machines
• Devices
• beach hotel
• Medical field
• Laboratory equipment

Material: The stainless steel handles HH-FC-3M are made of high-quality SUS304 stainless steel. They are corrosion-resistant and rust-proof. Surface:

• Shiny polished
• The stainless steel handles HH-FC-3M are available with the surfaces "satin matt" and "gloss polished"

Assembly:

• The fastening is done with M4 screws (not included)
• The HH-FC-3M stainless steel handles have integrated threaded nuts
• For installation, a cutout (L x H) 63 mm (2-15/32″) x 45 mm (1-25/32″) must be made on the front
• Furthermore, four holes must be pre-drilled with the distance P1=76 mm (3″) and P2=32 mm (1-8/32″) (for further details see assembly drawing )

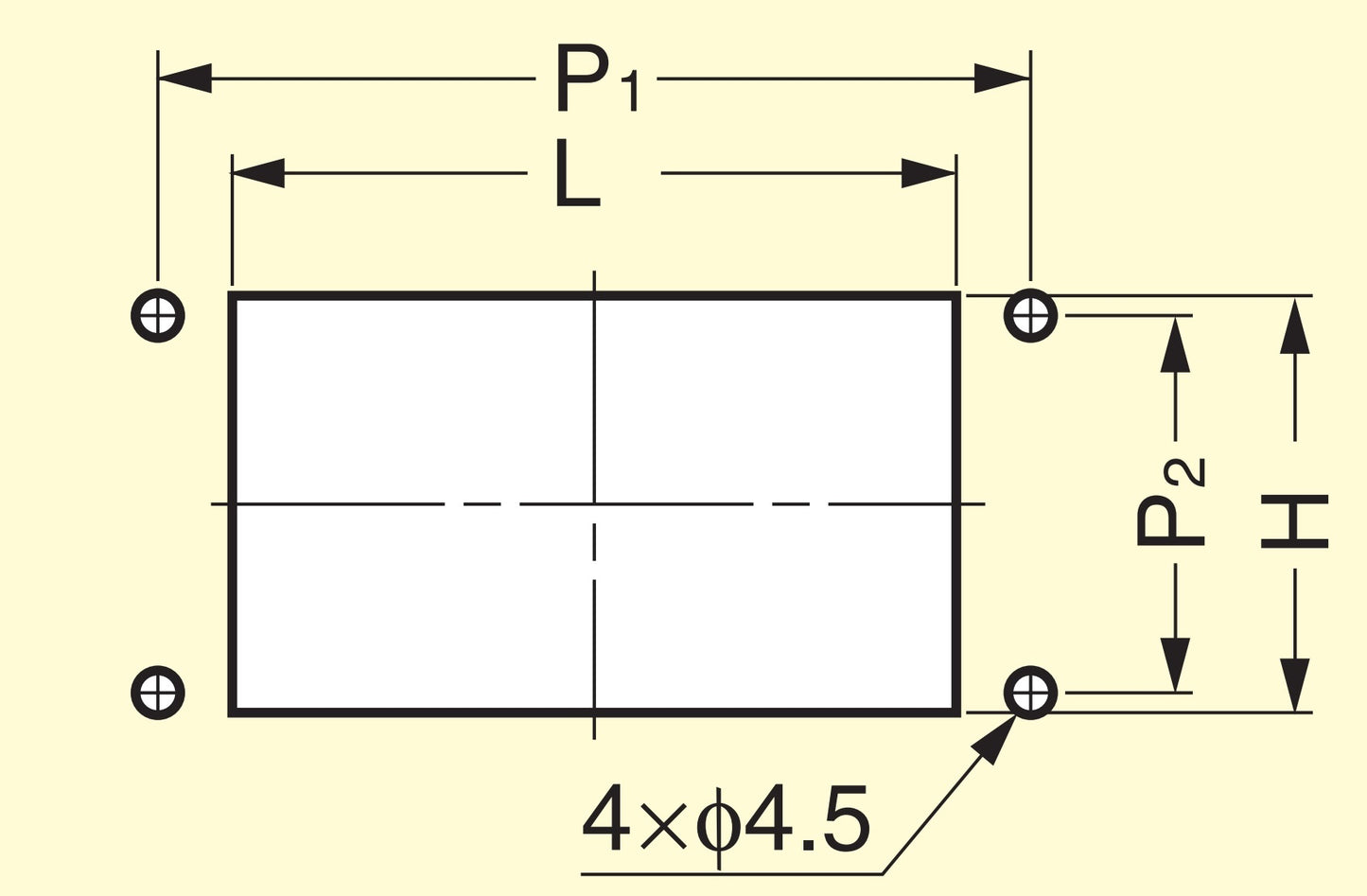

[caption id="attachment_44964" align="alignnone" width="420"] Exclusive SUS304 stainless steel pull handle from Sugatsune, HH-FC-3M (94 mm), glossy polished. Assembly drawing[/caption] Characteristics:

• Weight: 80 g
• Size: 94 mm (3.8″)
• Exclusive design
• Made of stainless steel
• Stainless steel
• Corrosion-resistant
• High quality

Dimensions: For further dimensions and details see technical drawing .

• Width of the stainless steel handle shell: 94 mm (3-22/32″)
• Height: 60 mm (2-12/32″)
• Grip area width: 60 mm (2-12/32″)

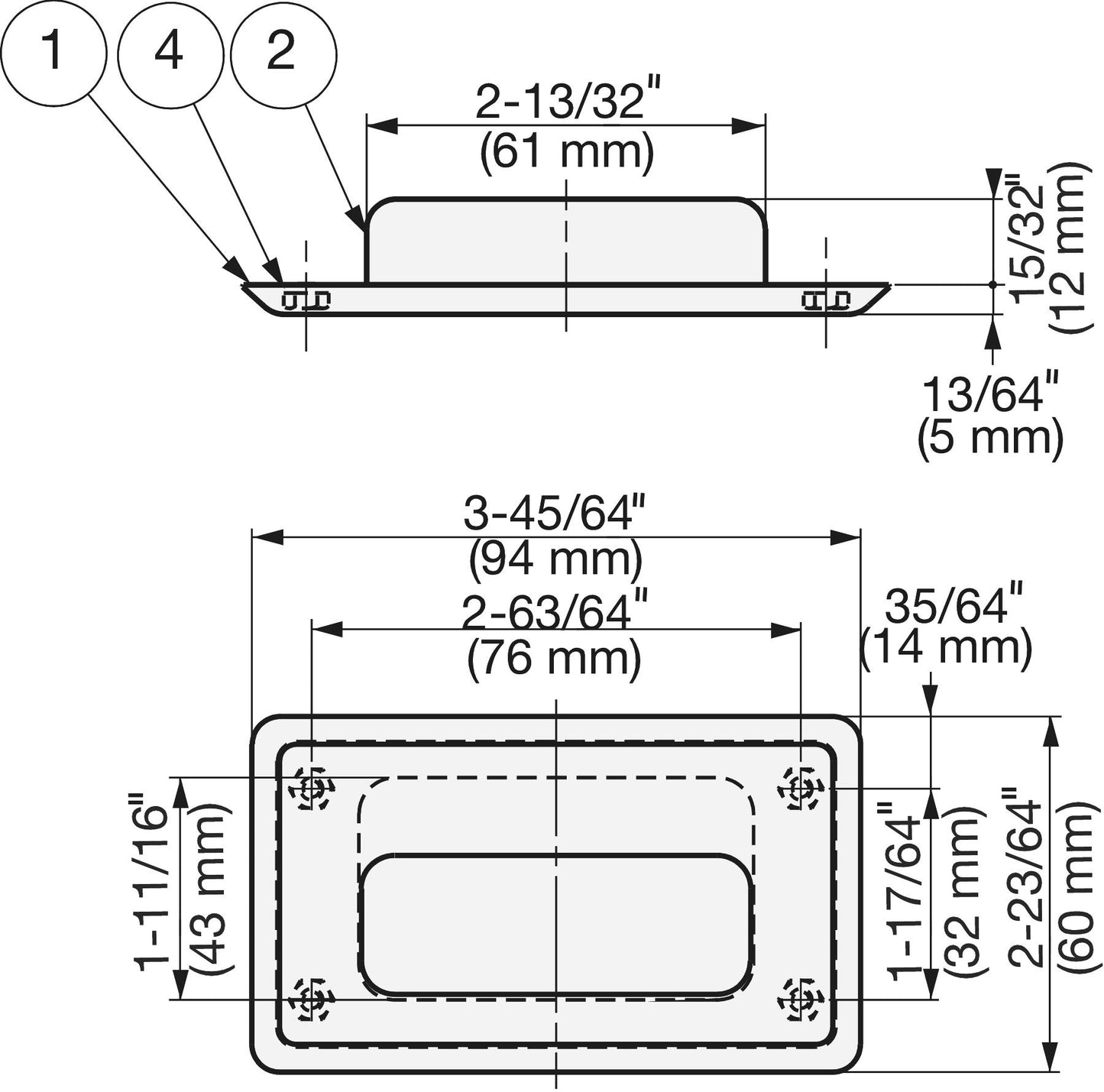

[caption id="attachment_44977" align="alignnone" width="420"] Exclusive SUS304 stainless steel handle from Sugatsune, HH-FC-3M (94 mm), glossy polished. Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel handle shell HH-FC-3M made of stainless steel SUS304 (V2A)

Manufacturer reference number:

• Article number: 100-012-109
• Article name: HH-FC-3M
• EAN number: 4510932010023

Manufacturer: SUGATSUNE / LAMP® (Japan)
