Curved siphon cutout, made of plastic, surface: white, 3044415 for vanity unit, kitchen cabinet, bathroom cabinet, siphon, drain

High-quality siphon cutout, made of robust plastic, surface: white, 3044415

Application:

Siphon protection for vanity units, kitchen cabinets, bathroom cabinets, siphons, drains and much more.

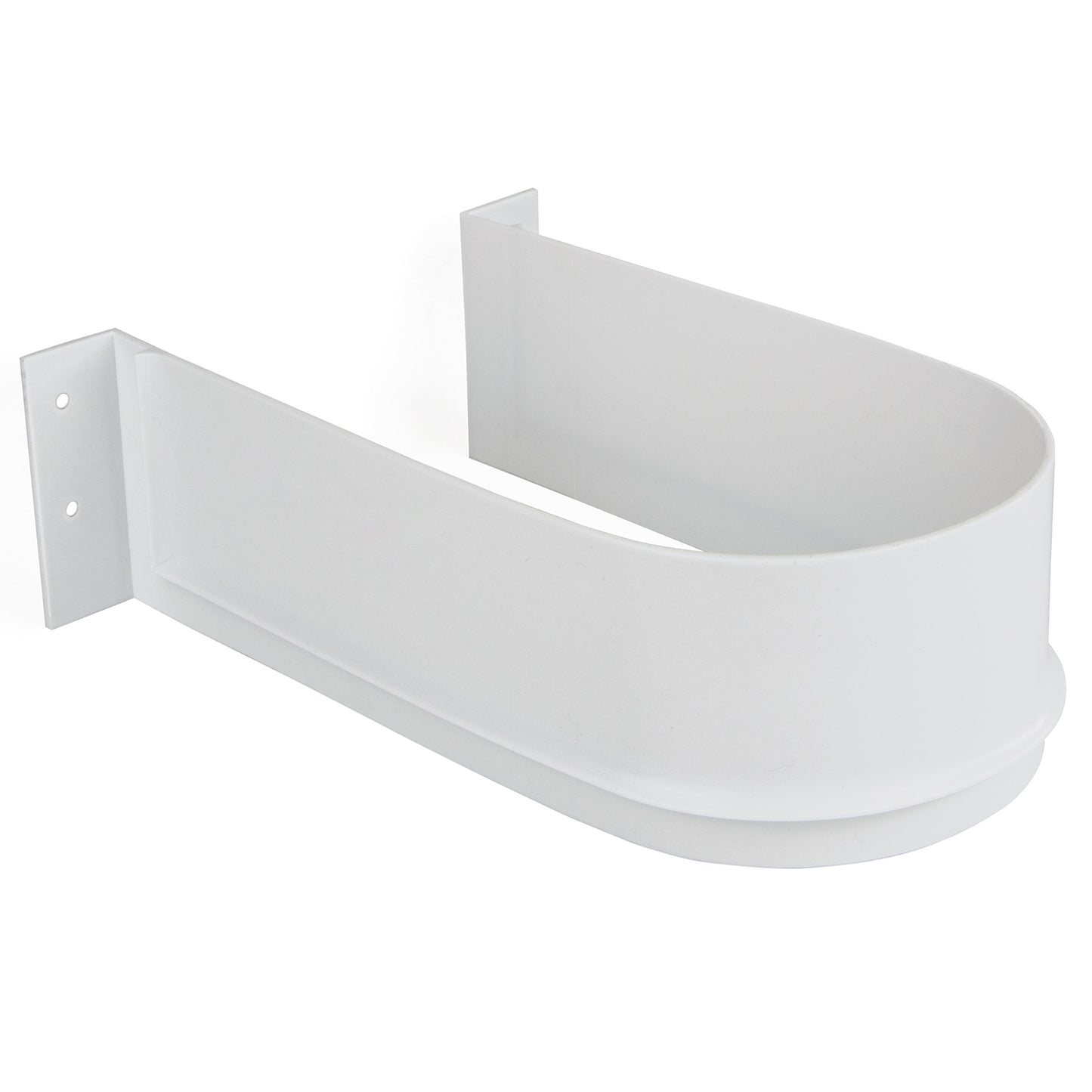

The curved siphon cutout 3044415 made of plastic transforms drawers under washbasins or sinks into fully usable storage space.

The round shape of the siphon cover 3044415 encloses the siphon so that no valuable depth is lost.

Robust, easy-to-clean material protects the furniture from moisture and chemicals.

The precise shape of the siphon cover 3044415 fits flush into drawers and maintains a tidy appearance.

Thanks to screw mounting, the siphon cutout 3044415 can be quickly retrofitted and just as easily replaced if necessary.

The high-quality siphon covers 3044415 are ideal for, among others:

• Drawer
• Base cabinet
• Storage space
• Furniture construction
• Internal pull-out
• Vanity unit
• kitchen cabinet
• bathroom cabinet
• siphon
• Sequence

Material:

• The siphon covers 3044415 are made of robust plastic
• Plastic is lightweight and allows easy assembly of components and furniture fittings without compromising stability
• It is corrosion-resistant and is therefore particularly suitable for humid environments such as swimming pools, bathrooms or kitchens
• In addition, the flexible formability of plastic allows for a wide variety of designs and unobtrusive integration into different furniture styles or devices and machines

Surface:

• White
• White surfaces convey a clean and modern aesthetic
• The color white reflects light effectively, making rooms appear brighter and visually larger
• In addition, white objects are inconspicuous and easy to clean, which makes them particularly practical for everyday use

Assembly:

• Fastening is done with countersunk chipboard screws 3.5 x 16 mm (not included)

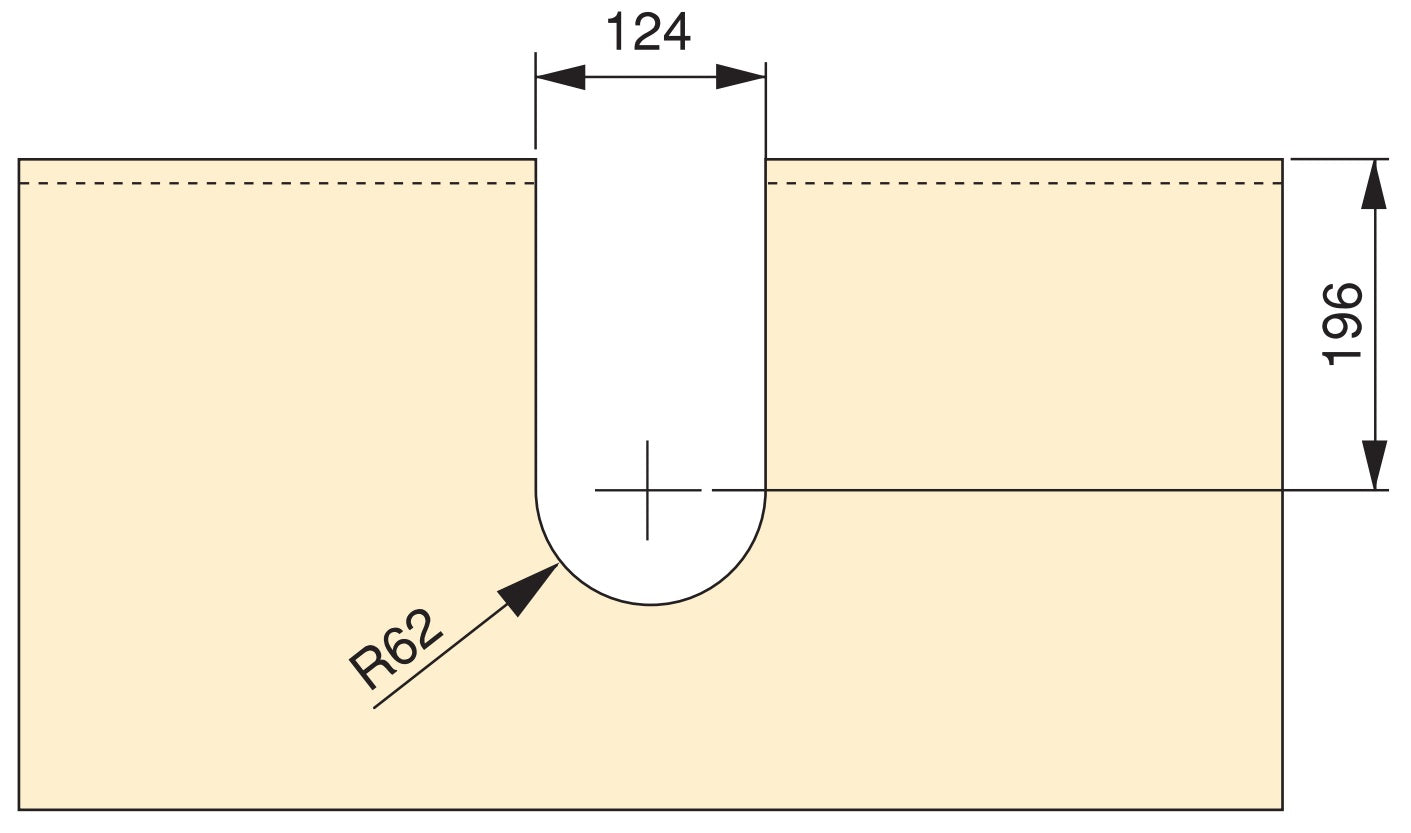

• To attach siphon cover 3044415, a cutout with a depth of 196 mm (7-23/32″) and a width of 124 mm (4-7/8″) must be made in the drawer bottom
• At the end of the cutout, a hole with a diameter of ⌀62 mm (2-7/16″) must be drilled
• The center of the hole should be on the inner edge of the cutout
• The siphon protection 3044415 is screwed to the drawer back wall from the inside
• The siphon cutout 3044415 has four mounting holes with a diameter of 4 mm (5/32″) (for further details see assembly drawing )

Characteristics:

• Weight: 129 g
• Size: 124 mm (4-7/8″)
• easy to assemble
• practical
• stable
• Made of impact-resistant plastic
• Curved shape flows around standard siphons
• Optimizes the drawer depth under the sink
• Light weight, no additional load on the drawer
• Easy cleaning with mild cleaners
• Installation in just a few minutes without special tools
• white
• robust
• high brand quality from UMAXO®

The dimensions:

• Depth of the siphon cover 3044415: 124 mm (4-7/8″)
• Width: 124 mm (4-7/8″)
• Frame height: 81 mm (3-3/16″)
• Inner height of the frame: 65 mm (2-9/16″)

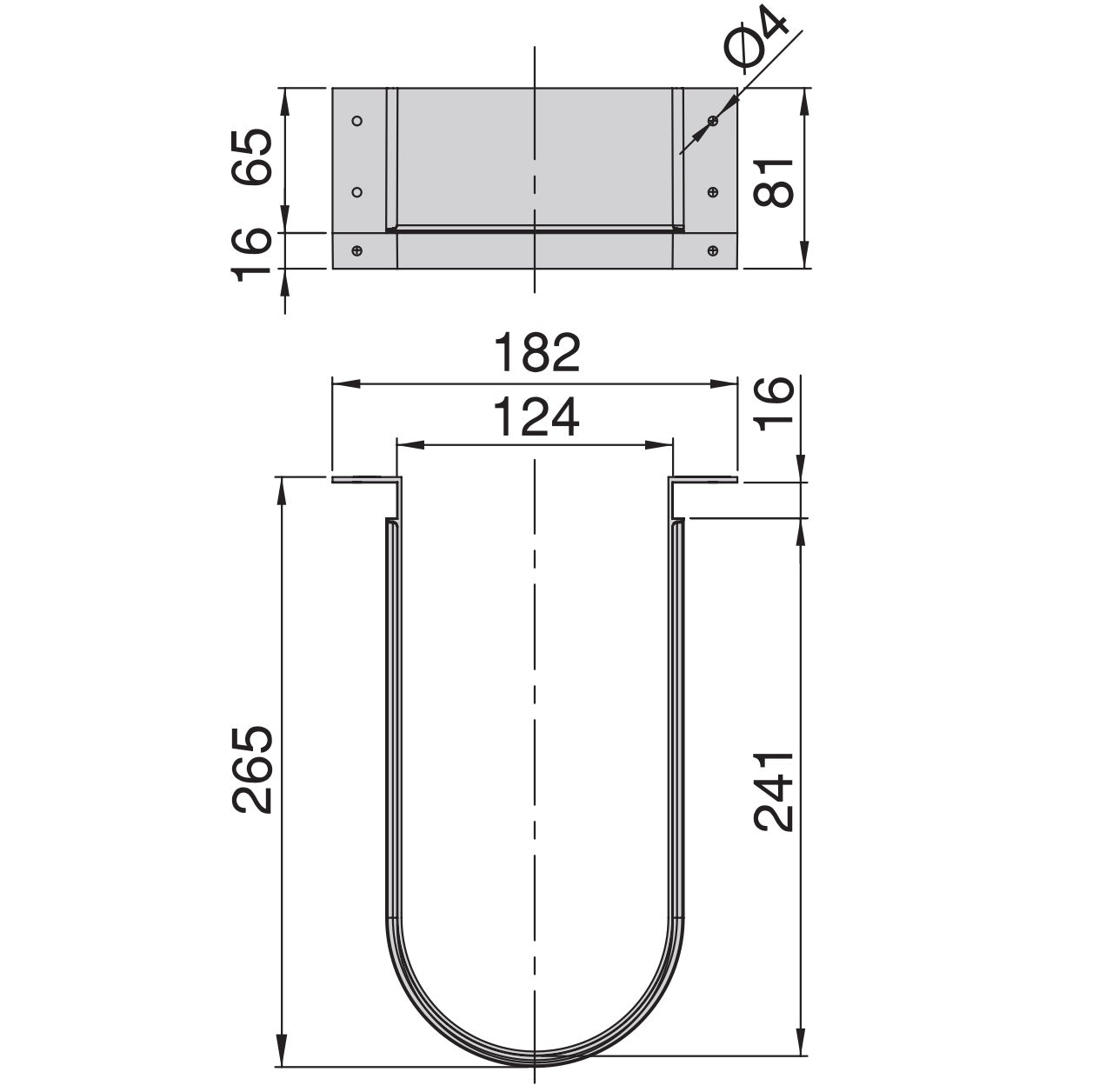

For further dimensions and details see technical drawing .

Included in delivery:

• 1 piece siphon cutout 3044415 made of robust plastic, white

Manufacturer reference number:

• Article number: 3044415
• EAN number: 8432393259383

Manufacturer: EMUCA
